Install the Motherboard

Install the motherboard in a system chassis (case). The board is
an ATX size motherboard. You can install this motherboard in an
ATX case. Make sure your case has an I/O cover plate matching
the ports on this motherboard.
Install the motherboard in a case. Follow the case manufacturer's
instructions to use the hardware and internal mounting points on
the chassis.

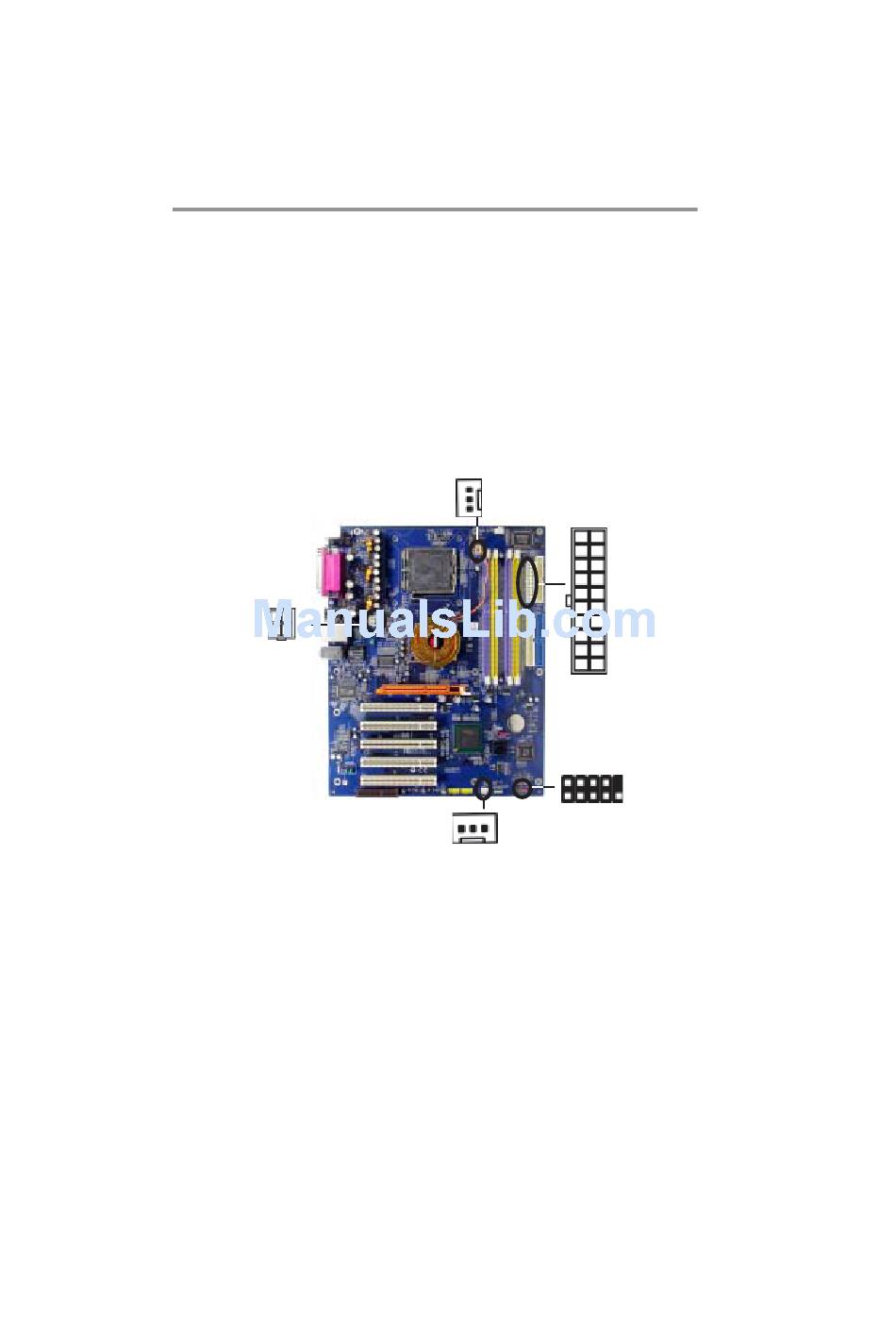

ATX3
Connect the power connector from the power supply to the ATX2
connector on the motherboard. The ATX3 is a +12V connector
for CPU Vcore power.
If there is a cooling fan installed in the system chassis, connect the
cable from the cooling fan to the SYSFAN fan power connector
on the motherboard.
Connect the auxiliary power supply cooling fan connector to
PWRFAN.
PWRFAN
1
1
SYSFAN
1
14
ATX2
PANEL1
