Motherboard User's Guide

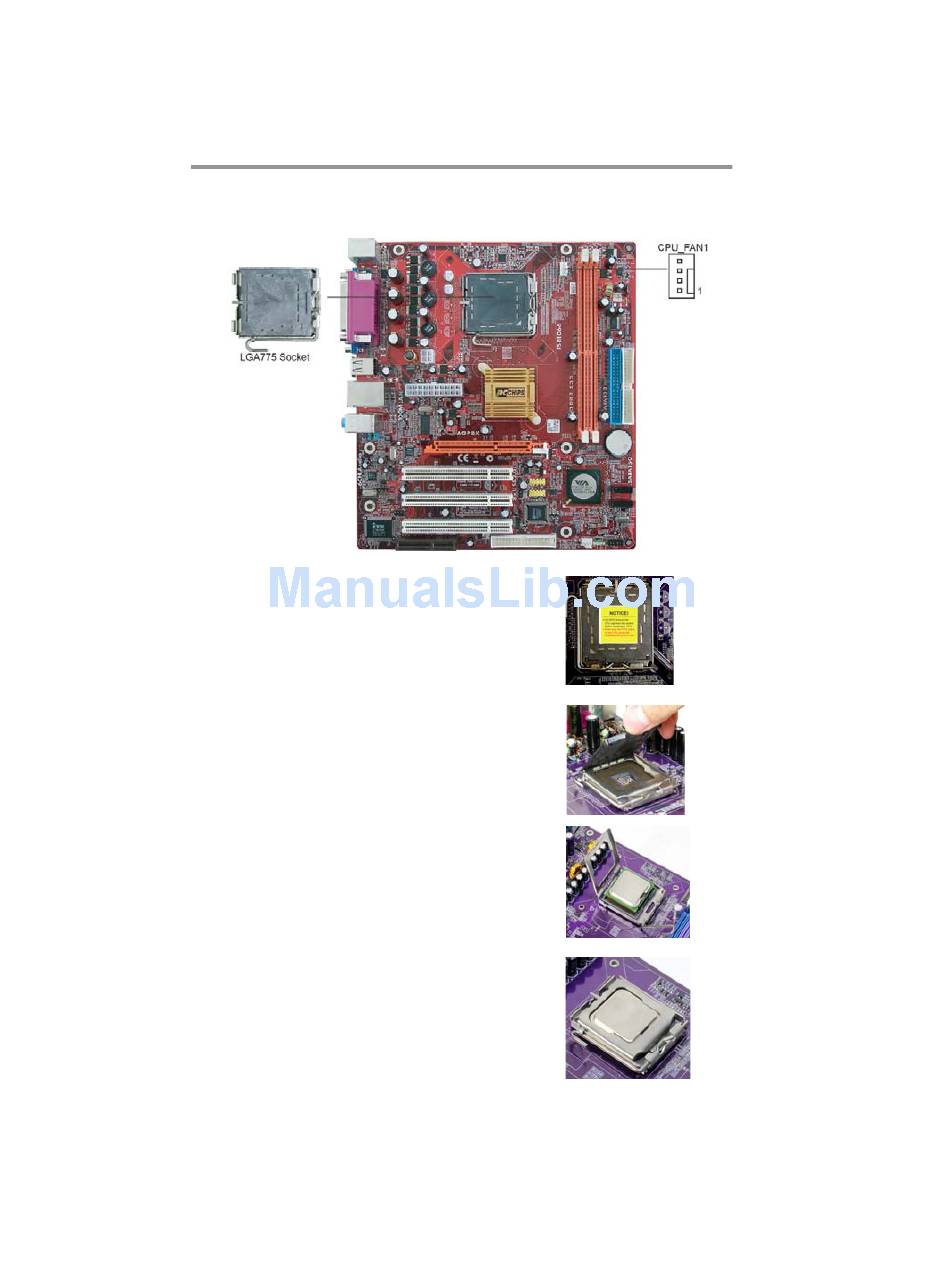

CPU Installation Procedure
Follow these instructions to install the CPU:
A. Read and follow the instructions shown on
the sticker on the CPUcap.
B. Unload the cap
•
Use thumb & forefinger to hold the
lifting tab of the cap.
•
Lift the cap up and remove the cap
completely from the socket.
C. Open the load plate
•
Use thumb & forefinger to hold the
hook of the lever, pushing down and
pulling aside unlock it.
•
Lift up the lever.
•
Use thumb to open the load plate.
Be careful not to touch the contacts.
D. Install the CPU on the socket
•
Orientate CPU package to the socket.
•
Make sure you match triangle marker
to pin 1 location.
E. Close the load plate
•
Slightly push down the load plate onto
the tongue side, and hook the lever.
•
CPU is locked completely.
F. Apply thermal grease on top of the CPU.
Fasten the cooling fan supporting base
G..
onto the CPU socket on the motherboard.
