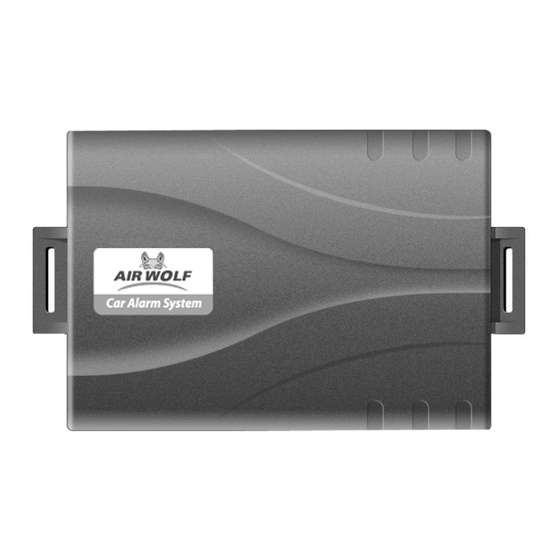

DesignTech AirWolf Installation Manual

Two-way remote car starter
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

Advertisement

Table of Contents
loading

Related Manuals for DesignTech AirWolf

Summary of Contents for DesignTech AirWolf

  • Page 2 Model #20099 same as #20098 but with extra Valet (1-way) transmitter. Thank you for choosing DesignTech's AIRWOLF Two-Way Remote Car Starter. The AIRWOLF units have been carefully designed and built with customer convenience in mind. We encourage you to fully read this manual before installing and using this system.

  • Page 3: Table Of Contents

    Contents 1. Use of DIP switch 2. Product wiring diagram 3. 6 Pin main harness (CON 1) 4. Signal output connector (CON 2) 5. Door control output connector (CON 3) 6. Valet switch (CON 4) 7. LED (CON 5) 8. Shock sensor (CON 6) 9.
  • Page 4 Precautions ■ Airwolf is designed to operate in a 12V system. ■ Always use a multimeter for checking wires. Test lights can trigger airbags and damage circuits. ■ Check polarity of all circuits before making connections. ■ Always connect the ground wire (CON 1, black) before applying power to the unit.

  • Page 5: Use Of Dip Switch

    1. Use of DIP switch / Loop DIP Switch Manual / Automatic Loop DIP Switch Normal DIP Switch Manual / Automatic Red Loop Program ● DIP Switch : Used in the programming of the Tach. signal. Set to Program when learning Tach signal.

  • Page 6: Product Wiring Diagram

    2. Overall wiring diagram v4.2...
  • Page 7 v4.2...

  • Page 8: Pin Main Harness (Con1)

    3. 6-pin main harness (CON1) ➀ Pink 12V main power input ➁ Yellow output for start motor ➂ Blue IGN 1 output ➃ IG 2 (ACC) 12V output White ➄ Ground Input Black ➅ IGN 3 White/Black ➀ Pink ( 12V): 12V main power input Unit receives 12V from the car battery as the main power supply.
  • Page 9 ➅ White /Black: IGN 3 output This output is primarily used to control relays and bypass modules. The ignition 3 output behaves exactly like ignition 1, except this output provides a ground while running. Note: As this output is connected internally to the ignition 1 relay a diode, such as Radio Shacks 1n4001 (not included), may be needed to provide isolation if any feedback problems occur.

  • Page 10: Signal Output Connector (Con 2)

    4. Signal output connector (CON 2 ) ➀ ➁ Parking light output ( 10A relay) Yellow ➂ ➃ Trunk Release output ( 10A relay) Green/White ➄ Starter interrupt Signal output ( 300mA transistor) White ➅ Siren output ( 3A power transistor) Blue ➆...
  • Page 11 ➃ Green/White: Trunk Release output ( 10A relay) This output provides a positive signal when the “Trunk Release” is activated. Refer to the following diagrams for proper connection. type Green/White type Green/White ➄ White : Starter Interrupt Signal output ( 300 mA transistor) 300mA output is used to disable starter via an external relay.
  • Page 12 ➅ Blue : Siren output wire ( 3A power transistor) B lue R ed wire wire ➆ White/Brown : Re-arm output.The 300mA transistor output to rearm the factory alarm. This output provides a negative (300mA max) signal when you lock the doors from remote control.
  • Page 13 Brown : Dome light output ( 300 mA transistor) This wire will turn on the dome light when you unlock the doors from remote control. This wire MUST be connected to a relay and MUST be configured EXACTLY as per the diagrams below. If the door pin switches are not isolated from the Dome Light output it will cause the alarm to trigger, and may cause the remote to incorrectly identify door status.

  • Page 14: Door Control Output Connector (Con 3)

    For help identifying the type of lock system in your vehicle please refer to our vehicle wiring information on our website at www.designtech-intl.com Caution: improper connection of unit to door lock system may cause damage to unit or vehicle.
  • Page 15 Type B: Negative This system supplies ground pulse from the switch to the factory relays. The correct wires will measure some voltage on them when you are not pressing the lock/unlock switch. Pressing the switch will cause the voltage on the correct wires to fall to zero volts.
  • Page 16 Type D: After Market Actuators ■ If the car has no power door lock system, actuators will need to be installed. ■I f the car has power door locks, but no push button switch (centrallocking) anactuator may need to be installed in the drivers door only. ■...
  • Page 17 Type F: One Wire System This system sends for unlock, and becomes open for lock. The system requires one external relay. v4.2...

  • Page 18: Valet Switch (Con 4)

    6. Valet switch (CON 4) This switch is used to program Tach and other functions. Mount the switch in an easily accessible location under the dash. Plug the switch into to the proper connector on the main module. 7. LED (CON 5) The LED illuminates to show the status of the alarm.

  • Page 19: Trigger Input Connector (Con 7)

    Open, and 12V when all doors are closed. NOTE: If your vehicle uses a positive trigger door pin switch see “#3 GRAY (+) door pin switch wire.” The AirWolf system will not properly function without one of these door pin wires connected.
  • Page 20 0V when all doors are closed. NOTE: If your vehicle uses a negative trigger door pin switch see “#2 Gray/Black Negative door pin switch wire.” The AirWolf system will not properly function without one of these door pin wires connected. Brown (Con2 #12)
  • Page 21 9-6. White : Voltage Sense (optional) Use this connection only if you did not hook up the tach wire of step 9-1. This wire is used to sense when the motor has started and disengages the starter motor. ◆ Connection for Voltage Sense: Detects starting of engine with the Alternator voltage.
  • Page 22 9-10. Yellow/White : Parking light Input (optional) This wire is used to remind the driver when the parking lights are left on. If your vehicle has a positive parking light system connect this wire directly to the Yellow Parking Lights Wire from the remote start. If your vehicle has a negative parking light system please refer to the diagram below.

  • Page 23: Programming The Remote Control

    10. Programming the remote control Step 1 Door OPEN Ignition key ON ● Open the door and turn the ignition key to ON position. Step 2 Press and hold the buttons A ● and D at the same time for more than 2 seconds.

  • Page 24: Programming For Tach / Voltage Sense

    11. Programming for TACH / Voltage Sense Programming for Tach If the Alternator/Tachometer input wire is connected to the Tach wire (negative side of the coil), you must perform the steps below. It is best to perform the programming after the engine has been given some time to warm up and the RPM level has stabilized at its normal position.
  • Page 25 Programming if connected in Voltage Sense mode If the Alternator/Tachometer wire *IS NOT* connected to the tach wire as per PAGE 19, perform the steps below. Do NOT use the Green Tach wire. Connect the WHITE Voltage Sense wire to a source of 12 volts constant power.

  • Page 26: Configuring Function Timing

    12. Timing Configuration Timing configuration allows the time adjustments of various features such as the operation time for door locks, crank time for the starter motor, etc. Initially, the unit operated with the default values as shown in the chart below. The default values are adequate for most vehicles.
  • Page 27 (Example) of how to configuring trunk time Step 1 Press and hold the buttons B and D at the same time for more than 2 seconds. Step 2 Press button C five 'TRUNK' is Press button D to Change the value In 'LOCK' status times to move to the displayed on the...
  • Page 28 12 - 1,2 Door lock and unlock One output pulse (default)will lock/unlock most vehicles. Some vehicle may have an door lock system requiring two pulses - where the first pulse disarms an OEM alarm and the second pulse opens the doors, or the first pulse may unlock the driver door while the second pulse unlocks all doors.
  • Page 29 12 - 8 IGN 1 ON waiting time You can configure IGN 1 ON waiting time that determines the time between turning IGN ON and operating the starter motor when the brain attempts engine start. ● Note - If the vehicle is diesel and the warm-up sense wire is connected, the starter motor is operated when the warm-up sensor detects the glow plugs - regardless of this setting.

  • Page 30: Configuration Summary Table

    13. Configuration summary table Door Ignition Engine Action Brake Valet switch running Switch Open One chirp - Valet ON ✔ ✔ ✔ 4 sec Valet Mode 2 chirps - Valet OFF Programming ✔ ✔ ✕ Refer to the page 23 remote control ✔...

  • Page 31: Relay Diagram

    15. Relay diagram Orange (Ground) Note: The colors of wires in the harness may be different from time to time. The pin #s always stay constant. An external relay is a part that is used frequently for changing the polarity of outputs or allowing an output to provide more current.
  • Page 32 Example 1 To change the output to output. Example 2 To change the output to output. v4.2...
  • Page 33 MEMO v4.2...
  • Page 34 MEMO v4.2...
  • Page 35 MEMO v4.2...
