DesignTech secure start 28622 Installation Instructions

Secure Start Model 28622
Add On Remote Control Car Starter Installation Instructions
DesignTech International, Inc. • 7955 Cameron Brown Court • Springfield, Virginia 22153 USA • 703-866-2000 or 800-337-4468
Congratulations on your purchase of the Secure Start Add On Remote Car Starter. This remote car starter system allows you to
start the car by remote control from the comfort of your home or office in order to cool it down in the summer or heat it up in the
winter.
The Secure Start Remote Car Starter is for automaticl transmission vehicles only. It is an extremely sophisticated system with
multiple built-in safety and security features.
• Will start your car by remote control, and run the heater, defroster, or air conditioner to warm up or cool down the car.
• Is designed to start the car if it is in park, and only if the hood is closed.
• Will attempt to start the car for up to six seconds, but no longer (to avoid damage to the starter motor). Should the car
not start, or if it stalls after starting, the remote starter will make two further attempts to start it.
• Will not let the car be driven without the key in the ignition.
• Shuts itself off automatically after 10 or 15 minutes (programmable) if you forget to come out to your car.
• Will shut off if the brake pedal is pushed, or the hood is opened - unless the key is in the ignition and in the "run" position.
• Allows you to remove the key while leaving the car running with the doors locked for up to 10 or 15 minutes utilizing the
QUICK STOP TM option. (See Separate User Tip Sheet)
• Is quality engineered, microprocessor controlled, and made in the USA to provide many years of reliable use.
• Comes with a 2 year warranty.

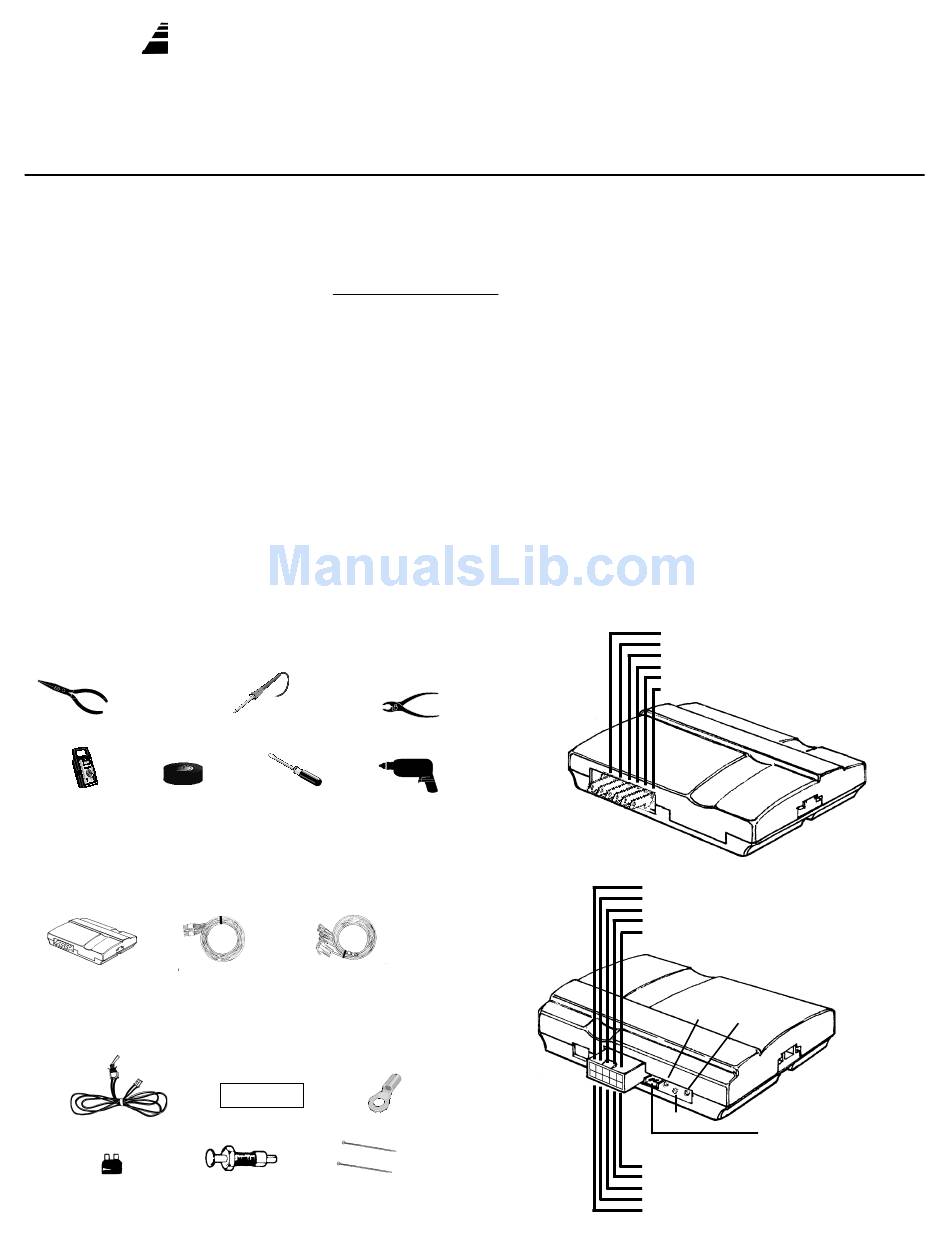

Tools required to install the remote starter unit:
Wire Cutters/Strippers
Testmeter Electrical tape
We highly recommend that all connections be soldered for reliability.
Parts List:
Control Harness
Remote Start Module
(10 position)
Parts Kit in plastic baggy:
On/Off Control Switch
30 A Fuse
Hood Pin Switch Set
Please Read Completely Before Beginning
The Secure Start Remote Car Starter:
Soldering Iron Pliers
Screwdriver Drill
6 Power &
Ignition wires
WARNING
This car is equipped with a remote control starting device.
Disable before working on car!
AVERTISSEMENT
Co véhicule est équipé d'un systéme de démarrage á distance. Mettez-le hors
fonctuin avant d'eflectuer toule opération d'entretian ou de répanation!
Warning Label Ring Terminal
2 Cable Ties
Wiring Diagram
Power Harness
Control Harness
Color
Yellow/Green
Green/White
Brown
Brown/White
Gray/Black
Color
Red/Black
Red/White
Green
Violet
Orange
1
Color Function Type
Pink Power (+12V) Input
White Accesory / Lights Relay Output
Yellow Starter Relay Output
Blue Ignition 1 Relay Output
Green Ignition 2 Relay Output
Black Ground Input
Function Type
Alarm Control (+) 400 mA
Sensor IN Relay
Accessory Pulse (-) 400 mA
Alarm Disable (-) 400 mA
Sensor OUT Relay
Left
White Button
Right
Red Button
LED
Plug-in Control Switch
Function Type
Diesel Input Input
Remote - Input
Tach Input
Hood - Input
Brake + Input
v 0.2
Required
Yes
Yes
Yes
Yes
Possible
Yes
Required
No
No
No
Possible
No
Required
No
Yes
No
Yes
Yes
