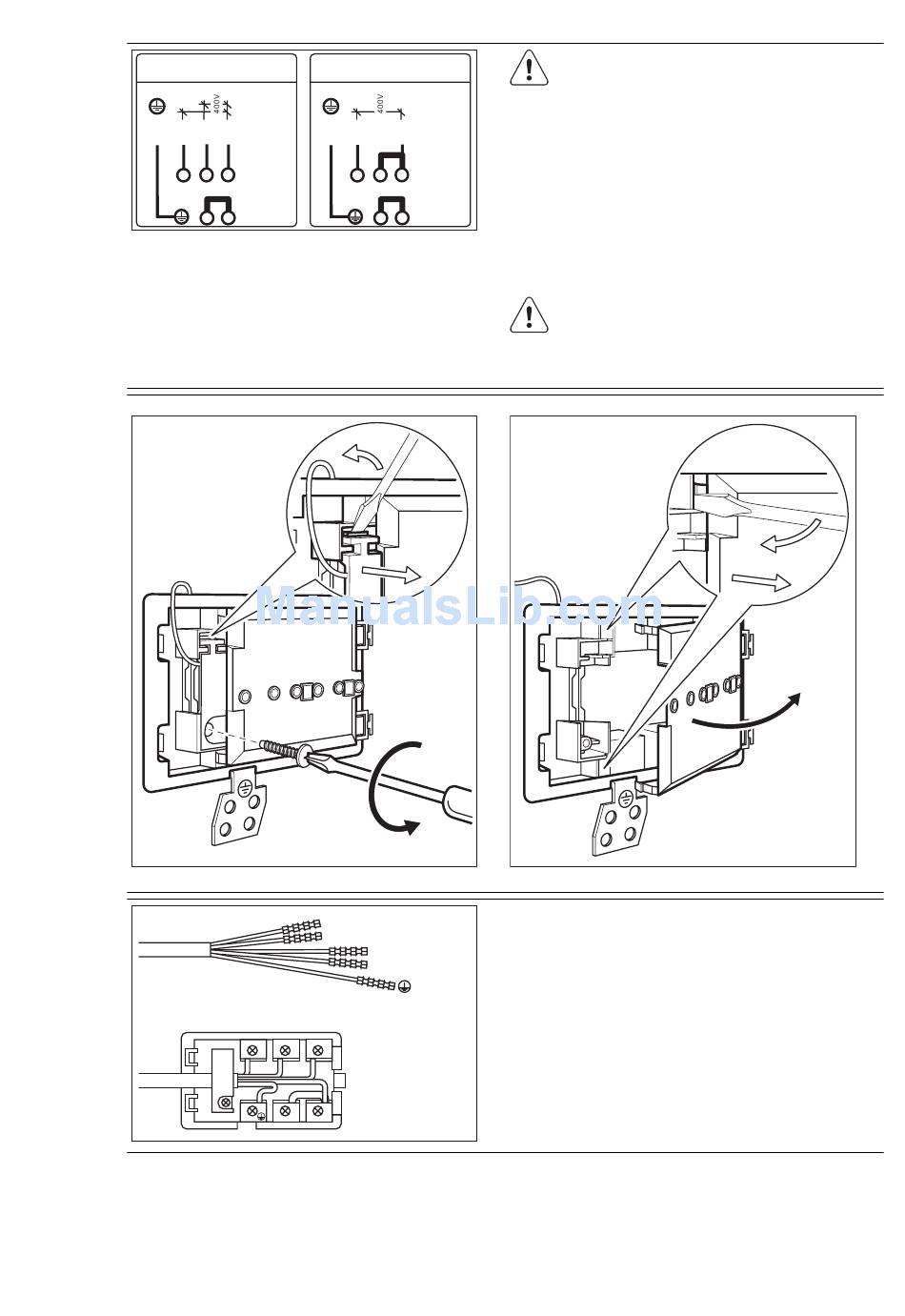

AEG EHB User Manual page 27

400V 3~
PE L1 L2 L3
1 2 3
5 4
1 2
400V 2~
PE L1 L2
1 2 3
5 4
2
1
1 = 45 mm
2 = 45 mm
3 = 60 mm
4 = 60 mm
= 70 mm
3
4
Only a qualified person can con-
nect the appliance to the elec-
tricity supply.
1. Do the electrical connections as in
the connection illustration.
Connection diagram 400V
Phase definitions: L1, L2, L3 (or R, S,
T).
2. Secure the cable grip.
WARNING!
If service is required always dis-
connect the appliance from the
power supply.
ENGLISH
27
