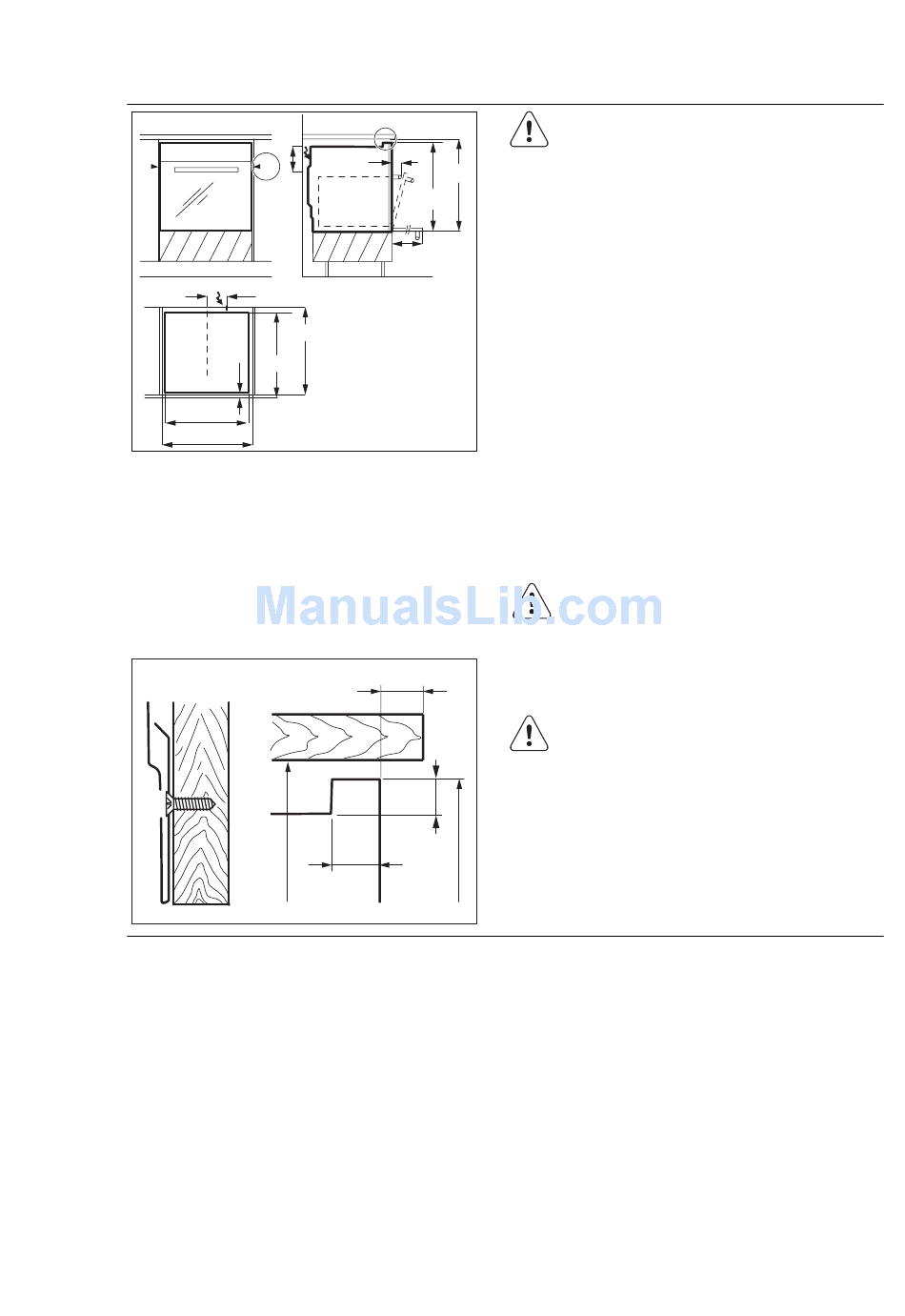

11.1 Installing the oven under a work surface
A
N 560-568
A 592

11.2 Electrical connection

Use a power cable of H05VV-F or higher.
Connect the appliance to a socket sup-
ply line. If there is no socket supply line,
the electrical installation must have an
isolation device which lets you discon-
nect the appliance from the power sup-
ply. The isolation device must have a
180
A
115
N min. 550
A 567
20
min. 20
A B
20
B
ca.50
N 600
A 595
442
A = appliance
N = recess
1. Install the hob according to the in-
stallation instruction number
374307900/ 374307901.
2. Before insert the cooker into cabi-
net's recess make sure to carry out
the hotplate socket and use the cor-
rect socket connections. There is no
need to use a separate earthing.
3. Use the side handles to hold the
oven and slide it flush into the re-
cess.
4. Use at least 2 screws to fix the oven
on both sides (Detail A).
10
A
contact opening width of minimum 3
mm (in reference to NIN SEV 1000). The
customer must have a socket for the
electrical connection that is accessible
and outside the coordination room. The
length of the connection cable must be
approximately 120 cm with lines connec-
ted directly to the power supply.
WARNING!
Installation into flammable mate-
rial must agree with NIN SEV
1000 (Association of Cantonal
Fire Insurers) fire protection
guidelines and regulations.
CAUTION!
Make sure the cable is free when
you move the appliance.
WARNING!
When installing next to a wood-
fuelled boiler, a heatproof and
heat-insulating plate must be
mounted at the height of the ap-
pliance and at least 30 cm deep.
