Mounting The Bsap To A Dropped Ceiling - ADTRAN BLUESOCKET 1920 Quick Start Manual

with the T-rail mounting hardware kit to increase the space between the unit and the mounting
bracket. Leave enough of the long screws exposed above the spacer to ensure they can be
inserted into the keyed slots on the mounting bracket.
6. Mount the BSAP on the mounting bracket by inserting the screws on the back of the BSAP into the
keyed slots on the mounting bracket and rotating the unit clockwise 90 degrees to secure it on the
bracket.
7. Optionally, protect your BSAP with a Kensington cable lock (not provided) inserted into the security
slot.
Screw Anchor
Keyed Slots
Short Screws
BSAP 1925 with
Antennas Mounted
M
OUNTING THE

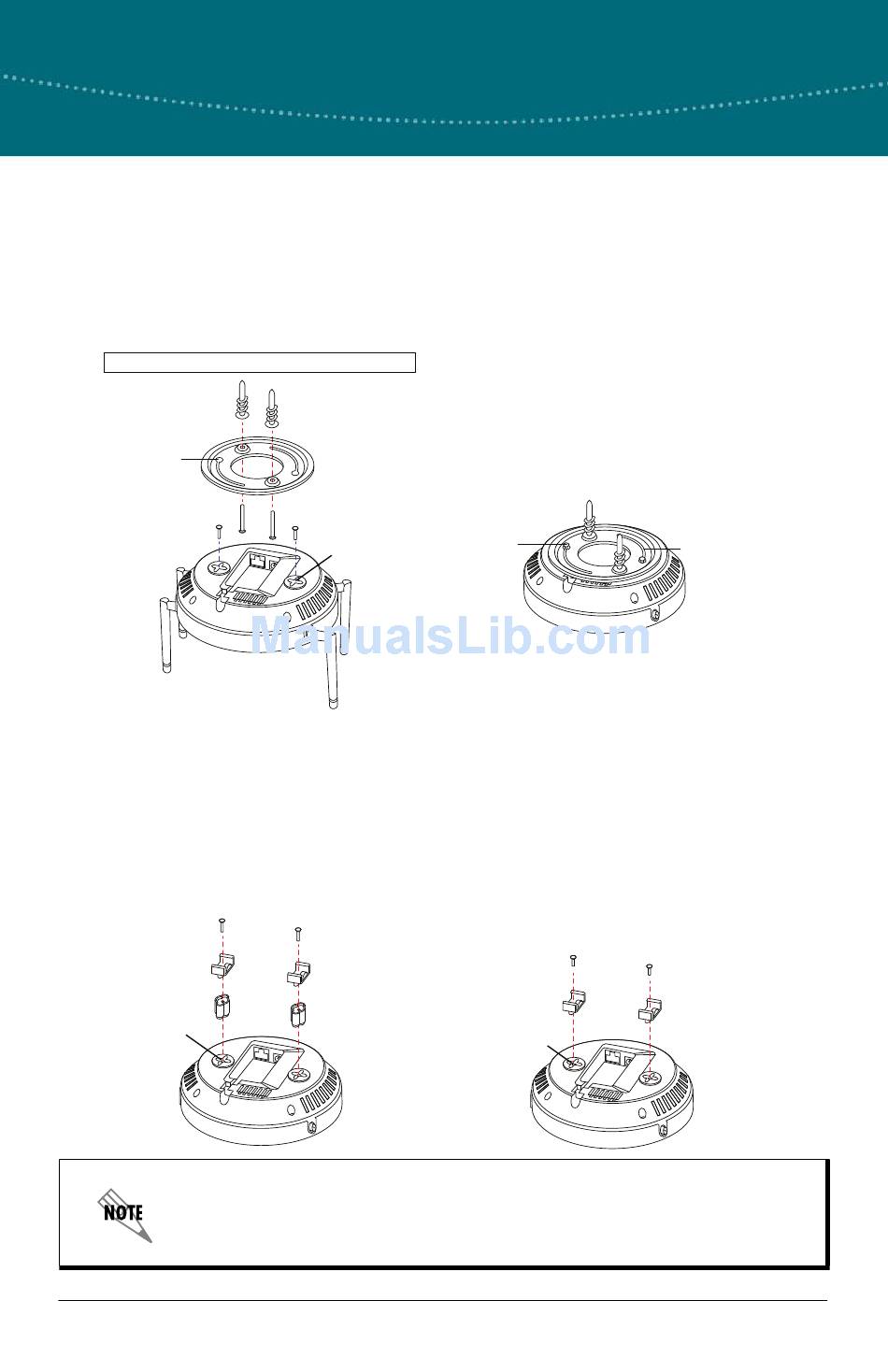

The BSAP 1920/1925 ships with a T-rail mounting kit to mount the BSAP on the ceiling tile separators of
standard dropped ceilings. The mounting clips come in two sizes and can be mounted to either
recessed (using the spacer) or flush dropped ceiling T-rails. BSAPs should be positioned for maximum
throughput and range between other APs and wireless client devices.
To mount the BSAP to a dropped ceiling:
1. BSAP 1925 only: Install the antennas (sold separately) onto the appropriate antenna ports on the
BSAP. The antenna ports are labeled 2.4G and 5G.
2. Attach the appropriate size ceiling clips to the bottom cover of the BSAP using the provided short
screws.
T-rail Ceiling Clips
Mounting Screw
Receptacles
If extra space is required to accommodate recessed dropped ceiling tiles, use
the provided spacers and longer screws included in the T-rail ceiling mount
kit.
2
Wall or Ceiling
Plastic Mounting
Bracket
Long Screws
Mounting Screw
Receptacles
BSAP D
TO A ROPPED
Long Screws
Spacers
Short Screw
C
EILING
Short Screws
Mounting Screw
Receptacles
Copyright © 2013 ADTRAN, Inc. All Rights Reserved.
Keyed Slots
BSAP 1920
T-rail Ceiling Clips
