WARNING: If the information in these instructions is not followed exactly, a fire or explosion
may result causing property damage, personal injury or loss of life.
• DO NOT PLACE ARTICLES ON OR AGAINST THIS APPLIANCE.
• DO NOT USE OR STORE FLAMMABLE MATERIALS NEAR THIS APPLIANCE.
• DO NOT SPRAY AEROSOLS IN THE VICINITY OF THIS APPLIANCE WHILE IT IS IN
OPERATION.
• DO NOT MODIFY THIS APPLIANCE.
-
Do not store or use gasoline or other flammable vapors and liquids in the vicinity of this or
any other appliance.
WHAT TO DO IF YOU SMELL GAS
• Do not try to light any appliance.
• Do not touch any electrical switch; do not use any phone in your building.
• Immediately call gas supplier from a neighbor's phone. Follow the gas supplier's
instructions.
• If you cannot reach your gas supplier, call the fire department.
-
Installation and service must be performed by a qualified installer, service agency or the gas
supplier.
This appliance may be installed in an aftermarket, permanently located, manufactured home (USA only) or mobile home,
where not prohibited by local codes.
This appliance is only for use with the type(s) of gas indicated on the rating plate. A conversion kit is supplied
with the appliance.
INSTALLER: Leave this manual with the appliance.
CONSUMER: Retain this manual for future reference.
© Copyright 2014, T.I.
DVL GSR2 (AU) Inbuilt NB
Listed by
AS 4553-2008
GMK10033
IAPMO-R&T OCEANA
• Direct Vent Fireplace Insert
• Masonry or Factory Built (Metal) Wood-Burning
Fireplace
• Residential or Mobile Home
$10.00
100-01318
Owner's Manual
Dragon Wholesaling Pty.
Unit 4, 16 Lexington Drive
4131108
Bella Vista NSW 2153
Ltd.
Australia
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Travis Industries DVL GSR2 NB
Summary of Contents for Travis Industries DVL GSR2 NB
- Page 1 DVL GSR2 (AU) Inbuilt NB Owner's Manual Listed by AS 4553-2008 GMK10033 IAPMO-R&T OCEANA • Direct Vent Fireplace Insert • Masonry or Factory Built (Metal) Wood-Burning Fireplace • Residential or Mobile Home WARNING: If the information in these instructions is not followed exactly, a fire or explosion may result causing property damage, personal injury or loss of life.
-
Page 2: Introduction
The serial number is attached to the appliance near the gas control valve. This serial number will be needed in case you require service of any type. Model: DVL GSR2 NB Serial Number: Purchase Date: Purchased From: © Travis Industries... -
Page 3: Table Of Contents
CONDITIONS & EXCLUSIONS ...... 42 Steps for Finalizing the Installation ..... 24 Air Shutter Adjustment ........25 IF WARRANTY SERVICE IS NEEDED: ..42 Before You Begin ........... 26 LP Conversion Instructions ......43 © Travis Industries 4131108 100-01318... - Page 4 Immediately call a qualified vicinity of this heater. service technician to inspect the appliance and to replace any part of the control system that has been under water. © Travis Industries 4131108 100-01318...
- Page 5 Always follow the logs). instructions in this manual. • If the fiber logs become damaged, replace with Travis Industries log set. • Young children should be carefully • Plug the heater into a 240V grounded electrical outlet. Do supervised when they are in the not remove the grounding plug.
-
Page 6: Features
This heater is shipped in natural gas (NG) configuration but may be converted to use propane (LP) using a conversion kit. The sticker on top of the gas control valve will verify the correct fuel. © Travis Industries 4131108 100-01318... -
Page 7: Installation Warnings
WITH LUMINOUS FLAMES, MAY EXHIBIT SLIGHT CARBON DEPOSITION. Packing List • • LP Conversion Parts (Orifices, Gaskets, etc.) Cover Plugs for 3-Piece Surround Panels • • Top Convection Deflector Remote Control • “Fireplace Altered" tag (attach to the fireplace) © Travis Industries 4131108 100-01318... -
Page 8: Additional Items Required
Connect the gas line and gas vent to the appliance. Install the optional surround panels and trim. Install the burner and media (logs and stones). Follow the instructions under "Finalizing the Installation" on page 24. © Travis Industries 4131108 100-01318... -
Page 9: Top Convection Deflector
Attach the “This fireplace has been altered…” plate to the fireplace (use two screws or other suitable method). You may wish to place it in a location where it will be covered by the surround panels. © Travis Industries 4131108... -
Page 10: Factory-Built (Metal) Wood-Burning Fireplace Requirements
The heater and face must not contact combustible surfaces. A non-combustible hearth extension is not required. However, if the heater is installed next to the floor, we recommend a hearth to protect the flooring surface from discoloration or other negative impact from the heater. © Travis Industries 4131108 100-01318... -
Page 11: Leveling Bolts
Route the power cord out of the access hole on the right side of the appliance. • Plug the power cord into a grounded 240 Volt outlet (do not remove the grounding pin). • The electrical connection may also be made using the optional Wiring Kit (SKU 97200315). © Travis Industries 4131108 100-01318... -
Page 12: Clearances
If it does, it is considered a mantel and must meet the mantel requirements listed in this manual. Maximum Mantel Depth 37"+(940mm+) 36"(915mm) 35"(889mm) Mantel Height 34"(864mm) Above Base of Insert (n) 33"(839mm) 32"(813mm) 31"(788mm) © Travis Industries 4131108 100-01318... -
Page 13: Gas Line Requirements
The supply regulator (the regulator that attaches directly to the residence inlet or to the propane tank) should supply gas at the suggested input pressure listed above. Contact the local gas supplier if the regulator is at an improper pressure. © Travis Industries 4131108 100-01318... -
Page 14: Vent Requirements
Installation (for qualified installers only) Vent Requirements Travis Industries manufactures a vent kit specifically for this insert (sku 96200331). It includes 30’ (10M) of vent, hose clamps, and a prairie cap. The flashing on the cap is 18” (458mm) by 18” (458mm). -
Page 15: Vent Restrictor
Restrictor in Position #3 Vent Installation Secure the vent to the fireplace insert and termination kit using screws. Exhaust (4" 102mm) Inlet (3" 76mm) 3" (76mm) dia. 4" (102mm) dia. Duravent Chimney Liner Termination Kit Inlet Exhaust © Travis Industries 4131108 100-01318... -
Page 16: Vent Location
Before installing the appliance using this method, contact the Authority Having Jurisdiction to determine if this installation is acceptable in your area. This type of installation requires a minimum chimney cross section of 48 square inches. © Travis Industries 4131108 100-01318... -
Page 17: Vent Connector Removal And Installation
4. Slide the insert into place, guiding the vent connector into the guides on top of the insert. 5. Attach the vent connector to the appliance (see the following page for details). 6. Remove any excess slack in the flex line and attach the vent termination. © Travis Industries 4131108 100-01318... -
Page 18: Vent Connector Removal And Installation (Continued)
Pull on the vent connector rod until the vent connector snaps into place. Slide the vent connector rod in to conceal it. © Travis Industries 4131108 100-01318... -
Page 19: Surround Panel Installation
This keeps the trim tight against the panel. panel Optional Knock-Out An optional knock-out is provided if the power cord is routed behind the surround panel. © Travis Industries 4131108 100-01318... -
Page 20: 1-Piece Surround Panel
(use the lower holes). d. Replace the two screws removed in step “a”. e. Install two screws into the upper holes on the mounting brackets. NOTE: The upper screws keep the brackets from swiveling. © Travis Industries 4131108 100-01318... - Page 21 Installation (for qualified installers only) 2. Attach the surround panel as shown below. © Travis Industries 4131108 100-01318...
-
Page 22: Glass Frame Removal And Installation
Hang the glass frame on the firebox. latch bracket. b) While holding in place, attach the upper latches (follow the instructions to the right in reverse). c) Lift the glass frame slightly and attach the lower latches. © Travis Industries 4131108 100-01318... -
Page 23: Glass Frame Removal And Installation (Continued)
You will need to push slightly to get the latch to insert. Glass Once fully inserted, turn the latch until it is is level. © Travis Industries 4131108 100-01318... -
Page 24: Steps For Finalizing The Installation
(AC) power goes out and are required for operation. Install three AAA batteries into the remote (see illustration below). Synchronize the transmitter to the IFC (see page 27). Install the burner and media (and firebacks if applicable). Replace the glass. © Travis Industries 4131108 100-01318... -
Page 25: Air Shutter Adjustment
The flames should burn off of each burner hole. If the heater does not work correctly, contact your Travis dealer for a remedy. 12. Give this manual to the home owner for future reference and fully explain operation of this heater. © Travis Industries 4131108 100-01318... -
Page 26: Before You Begin
Turn off the main gas supply to the appliance during appliance installation or maintenance. During appliance installation or maintenance or in case of remote control malfunction turn off the main gas supply. © Travis Industries 4131108 100-01318... -
Page 27: Remote Set-Up
PRG (Program) button for 10 seconds. The pilot will start to spark repeatedly, signifying all system memory has been cleared. The system will return to its original configuration: a remote will need to be synchronized; and, the system will operate under continuous pilot mode. © Travis Industries 4131108 100-01318... -
Page 28: Location Of Controls
If you wish to adjust the mode settings use the transmitter mode button to adjust the settings (see “Mode Controls” on page 32). The thermostat and burner on/off operating functions will not work on the transmitter. © Travis Industries 4131108 100-01318... -
Page 29: Starting The Fireplace For The First Time
IPI/CPI. NOTE: This icon appears when the appliance is in CPI mode. Press the "UP" button Press the "DOWN" button to activate CPI mode. to activate IPI mode. Figure 4 © Travis Industries 4131108 100-01318... -
Page 30: Remote Operation
IFC. When you change thermostat target settings the IFC will not beep. NOTE: When the batteries start to get low, the IFC will beep intermittently. When the batteries are nearly depleted, the IFC will no longer beep. See “IFC Batteries” on page 34). © Travis Industries 4131108 100-01318... -
Page 31: Manual On-Off / Smart Thermostat / Standard Thermostat
Use the up or appear here. down buttons to adjust the target temperature. Figure 9 NOTE: If the transmitter batteries go dead while in thermostat setting (standard or smart), the appliance will shut off after approximately 24 hours. © Travis Industries 4131108 100-01318... -
Page 32: Mode Controls (Flame, Blower, Light, Comfort Control)
When in Manual Mode the blower will remain on, even if the burner is turned off and the heater cools. Either manually turn the blower off, or turn off the heater by pressing the On/Off button. © Travis Industries 4131108... -
Page 33: Mode Controls - Continued
(2 settings). darkened. Figure 14 Display Fahrenheit or Celsius With the system in the “OFF” position, press both the MODE and THERMOSTAT buttons simultaneously to toggle between Fahrenheit (F) and Celsius (C). Figure 15 © Travis Industries 4131108 100-01318... -
Page 34: Low Battery Indicator
Figure 17 Power Outages The remote will work if household current (AC power) is disconnected. The batteries inside the battery box will continue to power the heater but the accent light and blower will not operate. © Travis Industries 4131108 100-01318... -
Page 35: Child-Proof Feature
This appliance has several areas that reach high temperatures. Dust or other particles on these areas may burn and create an odor. This is normal during start-up. You may notice the smell is more acute if the appliance was left idle for a long period. © Travis Industries 4131108 100-01318... -
Page 36: Maintaining Your Heater's Appearance
35 Watt 240 Volt T4 Halogen Bulb (G6.35 Base) Lower Accent Light The lower accent light is located at the back of the firebox behind the light deflector, as shown below. It can be removed by pulling it out. © Travis Industries 4131108 100-01318... -
Page 37: Upper Accent Lights
Replace the bulb, making sure not to touch the bulb with your fingers (grasp the bulb with the bulb packaging or a paper towel). Tighten the screws until the bulb is secure (do not over-tighten, this may damage the electrical contacts on the bulb). © Travis Industries 4131108 100-01318... -
Page 38: Yearly Service Procedure
Monitor blower operation. Remove any debris or vegetation near the vent termination. Contact your dealer if any sooting or deterioration is found near the vent termination. Venting system should be examined by a qualified agency. © Travis Industries 4131108 100-01318... -
Page 39: Troubleshooting Table
The bulb may be burned out......... See “Accent Light Replacement” on page Accent Light Does The accent light fuse may be blown...... Not Work Replace the fuse. See fuse location below. Location of fuses (2.5 amp): Fan Lights © Travis Industries 4131108 100-01318... -
Page 40: Wiring Diagram
On/Off) Replacement Parts List Caution: Use only Travis Industries replacement parts. Do not use substitute materials. Warning: Do not operate appliance with the glass front removed, cracked, or broken. Replacement of the glass should be done by a licensed or qualified service person. -
Page 41: Safety Label
Safety Label Safety Label The safety (listing) label is attached to the operating tag (chained to the heater near the gas control valve). A copy is shown below © Travis Industries 4131108 100-01318... -
Page 42: Burner Assembly
Dragon Wholesaling Pty. Ltd. Unit 4, 16 Lexington Drive Bella Vista NSW 2153 Australia. Dragon Wholesaling warrants this gas appliance (appliance is defined as the equipment manufactured by Travis Industries, Inc.) to be defect-free in material and workmanship to the original purchaser from the date of purchase as follows: Check with your dealer in advance for any costs to you when arranging a warranty call. -
Page 43: Lp Conversion Instructions
This control has been converted for use with gas_____.” Convert the appliance prior to installing the gas line to ensure proper gas use. 1. Access the firebox. 2. Remove and discard the manifold cover (see below). © Travis Industries 4131108 100-01318... - Page 44 Orifice ID ORIFICE SIZE (ID) Natural Gas LP (Propane) Front Burner Orifice #49 DMS #57 DMS Rear Burner Orifice #43 DMS #53 DMS 4. Install the LP manifold cover included in the owner’s pack (see below). © Travis Industries 4131108 100-01318...
- Page 45 25 Lb-inches. Leak-test this area after installing to verify proper installation. Re-attach the wiring. Restore the appliance to the correct configuration. Make the gas line connection, bleed the gas line (if applicable), start the heater and thoroughly leak-test all gas connections and the gas control valve. © Travis Industries 4131108 100-01318...
- Page 46 Installation Options ..........6 Upper Accent Lights ........37 Installation Warnings .......... 7 Vent Requirements .......... 14 Items Packed with the Face ....... 8 Wiring Diagram ..........40 Leveling Bolts ........... 11 Yearly Service Procedure ........ 38 © Travis Industries 4131108 100-01318...
Need help?
Do you have a question about the DVL GSR2 NB and is the answer not in the manual?
Questions and answers

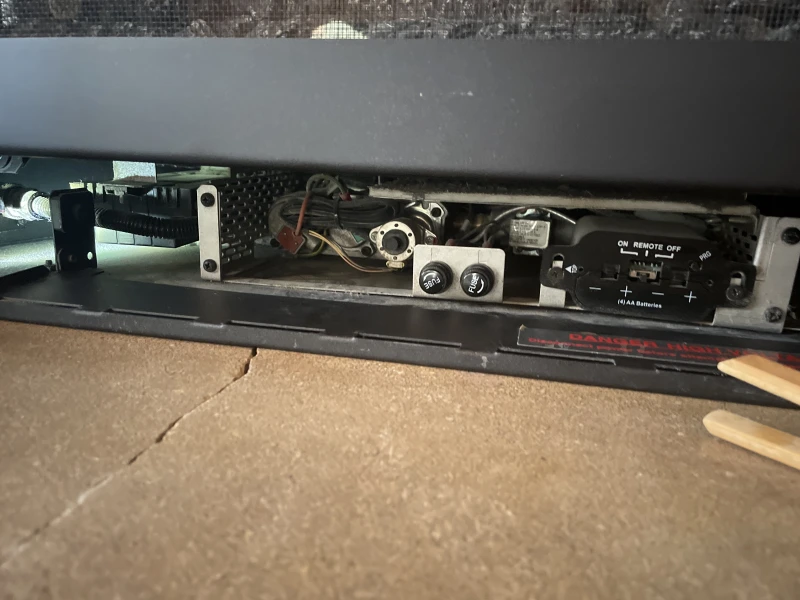

Have a DVLGSR2NB fireplace extraordinairefireplace, blower and accent lighting not working replace the two front fuses and light still not coming on. Is there other fuses I should look for?
