WARNING: If the information in these instructions is not followed exactly, a fire or
explosion may result causing property damage, personal injury or loss of
life.
-
Do not store or use gasoline or other flammable vapors and liquids in the vicinity of
this or any other appliance.
WHAT TO DO IF YOU SMELL GAS
• Do not try to light any appliance.
• Do not touch any electrical switch; do not use any phone in your building.
• Immediately call gas supplier from a neighbor's phone. Follow the gas supplier's
instructions.
• If you cannot reach your gas supplier, call the fire department.
-
Installation and service must be performed by a qualified installer, service agency or the
gas supplier.
This appliance may be installed in an
aftermarket, permanently located,
manufactured home (USA only) or mobile
home, where not prohibited by local
codes.
This appliance is only for use with the
type(s) of gas indicated on the rating
plate. A conversion kit is supplied with
the appliance.
INSTALLER: Leave this manual with the appliance.
CONSUMER: Retain this manual for future reference.
Copyright 2012, T.I.
$10.00
100-01285_000

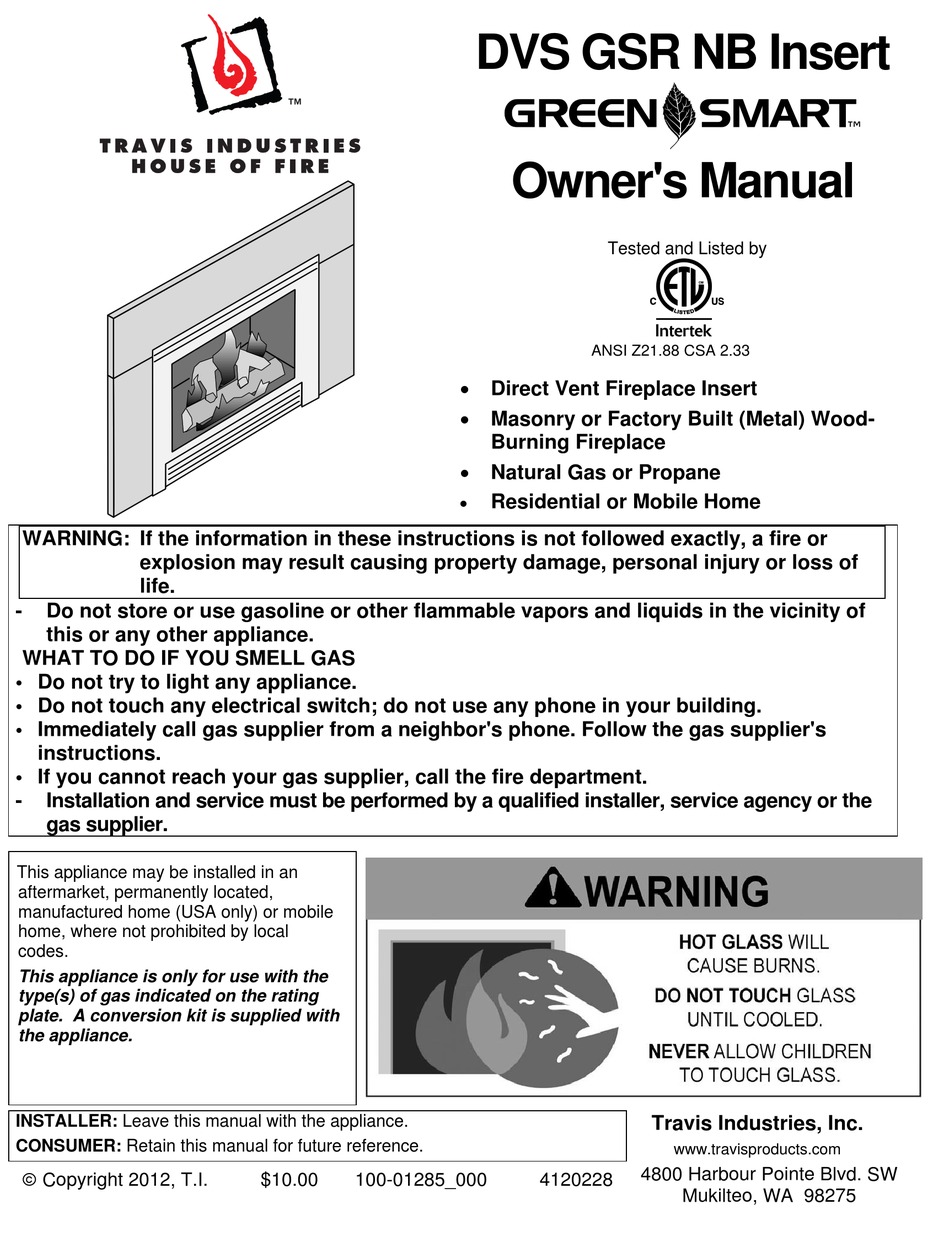

DVS GSR NB Insert
Owner's Manual
Tested and Listed by
ANSI Z21.88 CSA 2.33
Direct Vent Fireplace Insert
Masonry or Factory Built (Metal) Wood-
Burning Fireplace
Natural Gas or Propane
Residential or Mobile Home
4120228
Travis Industries, Inc.
www.travisproducts.com
4800 Harbour Pointe Blvd. SW
Mukilteo, WA 98275
