Travis Industries DVS EF II Instructions

Surround panels

Advertisement

Quick Links

Compatibility
DVS Insert EF II
DVL Insert EF II

Packing List

Top, Right, and Left Side Panels
Panel Trim (with Hardware)
(4) 10-24 Type F Thread-Cutting Screws
(7) Spring Clips
Inside Fit Panels
The panels may be cut down in size and placed within the fireplace opening. When installed in this configuration,
install the rheostat and on/off switch in the control panel under the firebox (see the owner's manual for details). For
standard installations, we recommend you attach the rheostat and on/off switch to the upper right surround panel trim
(after the trim is installed).
Installation
Before installation the insert should be in place with the gas line and vent attached. Pull the insert out slightly to
assist in the installation. Attach the side panels then the top panel and trim (see the directions below and on the
following page).
DVS Insert EF II – Side Panel Installation
b

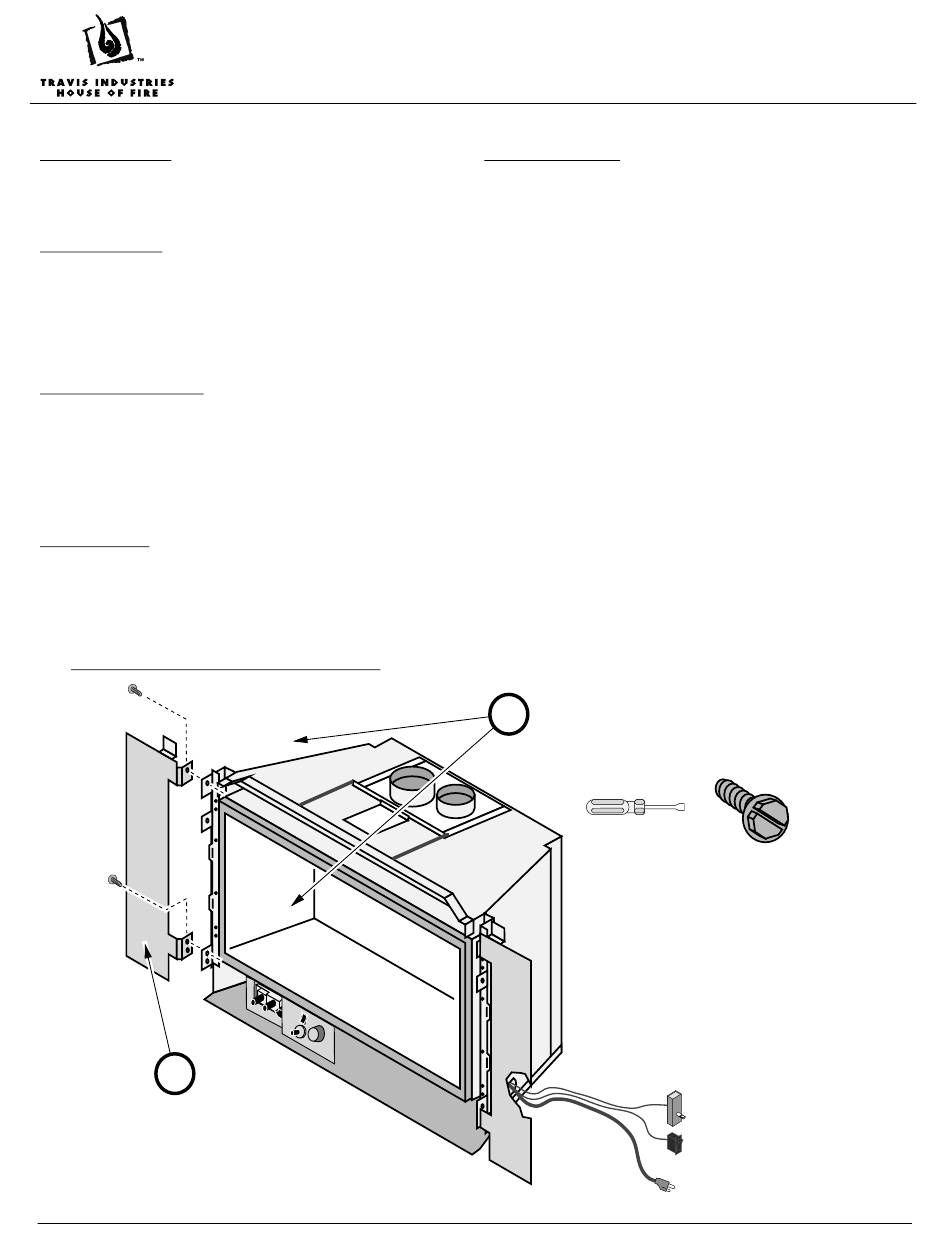

Line up each side surround
panel and insert two screws from
the inside to secure in place.
Page 1 of 2
Surround Panels (DVS/DVL EF II)
Part Numbers
a
3/3/06
DVS – 4" by 6"
96100300
DVS – 8" by 10"
96100301
DVS – 10" by 13"
96100302
DVL – 4" by 6"
96100320
DVL – 8" by 10""
96100321
DVL – 10" by 13"
96100322
Pre-thread the holes on the surround
panels with the screws included in the
surround panel kit.
5/16" Nutdriver
Run the rheostat wires,
on/off switch wires, and
power cord through the
access hole on the
insert
© Travis Industries, Inc.
