SMC Networks EZ6516TX - annexe 1 Manual

16-port 10/100 mbps auto-sensing fast ethernet switch
Hide thumbs Also See for EZ6516TX - annexe 1:
Table of Contents

Advertisement

Quick Links

Download this manual See also: Installation Manual

Advertisement

Table of Contents
loading

Related Manuals for SMC Networks EZ6516TX - annexe 1

Summary of Contents for SMC Networks EZ6516TX - annexe 1

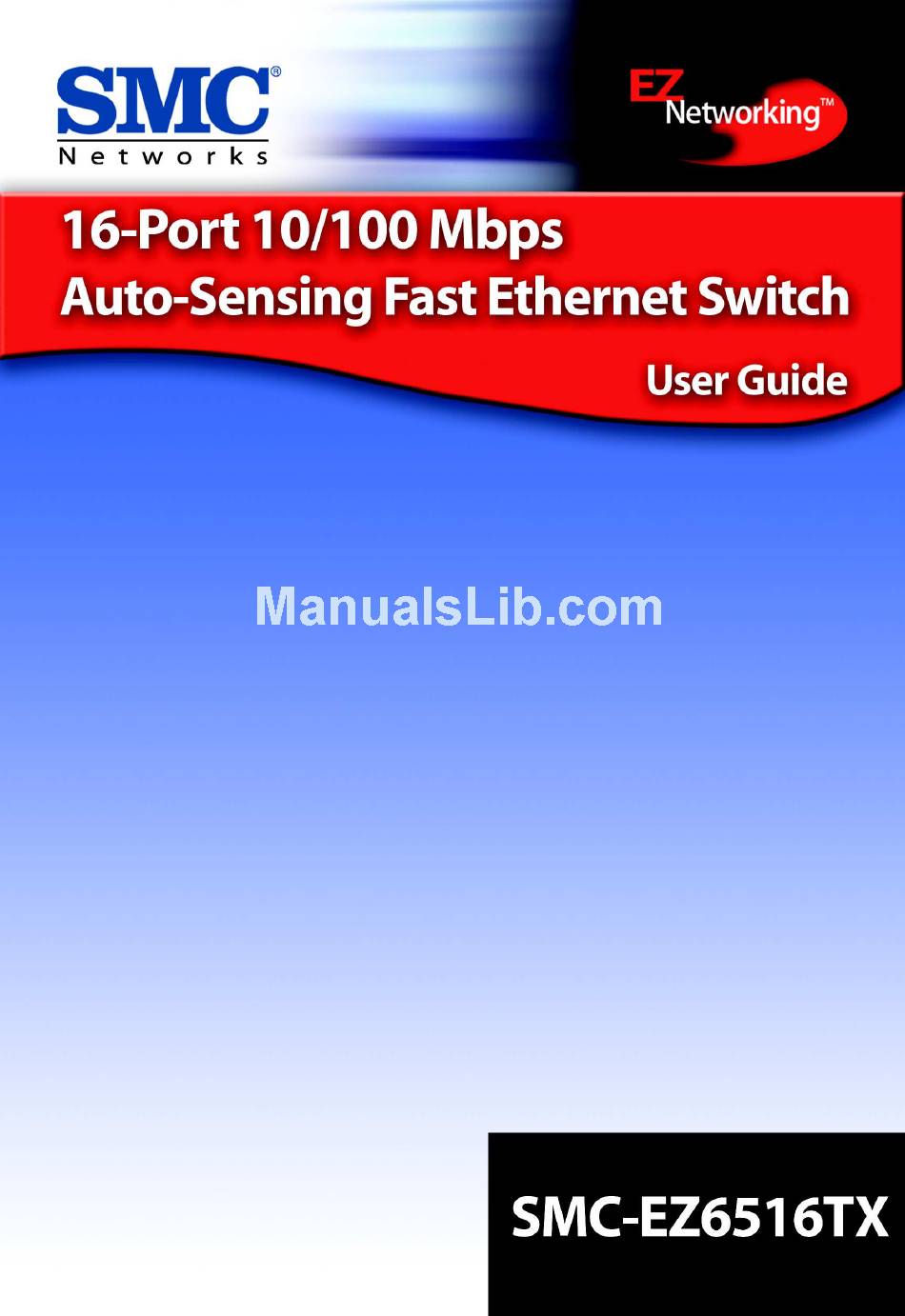

  • Page 3 EZ Switch 10/100 User Guide From SMC’s EZ line of low-cost workgroup LAN solutions 38 Tesla Irvine, CA 92618 July 2003 Phone: (949) 679-8000 Pub. # 150000006200H R01...
  • Page 4 No license is granted by implication or otherwise under any patent or patent rights of SMC. SMC reserves the right to change specifications at any time without notice.
  • Page 5 All SMC products carry a standard 90-day limited warranty from the date of purchase from SMC or its Authorized Reseller. SMC may, at its own discretion, repair or replace any product not operating as warranted with a similar or functionally equivalent product, during the applicable warranty term.
  • Page 6 RIGHTS, WHICH MAY VARY FROM STATE TO STATE. NOTHING IN THIS WARRANTY SHALL BE TAKEN TO AFFECT YOUR STATUTORY RIGHTS. * SMC will provide warranty service for one year following discontinuance from the active SMC price list. Under the limited lifetime warranty, internal and external power supplies, fans, and cables are covered by a standard one-year warranty from date of purchase.
  • Page 7 • Connect the equipment into an outlet on a circuit different from that to which the receiver is connected • Consult the dealer or an experienced radio/TV technician for help EC Conformance Declaration - Class B SMC contact for these products in Europe is: SMC Networks Europe, Edificio Conata II, Calle Fructuós Gelabert 6-8, 2 08970 - Sant Joan Despí,...
  • Page 8 OMPLIANCES • Electrical fast transient/burst according to EN 61000-4-4:1995 (AC/DC power supply: ±1 kV, Data/Signal lines: ±0.5 kV) • Surge immunity test according to EN 61000-4-5:1995 (AC/DC Line to Line: ±1 kV, AC/DC Line to Earth: ±2 kV) • Immunity to conducted disturbances, Induced by radio-frequency fields: EN 61000-4-6:1996 (0.15 - 80 MHz with 1 kHz AM 80% Modulation: 3 V/m) •...
  • Page 9 OMPLIANCES Wichtige Sicherheitshinweise (Germany) 1. Bitte lesen Sie diese Hinweise sorgfältig durch. 2. Heben Sie diese Anleitung für den späteren Gebrauch auf. 3. Vor jedem Reinigen ist das Gerät vom Stromnetz zu trennen. Verwenden Sie keine Flüssigoder Aerosolreiniger. Am besten eignet sich ein angefeuchtetes Tuch zur Reinigung. 4.
  • Page 10 OMPLIANCES...

  • Page 11: Table Of Contents

    ABLE OF ONTENTS Introduction ........1 Features and Benefits .
  • Page 12 viii...

  • Page 13: Introduction

    NTRODUCTION The EZ Switch™ 10/100, SMC-EZ6516TX, is a 16-port Fast Ethernet switch. The 10BASE-T/100BASE-TX ports deliver dedicated 10/100 Mbps links to each attached LAN segment all with conventional — cabling and adapters. Auto-negotiation is used to select the optimal transmission speed and communication mode for each connection. With store-and-forward switching and flow control, maximum data integrity is always maintained even under heavy loading.

  • Page 14: Led Indicators

    NTRODUCTION LED Indicators The front panel of the switch provides status LEDs for “at-a-glance” system monitoring. The following table details the functions of the various indicators. Port and System Status LEDs Condition Status Power The switch is receiving power. Ports Link/Act The port has established a valid network connection.

  • Page 15: Installing The Switch

    The EZ Switch 10/100 can be placed on a desktop or shelf, and stacked with other switches using the provided 4 rubber foot pads. Package Contents The EZ Switch 10/100 includes: • EZ Switch 10/100 (SMC-EZ6516TX) • Four rubber foot pads • This User Guide • Appropriate DC power adapter •...

  • Page 16: Instructions

    NSTALLING THE WITCH • Make sure twisted-pair cable is always routed away from power lines, fluorescent lighting fixtures and other sources of electrical interference such as radios, transmitters, etc. • Make sure that a properly grounded power outlet is within 2.44 meters (8 feet) of the switch and is powered from an independent circuit breaker.
  • Page 17 NSTRUCTIONS Specifications” on page 8 and “Connectivity Guidelines” on page 9 of this guide for further information.

  • Page 18: Application Examples

    PPLICATION XAMPLES PPLICATION XAMPLES Some typical applications for the SMC-EZ6516TX are illustrated below: SMC-EZ6516TX 10 Mbps 100 Mbps 100 Mbps 10 Mbps Workstations Server 100 Mbps Workstations Standalone LAN SMC-EZ6516TX SMC-EZ6516TX 100 Mbps 100 Mbps Workstations Servers 100 Mbps 10 Mbps...

  • Page 19: Troubleshooting

    NSTRUCTIONS ROUBLESHOOTING 1. Symptom Power LED does not light after power on. Probable Causes • DC power adapter may be defective. Possible Solutions • Check for loose connections. • Check the power outlet by using it for another device. • Replace the DC power adapter. 2.

  • Page 20: Cables

    ABLES ABLES Cable Specifications Cable Types and Specifications Cable Type Max. Length Connector 10BASE-T Cat. 3, 4, 5 100-ohm UTP 100 m (328 ft) RJ-45 100BASE-TX Cat. 5 100-ohm UTP 100 m (328 ft) RJ-45 Twisted-Pair Cable and Pin Assignments Caution: DO NOT plug a phone jack connector into any RJ-45 port.

  • Page 21: 10Base-T/100Base-Tx Pin Assignments

    WISTED ABLE AND SSIGNMENTS 10BASE-T/100BASE-TX Pin Assignments With standard straight-through 10BASE-T/100BASE-TX cable, pins 1 and 2 are used for transmitting data, and pins 3 and 6 for receiving data. The “+” and “-” signs in the table below are used to represent the polarity of the wires that make up each wire pair.

  • Page 22: Product Specifications

    RODUCT PECIFICATIONS RODUCT PECIFICATIONS EZ Switch 10/100 Model SMC-EZ6516TX Ports 16 10/100 Mbps RJ-45 auto- MDI/MDI-X ports Network Interface RJ-45: 100 ohm, UTP cable 10BASE-T - Categories 3, 4, or 5 100BASE-TX - Category 5 LEDs Power – one Link/Activity - one per port...
  • Page 23 EZ S 10/100 WITCH Temperature Operating: 0 to 40 °C (32 to 98 °F) Storage: -40 to 70 °C (-40 to 158 °F) Power Requirement DC input: 9 V/1 A Power Consumption 9 Watts Heat Dissipation 30.2 BTU/hr Maximum Current 0.8 A @ 9 VDC Standards IEEE 802.3...
  • Page 24 RODUCT PECIFICATIONS...
  • Page 26 97 14 299 4466 Fax 97 14 299 4664 Thailand: 66 2 651 8733 Fax 66 2 651 8737 If you are looking for further contact information, please visit www.smc.com, www.smc-europe.com, or www.smc-asia.com. Model Number: SMC-EZ6516TX Pub. Number: 150000006200H E072003-R01...
