4.2.1 AC Power Supply (PS1) Wiring Example

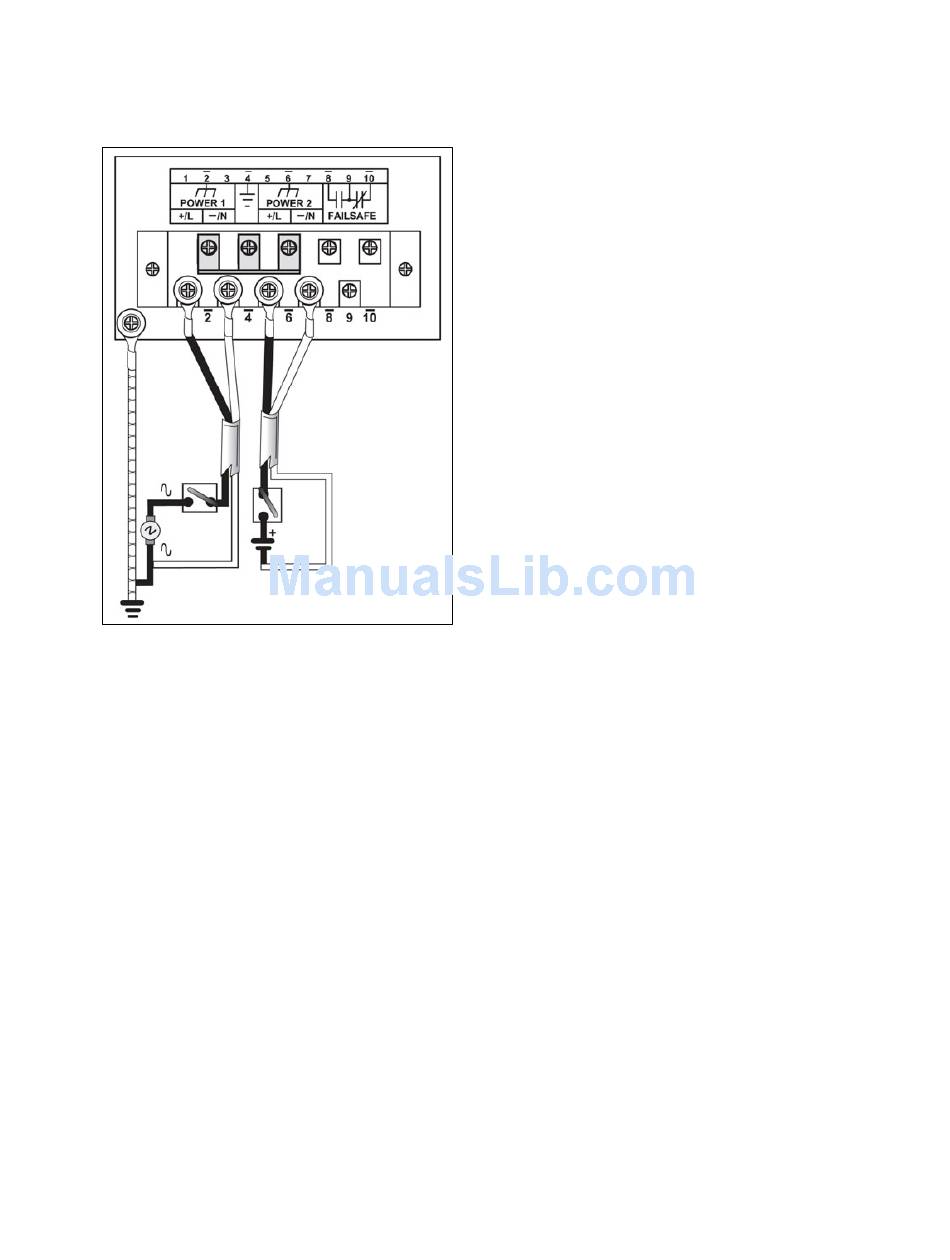

Figure 9: AC (PS1) & 48VDC (PS2) power supply wiring examples

NOTES:

1. 100-240VAC rated equipment: A 250VAC appropriately rated circuit breaker must be

installed.

2. Equipment must be installed according to the applicable country wiring codes.

Rev105
