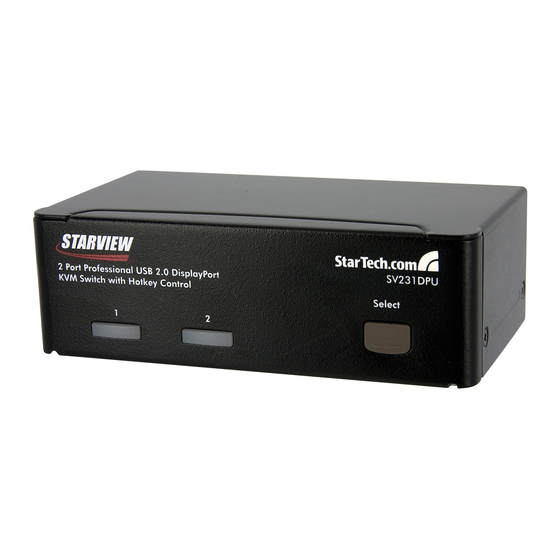

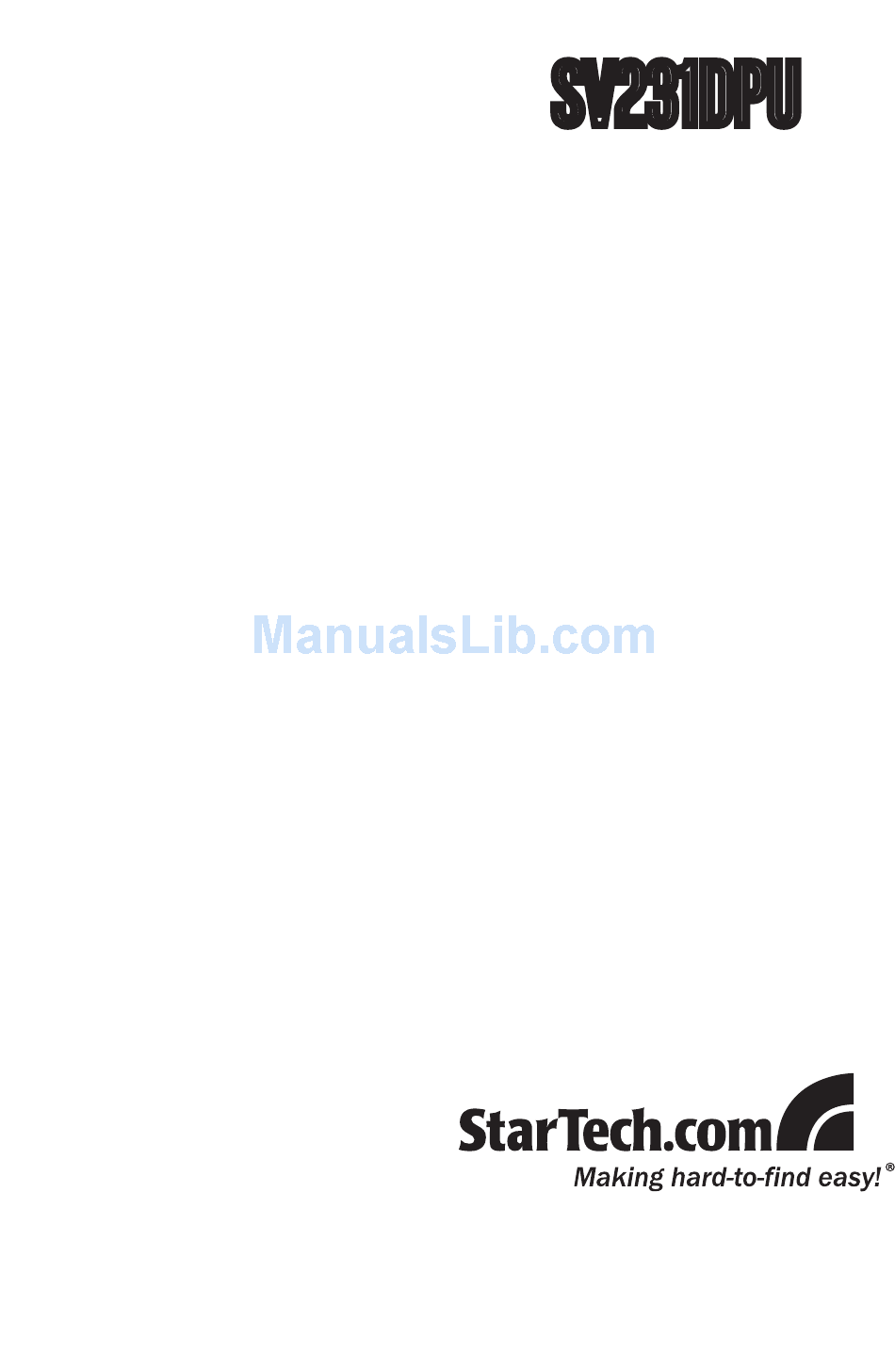

- Page 1 SV231DPU Instruction Manual DisplayPort KVM Switch 2-Port Professional USB, DisplayPort KVM Switch with Hotkey Control...
- Page 2 StarTech.com. Where they occur these references are for illustrative purposes only and do not represent an endorsement of a product or service by StarTech.com, or an endorsement of the product(s) to which this manual applies by the third-party company in question.
-
Page 3: Table Of Contents
Table of Contents Introduction ..............1 Packaging Contents..............1 System Requirements ..............1 Installation ............... 1 Hardware Installation ..............2 Driver Installation .................4 Operation ................. 4 Front Panel ..................4 HotKey Control ................4 Alternative Hotkey Commands ............7 Specifications ..............8 Technical Support ............9 Warranty Information ............ -
Page 4: Introduction
Introduction Packaging Contents • 1 x SV231DPU KVM switch • 1 x Power Adapter • 1 x Rubber Feet • 1 x Instruction Manual System Requirements • DisplayPort enabled computer system • USB enabled computer system • Standard 104-key USB keyboard •... -
Page 5: Hardware Installation
Hardware Installation Front View Port PC1 Link/ Selection Selection PC2 Link/ Button Selection Rear View Monitor DisplayPort PC2 Port PC1 Port port USB Mouse USB Hub port port External Keyboard power port port... - Page 6 *installation pictures are representations only Plug a monitor into the Console’s DisplayPort connector; plug a USB keyboard and a USB mouse into the dedicated USB keyboard and mouse ports on the KVM switch. Use a male-to-male DisplayPort video cable to connect the DisplayPort connector on the computer’s video card, to one of the KVM’s PC ports (ie.
-
Page 7: Driver Installation
Driver Installation No driver installation is required for the KVM switch, as the keyboard and mouse uses native USB keyboard/mouse drivers that are already installed on all operating system that fully support USB. Operation Front Panel PC Link/Selection LED The LED turns green when the connected computer is powered-on. The corresponding LED will also illuminate red when that PC port is currently selected. - Page 8 To select a computer: Left Ctrl + Left Ctrl + 1 (Example: Selects the computer at port 1.) Left Ctrl + Left Ctrl + 2 (Example: Selects the computer at port 2.) NOTE: Do not use the keypad on the right-side of the keyboard. Auto Scan The KVM automatically scans through the powered-on computers in sequence on a fixed time interval (see Scan Time below).
- Page 9 Scan Time Four options are available for users to set the Scan Time duration, it Includes 3, 8, 15 and 30 seconds. Note: Scan Time is set to 3 seconds by default. To adjust Scan Rate, set the scan time of duration before switching to the next computer: Left Ctrl + Left Ctrl + F3 The KVM Switch generates 1 to 4 beeps indicating a scan time...
-
Page 10: Alternative Hotkey Commands
Alternative Hotkey Commands In addition to the Left Ctrl + Left Ctrl hotkeys, there are two alternative hotkey sequences available. For the following operations, users may press Scroll Lock twice instead of pressing Left Ctrl twice. To select a computer: Scroll Lock + Scroll Lock + 1 (Example: Select the computer at port 1.) Scroll Lock + Scroll Lock + 2... -
Page 11: Specifications
Specifications Number of Ports 1 x DisplayPort Computer Connectors (per port) 1 x USB type B 1 x DisplayPort Console Connectors 3 x USB type A 2560x1600@60Hz Maximum Video Resolution (higher resolutions may be supported at lower refresh rates) DDC2B Support Audio Yes (over DisplayPort) Cascadable... -
Page 12: Technical Support
Limitation of Liability In no event shall the liability of StarTech.com Ltd. and StarTech.com USA LLP (or their officers, directors, employees or agents) for any damages (whether direct or indirect, special, punitive, incidental, consequential, or... - Page 13 StarTech.com has been making “hard-to-find easy” since 1985, providing high quality solutions to a diverse IT and A/V customer base that spans many channels, including government, education and industrial facilities to name just a few. We offer an unmatched selection of computer parts, cables, A/V products, KVM and Server...
