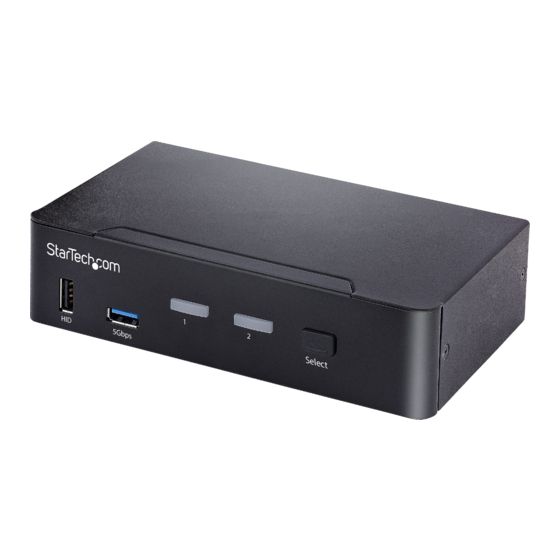

StarTech.com SV231DPUCA Quick Start Manual

2-Port USB-C DisplayPort Alt Mode KVM Switch

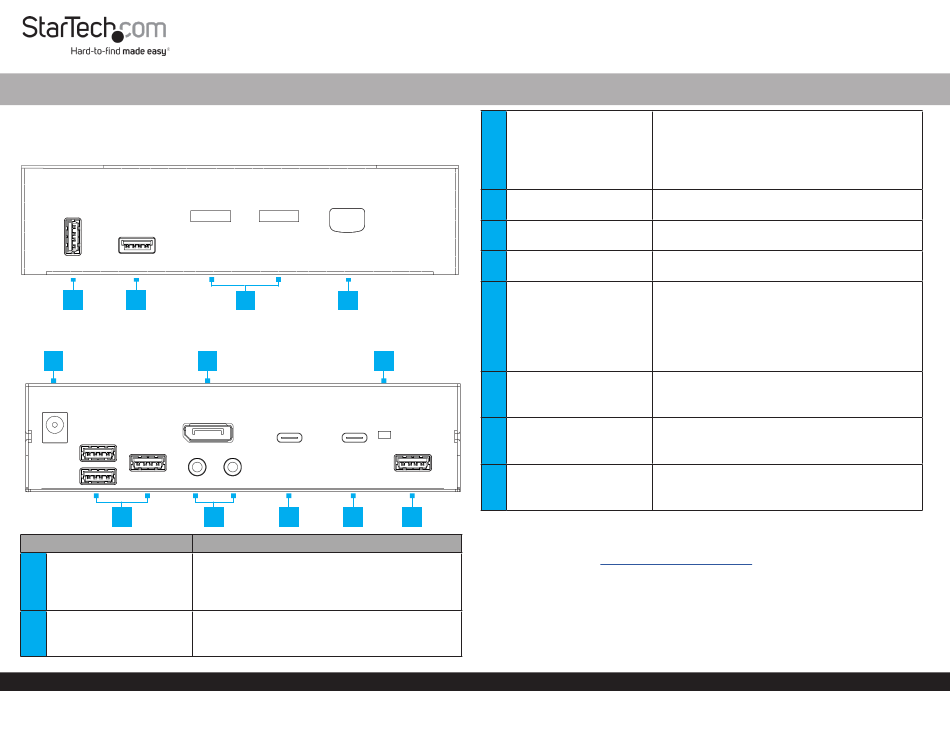

Product Diagram (SV231DPUCA)
Front
1 2
Rear
5
1
Component
1
Console USB HID Port
2
Console USB Hub Port
To view manuals, FAQs, videos, drivers, downloads, technical drawings, and more, visit www.startech.com/support.
3
4
6
8 9 10
Function
Connect a Human Interface Device (HID) (e.g.
•
Keyboard, Mouse, Trackpad, Number Keypad, or
Drawing Tablet)
Front (x1) and Rear (x3)
•
Connect a SuperSpeed USB 5Gbps (USB 3.2
•
Gen 1) Peripheral Device
Front (x1) and Rear (x1)
•
Port Selection LED
3
Indicators
4 Port Selection Button
5 Power Input Port
Console DisplayPort
6
Output Port
7
Video Mode Switch
7
8 Console Audio Ports
9 PC 2 USB-C Host Port
10 PC 1 USB-C Host Port
2
Product Information
For the latest manuals, product information, technical specifications, and declarations of
conformance, please visit:
Package Contents
• KVM Switch x 1
• Set of Rubber Feet x 1
• Universal Power Adapter x 1
• Quick-Start Guide x 1
Solid Green : PC1 or PC2 (Port not selected and
•
PC Connected)
Solid Red : PC1 or PC2 (Port Selected and PC not
•
Connected)
Half Green/Half Red: PC1 or PC2 (Port Selected
•
and PC Connected)
Press the Port Selection Button to switch
•
between PC 1 or PC 2
Connect the supplied Universal Power Adapter
•
to power the KVM Switch
Connect to a DisplayPort Input on a Display
•
Console DisplayPort Output Port and Console
•
USB Hub Port data transfer rate options:
4K 60Hz (4:4:4) with USB 480Mbps
•
-- or --
4K 30Hz (4:4:4) / 4K 60Hz (4:2:0) with USB
•
5Gbps
Green: Connect an Audio Device (e.g. Speakers
•
or Headphones)
Pink: Connect a Microphone
•
Connect to a Computer with a USB-C Port
•
For full functionality Host Computer USB-C
•
Port must support DP-Alt Mode
Connect to a Computer with a USB-C Port
•
For full functionality Host Computer USB-C
•
Port must support DP-Alt Mode
www.StarTech.com/SV231DPUCA
Quick-Start Guide
Manual Revision: August 26, 2022 3:35 PM
