Page 1: Instruction Manual
SV231DPUA SV431DPUA Instruction Manual DisplayPort KVM Switch 2/4-Port Professional USB, DisplayPort KVM Switch with Audio Manual Revision:07/22/2010 For the most up-to-date information, please visit www.startech.com... -
Page 2: Fcc Compliance Statement
StarTech.com. Where they occur these references are for illustrative purposes only and do not represent an endorsement of a product or service by StarTech.com, or an endorsement of the product(s) to which this manual applies by the third-party company in question. -
Page 3: Table Of Contents
Introduction ..............1 Packaging Contents..............1 System Requirements ..............1 Installation ............... 1 Hardware Installation ..............2 Front View - SV231DPUA ............2 Rear View - SV231DPUA ............2 Front View - SV431DPUA ............3 Rear View - SV431DPUA ............3 Driver Installation .................5 Operation ................. 5 Front Panel ..................5... -
Page 4: Introduction
Introduction Packaging Contents • 1 x SV231DPUA or SV431DPUA KVM switch • 1 x Power Adapter • 1 x Rubber Feet • 1 x Instruction Manual System Requirements • DisplayPort enabled computer system/video card • USB enabled computer system • DisplayPort enabled display device (e.g. monitor, projector, TV, etc.) •... -
Page 5: Hardware Installation

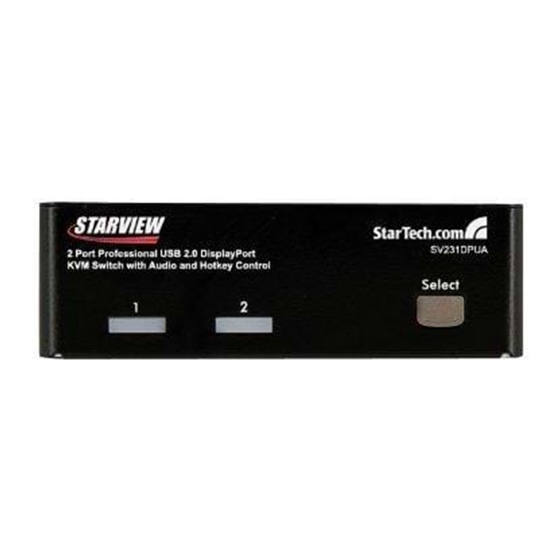

Hardware Installation Front View - SV231DPUA Rear View - SV231DPUA... -
Page 6: Front View - Sv431Dpua
Front View - SV431DPUA Rear View - SV431DPUA... - Page 7 *installation pictures are representations only 1. Plug a monitor into the Console’s DisplayPort connector; plug a USB keyboard and a USB mouse into the dedicated USB keyboard and mouse ports on the KVM switch. If using audio, also connect speakers and/or a microphone with 3.5mm mini-jack plugs. 2.
-
Page 8: Driver Installation
NOTE: A DisplayPort + USB + Audio KVM combo cable is also available which can be used in place of separate individual cables, StarTech.com ID: DP4N1USB6. 4. Repeat for Steps 2 and 3 for each PC port on the KVM switch, or each computer you wish to use on the KVM. -
Page 9: Hotkey Control
Port Selection Button 2-Port: Pressing the front panel “Select” button will toggle between the two ports on the KVM switch. 4-Port: Each push button on the front panel corresponds with a PC port. Pressing that button will immediately select that port. AutoScan The system automatically scans through the power-on computers in sequence with a fixed interval (see Scan Time below). - Page 10 To select a computer: Left <CTRL> + Left <CTRL> + <1> (Example: Selects the computer at port 1.) Left <CTRL> + Left <CTRL> + <2> (Example: Selects the computer at port 2.) NOTE: Do not use the keypad on the right-side of the keyboard. Auto Scan The KVM automatically scans through the powered-on computers in sequence on a fixed time interval (see Scan Time below).
- Page 11 Scan Time Four options are available for users to set the Scan Time duration, it Includes 3, 8, 15 and 30 seconds. Note: Scan Time is set to 3 seconds by default. To adjust Scan Rate, set the scan time of duration before switching to the next computer: Left <CTRL>...
-
Page 12: Alternative Hotkey Commands
USB 1: press the hotkey below to turn ON/OFF the USB-Port Rule on both USB Hub ports (2-port only) or USB Hub port 1 (4-port only): Left <CTRL> + Left <CTRL> + <F7> USB 2: press the hotkey below to turn ON/OFF the USB-Port Rule on USB Hub port 2 (4-port only): Left <CTRL>... -
Page 13: Change Leading Hotkey
2. For those keyboards that do not have or support <ScrollLock>, please press and HOLD the Left <SHIFT> and press <NumLock> twice instead of pressing Left <CTRL> twice. To select a computer: hold Left <SHIFT> + press <NumLock> + press <NumLock> then release <SHIFT>... -
Page 14: Specifications
Specifications SV231DPUA SV431DPUA Number of Ports 1 x DisplayPort Computer Connectors 1 x USB type B (per port) 2 x 3.5mm mini-jack 1 x DisplayPort Console Connectors 4 x USB type A 2 x 3.5mm mini-jack 1 x Power LEDs... -
Page 15: Technical Support
Limitation of Liability In no event shall the liability of StarTech.com Ltd. and StarTech.com USA LLP (or their officers, directors, employees or agents) for any damages (whether direct or indirect, special, punitive, incidental, consequential, or... - Page 16 StarTech.com has been making “hard-to-find easy” since 1985, providing high quality solutions to a diverse IT and A/V customer base that spans many channels, including government, education and industrial facilities to name just a few. We offer an unmatched selection of computer parts, cables, A/V products, KVM and Server...
