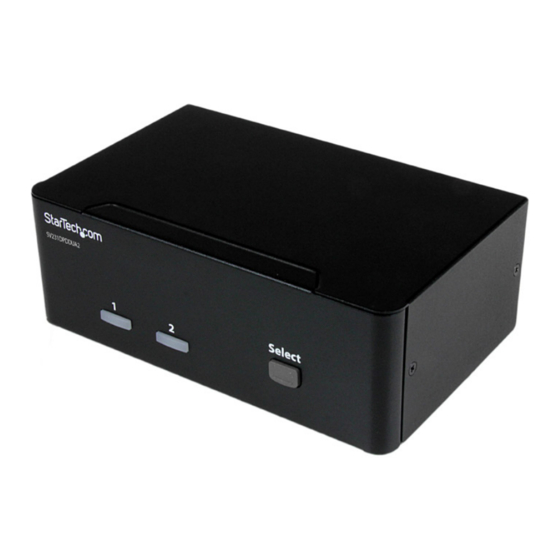

2-Port KVM Switch with Dual
DisplayPort - 4K 60Hz
SV231DPDDUA2
FR: Guide de l'utilisateur - fr.startech.com
DE: Bedienungsanleitung - de.startech.com
ES: Guía del usuario - es.startech.com
NL: Gebruiksaanwijzing - nl.startech.com
PT: Guia do usuário - pt.startech.com
IT: Guida per l'uso - it.startech.com
For the latest information, technical specifications, and support for
this product, please visit www.StarTech.com/SV231DPDDUA2.
Manual Revision: 11/22/2016
*actual product may vary from photos
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for StarTech.com SV231DPDDUA2
Summary of Contents for StarTech.com SV231DPDDUA2
- Page 1 2-Port KVM Switch with Dual DisplayPort - 4K 60Hz SV231DPDDUA2 *actual product may vary from photos FR: Guide de l’utilisateur - fr.startech.com DE: Bedienungsanleitung - de.startech.com ES: Guía del usuario - es.startech.com NL: Gebruiksaanwijzing - nl.startech.com PT: Guia do usuário - pt.startech.com IT: Guida per l’uso - it.startech.com...
- Page 2 StarTech.com. Where they occur these references are for illustrative purposes only and do not represent an endorsement of a product or service by StarTech.com, or an endorsement of the product(s) to which this manual applies by the third-party company in question. Regardless of any direct acknowledgement elsewhere in the body of this document, StarTech.com hereby...
-
Page 3: Table Of Contents
Table of Contents Introduction ....................1 Product diagram ............................1 Package contents ............................2 System requirements ..........................2 KVM switch setup ...................3 Connect a console to the KVM switch ....................3 Connect computers to the KVM switch .................... 3 About drivers .............................. 4 Operating the KVM switch ..............4 About the LED indicators ........................ - Page 4 Technical support ...................8 Warranty information ................8 Instruction manual...
-
Page 5: Introduction
Introduction You can use the SV231DPDDUA2 to control two computers enabled with DisplayPort™ 1.2, and share USB 2.0 peripherals among the connected computers. If you connect monitors enabled with DisplayPort 1.2, the SV231DPDDUA2 supports 4K at 60Hz. This two-port dual monitor KVM switch includes 3.5 mm audio speaker and microphone ports, and a select button that you can use to quickly switch between connected computers. -
Page 6: Package Contents
The maximum resolution for this KVM switch is 4K at 60Hz. In order to obtain the maximum resolution, the monitor and computer that you’re using must support 4K at 60Hz. System requirements are subject to change. For the latest requirements, please visit www.StarTech.com/SV231DPDDUA2. Instruction manual... -
Page 7: Kvm Switch Setup
KVM switch setup Connect a console to the KVM switch 1. Turn off your computer and any devices or peripherals that are connected to it (for example, printers, external hard drives, and so on). 2. Connect a monitor to the Console DisplayPort port. 3. -
Page 8: About Drivers
About drivers You don’t need to install any drivers for this KVM switch, as the keyboard and mouse use generic USB drivers that are already installed on any operating system that supports USB technology. Operating the KVM switch About the LED indicators There are three LED indicators located on the front of the KVM switch. -
Page 9: Enable Hotkey Commands
Enable or disable hotkey commands By default, hotkey commands are enabled on the KVM switch. • To disable hotkey commands, press and hold the Left Shift key and press Num Lock twice. Release the Left Shift key and then press the Left Ctrl key. •... -
Page 10: Troubleshooting
KVM switch. As such, StarTech.com recommends that you use a standard 3-button wired mouse and a 104-key wired keyboard in your setup. -
Page 11: My Keyboard Keeps Repeating Keys When It's Plugged Into The Switch
My keyboard keeps repeating keys when it’s plugged into the switch To resolve this issue, try the following: • If your keyboard is plugged into one of the USB keyboard ports on the KVM switch, unplug it and plug it into one of the USB hub ports. Note: Hotkey commands aren’t available if your keyboard is plugged into a USB hub port. - Page 12 Limitation of Liability In no event shall the liability of StarTech.com Ltd. and StarTech.com USA LLP (or their officers, directors, employees or agents) for any damages (whether direct or indirect, special, punitive, incidental, consequential, or otherwise), loss of profits, loss of business, or any pecuniary loss, arising out of or related to the use of the product exceed the actual price paid for the product.
- Page 13 StarTech.com is an ISO 9001 Registered manufacturer of connectivity and technology parts. StarTech.com was founded in 1985 and has operations in the United States, Canada, the United Kingdom and Taiwan servicing a worldwide market.
