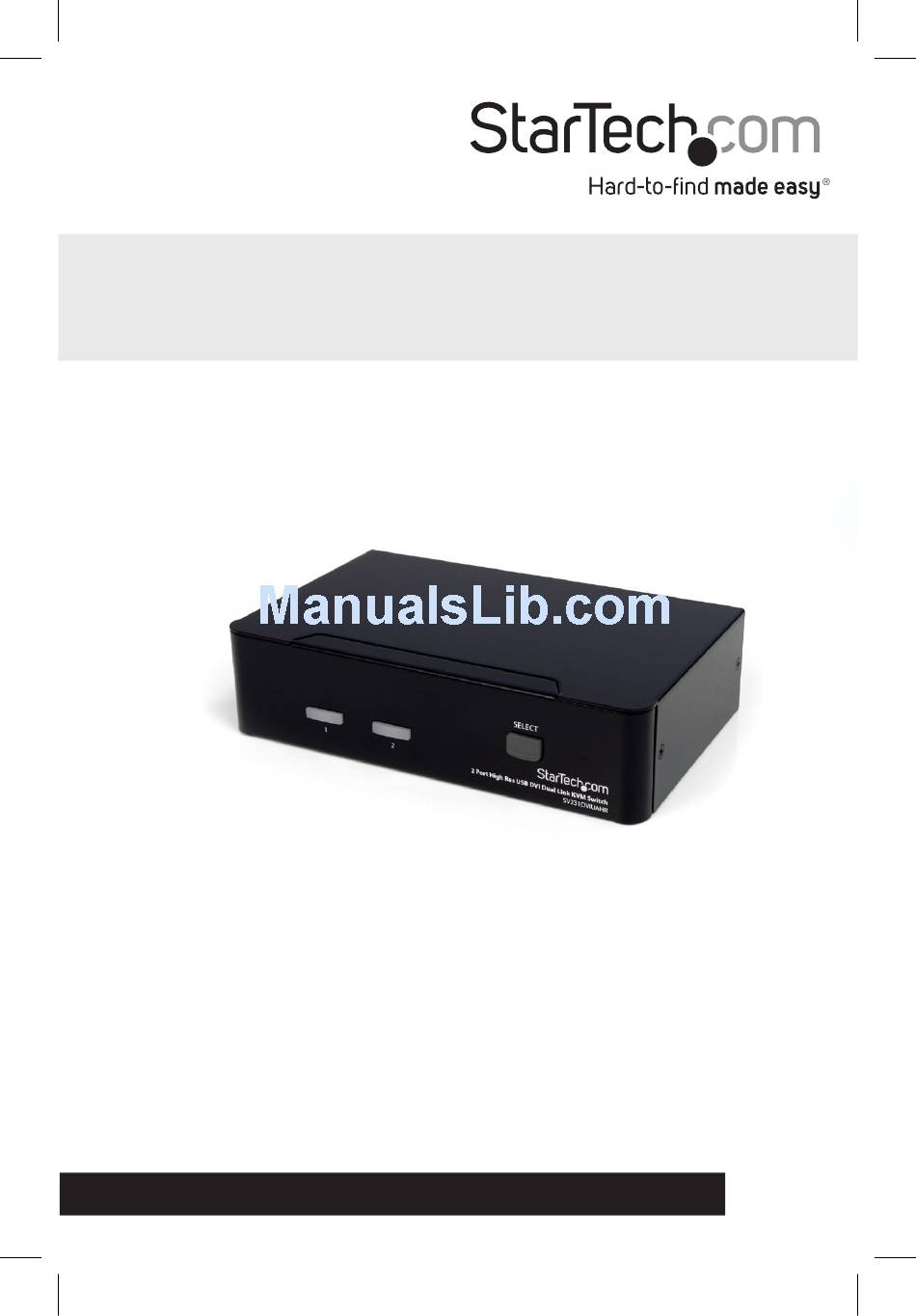

2 Port High Resolution Dual Link DVI
USB KVM Switch with Audio
SV231DVIUAHR
DE: Bedienungsanleitung - de.startech.com
FR: Guide de l'utilisateur - fr.startech.com
ES: Guía del usuario - es.startech.com
IT: Guida per l'uso - it.startech.com
NL: Gebruiksaanwijzing - nl.startech.com
PT: Guia do usuário - pt.startech.com
For the most up-to-date information, please visit: www.startech.com
Manual Revision: 08/12/2011
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for StarTech.com SV231DVIUAHR
Summary of Contents for StarTech.com SV231DVIUAHR
- Page 1 DE: Bedienungsanleitung - de.startech.com FR: Guide de l'utilisateur - fr.startech.com ES: Guía del usuario - es.startech.com IT: Guida per l'uso - it.startech.com NL: Gebruiksaanwijzing - nl.startech.com PT: Guia do usuário - pt.startech.com For the most up-to-date information, please visit: www.startech.com Manual Revision: 08/12/2011...
- Page 2 Where they occur these references are for illustrative purposes only and do not represent an endorsement of a product or service by StarTech.com, or an endorsement of the product(s) to which this manual applies by the third-party company in question. Regardless of any direct acknowledgement elsewhere in the body of this document, StarTech.com hereby acknowledges...
-
Page 3: Table Of Contents
Table of Contents Introduction ................................1 Packaging Contents ..........................1 System Requirements ..........................1 Installation................................2 Front View ..............................3 Rear View ................................3 Operation ................................5 Front Panel ..............................5 HotKey Control ............................5 Alternative Hotkey Commands ......................5 Change Leading Hotkey ........................7 Specifications ..............................8 Technical Support ............................9 Warranty Information ............................9 Instruction Manual... -
Page 4: Introduction
Introduction The SV231DVIUAHR 2-Port High Resolution Dual-Link DVI USB KVM Switch provides simple, yet comprehensive control of 2 directly-connected computers, as well as audio switching capability and support for high resolution applications (supports resolutions beyond 1080p: 2560x1600 @ 60Hz, up to 3840 x 2400 at lower refresh rates, and Apple Cinema quality resolutions), offering a superior KVM switching solution that integrates perfectly into demanding imaging, medical, and multimedia environments. -
Page 5: Installation
Installation NOTE: Prior to the installation, please power off all devices that will be connected to this system. Ensure that all devices you will connect are properly grounded. Place cables away from fluorescent lights, air conditioners, and machines that are likely to generate electrical noise. -
Page 6: Front View
Front View Rear View Instruction Manual... -
Page 7: Console Connection
Console Connection Before installation, ensure that all devices and computers to be connected to the KVM switch are powered off. 1. Connect a DVI-capable monitor to the Console’s DVI port. 2. Plug a USB keyboard and a USB mouse to any two of the Console’s USB ports as shown below. Computer Connection 1. -
Page 8: Operation
Operation Front Panel On-line LED / Selected LED When the LED turns green, the connected computer is powered-on. When a computer is selected, its corresponding red LED illuminates. Push Buttons Pressing the “Select” button switches between ports. HotKey Control A Hotkey command is a short keyboard sequence for selecting a computer, activating computer scan, etc. - Page 9 To start Auto Scan: Left <CTRL> + Left <CTRL> + <F1> To abort the Auto Scan mode, press the left <CTRL> key twice. When Auto Scan detects any keyboard activity, it suspends the scanning till the activity stops; it then resumes with the next computer in sequence.
-
Page 10: Change Leading Hotkey
USB-Port Rule There are two settings for USB-Port Rule: ON or OFF. When set to ‘ON’ , the USB Hub ports follows computer selection. When set to ‘OFF’ , the USB Hub ports stays on the currently selected PC port. Press the hotkey below to turn ON/OFF the USB-Port Rule: Left <CTRL>... -
Page 11: Specifications
Specifications Number of Ports 1 x USB type B female Computer Connectors 1 x 29-pin DVI female (per port) 2 x 3.5mm Audio female 4 x USB type A female Console Connectors 1 x 29-pin DVI female 2 x 3.5mm Audio female LEDs 2 x Port Selection/Link Maximum Video Resolution... -
Page 12: Technical Support
Limitation of Liability In no event shall the liability of StarTech.com Ltd. and StarTech.com USA LLP (or their officers, directors, employees or agents) for any damages (whether direct or indirect, special, punitive, incidental, consequential, or otherwise), loss of profits, loss of business, or any pecuniary loss, arising out of or related to the use of the product exceed the actual price paid for the product. - Page 13 StarTech.com is an ISO 9001 Registered manufacturer of connectivity and technology parts. StarTech.com was founded in 1985 and has operations in the United States, Canada, the United Kingdom and Taiwan servicing a worldwide market.
