2/4 Port USB DisplayPort® KVM Switch with Audio
SV231DPUA / SV431DPUA
DE: Bedienungsanleitung - de.startech.com
FR: Guide de l'utilisateur - fr.startech.com
ES: Guía del usuario - es.startech.com
IT: Guida per l'uso - it.startech.com
NL: Gebruiksaanwijzing - nl.startech.com
PT: Guia do usuário - pt.startech.com
For the most up-to-date information, please visit: www.startech.com
Manual Revision: 05/01/2014
*actual product may vary from photos
Advertisement
Table of Contents
Related Manuals for StarTech.com SV231DPUA
Summary of Contents for StarTech.com SV231DPUA
- Page 1 DE: Bedienungsanleitung - de.startech.com FR: Guide de l'utilisateur - fr.startech.com ES: Guía del usuario - es.startech.com IT: Guida per l'uso - it.startech.com NL: Gebruiksaanwijzing - nl.startech.com PT: Guia do usuário - pt.startech.com For the most up-to-date information, please visit: www.startech.com Manual Revision: 05/01/2014...
-
Page 2: Fcc Compliance Statement
StarTech.com. Where they occur these references are for illustrative purposes only and do not represent an endorsement of a product or service by StarTech.com, or an endorsement of the product(s) to which this manual applies by the third-party company in question. Regardless of any direct acknowledgement elsewhere in the body of this document, StarTech.com hereby... -
Page 3: Table Of Contents
Table of Contents Introduction ...................1 Features ................................ 1 Package Contents ............................ 1 System Requirements ..........................1 Installation ....................1 Hardware Installation ..........................2 Driver Installation ............................5 Operation ....................5 Front Panel ..............................5 Port Selection Button ..........................6 AutoScan ..............................6 Scan Time .............................. -
Page 4: Introduction
• Supports Plug and Play and hot swap to save time from rebooting the computer • Supports data transfer rates up to 480Mbps when used on a USB 2.0 port Package Contents • SV231DPUA or SV431DPUA KVM switch • Power Adapter • Rubber Feet •... -
Page 5: Hardware Installation

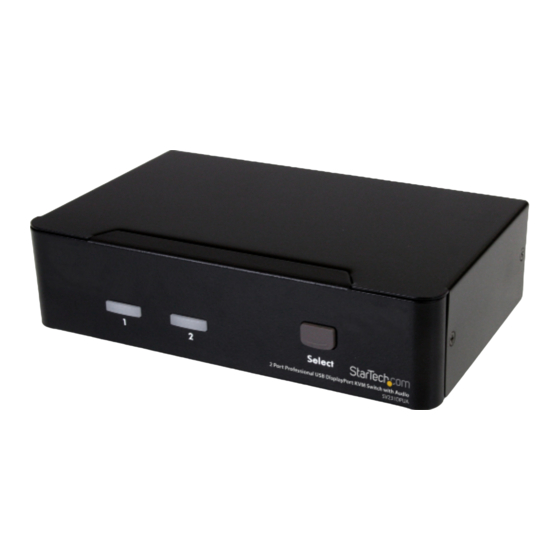

Hardware Installation Front View - SV231DPUA Port Selection/Link LED Port Selection Button Rear View - SV231DPUA Instruction Manual... - Page 6 Front View - SV431DPUA Port Selection/Link Power Port Selection Button Rear View - SV431DPUA Instruction Manual...
- Page 7 *installation pictures are representations only 1. Plug a monitor into the Console’s DisplayPort connector; plug a USB keyboard and a USB mouse into the dedicated USB keyboard and mouse ports on the KVM switch. If using audio, also connect speakers and/or a microphone with 3.5mm mini-jack plugs. 2.
-
Page 8: Driver Installation
StarTech.com ID: DP4N1USB6. 4. Repeat for Steps 2 and 3 for each PC port on the KVM switch, or each computer you wish to use on the KVM. 5. OPTIONAL: Connect any other USB peripherals you wish to share between the connected computers/devices to the extra USB Hub ports on the Console side. -
Page 9: Port Selection Button
Port Selection Button 2-Port: Pressing the front panel “Select” button will toggle between the two ports on the KVM switch. 4-Port: Each push button on the front panel corresponds with a PC port. Pressing that button will immediately select that port. AutoScan The system automatically scans through the power-on computers in sequence with a fixed interval (see Scan Time below). -
Page 10: Auto Scan
To select a computer: Left <CTRL> + Left <CTRL> + <1> (Example: Selects the computer at port 1.) Left <CTRL> + Left <CTRL> + <2> (Example: Selects the computer at port 2.) NOTE: Do not use the keypad on the right-side of the keyboard. Auto Scan The KVM automatically scans through the powered-on computers in sequence on a fixed time interval (see Scan Time below). - Page 11 Scan Time Four options are available for users to set the Scan Time duration, it includes 3, 8, 15 and 30 seconds. Note: Scan Time is set to 3 seconds by default. To adjust Scan Rate, set the scan time of duration before switching to the next computer: Left <CTRL>...
-
Page 12: Alternative Hotkey Commands
USB 1: press the hotkey below to turn ON/OFF the USB-Port Rule on both USB Hub ports (2-port only) or USB Hub port 1 (4-port only): Left <CTRL> + Left <CTRL> + <F7> USB 2: press the hotkey below to turn ON/OFF the USB-Port Rule on USB Hub port 2 (4-port only): Left <CTRL>... -
Page 13: Change Leading Hotkey
2. For those keyboards that do not have or support <ScrollLock>, please press and HOLD the Left <SHIFT> and press <NumLock> twice instead of pressing Left <CTRL> twice. To select a computer: hold Left <SHIFT> + press <NumLock> + press <NumLock> then release <SHIFT>... -
Page 14: Specifications
Specifications SV231DPUA SV431DPUA Number of Ports 1 x DisplayPort Computer Connectors 1 x USB type B (per port) 2 x 3.5mm mini-jack 1 x DisplayPort Console Connectors 1 x USB type 2 x 3.5mm mini-jack 1 x Power LEDs 2 x Port Select/Power... - Page 15 SV231DPUA SV431DPUA Operating 0°C ~ 40°C (32°F ~ 104°F) Temperature Storage Temperature -20°C ~ 60°C (-4°F ~ 140°F) Humidity 0 ~ 80% RH 160.0mm x 44.0mm x 220.7mm x 44.0mm x Dimensions (WxHxD) 100.0mm 130.6mm Weight 1050g 1100g Instruction Manual...
-
Page 16: Technical Support
Limitation of Liability In no event shall the liability of StarTech.com Ltd. and StarTech.com USA LLP (or their officers, directors, employees or agents) for any damages (whether direct or indirect, special, punitive, incidental, consequential, or otherwise), loss of profits, loss of business, or any pecuniary loss, arising out of or related to the use of the product exceed the actual price paid for the product. - Page 17 StarTech.com is an ISO 9001 Registered manufacturer of connectivity and technology parts. StarTech.com was founded in 1985 and has operations in the United States, Canada, the United Kingdom and Taiwan servicing a worldwide market.
