For best performance, voltage drops should not exceed 10% at 115V or 5% at 230V. The minimum electrical
service amperage required by a K-array loudspeakers system is the sum of their maximum continuous RMS
current. We recommend allowing an additional 30% above the minimum amperage to prevent peak voltage
drops at the service entry.

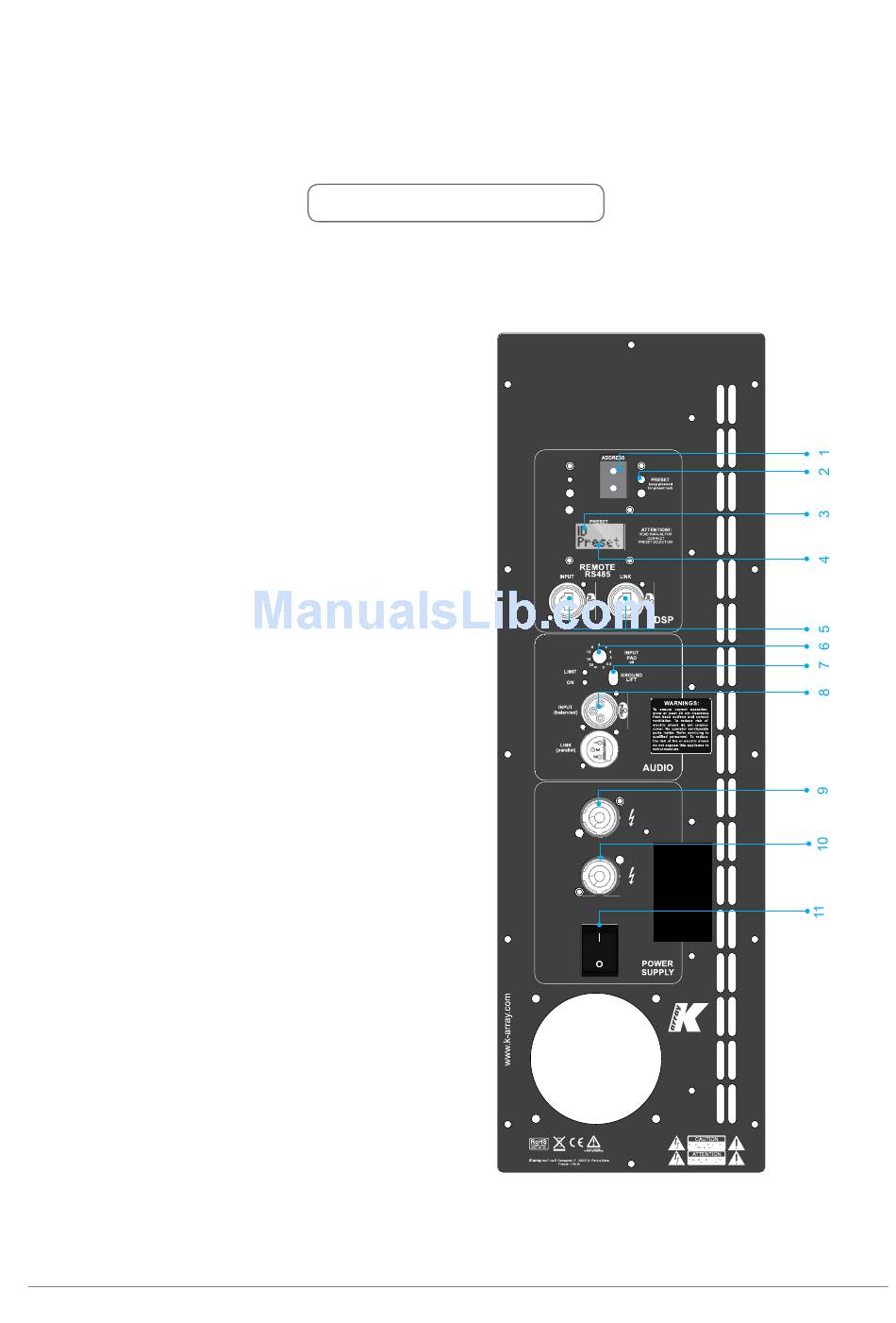

7.4 REAR PANEL

1)
Address selector, (rotary x10 - x1)
2)
Preset selector (Press one to change, keep 10 sec.
to store)
3)
ID number for remote control
4)
Preset in use
5)
RS485 connections for remote control (don-t connect
to LAN port)
6)
Input PAD level
7)
Ground lift switch
8)
Balanced XLR IN/oUt parallel
9)
PowerCon Input
10)
PowerCon parallel Output (max 5A @110V)
11)
Power switch
9
KO40 max continuous apparent power (VA)
900VA(>10 sec) - 3500VA (<1 sec)
AC
INPUT
AC - IN
115 - 230 V
I nom.
7.8 A / 115 V - 3.9 A / 230 V
AC
LINK
MAX OUT
115 V / 0.7 KW / 5 A
230 V / 1.8 KW / 10 A
REV. B
