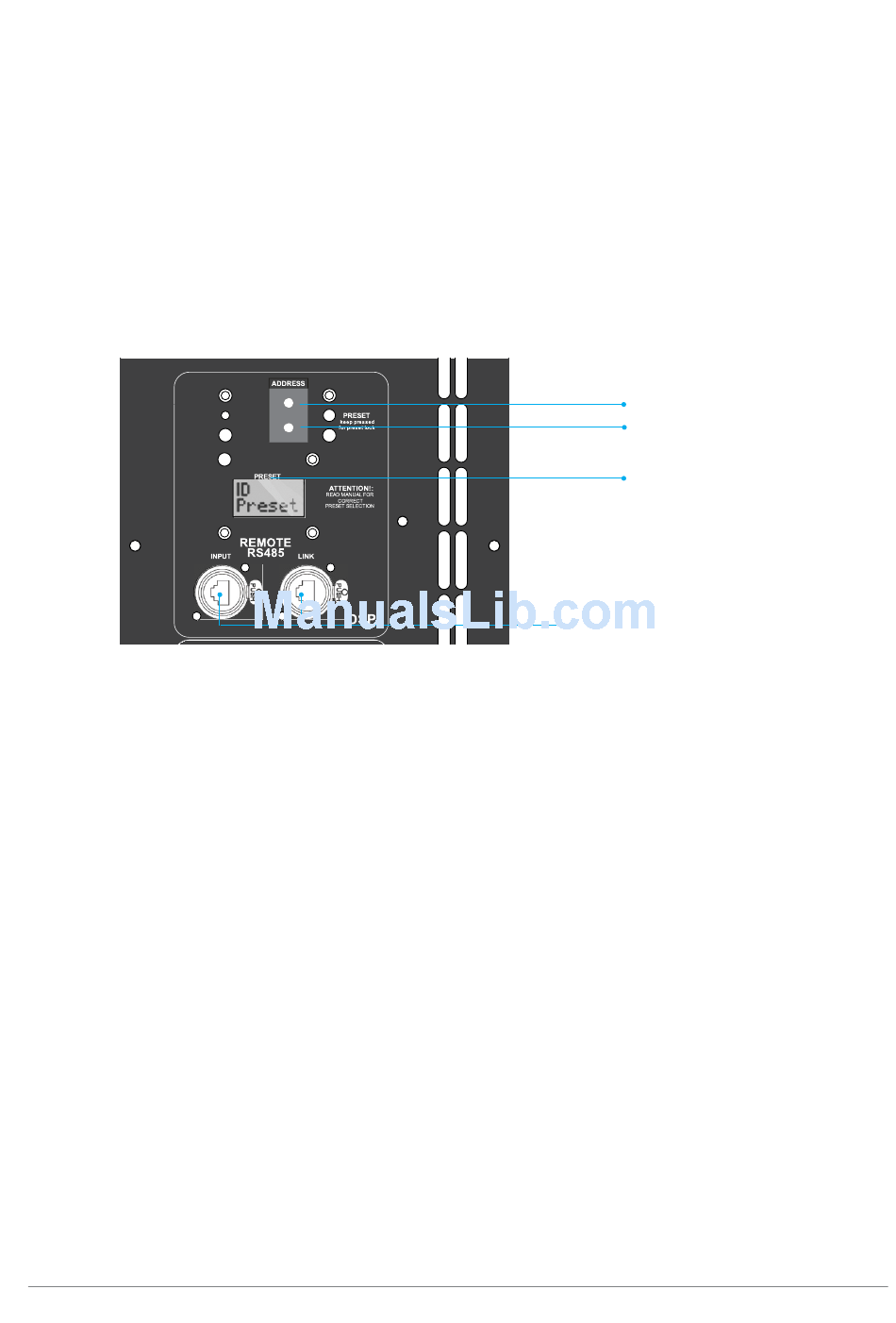

7.5 DSP CONTROL & REMOTE CONTROL
The KO70 have a powerful DSP that manages all the functions of the speakers. Each system can store on
board16 preset that can be recalled pushing the PRESEt button. once the preset will appear on the lower
line of the display it will become automatically available after few seconds. If you desire to set a preset as
"default" you just need, once selected it, to keep pressed for five seconds the PRESET button. After that,
this preset will automatically be recall each time you will switch on your module. It is also possible to remote
each module by an RS485 serial port. In order to remote your system, you need to set each module on a
different address, so that, in your chain, no one module will have the same address. two rotary encoder al-
low you to set the desired address number that will appear on the top line of the display. Using the remote
control software it is possible to mute each system, select a desired preset loaded on-board or download a
new preset pack.

7.6 CLONER FUNCTION

It is possible to clone the entire presets bank from Speaker to Speaker without any PC connected. We
will call SpeakerA the one with the presets bank that you want clone, and SpeakerB the one that will be
upgraded.
INPUT
Set the SpeakerA on ID 99, will appear CLONER on the display
115 - 230 V
Keep SpeakerB on any ID number between 10 and 90.
7.8 A / 115 V - 3.9 A / 230 V
Turn off both the speakers and connect by a RJ45 8 poles cable
Turn on the SpeakerB and after the SpeakerA
LINK
MAX OUT
SpeakerA will start to clone, on the display will appear a cont down (00/15, 01/15, etc)
115 V / 0.7 KW / 5 A
230 V / 1.8 KW / 10 A
Wait till 20 seconds after 15/15
Change the ID of the SpeakerA to any other ID and turn off both Speakers
Turning on the SpeakerA check that it is on mode 16x16 and NOT 4x4.
If SpeakerA is in mode 4x4, just turn off the speaker and keep press the Preset button during the turning on
The preset are cloned to the SpeakerB
