Rear Panel - K-array KN6 User Manual

For best performance, the AC Cable voltage drop should not exceed 10% at 115V
and 5% at 230V.
The minimum electrical service amperage required by a K-array Skin system is
the sum of their maximum continuous RMS current. We recommend allowing an
additional 30% above the minimum amperage to prevent peak voltage drops at the
service entry.
KN6/KN10S max continuous apparent power (VA)
140VA(>10 sec) - 700VA (<1 sec) autorange

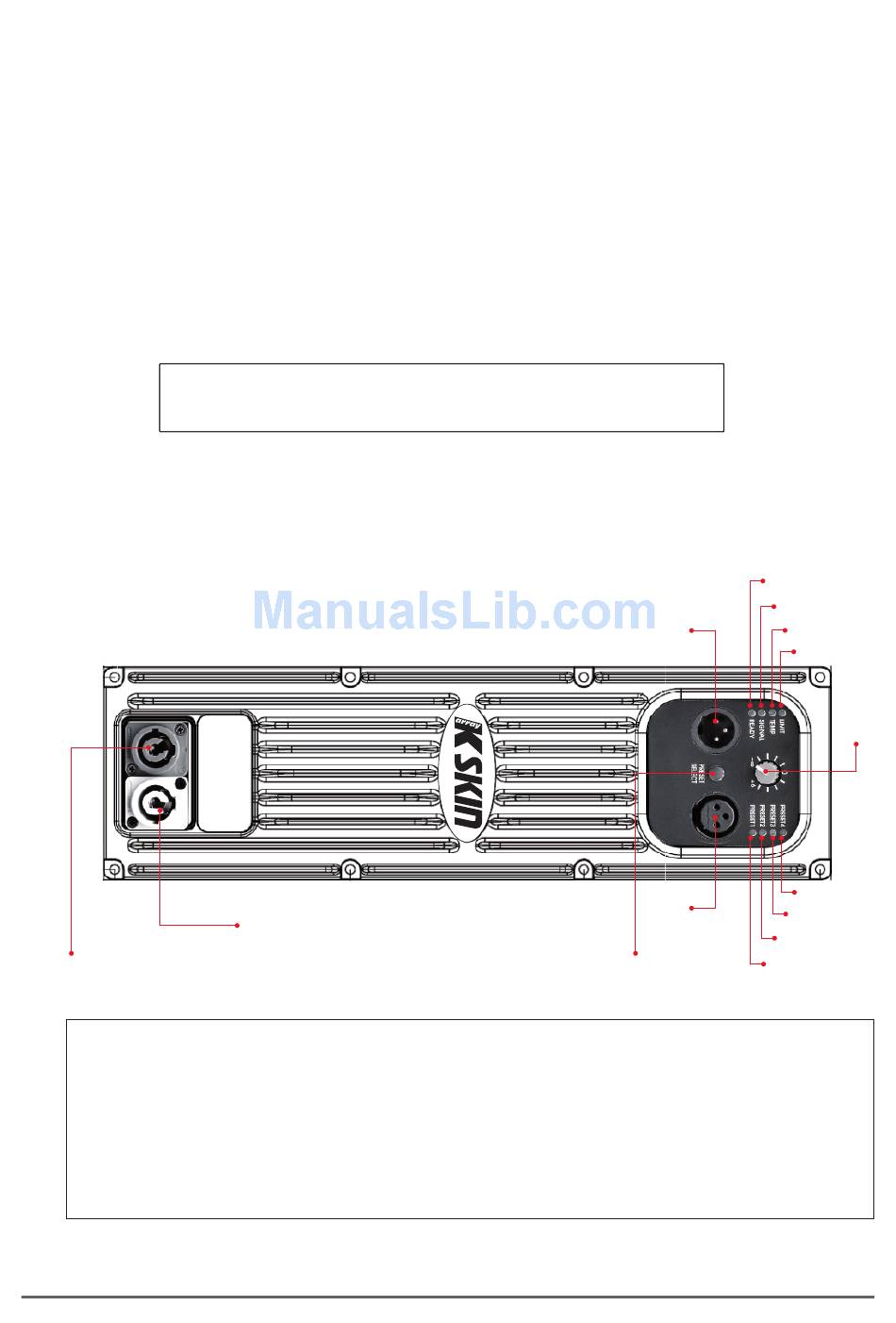

8.4 REAR PANEL

1
1. Power connector IN
2. Power connector OUT (max 15A)
3. Preset selector,
press one to change, 10 sec. to store
4. Audio INPUT
5. Parallel audio OUTPUT
rev.A
2
3
6. Indicator of proper operating
7. Indicator of signal/clip INPUT
8. Indicator of temperature protection
9. Indicator of clip limiter
10. Audio Input level PAD
11,12, 13, 14 Preset in use
KN6 - KN10S
6
7
8
5
9
14
4
13
12
11
10
13
