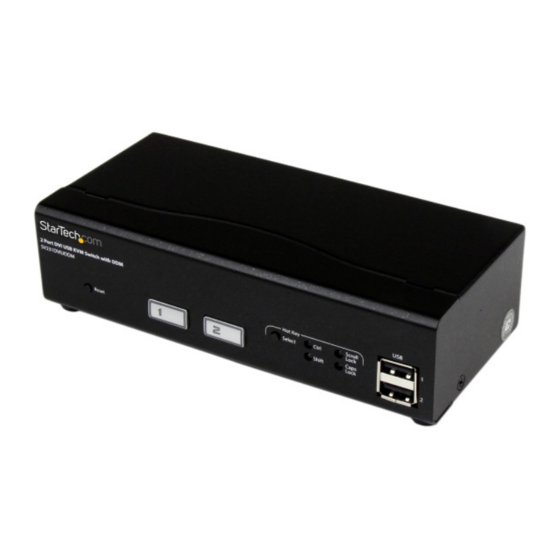

2 Port DVI USB KVM Switch with DDM and Cables
4 Port DVI USB KVM Switch with DDM and Cables
SV231DVIUDDM
SV431DVIUDDM
DE: Bedienungsanleitung - de.startech.com
FR: Guide de l'utilisateur - fr.startech.com
ES: Guía del usuario - es.startech.com
IT: Guida per l'uso - it.startech.com
NL: Gebruiksaanwijzing - nl.startech.com
PT: Guia do usuário - pt.startech.com
For the most up-to-date information, please visit: www.startech.com
Manual Revision: 08/17/2017
*actual product may vary from photos
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for StarTech.com SV231DVIUDDM
Summary of Contents for StarTech.com SV231DVIUDDM
- Page 1 DE: Bedienungsanleitung - de.startech.com FR: Guide de l'utilisateur - fr.startech.com ES: Guía del usuario - es.startech.com IT: Guida per l'uso - it.startech.com NL: Gebruiksaanwijzing - nl.startech.com PT: Guia do usuário - pt.startech.com For the most up-to-date information, please visit: www.startech.com Manual Revision: 08/17/2017...
- Page 2 StarTech.com. Where they occur these references are for illustrative purposes only and do not represent an endorsement of a product or service by StarTech.com, or an endorsement of the product(s) to which this manual applies by the third-party company in question. Regardless of any direct acknowledgement elsewhere in the body of this document, StarTech.com hereby...
-
Page 3: Table Of Contents
Table of Contents Introduction ....................1 Packaging Contents ..........................1 Product Overview ..................1 Front View (SV231DVIUDDM) ....................... 1 Rear View ..............................1 Front View (SV431DVIUDDM) ....................... 2 Rear View ..............................2 LED Indicators............................. 3 Reset Button ..............................3 Installation ..............................3 Operation .............................. -
Page 4: Introduction
• 2 x 2x 6ft DVI-D USB KVM Cables (4x 6ft DVI-D USB KVM Cables for SV431DVIUDDM) • 1 x Firmware Upgrade Cable • 1 x Universal Power Adapter (NA/EU/UK) • 1 x Instruction Manual Product Overview Front View (SV231DVIUDDM) Reset Push-button Hot-Key USB Hub... -
Page 5: Front View (Sv431Dviuddm)
Front View (SV431DVIUDDM) Hot-Key Reset Push-button Selector and Button PC Selectors USB Hub Indicators Rear View DDM Keyboard and Mouse Ports USB Hub PC KVM Ports Console Monitor DC Jack RJ-45 Serial Port (Serial Control + Firmware Upgrade) Instruction Manual... -
Page 6: Led Indicators
LED Indicators PC Selection Indicators Green = PC Connected Amber = Port selected, PC connected Red = Port selected, no PC connected NOTE: The LED will flash quickly while the KVM is mapping a newly connected device Hot-key Selection Indicator Blue = Currently selected hot-key Not-lit = hot-key has been disabled Reset Button... -
Page 7: Operation
Operation Switching between computers can be accomplished using: • Front-panel push-buttons • Keyboard hot-keys Note: To connect with the serial device, you need to operate at 115200 baud. Hot-key and functions The default hot-key is Ctrl. Function Hot-key sequence Ctrl, Ctrl, K, <new hot-key> Change default hot-key Ctrl, Ctrl, <port number 1 to 4>... - Page 8 Ctrl, Ctrl, M, 1 Enable switching by mouse scroll-wheel button Ctrl, Ctrl, M, 0 Disable switching by mouse scroll-wheel button The feature is turned off by default. Change the Serial Device Settings to the following: Speed (baud) 115200 Data bits Stop bits Parity None...
-
Page 9: Specifications
Specifications SV231DVIUDDM KVM Ports 1 x DVI-I (29 pin) Female Console Connectors 2 x USB A (4 pin) Female (w/ DDM) Computer Connectors 1 x DVI-I (29 pin) Female (per port) 1 x USB B Female Other Interfaces 2 x USB A Female... -
Page 10: Sv431Dviuddm
SV431DVIUDDM KVM Ports 1 x DVI-I (29 pin) Female Console Connectors 2 x USB A (4 pin) Female (w/ DDM) Computer Connectors 1 x DVI-I (29 pin) Female (per port) 1 x USB B Female Other Interfaces 2 x USB A Female Switching Modes Pushbutton, Hot-key Maximum Resolution... -
Page 11: Technical Support
Limitation of Liability In no event shall the liability of StarTech.com Ltd. and StarTech.com USA LLP (or their officers, directors, employees or agents) for any damages (whether direct or indirect, special, punitive, incidental, consequential, or otherwise), loss of profits, loss of business, or any pecuniary loss, arising out of or related to the use of the product exceed the actual price paid for the product. - Page 12 StarTech.com is an ISO 9001 Registered manufacturer of connectivity and technology parts. StarTech.com was founded in 1985 and has operations in the United States, Canada, the United Kingdom and Taiwan servicing a worldwide market.
