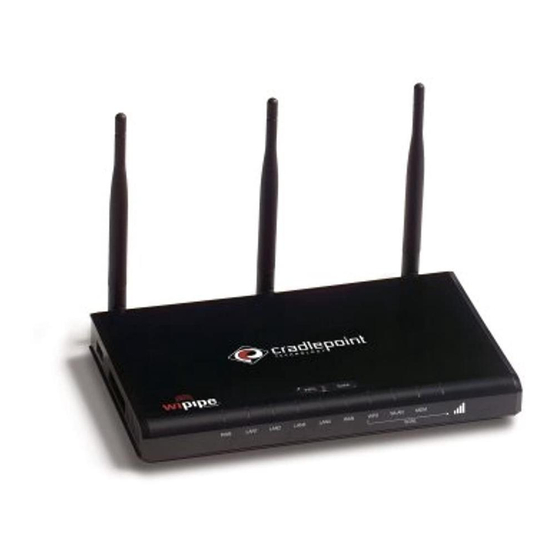

Cradlepoint MBR1000 User Manual

Mobile broadband router
Hide thumbs Also See for MBR1000:
Table of Contents

Advertisement

Quick Links

USER MANUAL

Firmware Version 1.3.1

© 2008-2009 Cradlepoint Inc. All rights reserved.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MBR1000 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Cradlepoint MBR1000

Summary of Contents for Cradlepoint MBR1000

  • Page 1: User Manual

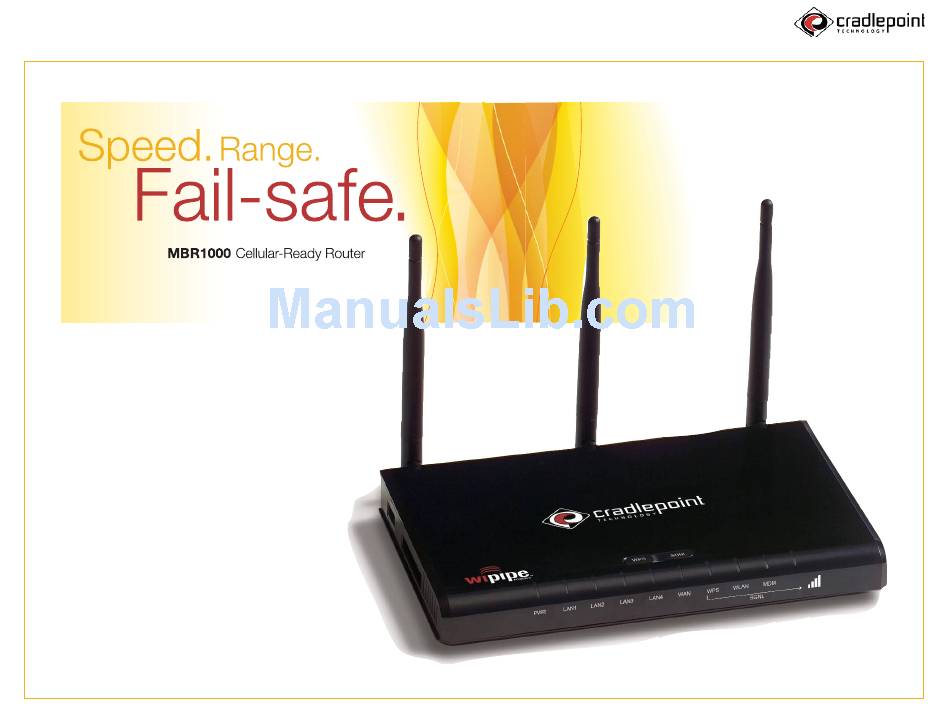

    USER MANUAL Firmware Version 1.3.1 © 2008-2009 Cradlepoint Inc. All rights reserved.

  • Page 2: Table Of Contents

    CradlePoint MBR1000 | USER MANUAL _ Firmware Version 1.3.1 TABLE OF CONTENTS 1 Introduction ......................3 6 Tools Tab (Enterprise Administration) ..............1.1 Package Contents ..................3 6.1 Admin ....................... 73 1.2 System Requirements ................... 3 6.2 Time ........................75 1.3 MBR1000 Overview ..................4 6.3 Syslog ......................77 6.4 Email .

  • Page 3: Introduction

    CradlePoint MBR1000 | USER MANUAL _ Firmware Version 1.3.1 1. Introduction 1.1 Package Contents • CradlePoint MBR1000 Mobile Broadband Router • A C power adapter (WARNING: using a power adapter other than the one provided may damage the MBR1000 and will void the warranty) • Category 5 (CAT5) Ethernet cable • Quick Start Guide • Wall-mounting screws 1. System Requirements • E thernet-based Cable/DSL modem and/or optional EVDO or HSPA handset • Computer(s) with Windows, Macintosh operating system with an installed Ethernet adapter • Internet Explorer, Firefox or other standard browser (required for configuring MBR1000) Table of Contents PAGE 3...

  • Page 4: Mbr1000 Overview

    CradlePoint MBR1000 | USER MANUAL _ Firmware Version 1.3.1 1.3 MBR1000 Overview • A void service disruptions. The MBR1000 has the unique ability to access high-speed cellular data networks (via a user-provided EVDO or HSDPA handset ), so if your DSL or Cable service is interrupted, the MBR1000 will automatically failover to its high-speed cellular data network connection, ensuring continuous access to the Internet. - Built-in ExpressCard and USB cellular modem ports - Charges the EVDO or HSDPA handset (if handset supports charging feature). • E stablish a Wi-Fi hotspot virtually anywhere. Because the MBR1000 can access high-speed cellular data networks (using a user-provided EVDO or HSDPA handset ), you can use the MBR1000 to create a hotspot almost anywhere. And the MBR1000’s WiPipe™ technology improves your cellular Internet experience: - B uilt-in Detect and Connect capability automatically establishes a network connection through a supported cellular device for quick and easy connections. - Works with over 50 carrier/modem/handset combinations • Enterprise-grade security. The MBR1000 features WiPipe security to ensure better control for sharing wireless bandwidth. This makes it easy for...

  • Page 5: Hardware

    CradlePoint MBR1000 | USER MANUAL _ Firmware Version 1.3.1 . Hardware .1 Ports SGNL Button Hold the SNGL button for 5 seconds to enter signal mode. Note that signal mode may disconnect your data session (drop internet access.) Power Input  USB Host Connectors Press SGNL again for 1 second to Powers the unit and Provide data connection resume normal router operation with charges any attached points for cellular hand- Internet Access, normal LEDs, etc. handset sets and modems Reset Button Wired WAN Port LAN 1-4...

  • Page 6: Leds

    CradlePoint MBR1000 | USER MANUAL _ Firmware Version 1.3.1 . LEDs WAN1 Power LAN1-4 WLAN Green when Green when cable plugged Green when cable is plugged Green when Wi-Fi is en- power is on, unlit in and link status is up, unlit in and link status is up, unlit abled and blinking green when power is off when no connection(s) when no connection when Wi-Fi traffic is active WPS (Wi-Fi Protected Setup) SGNL Indicates that a WPS negotiation Indicates valid Cellular data connection via USB or Express card Signal Meter mode is entered by hold- is taking place No Cellular device connected ing down the SGNL button (see page 5) - Off: Suc-...

  • Page 7: Quick Start

    CradlePoint MBR1000 | USER MANUAL _ Firmware Version 1.3.1 3. Quick Start 3.1 Hardware Connections 1. Power. Plug AC Power Adapter into Internet MBR1000 and a 110V AC outlet. 2. Wired WAN. Connect your DSL/Cable Modem to the blue WAN port on the MBR1000 using a CAT 5 Ethernet cable. DSL/Cable Modem 3. Wireless/Cellular WAN. Insert a USB Mobile Broadband Adapter or ExpressCard into the MBR1000. 4. Wi-Fi Clients. See next page (page 8) for instructions on connecting WiFi-enabled clients.

  • Page 8: Wireless Internet Connection

    CradlePoint MBR1000 | USER MANUAL _ Firmware Version 1.3.1 3. Wireless Internet Connection 6. Wireless Network Connection. On a Wi-Fi-enabled computer or device, open the View Wireless Networks window and click on the MBR1000. Next, click on the Con- button in the bottom right corner of the window. nect I f more than one MBR1000 wireless router is visible, you can find the correct unit by checking for its SSID. Your wireless router uses the SSID of MBR1000-xxx, where “xxx” is the last 3 digits of the router’s MAC address. The MAC address can be found on the MBR1000 product box or the bottom of the MBR1000 unit. Once you have com- pleted your wireless connection to the MBR1000 router, you should set up security on your wireless network by following the procedures identified in Step 7 (recommend- ed). You can connect directly onto the Internet without security (not recommended) by skipping Step 7 and going directly to Step 8. 7. Setting Up Wireless Network Security. After you are connected to your MBR1000 (either by completing Step 6 for a wireless connection, or by connecting the MBR1000 and your computer with an Ethernet cable) you are ready to configure network secu- Wireless Network Connection screen rity.
  • Page 9 CradlePoint MBR1000 | USER MANUAL _ Firmware Version 1.3.1 7. Setting Up Wireless Network Security (continued). After you are logged in, click on the menu tab at the top of the setup window. Next, click the BASIC Launch Setup button in the middle of the screen. Wizard Follow the instructions in the Setup Wizard to complete the setup ( Basic > Wizard A fter security setup has been completed, continue to Step 8 to use your new Security- Enabled Internet Connection. 8. Internet Access. When you are ready to access the Internet using your MBR1000 router, you will again be prompted for your password. Use the password you assigned in Step 2. If you did not change the password, or have not yet setup your wireless network security, use the default password. The default password is the last six digits Setup Wizard screen of the MBR1000’s MAC address. The MAC address can be found on the MBR1000...
  • Page 10 CradlePoint MBR1000 | USER MANUAL _ Firmware Version 1.3.1 4. Administrative Tabs/Sub-Menus The MBR1000 has a Web interface that provides a set of tabs and sub-menus for configuration and administration of all features. The interface is organized with 5 tabs at the top of the screen. • Basic • Advanced • Tools • Status • Help Within each of the 5 tabs, there are sub- menus along the left side of the Web page that you use to navi- gate to the specific function/task you wish to manage. Table of Contents PAGE 10...

  • Page 11: Basic Tab

    CradlePoint MBR1000 | USER MANUAL _ Firmware Version 1.3.1 BASIC 4.1 Basic Tab The Basic tab provides access to 5 sub-menus for administering the follow- ing functions/tasks: • Wizard • WAN • Network • DHCP • Wireless (Wi-Fi) Basic Tab with sub-menus Table of Contents PAGE 11...

  • Page 12: Wizard

    CradlePoint MBR1000 | USER MANUAL _ Firmware Version 1.3.1 BASIC 4.2 Wizard (Setup Wizard). Use the Setup Wizard to execute the minimum recommended first steps to set up the product. (NOTE: Before launching the Configuration Wizard, you must have followed all the steps outlined in the Quick Start Guide included in the product package) 4.2.1 Launch Setup Wizard. Launch Setup Wizard. Click the button to start the Launch Setup Wizard wizard. Setup Wizard screen 4.2.2 WeLcome to the Setup Wizard. Next/Cancel. Click...

  • Page 13: Configure Wireless Security

    CradlePoint MBR1000 | USER MANUAL _ Firmware Version 1.3.1 BASIC 4.2.4 configure WireLeSS SecuritY. Wireless (Wi-Fi) Network Name (SSID). Enter a name for the wireless net- work. For security purposes, it is highly recommended that you change the pre-configured network name. NOTE: Be sure to write down the new SSID and keep it in a safe place. Require User Login. With the box checked, users will be required to login before they can access the internet. With the box unchecked, users will NOT be required to login before they can access the internet. WPS, Best, Better, Good, None. Choose one of four levels of security, or none. NOTE: The wireless adapters installed on the wireless clients accessing the MBR1000 must be able to support the security level you choose. (continued) Configure Wireless Wi-Fi Security screen...

  • Page 14: Setup Complete

    CradlePoint MBR1000 | USER MANUAL _ Firmware Version 1.3.1 BASIC 4.2.5 Set Your WireLeSS SecuritY paSSWord. Wireless Security Password. If you have selected one of the four security levels, you will be prompted to enter a . This is Wireless Security Password the password that wireless clients will use to access the MBR1000 wireless network. NOTE: Be sure to write down the password and keep it in a safe place. If you chose for security, you will not see the None Set Your Wireless screen and will be directed to the Security Password Setup Complete Set Your Wireless Security Password screen screen.

  • Page 15: Wan Configuration

    CradlePoint MBR1000 | USER MANUAL _ Firmware Version 1.3.1 BASIC 4.3 Wan configuration. Use the WAN Configuration sub-menu to configure the network settings for the Wired and Cellular Modem WAN (the first connected cellular handset or modem). 4.3.1 ceLLuLar modem ppp authentication (optionaL). Enter your Cellular Service Provider information in these three fields only if directed by your Cel- lular Service Provider. Modem Interface. Modem interface is the physical port the modem is connected to. Select the appropriate port to change its settings. Username. If required by your ISP, enter the username provided to you by your ISP. If not required by your ISP, leave this field blank. Password. If required by your ISP, enter the password provided to you by your ISP. If not required by your ISP, leave this field blank. Verify Password. Re-enter the password. 4.3.2 Wired Wan connection tYpe. Internet Service Provider. WAN Connection Type. The MBR1000 will automatically determine your...

  • Page 16: Dns Settings

    CradlePoint MBR1000 | USER MANUAL _ Firmware Version 1.3.1 BASIC 4.3.4 dnS SettingS. Use the WAN Configuration sub-menu to configure the network settings for the Wired and Cellular Modem WAN (the first connected cellular handset or modem). DNS Address. Select the Get Automatically from ISP/Cellular Provider radio button to acquire a DNS Address automatically from our ISP/Cellular Provider or select the radio button to Use the Following DNS Servers specify DNS Servers. NOTE: You would specify DNS Servers if you want Wi- DNS Settings screen Fi clients to access DNS servers that you use for customized addressing or if you have a local DNS server on your network. Primary DNS Server.

  • Page 17: Network

    CradlePoint MBR1000 | USER MANUAL _ Firmware Version 1.3.1 BASIC 4.4 netWork. Use the Basic Network sub-menu to establish the local IP address for the router. These are the settings of the LAN (Local Area Network) interface for the router. The router’s local network (LAN) settings are configured based on the IP Address and Subnet Mask assigned in this sub-menu. The IP address is also used to access this Web-based management interface. It is recommended that you use the default settings if you do not have an existing network. 4.4.1 router SettingS. Router IP Address. The IP address of your router on the local area network. Your local area network settings are based on the address assigned here. For example, 192.168.0.1 Subnet Mask. The subnet mask of your router on the local area network. Local Domain Name. This entry is optional. Enter a domain name for the local network. LAN computers will assume this domain name when they get an address from the router’s built in DHCP server. So, for example, if you enter here, and you have a LAN side laptop with a name of mynetwork.net chris...
  • Page 18 CradlePoint MBR1000 | USER MANUAL _ Firmware Version 1.3.1 BASIC 4.4.2 rip (router information protocoL). RIP is used to broadcast routing information among routers. Enable RIP. Enable RIP if required by the ISP, if the LAN has multiple routers, or if the LAN has auto-IP devices. NOTE: When you select the Enable check box, these additional features appear: RIP Operating Mode. The MBR1000 router supports both version 2 and ver- sion 1 of the RIP specification. • V1. Use if none of the routers supports Version 2. • V 2 Broadcast. Use if some routers are capable of Version 2, but some are only capable of Version 1. RIP (Routing Information Protocol) section • V 2 Multicast. Use if this is the only router on the LAN or if all the routers support Version 2. Router Metric.

  • Page 19: Dhcp

    CradlePoint MBR1000 | USER MANUAL _ Firmware Version 1.3.1 BASIC 4.5 dhcp (dhcp SettingS). Use the DHCP sub-menu to configure the built-in DHCP Server to assign IP addresses to the computers and other devices on the local area network. 4.5.1 dhcp Server SettingS. Enable DHCP Server. (Default: Enabled). Once the MBR1000 is properly configured and this option is enabled, the DHCP Server function will assign network devices the necessary information to connect to the LAN and Internet. This eliminates the need to manually config- ure each device on your network with IP settings. NOTE: The devices on your network must have TCP/IP bound to the Ethernet connection with the or DHCP Obtain an IP address option enabled. automatically DHCP IP Address Range. (Default: 192.168.0.100-192.168.0.199). This option defines the range of addresses available for the MBR1000 to assign to an internal network. If there are any de- vices using static IP addresses, you must be sure the addresses do not fall within the range defined here. A Static IP address is one that is entered in manually on the device.
  • Page 20 CradlePoint MBR1000 | USER MANUAL _ Firmware Version 1.3.1 BASIC NetBIOS Announcement. Check this box to allow the DHCP Server to offer NetBIOS configuration settings to the LAN hosts. NetBIOS allows LAN hosts to discover all other computers within the network, e.g. within “Network Neighborhood.” Learn BIOS from WAN. If NetBIOS advertisement is switched on, WINS infor- mation will be learned from the WAN side, if available. Turn this setting off to configure manually. NetBIOS Scope. This is an advanced setting and is normally left blank. This allows the configuration of a NetBIOS “domain” name under which network hosts operate. This setting has no effect if the Learn NetBIOS information is activated. from WAN NetBIOS Node Type. Indicates how network hosts are to perform NetBIOS name registration and discovery. This setting has no effect if the Learn is activated.

  • Page 21: Number Of Dynamic Dhcp Clients

    CradlePoint MBR1000 | USER MANUAL _ Firmware Version 1.3.1 BASIC 4.5.2 number of dYnamic dhcp cLientS. This section displays what devices are currently leasing IP addresses. The DHCP Client table displays the number of clients that are receiving an IP address from the router, the computer name, MAC address, and IP address assigned to each computer. You can use the option to Revoke IP address Number of Dynamic DHCP take away a leased IP address from a client. This feature is useful for freeing up addresses when the client table is full or nearly full. 4.5.3 add dhcp reServation. Clients configured as DHCP can receive the same IP address all the time us- ing this feature. This is almost the same as if a device has a static IP address except that it must still actually request an IP address from the MBR1000. The MBR1000 will provide the device the same IP address all the time. Servers on the network should either use a static IP address or this option. A MAC address is usually located on a sticker on the bottom of a network device. The MAC address is comprised of twelve digits. Each pair of hexa-...
  • Page 22 CradlePoint MBR1000 | USER MANUAL _ Firmware Version 1.3.1 BASIC As an alternative, you can locate a MAC address in a specific operating sys- tem by following the steps below: • Windows 98/Windows Me. Go to the computer’s menu, select S tart type in , and hit . A popup window will be displayed. Select winipcfg Enter the appropriate adapter from the pull-down menu and you will see the Adapter Address. This is the MAC address of the device. • Windows 2000/Windows XP. Go to the computer’s Start menu, select , select , and select . At the Programs Accessories Command Prompt command prompt, type in and hit . The physical address ipconfig /all Enter Add DHCP Reservation section displayed for the adapter connecting to the router is the MAC address.
  • Page 23 CradlePoint MBR1000 | USER MANUAL _ Firmware Version 1.3.1 BASIC 4.5.4 dhcp reServation LiSt. The section shows the current DHCP Reservation List. Certain required routes are predefined and cannot be changed. Routes that you add can be changed by clicking the icon or can be deleted by clicking the Edit Delete DHCP Reservation List section icon. When you click the icon, the item is highlighted, and the Edit DHCP section is activated for editing. Click the check box Reservation List Enable at the left to directly activate or de-activate the entry. After you’ve completed all modifications or deletions, you must click the button at the top of the page to save your changes. The router Save Settings must reboot before new settings will take effect. You will be prompted to or . If you need to make additional settings...

  • Page 24: Wireless (Wi-Fi)

    CradlePoint MBR1000 | USER MANUAL _ Firmware Version 1.3.1 BASIC 4.6 WireLeSS (Wi-fi). Use the Wireless (Wi-Fi) sub-menu configure the wireless settings for the MBR1000. NOTE: Wireless Client settings may also need to be changed if these settings are modified. 4.6.1 add WireLeSS device With WpS (Wi-fi protected Setup) Wizard. Add Wireless Device with WPS. This Wizard helps you add wireless devices to the wireless network using the Wi-Fi Protected Setup protocol. The wizard will prompt you to enter the PIN for the device, or ask you to press the button on the device. If the device supports Wi-Fi Configuration Protected Setup and has a configuration button, you can add it to the net- work by pressing the button on the device and then the Configuration button on the router within 60 seconds. The...
  • Page 25 CradlePoint MBR1000 | USER MANUAL _ Firmware Version 1.3.1 BASIC Wireless Network Name. (Default: visible). The SSID name for the router. Default: “MBR1000-xxx” where “xxx” is the last three digits of the MBR1000’s MAC address. The MAC address can be found on the product label of the MBR1000. 802.11 Mode. (Default [Mixed 802.11 b/g/n]). Select Wi-Fi operating mode (802.11b/g/n, 802.11b/g, 802.11n, 802.11b, 802.11g). Enable Auto Channel Scan. When the power is first turned on, the MBR1000 will check the available wireless bands for the least-used channel. Wireless Channel. (Default: randomly selected among channels appropriate for 802.11 setting). Channel to transmit and receive. Channels 1 through 11 Wireless (Wi-Fi) Network Settings section are available for 802.11 b/g/n in the U.S. Check if you employ channel plan- ning in your building. Transmission Rate. ( Default: Best ). Available LAN speed in Mbs/sec are “Best (automatic), 130, 117, 104, 78, 54, 48, 36, 24, 18, 12, 11, 9, 6, 5.5, 2, and 1. Channel rates are doubled in when is set to 40 MHz.
  • Page 26 CradlePoint MBR1000 | USER MANUAL _ Firmware Version 1.3.1 BASIC 4.6.4 Wep . A method of encrypting data for wireless communication intended to provide the same level of privacy as a wired network. WEP is not as secure as WPA encryption. To gain access to a WEP network, you must know the key. WEP Key Length. The key is a string of characters that you create. When us- ing WEP, you must determine the level of encryption. The type of encryption determines the key length. 128-bit encryption requires a longer key than 64- bit encryption. Keys are defined by entering in a string in HEX (hexadecimal - using characters 0-9, A-F) or ASCII (American Standard Code for Information Interchange - alphanumeric characters) format. ASCII format is provided so you can enter a string that is easier to remember. The ASCII string is con- verted to HEX for use over the network. WEP Key 1, 2, 3 and 4. Four keys can be defined so that you can change keys easily. Default WEP Key. A default key is selected for use on the network.
  • Page 27 CradlePoint MBR1000 | USER MANUAL _ Firmware Version 1.3.1 BASIC 4.6.5 Wpa (perSonaL). WPA-Personal is one variant of Wi-Fi Protected Access (WPA) -- security standards published by the Wi-Fi Alliance. The WPA Mode further refines the variant that the router should employ. The WPA-Personal option uses Wi-Fi Protected Access with a Pre-Shared Key (PSK). Mode. WPA is the older standard; select this option if the clients that will be used with the router only support the older standard. WPA2 is the newer implementation of the stronger IEEE 802.11i security standard. With the option, the router tries WPA2 first, but falls back to WPA if the WPA2 client only supports WPA. With the option, the router associates WPA2 Only only with clients that also support WPA2 security. Cipher Type. The encryption algorithm used to secure the data communica- tion. (Temporal Key Integrity Protocol) provides per-packet key genera- TKIP Wireless (Wi-Fi) Security Mode — WPA-Personal section tion and is based on WEP.
  • Page 28 CradlePoint MBR1000 | USER MANUAL _ Firmware Version 1.3.1 BASIC 4.6.6 Wpa (enterpriSe). The WPA-Enterprise is one variant of Wi-Fi Protected Access (WPA) -- secu- rity standards published by the Wi-Fi Alliance. The WPA Mode further refines the variant that the router should employ. The WPA-Enterprise option works with a RADIUS Server to authenticate wireless clients. Wireless clients should have established the necessary credentials before attempting to authenticate to the Server through this Gateway. Furthermore, it may be necessary to configure the RADIUS Server to allow this gateway to authenticate users. Mode. WPA is the older standard; select this option if the clients that will be used with the router only support the older standard. WPA2 is the newer implementation of the stronger IEEE 802.11i security standard. With the option, the router tries WPA2 first, but falls back to WPA if the WPA2 client only supports WPA. With the option, the router associates WPA2 Only only with clients that also support WPA2 security. Cipher Type. The encryption algorithm used to secure the data communica- tion. (Temporal Key Integrity Protocol) provides per-packet key genera- TKIP tion and is based on WEP. (Advanced Encryption Standard) is a very secure block based encryption. With the...
  • Page 29 CradlePoint MBR1000 | USER MANUAL _ Firmware Version 1.3.1 BASIC Clicking on the Advanced button displays additional menu features. Optional Backup RADIUS Server. This option enables configuration of an optional second RADIUS server. A second RADIUS server can be used as backup for the primary RADIUS server. The second RADIUS server is con- sulted only when the primary server is not available or not responding. The fields for Second RADIUS Server IP Address RADIUS Server Port , and Second RADIUS server Shared Secret Second MAC Address Au- provide the corresponding parameters for the second RADIUS thentication Server.

  • Page 30: Advanced Tab

    CradlePoint MBR1000 | USER MANUAL _ Firmware Version 1.3.1 ADVANCED 5.0 Advanced Tab The Advanced tab provides access to 16 sub-menus for administering the following functions/tasks: • Virtual Server • Special Applications • Gaming • Traffic Shaping • Routing • Access Control • Web Filter • MAC Address Filter • Firewall • Inbound Filter • Advanced Wireless • WISH • Wi-Fi Protected Setup • Advanced Network • Failover • Modem Settings Advanced Tab with sub-menus Table of Contents PAGE 30...

  • Page 31: Virtual Server

    CradlePoint MBR1000 | USER MANUAL _ Firmware Version 1.3.1 ADVANCED 5.1 virtuaL Server. The Virtual Server option gives Internet users access to services on a LAN. This feature is useful for hosting online services such as , or Game . For each Virtual Server, the user defines a public port on the router Servers for redirection to an internal LAN IP Address and port. 5.1.1 add virtuaL Server ruLe. Enable. Click the check box to enable (default = No Virtual Server rules). Name. Name of the virtual server, such as Web Server Address. The IP address of the system on your internal network that will provide the virtual service, such as 192.168.0.50. Protocol. Select the protocol used by the service, or Both Public Port. The port that will be accessed from the Internet. Private Port. The port that will be used on your internal network. Schedule. Select a schedule for when this rule is in effect. If you do not see the schedule you need in the list of schedules, go to the Tools >...
  • Page 32 CradlePoint MBR1000 | USER MANUAL _ Firmware Version 1.3.1 ADVANCED 5.1.2 virtuaL Server LiSt. Entries on this list can be enabled or disabled by toggling the check Enable box. Entries can be modified by clicking on the paper and pencil icon. To delete an entry, click on the trash can icon. Virtual Server List After you’ve completed all modifications or deletions, you must click the button at the top of the page to save your changes. The router must reboot before new settings will take effect. You will be prompted to Save Settings or . If you need to make additional settings changes, click . If you are finished with all configuration settings, Reboot the Device Continue Continue click the button. Reboot the Device Example: You are hosting a Web Server on a Laptop or PC that has Private IP Address of 192.168.0.50 and your ISP is blocking Port 80.

  • Page 33: Special Applications

    CradlePoint MBR1000 | USER MANUAL _ Firmware Version 1.3.1 ADVANCED 5.2 SpeciaL appLicationS (appLication ruLeS). Use the Special Application sub-menu to open single or multiple ports on the router when the router senses data sent to the Internet on a “trigger” port or port range. Special Applications rules apply to all computers on the internal network. You can enable or disable Application Level Gateways (ALG’s). Some proto- cols and applications require special handling of the IP payload to make them work with network address translation. Each ALG provides special handling for a specific protocol or application. ALG’s for the following common appli- cations are enabled by default, but can be turned off. NOTE: MBR1000 has different applications than the CTR350. BitTorrent . These apps moved to the Calista IP Phone MSN Messenger PalTalk Firewall ALG configuration. 5.2.1 add appLication ruLe. Enable. (Default: No special applications rules). Opens single or multiple ports on the router when the router senses data sent to the Internet on a “trigger” port or port range.
  • Page 34 CradlePoint MBR1000 | USER MANUAL _ Firmware Version 1.3.1 ADVANCED 5.2.2 appLicationS ruLeS. The section shows the current routing table entries. Certain required routes are predefined and cannot be changed. Routes that you add can be changed by clicking the icon or can be deleted by clicking the icon. When Edit Delete Application Rules section you click the icon, the item is highlighted, and the Edit Application Rules section is activated for editing. Click the check box at the left to Enable directly activate or de-activate the entry. After you’ve completed all modifications or deletions, you must click the button at the top of the page to save your changes. The router Save Settings must reboot before new settings will take effect. You will be prompted to or . If you need to make additional settings Reboot the Device...

  • Page 35: Gaming

    CradlePoint MBR1000 | USER MANUAL _ Firmware Version 1.3.1 ADVANCED 5.3 gaming. Use the Gaming sub-menu to open multiple ports or a range of ports in your router and redirect data through those ports to a single PC on your network. This feature allows you to enter ports in various formats including, Port , or Ranges (100-150) Individual Ports (80, 68, 888) Mixed (1020-5000, 689) 5.3.1 add gaming ruLe. Enable. Specifies whether the entry will be active or inactive. Name. Give the rule a name that is meaningful to you, for example Game . You can also select from a list of popular games, and many of the Server remaining configuration values will be filled in accordingly. However, you should check whether the port values have changed since this list was cre- ated, and you must fill in the IP address field.
  • Page 36 CradlePoint MBR1000 | USER MANUAL _ Firmware Version 1.3.1 ADVANCED 5.3.2 gaming ruLeS. This is a list of the defined Gaming Rules. Click the check box at the Enable left to directly activate or de-activate the entry. An entry can be changed by clicking the icon or can be deleted by clicking the icon. When Edit Delete Gaming Rule section you click the icon, the item is highlighted, and the Edit Gaming Rules section is activated for editing. After you’ve completed all modifications or deletions, you must click the button at the top of the page to save your changes. The router Save Settings must reboot before new settings will take effect. You will be prompted to or . If you need to make additional settings Reboot the Device...

  • Page 37: Traffic Shaping

    CradlePoint MBR1000 | USER MANUAL _ Firmware Version 1.3.1 ADVANCED 5.4 traffic Shaping. Use the Traffic Shaping sub-menu to configure CradlePoint’s Traffic Shaping Technology, which allows control of the amount of traffic sent and received across the WAN port(s). Adding a Traffic Shaping rule also allows configura- tion of the priority of specific traffic. This can be used to give higher priority to specific applications and/or computers. 5.4.1 traffic Shaping Setup . Enable Traffic Shaping. When this option is enabled, the router restricts the flow of outbound traffic so as not to exceed the WAN uplink bandwidth. Automatic Classification. This option is enabled by default so that your router will automatically determine which programs should have network priority. For best performance, use the option to automati- Automatic Classification cally set the priority for your applications. Dynamic Fragmentation. This option should be enabled when you have a slow Internet uplink. It helps to reduce the impact that large low priority...
  • Page 38 CradlePoint MBR1000 | USER MANUAL _ Firmware Version 1.3.1 ADVANCED Manual Uplink Speed/Manual Downlink Speed. If Automatic Uplink Speed is disabled, these options allow you to set the uplink/downlink speeds manually. is the speed at which data can be transferred from the router Uplink speed to your ISP. is the speed at which data can be transferred Downlink speed from your ISP to the router. These are determined by your ISP. ISP’s often specify speed as a downlink/uplink pair; for example, 1.5 Mbps/284 Kbps. In this case, for the uplink speed you would enter (or choose 1.5 Mbps 1024 from the drop down menu [the speed chosen has to be equal to or Kbps below your connection’s rated speed]) and for the uplink speed you would enter (or choose from the drop down menu [the speed 284 Kbps 284 Kbps chosen has to be equal to or below your connection’s rated speed]).
  • Page 39 CradlePoint MBR1000 | USER MANUAL _ Firmware Version 1.3.1 ADVANCED 5.4.2 add traffic Shaping ruLe. A Traffic Shaping Rule identifies a specific message flow and assigns a priority to that flow. For most applications, automatic classification will be adequate, and specific Traffic Shaping Rules will not be required. Traffic Shaping supports overlaps between rules, where more than one rule can match for a specific message flow. If more than one rule is found to match the rule with the highest priority will be used. Enable. Specifies whether the entry will be active or inactive. Name. Create a name for the rule that is meaningful to you. Priority. The priority of the message flow is entered here -- 1 receives the Add Traffic Shaping Rule section highest priority (most urgent) and 255 receives the lowest priority (least urgent). Protocol. The protocol used by the messages. Local IP Range. The rule applies to a flow of messages whose LAN-side IP address falls within the range set here.
  • Page 40 CradlePoint MBR1000 | USER MANUAL _ Firmware Version 1.3.1 ADVANCED 5.4.3 traffic Shaping ruLeS LiSt. This section lists all the defined Traffic Shaping Rules. Click the Enable check box at the left to directly activate or de-activate the entry. An entry can be changed by clicking the icon or can be deleted by clicking the Edit Delete Traffic Shaping Rules List section icon. When you click the icon, the item is highlighted, and the Edit Traffic section is activated for editing. Shaping Rules List After you’ve completed all modifications or deletions, you must click the button at the top of the page to save your changes. The router Save Settings must reboot before new settings will take effect. You will be prompted to or . If you need to make additional settings...

  • Page 41: Routing

    CradlePoint MBR1000 | USER MANUAL _ Firmware Version 1.3.1 ADVANCED 5.5 routing. Use the Routing sub-menu to define fixed routes. 5.5.1 add route. Adds a new route to the IP routing table or edits an existing route. Enable. Specifies whether the entry will be enabled or disabled. Destination IP. The IP address or network that the packets will be attempting to access. Note: 192.168.1.0 with a Netmask of 255.255.255.0 means traffic will be routed to the entire 192.168.1.x network. Netmask. Used to specify which portion of the signifies the Destination IP network trying to be accessed and which part signifies the host that the packets will be routed to. Note: 255.255.255.255 is used to signify only the host that was entered in the Destination IP field. Gateway. Specifies the next hop to be taken if this route is used. A gateway of 0.0.0.0 implies there is no next hop, and the IP address matched is directly connected to the router on the interface specified: or Interface. Specifies the interface, or , that the IP packet must use to transit out of the router when this route is used.
  • Page 42 CradlePoint MBR1000 | USER MANUAL _ Firmware Version 1.3.1 ADVANCED 5.5.2 routeS LiSt. The section shows the current routing table entries. Certain required routes are predefined and cannot be changed. Routes that you add can be changed by clicking the icon or can be deleted by clicking the icon. When Edit Delete Routes List section you click the icon, the item is highlighted, and the section is Edit Routes List activated for editing. Click the check box at the left to directly acti- Enable vate or de-activate the entry. After you’ve completed all modifications or deletions, you must click the Save button at the top of the page to save your changes. The router must Settings reboot before new settings will take effect. You will be prompted to Reboot or . If you need to make additional settings changes,...

  • Page 43: Access Control

    CradlePoint MBR1000 | USER MANUAL _ Firmware Version 1.3.1 ADVANCED 5.6 acceSS controL. Use the Access Control sub-menu you to control access in and out of your network. Use this feature as Parental Controls to only grant access to ap- proved sites, limit web access based on time or dates, and/or block access from applications like P2P utilities or games. By default, the Access Control feature is disabled. If you enable Access Con- trol, every device on the LAN must either have a static IP address (that is one that is not in the DHCP range) or must be in the Static DHCP Client List (see sub-menu(. Basic > DHCP When Access Control is disabled, every device on the WLAN is permitted to access the Internet. However, if you enable Access Control, every device on Access Control screen the WLAN that needs to access the Internet must have an Access Control rule that explicitly permits it to access the Internet. Devices that do not have an Access Control Rule cannot access the Internet. 5.6.1 acceSS controL. Enable Access Control. Click the button to display...
  • Page 44 CradlePoint MBR1000 | USER MANUAL _ Firmware Version 1.3.1 ADVANCED Step 2: Select Schedule. From the drop down menu, elect a schedule of times when you want the policy to apply: Always Never Define a New Schedule or a schedule that you’ve previously defined. If you do not see the schedule you need in the list of schedules, go to the sub-menu and Tools > Schedules create a new schedule. Step 3: Select Machine. Select the machine to which this policy applies by clicking a radio button: or . Depending on which Other Machines Select Schedule screen radio button you’ve selected, enter either the local network IP address or...
  • Page 45 CradlePoint MBR1000 | USER MANUAL _ Firmware Version 1.3.1 ADVANCED Step 5: Port Filter. By clicking the button you can specify that Filter Ports >> the rule enables access only to specific IP addresses and ports. Step 6: Configure Web Access Logging. If this option is enabled, all of the Web sites visited by the specified machine will be logged. Port Filter screen Select Schedule screen Success screen Table of Contents PAGE 45...
  • Page 46 CradlePoint MBR1000 | USER MANUAL _ Firmware Version 1.3.1 ADVANCED 5.6.3 poLicY tabLe. This section shows the current Access Control rules. Click the check Enable box at the left to directly activate or de-activate the entry. An entry can be changed by clicking the icon or can be deleted by clicking the Edit Delete Policy Table section icon. When you click the icon, the item is highlighted, and the Edit Policy section is activated for editing. Table After you’ve completed all modifications or deletions, you must click the button at the top of the page to save your changes. The router Save Settings must reboot before new settings will take effect. You will be prompted to or . If you need to make additional settings Reboot the Device...

  • Page 47: Web Filter

    CradlePoint MBR1000 | USER MANUAL _ Firmware Version 1.3.1 ADVANCED 5.7 Web fiLter (WebSite fiLter). Use the Web Filter section to enable OpenDNS and add Websites to be used for Access Control ( sub-menu). OpenDNS is Advanced > Access Control web-based service that helps Web sites load faster, while providing anti- phishing and Web content filtering. (www.openDNS.com) By default, Website Filter is enabled, however no filtering is done until the list is populated. Also, since Access Control is disabled by default, no filtering is done until Access Control is also enabled ( Advanced > Access Control sub-menu). 5.7.1 opendnS content fiLtering. This feature allows you to filter Web sites through the uses of OpenDNS. Different selectable qualities are chosen to enable Web filtering for everyone connected to the device. This does change your router’s DNS settings to use the OpenDNS servers.
  • Page 48 CradlePoint MBR1000 | USER MANUAL _ Firmware Version 1.3.1 ADVANCED 5.7.3 WebSite fiLtering ruLeS. The section lists the currently allowed web sites. The Web sites listed here are used when the Web Filter option is enabled in the Advanced > Access sub-menu. Control Website Filtering Rules section Table of Contents PAGE 48...

  • Page 49: Mac Address Filters

    CradlePoint MBR1000 | USER MANUAL _ Firmware Version 1.3.1 ADVANCED 5.8 mac addreSS fiLter. Use the MAC (Media Access Control) Address filter sub-menu to control network access based on the MAC Address of the network adapter. A MAC address is a unique ID assigned by the manufacturer of a networking device. This feature can be configured to ALLOW or DENY network/ Internet access. 5.8.1 mac fiLtering Setup . Configure MAC Filtering Below. (Default: MAC Filtering Off). With , depending on the mode selected, computers are granted or Filtering ON denied network access based on their MAC address. • T urn MAC Filtering ON and ALLOW computers listed to access the network. When is selected, only computers with MAC addresses listed in the ALLOW MAC Address List are granted network access. •...
  • Page 50 CradlePoint MBR1000 | USER MANUAL _ Firmware Version 1.3.1 ADVANCED 5.8.3 mac fiLtering ruLeS. This section lists the network devices that are under control of MAC filtering. Click the check box at the left to directly activate or de-activate the Enable entry. An entry can be changed by clicking the icon or can be deleted Edit MAC Filtering Rules section by clicking the icon. When you click the icon, the item is high- Delete Edit lighted, and the section is activated for editing. MAC Filtering Rules After you’ve completed all modifications or deletions, you must click the button at the top of the page to save your changes. The router Save Settings must reboot before new settings will take effect. You will be prompted to or . If you need to make additional settings...

  • Page 51: Firewall

    CradlePoint MBR1000 | USER MANUAL _ Firmware Version 1.3.1 ADVANCED 5.9 fireWaLL. Use the Firewall sub-menu to protect your network from the outside world. The MBR1000 provides a tight firewall by virtue of the way NAT works. Unless you configure the router to the contrary, the NAT does not respond to unsolicited incoming requests on any port, thereby making your LAN invisible to public Internet view. However, some network applications cannot run with a tight firewall. Those ap- plications need to selectively open ports in the firewall to function correctly. 5.9.1 fireWaLL SettingS. Enable SPI. SPI (Stateful Packet Inspection, also known as dynamic packet filtering) helps to prevent cyber attacks by tracking more state per session. It validates that the traffic passing through the ses- sion conforms to the protocol. When SPI is enabled, the extra state information will be reported on the sub-menu. Status > Active Sessions 5.9.2 nat endpoint fiLtering. The NAT Endpoint Filtering options control how the router’s NAT manages incoming connection re- quests to ports that are already being used. UDP Endpoint Filtering/TCP Endpoint Filtering. The...

  • Page 52: Dmz Host

    CradlePoint MBR1000 | USER MANUAL _ Firmware Version 1.3.1 ADVANCED 5.9.3 nat port preServation. Enable Port Preservation. (Default: enabled). NAT Port preservation tries to ensure that, when a LAN host makes an Internet connection, the same LAN port is also used as the Internet visible port. This ensures best compatibility NAT Port Preservation section for internet communications. Under some circumstances it may be desirable to turn off this feature. 5.9.4 anti-Spoof checking. Enable Anti-Spoof Checking. Enabling this option can provide protection Anti-Spoof Checking section from certain kinds of “spoofing” attacks. However, enable this option with care. With some modems, the WAN connection may be lost when this option is enabled. In that case, it may be necessary to change the LAN subnet to something other than 192.168.0.x ( , for example), to re-establish 192.168.2.x...
  • Page 53 CradlePoint MBR1000 | USER MANUAL _ Firmware Version 1.3.1 ADVANCED 5.9.6 non-udp/tcp/icmp Lan SeSSionS. When a LAN application that uses a protocol other than UDP, TCP, or ICMP initiates a session to the Internet, the router’s NAT can track such a session, even though it does not recognize the protocol. This feature is useful be- Non-UDP/TCP/ICMP LAN Sessions section cause it enables certain applications (most importantly a single VPN connec- tion to a remote host) without the need for an ALG. NOTE: this feature does not apply to the DMZ host (if one is enabled). The DMZ host always handles these kinds of sessions. Enable. (Default: enabled). Allows single VPN connections to a remote host. But, for multiple VPN connections, the appropriate VPN ALG must be used. Disabling this option, however, only disables VPN if the appropriate VPN ALG is also disabled. 5.9.7 appLication LeveL gateWaY (aLg) configuration. Some applications require specific NAT handling. These applications are pre-configured as supported in the NAT handling. These applications can be Application Level Gateway (ALG) Configuration section enabled or disabled via the check boxes.
  • Page 54 CradlePoint MBR1000 | USER MANUAL _ Firmware Version 1.3.1 ADVANCED NetMeeting. Allows Microsoft NetMeeting clients to communicate across NAT. NOTE: if you want to receive inbound NetMeeting sessions initiated by others outside your network, you must also set up a virtual server for Net- Meeting. Refer to the sub-menu for information Advanced > Virtual Server on how to set up a virtual server. H.323 (NetMeeting). Allows H.323 (specifically, Microsoft NetMeeting) clients to communicate across NAT. NOTE: You must set up a virtual server for Net- Meeting. Refer to the sub-menu for information Advanced > Virtual Server on how to set up a virtual server. SIP. Allows devices and applications using VoIP (Voice over IP) to commu- nicate across NAT. Some VoIP applications and devices have the ability to Application Level Gateway (ALG) Configuration section discover NAT devices and work around them. This ALG may interfere with...

  • Page 55: Inbound Filters

    CradlePoint MBR1000 | USER MANUAL _ Firmware Version 1.3.1 ADVANCED 5.10 inbound fiLterS. (Default: No filters). Use the Inbound Filters sub-menu to bypass Web Filter- ing and Firewall settings yet still control data received from the Internet. With this advanced feature you can configure inbound data filtering rules that control data based on IP Address, Protocol, and/or Port. The Inbound Filter option is best suited for custom applications. For most applications you should use Virtual Server, Special Applications, or the Gaming section to cre- ate rules that will allow applications to communicate through the router. 5.10.1 add inbound fiLter ruLe. Name. Enter a name for the rule that is meaningful to you. Action. The rule can be set to either ALLOW or DENY applicable messages. Defines the range of Internet addresses this rule applies to. Select the proto- col used for this rule. Enable. Enables inbound filtering for the IP Range you specify. Remote IP Start/Remote IP End. Define the ranges of Internet addresses this rule applies to. For a single IP address, enter the same address in both the Start and End boxes. Up to eight ranges can be entered. The...

  • Page 56: Inbound Filter Rules List

    CradlePoint MBR1000 | USER MANUAL _ Firmware Version 1.3.1 ADVANCED 5.10.2 inbound fiLter ruLeS LiSt. This section lists the current Inbound Filter rules. Click the check Enable box at the left to directly activate or de-activate the entry. An entry can be changed by clicking the icon or can be deleted by clicking the Edit Delete Inbound Filters Rule List section icon. When you click the icon, the item is highlighted, and the Edit Inbound section is activated for editing. Filter Rules After you’ve completed all modifications or deletions, you must click the button at the top of the page to save your changes. The router Save Settings must reboot before new settings will take effect. You will be prompted to or . If you need to make additional settings...
  • Page 57 CradlePoint MBR1000 | USER MANUAL _ Firmware Version 1.3.1 ADVANCED The first rule is to configure a rule that will catch all of the traffic that DENY arrives on these ports but does not match data from the sources you want to have access to your network. It is important to enter the rule first DENY since all subsequent rules will be added higher in the list and will be checked Inbound Filters Rule List section first. Notice that it covers all , and Source IP Address Source Ports , but is specifically tied to the Public Ports defined in the . This is because you do not want to accidentally block traf- Times (Always) Game Rule List fic for other applications. It is a good idea to turn on the log for this rule so that you can check in the log for anything that is filtered inappropriately. Table of Contents...

  • Page 58: Advanced Wireless

    CradlePoint MBR1000 | USER MANUAL _ Firmware Version 1.3.1 ADVANCED 5.11 advanced WireLeSS. Use the Advanced Wireless sub-menu for detailed configuration of radio parameters for the 802.11b/g/n Wireless LAN. 5.11.1 advanced WireLeSS SettingS. Transmit Power. Normally the wireless transmitter operates at 100% power (drop down menu: High). In some circumstances, however, there might be a need to isolate specific frequencies to a smaller area. By reducing the power of the radio, you can prevent transmissions from reaching beyond your cor- porate/home office or designated wireless area. Beacon Period. Beacons are packets sent by a wireless router to synchro- nize wireless devices. Specify a value between 20 and 1000 Beacon Period milliseconds. The default value is set to 100 milliseconds. Threshold. When an excessive number of wireless packet collisions are occurring, wireless performance can be improved by using the RTS/CTS (Request to Send/Clear to Send) handshake protocol. The wireless transmit- ter will begin to send RTS frames (and wait for CTS) when data frame size Advanced Wireless screen in bytes is greater than the RTS Threshold. This setting should remain at its default value of 2346 bytes.
  • Page 59 CradlePoint MBR1000 | USER MANUAL _ Firmware Version 1.3.1 ADVANCED 802.11d Enable. Enables 802.11d operation. 802.11d is a wireless specification for operation in additional regulatory domains. This supplement to the 802.11 specifications defines the physical layer requirements (channelization, hop- ping patterns, new values for current MIB attributes, and other requirements to extend the operation of 802.11 WLANs to new regulatory domains (coun- tries). The current 802.11 standard defines operation in only a few regulatory domains (countries). This supplement adds the requirements and definitions necessary to allow 802.11 WLAN equipment to operate in markets not served by the current standard. Enable this option if you are operating in one of these “additional regulatory domains”. Wireless Isolation. Enabling Wireless Isolation prevents associated wireless clients from communicating with each other. Enable. Enabling WMM can help control latency and jitter when trans- mitting multimedia content over a wireless connection. Short GI. When WDS is enabled, this access point functions as a wireless repeater and is able to wirelessly communicate with other Access Points via WDS links. NOTE: WDS is incompatible with WPA -- both features cannot be Advanced Wireless screen used at the same time. A WDS link is bidirectional; so this Access Point must know the MAC Address (creates the WDS link) of the other Access Point, and the other Access Point must have a WDS link back to this Access Point. Make sure the Access Points are configured with same channel number. Enable. Clicking this check box will cause the sub-menu to expand and display the Advanced Wireless Settings WDS AP MAC Address section.
  • Page 60 CradlePoint MBR1000 | USER MANUAL _ Firmware Version 1.3.1 ADVANCED 5.11.2 WireLeSS diStribution Laptops in range of router SYStem (WdS). with WAN connection Wireless Distribution System (WDS) is a method to extend a wireless network using multiple WDS Peer without WAN connection Access Points (AP). Use the Wireless Distribu- tion System (WDS) menu to share a single WAN connection over great distances. WARNING: WDS can have a drastic impact on 802.11 Wi-Fi performance when used with mul- tiple Access Points. CradlePoint devices have been tested to work using other CradlePoint devices and cannot be guaranteed to work with 3rd party vendors. Requirements: • C radlePoint Firmware 1.1 or later for the MBR1000 • 2 WDS Compatible Devices (Document as-...
  • Page 61 CradlePoint MBR1000 | USER MANUAL _ Firmware Version 1.3.1 ADVANCED Step 3: Wireless Channel. Go to the Basic > sub-menu. Uncheck the Wireless Random Laptops in range of router check box and set the chan- Channel Select with WAN connection nel to a specific channel. If you are connecting an MBR1000 (repeater) to a CTR or PHS (WAN), WDS Peer without WAN connection you need to set the MBR1000 to Mixed 802.11g , which makes it stop broadcast- and 802.11b...

  • Page 62: Wish

    CradlePoint MBR1000 | USER MANUAL _ Firmware Version 1.3.1 ADVANCED 5.12 WiSh. Use the WISH (Wireless Intelligent Stream Handling) sub-menu to prioritize traffic for various wireless applications, specific application protocols and specific computers on the wireless network. 5.12.1 WiSh. Enable WISH. Enable this option if you want to allow WISH to prioritize your traffic. 5.12.2 prioritY cLaSSifierS. HTTP. Allows the router to recognize HTTP transfers for many common audio and video streams and prioritize them above other traffic. Such streams are frequently used by digital media players. Windows Media Center. Enables the router to recognize certain audio and video streams generated by a Windows Media Center PC and to prioritize these above other traffic. Such streams are used by systems known as Windows Media Extenders, such as the Xbox 360. Automatic. When enabled, this option causes the router to automatically at- tempt to prioritize traffic streams that it doesn’t otherwise recognize, based on the behavior that the streams exhibit. This acts to de-prioritize streams that exhibit bulk transfer characteristics, such as file transfers, while leaving interactive traffic, such as gaming or VoIP, running at a normal priority. 5.12.3 add WiSh ruLe.
  • Page 63 CradlePoint MBR1000 | USER MANUAL _ Firmware Version 1.3.1 ADVANCED Priority. The priority of the message flow is entered here. Four priorities are defined: • BK: Background (least urgent). • BE: Best Effort. • VI: Video. • VO: Voice (most urgent). Protocol. The protocol used by the messages. Host 1 IP Range. The rule applies to a flow of messages for which one com- puter’s IP address falls within the range set here. Host 1 Port Range. The rule applies to a flow of messages for which Host 1’s Add WISH Rule section port number is within the range set here. Host 2 IP Range. The rule applies to a flow of messages for which the other computer’s IP address falls within the range set here. Host 2 Port Range. The rule applies to a flow of messages for which Host 2’s port number is within the range set here.

  • Page 64: Wi-Fi Protected Setup

    CradlePoint MBR1000 | USER MANUAL _ Firmware Version 1.3.1 ADVANCED 5.13 Wi-fi protected Setup . Use Wi-Fi Protected Setup sub-menu to easily add devices to a network using a PIN or button press. Devices must support Wi-Fi Protected Setup in order to be configured by this method. 5.13.1 Wi-fi protected Setup . Enable. Enable the Wi-Fi Protected Setup feature. Lock Wireless Security Settings. Locking the wireless security settings pre- vents the settings from being changed by any new external registrar using its PIN. Devices can still be added to the wireless network using Wi-Fi Protected Setup. It is still possible to change wireless network settings with Manual , or an existing Wireless Network Setup Wireless Network Setup Wizard external WLAN Manager Registrar.
  • Page 65 CradlePoint MBR1000 | USER MANUAL _ Firmware Version 1.3.1 ADVANCED 5.13.3 WeLcome to the add WireLeSS device Wizard. Welcome to the Add Wireless Device Wizard. Click Next Select Configuration Method for Your Wireless Network. Choose configura- tion method that your wireless device is capable of supporting (refer to the documentation that came with your wireless adapter). • PIN. Select this option if your wireless device supports PIN. Welcome to the Add Wireless Device Wizard screen • Push Button. Select this option if your wireless device supports push button.
  • Page 66 CradlePoint MBR1000 | USER MANUAL _ Firmware Version 1.3.1 ADVANCED 5.13.3 WeLcome to the add WireLeSS device Wizard. Welcome to the Add Wireless Device Wizard. Click Next Select Configuration Method for Your Wireless Network. Choose configura- tion method that your wireless device is capable of supporting (refer to the documentation that came with your wireless adapter). • PIN. Select this option if your wireless device supports PIN. Welcome to the Add Wireless Device Wizard screen • P ush Button. Select this option if your wireless device supports WPS push...

  • Page 67: Advanced Network

    CradlePoint MBR1000 | USER MANUAL _ Firmware Version 1.3.1 ADVANCED 5.14 advanced netWork. The Advanced Network configuration is used to enable several special set- tings for the router. UPnP, WAN Ping response, WAN Port Speed, Multicast Streams, and PPoE Pass Through can be enabled or disabled. 5.14.1 upnp . Enable UPnP. Enables UPnP functionality. 5.14.2 Wan ping. Pinging public WAN IP addresses is a common method used by hackers to test whether your WAN IP address is valid. Enable WAN Ping Respond. If you leave this option unchecked, you are caus- ing the router to ignore ping commands for the public WAN IP address of the router. WAN Ping Inbound Filter. Select a filter that controls which WAN computers can use the ping feature. If you do not see the filter you need in the list of fil- ters, go to the sub-menu and create a new filter. Advanced > Inbound Filter Details. This filter designates certain IP addresses from other computers or...

  • Page 68: Failover

    CradlePoint MBR1000 | USER MANUAL _ Firmware Version 1.3.1 ADVANCED 5.15 faiLover. The MBR1000 provides Failover across the WAN ports. When multiple WAN ports are used, a disconnected WAN connection will cause the MBR1000 to use the next available WAN port. Use the Failover sub-menu to configure the priority of the WAN ports for the Failover mechanism. You can also manually disconnect and re-connect specific ports using icons in the Control column. The priority table can be saved permanently via the Save button. Priority changes take effect immediately even if they are not saved. 5.15.1 ethernet Wan faiLure detection. Enable. This enables failure detection on the Ethernet link. Even when this is disabled, unplugging the Ethernet cable at the WAN port will trigger failover to a modem. Timeout. Enter in this field the length of time that the ping target may be unre- sponsive before the MBR1000 will switch to the next failover connection. Enable Ping on Idle. When enabled, the router will send a ping after the link idle timeout. If the ping gets a reply, the router will restart the idle timer, oth- erwise it will failover to a modem. Ping Target. The default ping target is the router’s gateway. You may specify a different IP address as a target here. Enable Failback.

  • Page 69: Wan Interfaces

    CradlePoint MBR1000 | USER MANUAL _ Firmware Version 1.3.1 ADVANCED 5.15.3 Wan interfaceS. This section allows you to: • C hange the failover order of devices (aka interfaces) • M onitor their status • T ake the active link down • B ring a link up on another device WAN Interfaces section The device at the top of the list has the highest priority. This is the device which the router will attempt to start when it boots up. If the link cannot be brought up on this device, or if it fails after boot up, the router will attempt to bring the link up on the next available device. Whenever a link fails on a device, the router will always move down to the next device down in the list, and wrap around again to the top. Slot. The slot is the physical port the modem or Ethernet cable is plugged into. Device. This shows a description of the device. Status. This is the link status of a device, which is one of the following: • Ready. This means the device is plugged in and available but not active. •...

  • Page 70: Modem Settings

    CradlePoint MBR1000 | USER MANUAL _ Firmware Version 1.3.1 ADVANCED 5.16 modem SettingS. Use the Modem Settings sub-menu to customize these modem settings: • Controlling the AT dial commands • Entering a modem password if required by the device. 5.16.1 gLobaL SettingS. This section allows for customization of Global Modem Settings. Reconnect Mode. Typically modem connections are not always on. The CradlePoint router allows you to set the reconnection mode. The settings are: • Always on. A connection to the Internet is always maintained. • On demand. A connection to the Internet is made as needed. • M anual. You have to open up the Web-based management interface and click the Connect button manually any time that you wish to connect to the Internet. • M aximum Idle Time. Time interval the machine can be idle before the mo- dem connection is disconnected. The Maximum Idle Time value is only used for the and reconnect modes. On demand Manual 5.16.2 modem Specific SettingS.
  • Page 71 CradlePoint MBR1000 | USER MANUAL _ Firmware Version 1.3.1 ADVANCED Password. This section allows the modem password to be entered, if re- quired. Modem Password. Enter the modem password. Verify Modem Password. Enter the modem password again to ensure it was entered correctly. Disable automatic dialing. If you check this box then a modem won’t dial un- less you start it manually. Otherwise a modem will dial automatically (if it is the highest priority available device). Make SIM PIN Permanent. If is selected the Make SIM PIN Permanent entered PIN will be remembered between reboots. If a modem is plugged in when this is selected the router will make a permanent association between the PIN and the current modem. When a PIN is associated with a modem Modem Specific Settings section the PIN will be automatically entered for you when the associated modem is plugged in. If you choose Permanent PIN but there is no modem plugged in at...
  • Page 72 CradlePoint MBR1000 | USER MANUAL _ Firmware Version 1.3.1 TOOLS 6.0 Tools Tab The Advanced tab provides access to 10 sub-menus for administering ad- vanced functions/tasks important in enterprises and larger organizations. Specifically, for IT organizations that use a number of MBR1000 units to pro- vide wireless data connectivity for employees, the Tools tab allows you to en- able the remote devices to be an extension of your network, and abide by the policies set within your department. Included are a number of features that allow the unit to provide security, supportability, and EVDO handset behavior regardless where a remote employee is located. • Admin • Time • Syslog • Email Settings • System • Firmware • Dynamic DNS • System Check • Schedules • GPS Tools Tab and sub-menus Table of Contents PAGE 7...

  • Page 73: Admin

    CradlePoint MBR1000 | USER MANUAL _ Firmware Version 1.3.1 TOOLS 6.1 admin (adminiStration SettingS). Use the Admin sub-menu to set a password for access to the Web-based manage- ment. The default Admin and Internet Access (User) passwords are the last six char- acters of the MAC address (NOTE: all letters in the MAC address should be entered as lower case). This screen may also be used by the individual who first activates the unit. 6.1.1 SYStem Language. System Language. Select or English Spanish 6.1.2 admin paSSWord. Password. Type password in this field that you want to use to grant access to Web- based management interface. Default: Last 6 characters of the MBR1000’s MAC ad- dress. NOTE: all letters in the MAC address should be entered as lower case. Verify Password. Re-type the password to ensure it was entered correctly. 6.1.3 internet acceSS paSSWord (uSer paSSWord).
  • Page 74 CradlePoint MBR1000 | USER MANUAL _ Firmware Version 1.3.1 TOOLS 6.1.4 adminiStration. Inactivity Time Out. If the router does not detect any administrative activity (from WAN or LAN) during this number of minutes, it logs the administrator off. Enable Bounce Pages. Enabling this option allows users of wireless devices attempting to connect to the MBR1000 to see bounce pages that display error message pages. For example, users would see a “phone or modem not con- nected” page, a “require user login” page or other error pages. NOTE: To avoid issues with some applications, you may have to leave this Administration section check box unselected. Enable HTTPS Server. Enabling this option makes it possible to perform man- agement with the Secure HTTP (HTTPS) protocol. Enable Remote Management. Enabling this allows you to manage the router from anywhere with an Internet connection. Default: off. Remote Admin Port.

  • Page 75: Time

    CradlePoint MBR1000 | USER MANUAL _ Firmware Version 1.3.1 TOOLS 6.2 time. Use the Time Configuration sub-menu to configure, update, and maintain the correct time on the internal system clock. The time can be configured manu- ally or a network time server can be selected and the time updated via the Network Time Protocol (NTP). 6.2.1 time configuration. Current Router Time. Displays the day, date and local time used by the MBR1000. Time Zone. Select the local time zone. Enable Daylight Saving. Check this option to adjust for daylight savings time. Daylight Saving Offset. Select the time offset for daylight savings time. Daylight Savings Dates. Set the month, week, day of week and time for the MBR1000 to switch to/from Daylight Savings Time.
  • Page 76 CradlePoint MBR1000 | USER MANUAL _ Firmware Version 1.3.1 TOOLS 6.2.3 Set the date and time manuaLLY. If you do not have the NTP Server option in effect, you can either manually set the time for your router here or you can click the Copy Your Computer’s button to copy the time from the computer you are using. Time Settings NOTE: Be sure the computer’s time is set correctly. WARNING: If the router loses power for any reason, it cannot keep its clock Set the Date and Time Manually section running and will not have the correct time when it is started again. To main- tain the correct time for schedules and logs, either you must enter the cor- rect time after you restart the router or you must enable the NTP Server option. Table of Contents...

  • Page 77: Syslog

    CradlePoint MBR1000 | USER MANUAL _ Firmware Version 1.3.1 TOOLS 6.3 SYSLog. Use the Syslog sub-menu to archive your log files to a Syslog Server. Enable Logging To Syslog Server. Enable this option to output the router logs to a Syslog Server on your network. Syslog screen Syslog Server IP Address. Enter the IP address of the Syslog Server. Table of Contents PAGE 77...

  • Page 78: Email

    CradlePoint MBR1000 | USER MANUAL _ Firmware Version 1.3.1 TOOLS 6.4 emaiL SettingS. Use the Email sub-menu to send the system log files, router alert messages, and firmware update notification to your email account or any email account you specify. 6.4.1 enabLe. Enable Email Notification. When this option is enabled, router activity logs are emailed to a designated email address. 6.4.2 emaiL SettingS. From Email Address. This email address will appear as the sender when you receive a log file or firmware upgrade notification via email. To Email Address. Enter the email address where you want the email sent. SMTP Server Address. Enter the SMTP server address for sending email. Enable Authentication.

  • Page 79: System

    CradlePoint MBR1000 | USER MANUAL _ Firmware Version 1.3.1 TOOLS 6.5 SYStem (SYStem SettingS). Use the System Settings sub-menu to control to function Reboot the Device or to restore the router to the factory default settings. WARNING: Restoring the unit to the factory default settings will overwrite and erase any custom settings you have implemented that change the origi- nal factory default settings. 6.5.1 SYStem SettingS. Save to Local Hard Drive. Click the button to save all Save Configuration configuration information to a file on a local hard drive or any other target you choose. Load From Local Hard Drive Configuration.

  • Page 80: Firmware

    CradlePoint MBR1000 | USER MANUAL _ Firmware Version 1.3.1 TOOLS 6.6 firmWare. Use the Firmware Upgrade sub-menu to update your router to the latest firmware to improve functionality and performance. To check for the latest firmware, click the button. If you would like to be notified Check Online Now when new firmware is released, place a check-mark in the box next to Email . NOTE: You must enter a destina- Notification of Newer Firmware Version tion email address in the submenu in order to receive email Tools > E-mail notifications of fimware updates. 6.6.1 firmWare information. This section displays the Current Firmware Version and the Latest Firmware Version. To check for the latest version, click the Check Online Now for button. To verify the latest firmware version, the...
  • Page 81 CradlePoint MBR1000 | USER MANUAL _ Firmware Version 1.3.1 TOOLS 6.6.3 firmWare update noteS. When a new firmware update file is loaded into the router, the following checks are made to insure that the new file is correct. 1. B efore the new firmware update is loaded into the NVRAM code area, it is first downloaded into a RAM area for checking. 2. T he downloaded file is first checked against a checksum to insure that the entire file has been downloaded and no data errors have occurred. 3. E ach firmware file is encoded with a special product identification, which must match the current code in the router. If the two identifiers match, the update is allowed to proceed. If either of these checks fail, the firmware update file is rejected and a failure message given to the user. 4. A fter the new firmware file passes both of these checks, the code is written to the NVRAM code area. Power to the unit must be maintained dur- ing this critical step; do not turn off unit. As the router writes the new code to NVRAM, the user is presented with a screen on the browser which counts down for 60 seconds. After the 60-second countdown, the unit automatically reboots and reinitializes. 6.6.4 firmWare update via uSb. The MBR1000 supports software upgrades via the USB port. A USB mass storage device (thumb drive) is preloaded with the new software .bin file. • File formats supported - FAT16 or FAT32 • F ile name format - , i.e.

  • Page 82: Dynamic Dns

    CradlePoint MBR1000 | USER MANUAL _ Firmware Version 1.3.1 TOOLS 6.7 dYnamic dnS. Use the Dynamic DNS sub-menu to host a server (Web, FTP, Game Server, etc.) using a domain name that you have purchased (www.whateveryour- nameis.com) with your dynamically assigned IP address. Most broadband Internet Service Providers assign dynamic (changing) IP addresses. Using a Dynamic DNS service provider, the router can be addressed by Host Name, regardless of the assigned IP address. 6.7.1 dYnamic dnS. Enable Dynamic DNS. Enable this option only if you have purchased your own domain name and registered with a Dynamic DNS service provider. Server Address. Select a Dynamic DNS service provider from the pull-down list. Host Name. Enter the host name. Username or Key. Enter the username or key provided by the Dynamic DNS Dynamic DNS screen service provider.

  • Page 83: System Check

    CradlePoint MBR1000 | USER MANUAL _ Firmware Version 1.3.1 TOOLS 6.8 SYStem check (ping teSt). Use the System Check sub-menu as a diagnostic tool to check connectivity from the router to another computer. This function can be used to verify a working connection across the WAN network or the local network. NOTE: the ping target must be configured to respond to ICMP ping requests. 6.8.1 ping teSt. Host Name or IP Address. Enter either the IP address of the target computer or enter its fully qualified domain name. • Ping. Start pinging the specified host. System Check (Ping Test) screen • Stop. The host is pinged repeatedly until you click the button. Stop 6.8.2 ping reSuLt.

  • Page 84: Schedules

    CradlePoint MBR1000 | USER MANUAL _ Firmware Version 1.3.1 TOOLS 6.9 ScheduLeS. Use the Schedules sub-menu to create schedules employed to enforce rules. For example, if you want to restrict web access to Mon-Fri from 3 PM to 8 PM you could create a schedule selecting Mon, Tue, Wed, Thu, and Fri and enter a Start Time of 3 PM and End Time of 8 PM. The schedules your create in this submenu are used in the other submenus that allow you to apply a time-based schedule, including • Virtual Server • Special Applications • Gaming • Parental Controls 6.9.1 add ScheduLe ruLe. Name. Name the schedule, such as rule. Weekday Day(s). Place a check mark in the radio button to select all seven All Week days of the week or place a check mark in the radio button, Select Day(s) then put a check mark in the boxes next to the days of the week that you want your schedule to be in effect.
  • Page 85 CradlePoint MBR1000 | USER MANUAL _ Firmware Version 1.3.1 TOOLS 6.9.2 ScheduLe ruLeS LiSt. This list displays all of the currently defined schedules. Click the Enable check box at the left to directly activate or de-activate the entry. An entry can be changed by clicking the icon or can be deleted by clicking the Edit Delete Schedules Rules List section icon. When you click the icon, the item is highlighted, and the Edit Schedule section is activated for editing. Rules After you’ve completed all modifications or deletions, you must click the button at the top of the page to save your changes. The router Save Settings must reboot before new settings will take effect. You will be prompted to or . If you need to make additional settings Reboot the Device...
  • Page 86 CradlePoint MBR1000 | USER MANUAL _ Firmware Version 1.3.1 TOOLS 6.10 gpS. Some modems and handsets export GPS data. The GPS sub-menu can: • D isplay the GPS data directly • L oad the GPS data into an online mapping service and export the GPS data over the network in real time. Use the sub-menu to adjust how your router displays and ex- Tools > GPS ports GPS data from supported devices. 6.10.1 LaSt knoWn poSition. Reports the longitude and latitude of the GPS device(s). 6.10.2 data update SettingS. Update Method. Determines how the web page’s GPS data is updated from the router. When is chosen the page will update itself at a speci- Automatic fied interval. By default the update interval is 15 seconds. But the interval can...
  • Page 87 CradlePoint MBR1000 | USER MANUAL _ Firmware Version 1.3.1 TOOLS 6.10.3 map SettingS. By default, when the GPS page reads valid GPS coordinates from the router it will display the location using an online mapping service in a separate browser window. Load Coordinates into Map. (Default: enabled). Disable by un-checking the check box. Re-enable by checking the Load Coordinates into map Load box. Coordinates into map Choose Map Provider. The drop down menu enables Choose Map Provider you to choose which online mapping service you have the GPS coordinates sent to. These selections can be saved by clicking the...

  • Page 88: Status Tab

    CradlePoint MBR1000 | USER MANUAL _ Firmware Version 1.3.1 STATUS 7.0 Status Tab The Status tab provides information about the current configuration settings of the MBR1000 router via 8 sub-menus: • Device Info • Wireless (Wi-Fi) • Modem Info • Routing • Logs • Statistics • Active Sessions • WISH Sessions Status Tab and sub-menus Table of Contents PAGE 88...

  • Page 89: Device Info

    CradlePoint MBR1000 | USER MANUAL _ Firmware Version 1.3.1 STATUS 7.1 device information. The Device Information sub-menu displays your Router settings. Options cannot be changed from this sub-menu. They can only be monitored. NOTE: Some browsers have limitations that make it impossible to update the WAN status display when the status changes. Some browsers require that you refresh the display to obtain updated status. Some browsers report an error condition when trying to obtain WAN status. 7.1.1 generaL. Time. Displays the time and date that the router is set to. Firmware Version. Displays the currently loaded firmware version. 7.1.2 Wan. To change the failover priorities of the various WAN connections or to manually connect or dis- connect a WAN connection go to the sub-menu. If the connection is DHCP, Advanced > Failover clicking the button unassigns the router’s IP address. The router will not respond DHCP Release to IP messages from the WAN side until you click the button or power-up the router DHCP Renew again. Clicking the...
  • Page 90 CradlePoint MBR1000 | USER MANUAL _ Firmware Version 1.3.1 STATUS 7.1.3 Lan. This area of the screen reflects configuration settings from the Basic > Net- sub-menu. work MAC Address. The MAC address displayed for your wired network. IP Address. IP Address of the router. LAN section Subnet Mask. Subnet of the router. DHCP Server. DHCP Server is Enabled or Disabled. 7.1.3 WireLeSS (Wi-fi) Lan. Wireless Radio. Wi-Fi is Enabled or Disabled. WISH.
  • Page 91 CradlePoint MBR1000 | USER MANUAL _ Firmware Version 1.3.1 STATUS 7.1.4 Lan computerS. This area of the screen continually updates to show all DHCP enabled com- puters and devices connected to the LAN side of your router. The detection “range” is limited to the address range as configured in DHCP Server. Com- LAN Computers section puters that have an address outside of this range will not show. If the DHCP Client (i.e., a computer configured to Automatically obtain an address supplies a Host Name then that will also be shown. Any computer or device that has a static IP address that lies within the detection “range” may show, however its host name will not. Address. The MAC address displayed for your wired network. IGMP Multicast Memberships section IP Address. IP Address of computer. Name. Name of computer. MAC.

  • Page 92: Wireless (Wifi)

    CradlePoint MBR1000 | USER MANUAL _ Firmware Version 1.3.1 STATUS 7.2 WireLeSS (Wi-fi). The Wireless (Wi-Fi) sub-menu displays the number of wireless clients that are connected to the router, the MAC address of each system connecting wirelessly, and the IP address of each system connecting wirelessly. Control buttons allow the administrator to allow or deny access for each of the listed computers. If has not been enabled ( Require User Login Basic > sub-menu), then the control buttons are not available on this sub- Wizard menu. 7.2.1 number of WireLeSS cLientS. This lists the client computers that are currently connected to the WLAN ac- cess point. MAC Address. The Ethernet ID (MAC address) of the wireless client. Address. The LAN-side IP address of the client. Mode. The transmission standard being used by the client. Values are , or for 802.11a, 802.11b, 802.11g, or 802.11n respectively.
  • Page 93 CradlePoint MBR1000 | USER MANUAL _ Firmware Version 1.3.1 STATUS 7.2.2 cLientS aLLoWed acceSS to the internet. The control icons allow the administrator to grant access to the client com- puters. Access grants provide the same access as if a client went through the user login. Clients Allows Access to the Internet section • C lient allowed temporarily. Will have access until disconnected from the Wi-Fi network • C lient allowed permanently. Same as the function in the Remember Me user login process. Will have access each time connected to the Wi-Fi Remembered Clients section network.

  • Page 94: Modem Info

    CradlePoint MBR1000 | USER MANUAL _ Firmware Version 1.3.1 STATUS 7.3 modem SettingS (modem info). The Modem Settings sub-menu displays internal diagnostic and program- matic information of the attached modems. 7.3.1 modem diagnoSticS. Used for troubleshooting and information reporting. Modem Settings (Modem Info) screen Table of Contents PAGE 4...

  • Page 95: Routing

    CradlePoint MBR1000 | USER MANUAL _ Firmware Version 1.3.1 STATUS 7.4 routing. The Routing sub-menu displays the routing details configured for the router. 7.4.1 routing tabLe. A gateway value of 0.0.0.0 means there is no next hop. The IP address is directly connected to the router on the interface specified, or . A value of 0.0.0.0 in both the destination IP and Netmask means that this is the default route. Routing screen Table of Contents PAGE 5...

  • Page 96: Logs

    CradlePoint MBR1000 | USER MANUAL _ Firmware Version 1.3.1 STATUS 7.5 LogS. The Logs sub-menu allows you to view the router logs. The router automati- cally logs (records) events of possible interest in its internal memory. If there isn’t enough internal memory for all events, logs of older events are deleted but logs of the latest events are retained. You can decide what types of events you want to view and the level of the events to view. This router also has external Syslog Server support so you can send the log files to a com- puter on your network that is running a Syslog utility. 7.5.1 Log optionS. What to View. You can select the types of messages that you want to display from the log: • Firewall & Security • System • Router Status messages can be selected. View Levels. You can choose from three levels of message importance: • Informational • Warning • Critical Apply Log Settings Now.

  • Page 97: Statistics

    CradlePoint MBR1000 | USER MANUAL _ Firmware Version 1.3.1 STATUS 7.6 StatiSticS (traffic StatiSticS). The Statistics (Traffic Statistics) sub-menu displays basic statistics for the LAN, WAN and Wireless network interfaces. 7.6.1 traffic StatiSticS. Refresh Statistics. Updates the screen with the latest router statistics. Clear Statistics. Clears all of the values on the screen. 7.6.2 WireLeSS (Wi-fi), Lan and Wan StatiSticS. Kbytes Sent. The number of packets transmitted to the local area network. Kbytes Received. The number of packets received from the local area net- work. TX Packets Dropped.

  • Page 98: Active Sessions

    CradlePoint MBR1000 | USER MANUAL _ Firmware Version 1.3.1 STATUS 7.7 active SeSSionS. The Active Session sub-menu displays the full details of active sessions to your router. An Internet session is a conversation between a program or ap- plication on a LAN-side computer and a program or application on a WAN- side computer. Local. The IP address and, where appropriate, port number of the local ap- plication. NAT. The port number of the LAN-side application as viewed by the WAN- Active Sessions screen side application. Internet. The IP address and, where appropriate, port number of the applica- tion on the Internet. Protocol. The communications protocol used for the conversation. State. State for sessions that use the TCP protocol. • N O: None -- This entry is used as a placeholder for a future connection that may occur. • SS: SYN Sent -- One of the systems is attempting to start a connection. • EST: Established -- the connection is passing data. • F W: FIN Wait -- The client system has requested that the connection be stopped. • C W: Close Wait -- the server system has requested that the connection be stopped. •...
  • Page 99 CradlePoint MBR1000 | USER MANUAL _ Firmware Version 1.3.1 STATUS Priority. The preference given to outbound packets of this conversation by the QoS Engine logic. Smaller numbers represent higher priority. Time Out. The number of seconds of idle time until the router considers the session terminated. The initial value of Time Out depends on the type and state of the connection. • 3 00 seconds. UDP connections. Active Sessions section • 2 40 seconds. Reset or closed TCP connections. The connection does not close instantly so that lingering packets can pass or the connection can be re-established. • 7 800 seconds. Established or closing TCP connections. Table of Contents PAGE ...

  • Page 100: Wish Sessions

    CradlePoint MBR1000 | USER MANUAL _ Firmware Version 1.3.1 STATUS 7.8 WiSh SeSSionS The WISH Sessions sub-menu displays full details of active local wireless sessions through your router when WISH has been enabled. A WISH session is a conversation between a program or application on a wirelessly connect- ed LAN-side computer and another computer, however connected. Originator. The IP address and, where appropriate, port number of the com- puter that originated a network connection. Target. The IP address and, where appropriate, port number of the computer to which a network connection has been made. Protocol. The communications protocol used for the conversation. State. State for sessions that use the TCP protocol. • N O: None -- This entry is used as a placeholder for a future connection that WISH Sessions screen may occur. • SS: SYN Sent -- One of the systems is attempting to start a connection. • EST: Established -- the connection is passing data. • F W: FIN Wait -- The client system has requested that the connection be stopped. • C W: Close Wait -- the server system has requested that the connection be stopped. •...
  • Page 101 CradlePoint MBR1000 | USER MANUAL _ Firmware Version 1.3.1 STATUS Priority. The priority of the message flow is entered here. Four priorities are defined: • BK: Background (least urgent). • BE: Best Effort. • VI: Video. • VO: Voice (most urgent). Time Out. The number of seconds of idle time until the router considers the session terminated. The initial value of Time Out depends on the type and state of the connection. WISH Sessions section • 3 00 seconds. UDP connections. • 2 40 seconds. Reset or closed TCP connections. The connection does not close instantly so that lingering packets can pass or the connection can be re-established. • 7 800 seconds. Established or closing TCP connections. Table of Contents PAGE 101...

  • Page 102: Glossary

    CradlePoint MBR1000 | USER MANUAL _ Firmware Version 1.3.1 GLOSSARY 802.11 AppleTalk Address Resolution Protocol A family of specifications for wireless local area networks (WLANs) de- AARP. Used to map the MAC addresses of Apple computers to their veloped by a working group of the Institute of Electrical and Electronics AppleTalk network addresses, so that conversions can be made in both Engineers (IEEE). directions. Access Control List Application layer ACL. This is a database of network devices that are allowed to access 7th Layer of the OSI model. Provides services to applications to enable resources on the network. AppleTalk network addresses, so that conversions can be made in both directions. Access Point AP. Device that allows wireless clients to connect to it and access the Application layer network. 7th Layer of the OSI model. Provides services to applications to en- sure that they can communicate properly with other applications on a ActiveX network. A Microsoft specification for the interaction of software components. ASCII Ad-hoc network American Standard Code for Information Interchange. This system of Peer-to-Peer network between wireless clients. characters is most commonly used for text files. Address Resolution Protocol Attenuation ARP. Used to map MAC addresses to IP addresses so that conversions...
  • Page 103 CradlePoint MBR1000 | USER MANUAL _ Firmware Version 1.3.1 GLOSSARY Bandwidth Cable modem The maximum amount of bytes or bits per second that can be transmit- A device that allows you to connect a computer up to a coaxial cable ted to and from a network device. and receive Internet access from your Cable provider. Basic Input/Output System CardBus BIOS. A program that the processor of a computer uses to startup the A newer version of the PC Card or PCMCIA interface. It supports a 32- system once it is turned on. bit data path, DMA, and consumes less voltage. Baud CAT 5 Data transmission speed. Category 5. Used for 10/100 Mbps or 1Gbps Ethernet connections. Beacon Client A data frame by which one of the stations in a Wi-Fi network periodi- A program or user that requests data from a server. cally broadcasts network control data to other wireless stations. Collision Bit rate When do two devices on the same Ethernet network try and transmit The amount of bits that pass in given amount of time. data at the exact same time. Bit/sec Cookie Bits per second. Information that is stored on the hard drive of your computer that holds your preferences to the site that gave your computer the cookie.
  • Page 104 CradlePoint MBR1000 | USER MANUAL _ Firmware Version 1.3.1 GLOSSARY DB-25 A 25-pin male connector for attaching External modems or RS-232 se- “Demilitarized Zone”. A computer that logically sits in a “no-mans rial devices. land” between the LAN and the WAN. The DMZ computer trades some of the protection of the router’s security mechanisms for the conve- DB-9 nience of being directly addressable from the Internet. A 9-pin connector for RS-232 connections Domain Name System: Translates Domain Names to IP addresses. Decibels related to dipole antenna. Domain name A name that is associated with an IP address. Decibels relative to isotropic radiator. Download To send a request from one computer to another and have the file Decibels relative to one milliwatt. transmitted back to the requesting computer. Decrypt To unscramble an encrypted message back into plain text. Digital Subscriber Line. High bandwidth Internet connection over tele- Default phone lines. A predetermined value or setting that is used by a program when no Duplex user input has been entered for this value or setting. Sending and Receiving data transmissions at the sane time. Demilitarized zone Dynamic DNS service DMZ: A single computer or group of computers that can be accessed...
  • Page 105 CradlePoint MBR1000 | USER MANUAL _ Firmware Version 1.3.1 GLOSSARY Email Gain Electronic Mail is a computer-stored message that is transmitted over The amount an amplifier boosts the wireless signal. the Internet. Gateway Encryption A device that connects your network to another, like the Internet. Converting data into cyphertext so that it cannot be easily read. Gbps Ethernet Gigabits per second. The most widely used technology for Local Area Networks. Gigabit Ethernet Fiber optic Transmission technology that provides a data rate of 1 billion bits per A way of sending data through light impulses over glass or plastic wire second. or fiber. File server Graphical user interface. A computer on a network that stores data so that the other computers H.323 on the network can all access it. A standard that provides consistency of voice and video transmissions File sharing and compatibility for video conferencing devices. Allowing data from computers on a network to be accessed by other Half-duplex computers on the network with different levels of access rights.
  • Page 106 CradlePoint MBR1000 | USER MANUAL _ Firmware Version 1.3.1 GLOSSARY HTTPS Internet Protocol Security HTTP over SSL is used to encrypt and decrypt HTTP transmissions. IPsec provides security at the packet processing layer of network com- munication. A networking device that connects multiple devices together. Internet Service Provider An ISP provides access to the Internet to individuals or companies. ICMP Internet Control Message Protocol. Intranet A private network. IEEE Institute of Electrical and Electronics Engineers. Intrusion Detection A type of security that scans a network to detect attacks coming from IGMP inside and outside of the network. Internet Group Management Protocol is used to make sure that com- puters can report their multicast group membership to adjacent rout- ers. Internet Protocol. IP address Internet Information Server is a WEB server and FTP server provided A 32-bit number, when talking about Internet Protocol Version 4, that by Microsoft. identifies each computer that transmits data on the Internet or on an Intranet. Internet Key Exchange is used to ensure security for VPN connections. IPsec Internet Protocol Security.
  • Page 107 CradlePoint MBR1000 | USER MANUAL _ Firmware Version 1.3.1 GLOSSARY Kbyte MDIX Kilobyte. Medium Dependent Interface Crossover is an Ethernet port for a con- nection to a crossover cable. L2TP Layer 2 Tunneling Protocol. Management Information Base is a set of objects that can be managed by using SNMP. Local Area Network. Modem Latency A device that Modulates digital signals from a computer to an analog The amount of time that it takes a packet to get from the one point to signal in order to transmit the signal over phone lines. It also Demodu- another on a network. Also referred to as delay. lates the analog signals coming from the phone lines to digital signals for your computer. Light Emitting Diode. MPPE Legacy Microsoft Point-to-Point Encryption is used to secure data transmis- Older devices or technology. sions over PPTP connections. Local Area Network LAN. A group of computers in a building that usually access files from a Maximum Transmission Unit is the largest packet that can be transmit- server. ted on a packet-based network like the Internet. LPR/LPD Multicast “Line Printer Requestor”/”Line Printer Daemon”. A TCP/IP protocol for...
  • Page 108 CradlePoint MBR1000 | USER MANUAL _ Firmware Version 1.3.1 GLOSSARY Netmask Personal Area Network Determines what portion of an IP address designates the Network and The interconnection of networking devices within a range of 10 meters. which part designates the Host. Physical layer Network Interface Card The first layer of the OSI model. Provides the hardware means of trans- NIC. A card installed in a computer or built onto the motherboard that mitting electrical signals on a data carrier. allows the computer to connect to a network. Ping Network Layer A utility program that verifies that a given Internet address exists and The third layer of the OSI model which handles the routing of traffic on can receive messages. The utility sends a control packet to the given a network. address and waits for a response. Network Time Protocol Used to synchronize the time of all the computers in a network. Power over Ethernet is the means of transmitting electricity over the unused pairs in a category 5 Ethernet cable. Network Interface Card. POP3 Post Office Protocol 3 is used for receiving email. Network Time Protocol. Port A logical channel endpoint in a network. A computer might have only OFDM one physical channel (its Ethernet channel) but can have multiple ports Orthogonal Frequency-Division Multiplexing is the modulation tech- (logical channels) each identified by a number.
  • Page 109 CradlePoint MBR1000 | USER MANUAL _ Firmware Version 1.3.1 GLOSSARY Server Quality of Service. A computer on a network that provides services and resources to other computers on the network. RADIUS Remote Authentication Dial-In User Service allows for remote users Session key to dial into a central server and be authenticated in order to access An encryption and decryption key that is generated for every communi- resources on a network. cation session between two computers. Reboot Session layer To restart a computer and reload it’s operating software or firmware The fifth layer of the OSI model which coordinates the connection and from nonvolatile storage. communication between applications on both ends. Rendezvous Simple Mail Transfer Protocol Apple’s version of UPnP, which allows for devices on a network to Used for sending and receiving email. discover each other and be connected without the need to configure Simple Network Management Protocol any settings. Governs the management and monitoring of network devices. Repeater Retransmits the signal of an Access Point in order to extend its cover- Session Initiation Protocol. A standard protocol for initiating a user age. session that involves multimedia content, such as voice or chat.
  • Page 110 CradlePoint MBR1000 | USER MANUAL _ Firmware Version 1.3.1 GLOSSARY Stateful Packet Inspection Universal Plug and Play A feature of a firewall that monitors outgoing and incoming traffic to UPnP. A standard that allows network devices to discover each other make sure that only valid responses to outgoing requests are allowed and configure themselves to be a part of the network. to pass though the firewall. Update Subnet mask To install a more recent version of a software or firmware product. Determines what portion of an IP address designates the Network and Upgrade which part designates the Host. To install a more recent version of a software or firmware product. Syslog Upload System Logger -- a distributed logging interface for collecting in one To send a request from one computer to another and have a file trans- place the logs from different sources. Originally written for UNIX, it is mitted from the requesting computer to the other. now available for other operating systems, including Windows. UPnP Universal Plug and Play. Transmission Control Protocol. TCP Raw Uniform Resource Locator is a unique address for files accessible on A TCP/IP protocol for transmitting streams of printer data. the Internet. TCP/IP Transmission Control Protocol/Internet Protocol.
  • Page 111 Wireless (Wi-Fi) LAN • Consult the dealer or an experienced radio or television technician for help. Connecting to a Local Area Network over one of the 802.11 wireless Changes or modifications not expressly approved by Cradlepoint, Inc. could void the user’s authority to operate the product. standards. This Class B digital apparatus complies with Canadian ICES-003.
