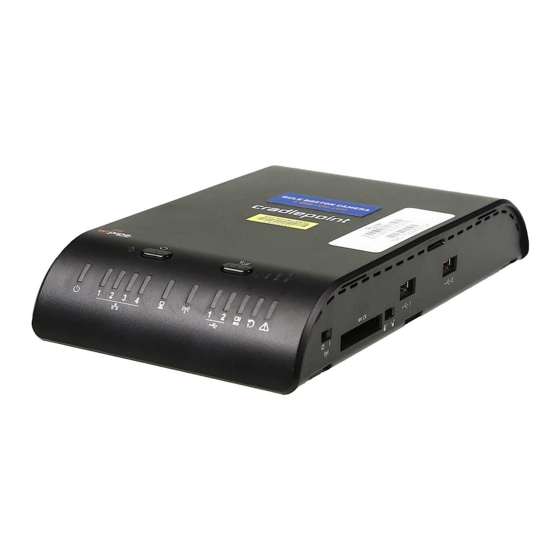

Cradlepoint MBR1200B Setup Manual

MBR1200B
Small Business Mobile Broadband Router
3G/4G Wireless WAN Connectivity for
Small Business or Remote Office
Setup Guide
SETTING UP THE ROUTER
Plug the power supply into an electrical outlet.
1 )
2 ) Connect the power supply to the MBR1200B.
Ensure power is switched on. o = OFF | = ON
3 ) Connect a: USB or Express Card Wireless Broadband
Data Modem with Active Subscription, or a Cable, DSL,
Satellite, T1, T3, Ethernet Modem .
What's In The Box
MBR1200B
Small Business Mobile Broadband Router
3G/4G Wireless WAN Connectivity for
Small Business or Remote Office
Setup Guide
AC Power Supply Ethernet Cable Setup Guide
Mobile Broadband Router
www.cradlepoint.com/mbr1200b
for more information about your product, visit:
PORTS, SWITCHES & LEDs
POWER
EXPRESS CARD
OFF/ON
COMPUTERS CABLE/DSL
WiFi EXPRESS CARD
or LOCAL DEVICES MODEM POWER
12V DC OFF/ON LOCK
( LAN ) ( WAN )
RESET
LEDs
POWER EXPRESS CARD MODEM STATUS 3G/4G MODEM STRENGTH
EC
solid green: on solid green: connected signal strength, blinking indicates ½ bar
blinking green: connecting
LAN
WPS ATTENTION LED
solid: connected solid: active
green: check for courtesy message
blinking: traffic activity
blinking: setting in progress amber: attention
solid red: device booting or critical
WAN WIFI 2.4GHZ system error such as "no WAN
is available"
solid: connected solid: on
blinking: traffic activity blinking: traffic activity
USB TYPE A MODEM STATUS FAILOVER LED
2
solid green: connected off: primary WAN operating normally
blinking green: connecting green: secondary WAN is in use
CONNECTING YOUR COMPUTER
3G/4G
MODEM SLOT
(USB) After you connect your modem to the router, you're now ready
to connect to the MBR1200B via Ethernet or WiFi. If using WiFi
|
ensure the WiFi switch is set to on " ".
Default SSID: MBR1200B-xxx
Internal 802.11n WiFi antennas provide up to 600 feet of range
from the CradlePoint router to your connected computers or
WiFi-enabled devices.
Find your default password on the bottom of your router
( last 8 characters of your MAC Address ).
NOTE: If you are asked for an "8-digit PIN", click CONNECT
USING A SECURITY KEY and enter your eight character
default password found on the bottom of your router.
For additional information, visit:
www.cradlepoint.com/mbr1200b
© 2012 CradlePoint, Inc. All rights reserved. CradlePoint is not responsible for omissions or errors in typography or photography. CradlePoint, WiPipe™,
3
and the WiPipe logo are trademarks of CradlePoint, Inc. in the US and other countries. Other trademarks are property of their respective owners.
FINDING
YOUR
PASSWORD
Your unique default password
is shown on the product label
on the bottom of your router.
It's the last eight characters
of the MAC Address .
You will be asked for this
password when you connect a
new device to the WiFi network
or log into the administration
pages.
The default password provides
WiFi security out-of-the-box.
find this label on the bottom of your router
4
P/N 170531-003
