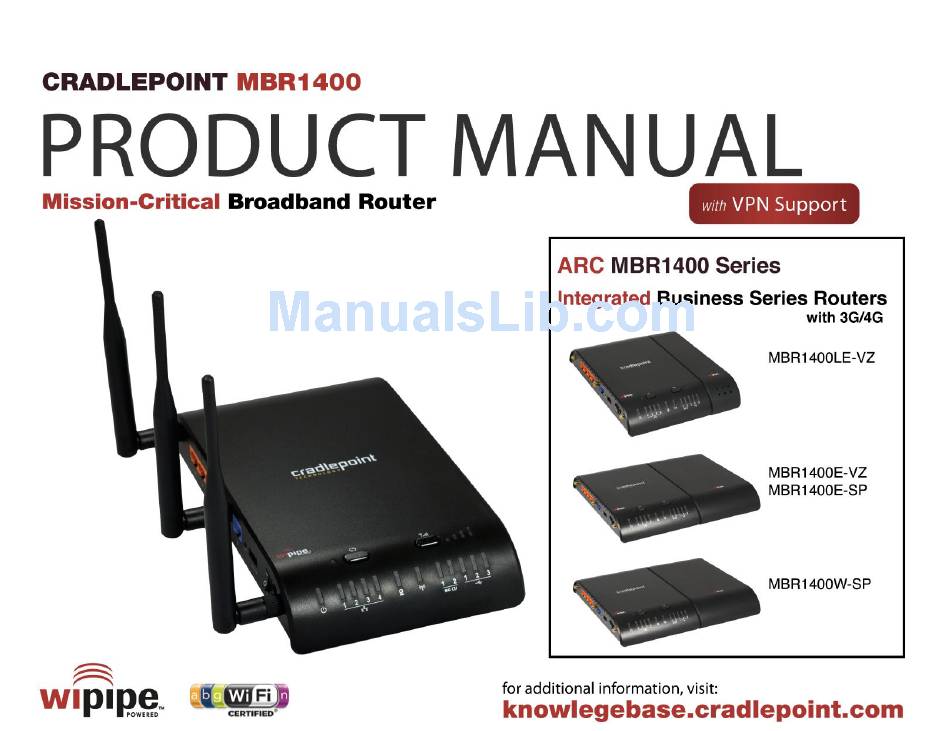

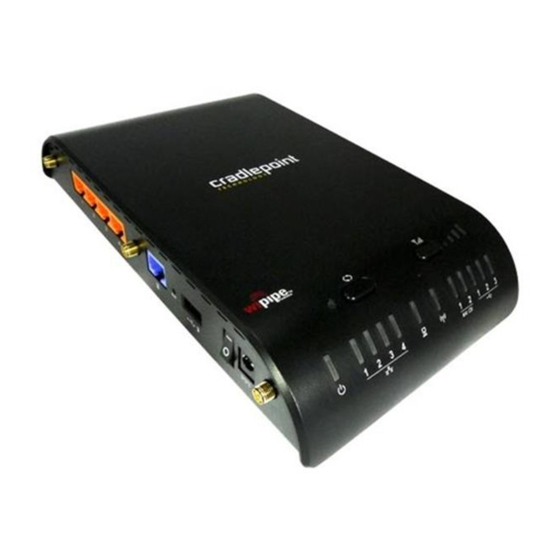

Cradlepoint MBR1400 Product Manual

Mbr1400 series integrated business series mission-critical broadband router
Hide thumbs Also See for MBR1400:
Table of Contents

Advertisement

Quick Links

Download this manual See also: User Manual, Product Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MBR1400 and is the answer not in the manual?

Questions and answers

Related Manuals for Cradlepoint MBR1400

Summary of Contents for Cradlepoint MBR1400

  • Page 2: Manual Revisions

    All other company or product names mentioned herein are trademarks or registered trademarks of their respective companies. Copyright © 2012 by CradlePoint, Inc. All rights reserved. This publication may not be reproduced, in whole or in part, without prior expressed written consent by CradlePoint, Inc.

  • Page 3: Table Of Contents

    MBR1400| USER MANUAL Firmware ver. 3.5.0 CRADLEPOINT Table of Contents 1 INTRODUCTION ..............3 5.5 H ............... 42 OTSPOT LIENTS 5.6 I ............43 NTERNET ONNECTIONS 1.1 P ............. 3 ACKAGE ONTENTS 5.7 S ................. 54 TATISTICS 1.2 S ............3...
  • Page 4 MBR1400| USER MANUAL Firmware ver. 3.5.0 CRADLEPOINT 8.3 H ............157 OTSPOT ERVICES 8.4 M ASK YOUR CRADLEPOINT SALES ANAGED ERVICES REPRESENTATIVE FOR DETAILS ..........162 8.5 S ............165 ERIAL EDIRECTOR 8.6 S ............. 167 YSTEM ONTROL 8.7 S ............

  • Page 5: Introduction

    MBR1400E-SP – 3G EVDO for Sprint 1.2 System Requirements  At least one Internet source: a CradlePoint 3G/4G Business Grade Modem, an Ethernet-based modem, a broadband data modem with active subscription (USB, ExpressCard), or WiFi as WAN.  Windows 2000/XP/7, Mac OS X, or Linux computer (with WiFi adapter—802.11n recommended—for WiFi functionality).
  • Page 6  IP pass-through support CradlePoint's Mission-Critical Broadband Router (MBR1400) takes the power and flexibility of our industry leading router, and when combined with an active high-speed wireless broadband data connection, gets your business network online in no time. CradlePoint‘s ARC Series includes an integrated 3G/4G business grade modem, a seamless, worry-free solution to keep your business online.
  • Page 7 Internet. In addition to connection options for traditional wired networking solutions like Cable, DSL, Satellite, or T1, the most powerful feature of the MBR1400 is its ability to use CradlePoint Business Grade Modems or USB or ExpressCard Data Modems to create instant networks anywhere you receive a broadband signal.

  • Page 8: C Radle P Oint Arc Mbr1400 S Eries

    MBR1400| USER MANUAL Firmware ver. 3.5.0 CRADLEPOINT 1.4 CradlePoint ARC MBR1400 Series Includes a CradlePoint 3G/4G Business Grade Modem with the MBR1400 and creates an effortless instant network from high- speed wireless broadband. The CradlePoint Integrated Business Grade Modems are...
  • Page 9 MBR1400| USER MANUAL Firmware ver. 3.5.0 CRADLEPOINT MBR1400LE-VZ 4G LTE/EVDO for Verizon Technology: LTE 3GPP Rel. 8 , EVDO RevA, A/O; CDMA 1x Downlink Rates: LTE 100 Mbps, EVDO 3.1 Mbps (theoretical) Uplink Rates: LTE 50 Mbps, EVDO 1.8 Mbps (theoretical)
  • Page 10 MBR1400| USER MANUAL Firmware ver. 3.5.0 CRADLEPOINT MBR1400E-VZ 3G EVDO for Verizon Technology: EVDO RevA, A/O; CDMA 1x Downlink Rates: 3.1 Mbps (theoretical) Uplink Rates: 1.8 Mbps (theoretical) Frequency Band: Cellular/PCS (800MHz/1,900 MHz) Power: 24 +/- 0.5dBm (typical conducted) Module: Sierra Wireless 5728v Antennas: Two SMA male (plug), 2 dBi gain Industry Standards &...
  • Page 11 MBR1400| USER MANUAL Firmware ver. 3.5.0 CRADLEPOINT MBR1400E-SP 3G EVDO for Sprint Technology: EVDO RevA, A/O; CDMA 1x Downlink Rates: 3.1 Mbps (theoretical) Uplink Rates: 1.8 Mbps (theoretical) Frequency Band: Cellular/PCS (800MHz/1,900 MHz) Power: 24 +/- 0.5dBm (typical conducted) Module: Sierra Wireless 5728v Antennas: Two SMA male (plug), 2 dBi gain Industry Standards &...
  • Page 12 MBR1400| USER MANUAL Firmware ver. 3.5.0 CRADLEPOINT MBR1400W-SP 4G WiMAX for Sprint Technology: WiMAX 802.16e Wave 2 Downlink Rates: 10Mbps peak, 6Mbps average Uplink Rates: 5 Mbps peak, 1.2 Mbps average Frequency Band: 2,500 MHz band Power: 23.5 +/- 0.5 dBm (RSU/CPE)

  • Page 13: Hardware Overview

    MBR1400| USER MANUAL Firmware ver. 3.5.0 CRADLEPOINT 2 HARDWARE OVERVIEW © 2012 CRADLEPOINT, INC. PLEASE VISIT HTTP://KNOWLEDGEBASE.CRADLEPOINT.COM/ FOR MORE HELP AND RESOURCES PAGE 11...
  • Page 14 MBR1400| USER MANUAL Firmware ver. 3.5.0 CRADLEPOINT 2.1 Ports, Buttons, and Switches © 2012 CRADLEPOINT, INC. PLEASE VISIT HTTP://KNOWLEDGEBASE.CRADLEPOINT.COM/ FOR MORE HELP AND RESOURCES PAGE 12...
  • Page 15  0 = Off 3G/4G Modem Signal Strength Button: When pressed the bar LEDs indicate signal strength from the CradlePoint Business Grade Modem or USB or ExpressCard modem. The signal strength is shown for 10 seconds if the modem does not support concurrent data connection and signal strength measurement.
  • Page 16 MBR1400| USER MANUAL Firmware ver. 3.5.0 CRADLEPOINT 2.2 LEDs LAN and WAN LEDs: The default settings are shown. LAN ports can be reconfigured to function as WAN ports and vice versa; the LEDs will function accordingly. © 2012 CRADLEPOINT, INC.

  • Page 17: Quick Start

    MBR1400| USER MANUAL Firmware ver. 3.5.0 CRADLEPOINT 3 QUICK START 3.1 Basic Setup  Your router requires an Internet source. Attach a CradlePoint Business Grade Modem, insert supported USB or ExpressCard modem/s, connect a Cable or DSL modem to the Blue Ethernet WAN port, or connect to an available WiFi source.
  • Page 18 SSID (service set identifier; the unique name of the local network). The SSID can be found on the bottom of the router in the form MBR1400-xxx, where ―xxx‖ is the last 3 digits of the router‘s MAC address.
  • Page 19 If you would like to change your network name or password or configure any of the advanced features of the MBR1400, you will need to log in to the administration pages:  Access your router‘s Administrator Login screen by opening a web browser window and typing ―cp/‖...
  • Page 20 If you used the First Time Setup Wizard, you might have changed the ―WiFi Network Name‖ or the ―Security Mode‖ password. If so, you will need to reconnect to the MBR1400 network.  Find the network. Look for your new personalized network name (or the default SSID of the form ―MBR1400-xxx‖).
  • Page 21 MBR1400| USER MANUAL Firmware ver. 3.5.0 CRADLEPOINT 3.3 Common Problems This section contains a list of some of the most common issues faced by users of the MBR1400. Please visit CradlePoint Knowledgebase at http://knowledgebase.cradlepoint.com/ for more help and answers to your other questions.
  • Page 22 If your USB Modem has not been updated recently, it is recommended that you do so if it is having trouble connecting to the MBR1400. Insert your USB data modem into your PC and access the Internet using the software provided by your cellular carrier.
  • Page 23 Then log in to the router administration pages and manually upload the firmware. Go to System Settings → System Software and click on ―Manual Firmware Upload‖. If you are still unable to access the Internet after following the above directions, contact CradlePoint Technical ...
  • Page 24 If the data modem LEDs are not illuminated, your modem is not connected and online. You may need to update firmware. ―Your USB or ExpressCard Modem Does Not Work With The Refer to the previous section, Router.‖ If you are still not online after updating, call CradlePoint Technical Support for further assistance. © 2012 CRADLEPOINT, INC. PLEASE VISIT HTTP://KNOWLEDGEBASE.CRADLEPOINT.COM/...

  • Page 25: Web Interface -- Essentials

    4 WEB INTERFACE -- ESSENTIALS The MBR1400 has a Web interface for configuration and administration of all features. The interface is organized with a button for toggling between Basic Mode and Advanced Mode and 5 tabs at the top of the screen: ...

  • Page 26: A Dministrator L Ogin

    The Administrator Login page will appear. Log in using your administrator password. Initially, this password can be found on the bottom of the MBR1400 unit as the Default Password. This password is also the last eight digits of the unit‘s MAC address.
  • Page 27 If you have forgotten your personalized password, you can reset the MBR1400 to factory defaults. When you reset the router, the administrator password will revert back to the Default Password. Press and hold the reset button on the router unit until the lights flash (Approximately 10-15 seconds).
  • Page 28 The First Time Setup Wizard will help you customize the name of your wireless network, change passwords to something you choose, and establish an optimal WiFi security mode. The MBR1400 comes out of the box with a unique password at WPA1/WPA2 WiFi security level.
  • Page 29 The router cannot use 802.11n modes if WEP is enabled; WiFi performance and range will be limited.  NONE (OPEN): Select this option if you do not want to activate any security features. CradlePoint recommends BEST (WPA2) WiFi security. Try this option first and switch only if you have a device that is incompatible with WPA2.
  • Page 30 MBR1400| USER MANUAL Firmware ver. 3.5.0 CRADLEPOINT Choose a personalized WPA PASSWORD or WEP KEY. This password will be used to connect devices to the router‘s WiFi broadcast once the security settings have been saved.  WPA Password: The WPA Password must be between 8 and 64 characters long. A combination of upper and lower case letters along with numbers and special characters is recommended to prevent hackers from gaining access to your network.
  • Page 31 Realm for your carrier. This setting ensures that the modem, when attached to the router, will properly connect to your carrier‘s wireless broadband service. The MBR1400 will default to the Sprint Realm. Select your carrier from the dropdown menu (options shown below).
  • Page 32 Please record these settings for future access. You may need this information to configure other wireless devices. NOTE: If you are currently using the MBR1400 WiFi network, reconnect your devices to the network using the new wireless network name and security password.

  • Page 33: Quick Link

    MBR1400| USER MANUAL Firmware ver. 3.5.0 CRADLEPOINT 4.3 Quick Links The CradlePoint logo in the upper left-hand corner of all the administration pages is a link to the Dashboard (Status → Dashboard), which displays fundamental information about the router. The black bar across the top provides quick access to important information and controls.

  • Page 34: C Onfiguration P Ages

    MBR1400| USER MANUAL Firmware ver. 3.4.0 CRADLEPOINT 4.4 Configuration Pages The following table shows the navigation layout of the administration pages. Click on the tabs along the top bar to reveal the following dropdown menus. Getting Started Status Network Settings...
  • Page 35 LAN (Local Area Network) Examples:  If you want to change the content filtering settings for the network created by the MBR1400, go to the Network Settings tab.  If you have multiple Internet sources (such as a CradlePoint Business Grade Modem and an Ethernet connection) for which you would like to set priority levels, go to the Internet tab.

  • Page 36: Status

    MBR1400| USER MANUAL Firmware ver. 3.5.0 CRADLEPOINT 5 STATUS The Status tab displays information about many different aspects of the router. It provides access to 8 submenu options:  Client List  Dashboard  GPS  GRE Tunnels  Internet Connections ...

  • Page 37: Client List

    MBR1400| USER MANUAL Firmware ver. 3.5.0 CRADLEPOINT 5.1 Client List The Client List displays the specifications of each device connected to your router, including Wireless and Wired clients. Wireless Clients. For each device using a wireless connection to your MBR1400, the following information is displayed: Hostname, IP, MAC, Connection, and Time Online.
  • Page 38 MBR1400| USER MANUAL Firmware ver. 3.5.0 CRADLEPOINT  -26 dBm: A relative measure of wireless signal quality (decibels relative to one milliwatt). This expresses theoretical best quality. The value is given as a negative exponent: -20 is a very good value while -80 is relatively poor.

  • Page 39: D Ashboard

    After the initial setup of the router, every time you log in you will automatically be directed to this Dashboard. Also, you can click on the CradlePoint logo in the upper left-hand corner to return to the Dashboard from any page.
  • Page 40 MBR1400| USER MANUAL Firmware ver. 3.5.0 CRADLEPOINT Router Information: “Detailed Info‖ links to System Settings → Administration.  Product: MBR1400  Firmware: Gives the number of the current firmware version.  Build Date: Year-month-day-hours-minutes-seconds for the most recent firmware upgrade.
  • Page 41 MBR1400| USER MANUAL Firmware ver. 3.5.0 CRADLEPOINT Local Networks: “Detailed Info‖ links to Network Settings → WiFi / Local Networks.  Clients: The number of current clients. For each network, the following information is displayed:  Network Name: IP Address/Netmask o Route Mode: NAT (Network Address Translation), Standard (NAT-less), Hotspot, or Disabled.
  • Page 42 MBR1400| USER MANUAL Firmware ver. 3.5.0 CRADLEPOINT 5.3 GPS If GPS support is enabled and a modem capable of providing GPS coordinates is connected, this page will show a graphical view of your router's location. See the GPS section in System Settings →...

  • Page 43: Gre T Unnels

    MBR1400| USER MANUAL Firmware ver. 3.5.0 CRADLEPOINT 5.4 GRE Tunnels View the status of configured GRE Tunnels. To set up or edit a GRE tunnel, go to Internet → GRE Tunnels. Included information:  Name  Status  Transmit (packets/bytes) ...

  • Page 44: H Otspot C Lients

    MBR1400| USER MANUAL Firmware ver. 3.5.0 CRADLEPOINT 5.5 Hotspot Clients View the status of the clients that have logged in through the Hotspot/Captive Portal. View:  Hostname  IP address  MAC address  Data Usage (both IN and OUT) ...

  • Page 45: I Nternet C Onnections

    The Internet Connections submenu option provides a list of attached WAN devices used as the Internet source for the MBR1400. Select one of these devices to see detailed information about that particular device. For each type of device, different information will be included in the Device Information section. Possible devices include: ...
  • Page 46 MBR1400| USER MANUAL Firmware ver. 3.5.0 CRADLEPOINT 5.6.1 Ethernet General Information  Unique Identifier wan  Model  Type ethernet  Port IP Information  DNS Servers  IP Address  Gateway Statistics  Incoming Bytes  Outgoing Bytes  Connection Uptime (secs) ©...
  • Page 47 MBR1400| USER MANUAL Firmware ver. 3.5.0 CRADLEPOINT WiFi as WAN 5.6.2 Diagnostics  Connection State (connected, idle, etc.) General Information  Product Wireless As WAN  Unique Identifier  Type wwan IP Information  Netmask  IP Address  Gateway ©...
  • Page 48 MBR1400| USER MANUAL Firmware ver. 3.5.0 CRADLEPOINT 5.6.3 GSM Modem (Nokia Datacard) Diagnostics  Signal Error Rate  Modem Firmware Version  Battery Status  Battery Level  Carrier Status  Signal Strength(dBm)  PIN Status  Connection State (connected, idle, etc.)
  • Page 49 MBR1400| USER MANUAL Firmware ver. 3.5.0 CRADLEPOINT  Incoming Bits/Second  Incoming Bytes  Outgoing Bytes © 2012 CRADLEPOINT, INC. PLEASE VISIT HTTP://KNOWLEDGEBASE.CRADLEPOINT.COM/ FOR MORE HELP AND RESOURCES PAGE 47...
  • Page 50 MBR1400| USER MANUAL Firmware ver. 3.5.0 CRADLEPOINT 5.6.4 EVDO Modem: (MC760 Comcast) Diagnostics  Modem Firmware Version  PRL Version  Service Display EVDO  Carrier Status  Signal Strength(dBm)  Connection Type CDMA  Connection State (connected, idle, etc.) General Information ...
  • Page 51 MBR1400| USER MANUAL Firmware ver. 3.5.0 CRADLEPOINT  Outgoing Bytes © 2012 CRADLEPOINT, INC. PLEASE VISIT HTTP://KNOWLEDGEBASE.CRADLEPOINT.COM/ FOR MORE HELP AND RESOURCES PAGE 49...
  • Page 52 MBR1400| USER MANUAL Firmware ver. 3.5.0 CRADLEPOINT WiMAX Modem (U300 – 4G) 5.6.5 Diagnostics For a WiMAX modem, the CINR and Signal Strength values are important as they show how strong the signal is and that has significant effects on how much data the router can download or send.
  • Page 53 MBR1400| USER MANUAL Firmware ver. 3.5.0 CRADLEPOINT  Type WiMAX  Port  Manufacturer Franklin Wireless Corporation Statistics  Outgoing Bits/Second  Incoming Bits/Second  Incoming Bytes  Outgoing Bytes © 2012 CRADLEPOINT, INC. PLEASE VISIT HTTP://KNOWLEDGEBASE.CRADLEPOINT.COM/ FOR MORE HELP AND RESOURCES...
  • Page 54 MBR1400| USER MANUAL Firmware ver. 3.5.0 CRADLEPOINT 5.6.6 LTE Modem (PANTECH UML290) Diagnostics  Home Address  MN-HA SPI  Modem Firmware Version  Battery Status  MN-HA SS  Network Address Identifier (NAI)  Signal Strength(dBm)  Rev Tun ...
  • Page 55 MBR1400| USER MANUAL Firmware ver. 3.5.0 CRADLEPOINT General Information  Product PANTECH UML290  Protocol IP DHCP  Unique Identifier  ESN/IMEI  Model UML290VW  Type modem  Port  Manufacturer Pantech, Incorporated IP Information  Netmask  IP Address ...

  • Page 56: S Tatistics

    MBR1400| USER MANUAL Firmware ver. 3.5.0 CRADLEPOINT 5.7 Statistics The Statistics submenu option displays basic traffic statistics. Wireless Statistics: View the signal strength and other wireless modem information. The wireless device‘s signal strength will only be displayed as long as it supports ―Live Diagnostics.‖ Sample rate and size can be adjusted from the dropdown boxes.
  • Page 57 MBR1400| USER MANUAL Firmware ver. 3.5.0 CRADLEPOINT Data Usage: A measure of amount of information that is currently being sent or received through the network. Sample rate and size can be adjusted from the dropdown boxes. © 2012 CRADLEPOINT, INC.
  • Page 58 MBR1400| USER MANUAL Firmware ver. 3.5.0 CRADLEPOINT Failover/Failback/Load Balance: An easy way to view current connective states of the devices plugged into the router as compared to the past. Sample rate and size can be adjusted from the dropdown boxes.
  • Page 59 MBR1400| USER MANUAL Firmware ver. 3.5.0 CRADLEPOINT 5.8 System Logs The router automatically logs (records) events of possible interest in its internal memory. If there is not enough internal memory for all events, logs of older events are deleted, but logs of the latest events are retained. The log options allow you to filter the router logs so you can easily find relevant messages.

  • Page 60: Vpn T Unnels

    MBR1400| USER MANUAL Firmware ver. 3.5.0 CRADLEPOINT 5.9 VPN Tunnels View the status of configured VPN tunnels. To set up or edit a VPN tunnel, go to Internet → VPN Tunnels. Included information:  Name  Connections  Status  Protocols ...

  • Page 61: Network Settings

    6 NETWORK SETTINGS The Network Settings tab provides access to 8 submenu options for administering the following functions/tasks. These functions are all related to controlling the LAN (Local Area Networks), the networks you set up with the MBR1400.  Content Filtering ...

  • Page 62: C Ontent F Iltering

    MBR1400| USER MANUAL Firmware ver. 3.5.0 CRADLEPOINT 6.1 Content Filtering You have two main options for filtering content in a network created through your MBR1400. 1) Domain / URL Filter Rules: Create a list of websites that will be either disallowed (facebook.com, for example) or...
  • Page 63 MBR1400| USER MANUAL Firmware ver. 3.5.0 CRADLEPOINT 6.1.1 OpenDNS OpenDNS is a service that protects you online by filtering websites. OpenDNS protects you from phishing websites and URL typos once you select a filtering level.  None: Disables Web filtering that uses OpenDNS, ...
  • Page 64 MBR1400| USER MANUAL Firmware ver. 3.5.0 CRADLEPOINT OpenDNS network. In order for Custom settings to work you need to login to DNS-O-MATIC using your OpenDNS credentials and "Add A Service" for the network specified above. Enable OpenDNS ISP Filter Bypass Algorithm: It is possible that your Internet Service Provider (ISP) uses the port that OpenDNS is configured to access, port 53, which will prevent OpenDNS filtering.

  • Page 65: Dhcp S Erver

    MBR1400| USER MANUAL Firmware ver. 3.5.0 CRADLEPOINT 6.2 DHCP Server DHCP stands for Dynamic Host Configuration Protocol. The built-in DHCP server automatically assigns IP addresses to the computers and other devices on each local area network (LAN). In this section you can view a list of assigned IP addresses and reserve IP addresses for particular devices.
  • Page 66 DNS, or Domain Name System, is a naming system that translates between domain names (www.cradlepoint.com, for example) and Internet IP addresses (206.207.82.197). A DNS server acts as an Internet phone book, translating between names that make sense to people and the more complex numerical identifiers. The DNS page for the MBR1400 has these distinct functions: ...
  • Page 67 MBR1400| USER MANUAL Firmware ver. 3.5.0 CRADLEPOINT Force All DNS Requests To Router: Enabling this will redirect all DNS requests from LAN clients to the router's DNS server. This will allow the router even more control over IP addresses even when clients have their own DNS servers statically set.
  • Page 68 MBR1400| USER MANUAL Firmware ver. 3.5.0 CRADLEPOINT User name: Enter the user name or key provided by the Dynamic DNS service provider. If the Dynamic DNS provider supplies only a key, enter that key for both the User name and Password fields.

  • Page 69: F Irewall

    MBR1400| USER MANUAL Firmware ver. 3.5.0 CRADLEPOINT 6.4 Firewall The router automatically provides a firewall. Unless you configure the router to the contrary, the router does not respond to unsolicited incoming requests on any port, thereby making your LAN invisible to cyber attackers.
  • Page 70 MBR1400| USER MANUAL Firmware ver. 3.5.0 CRADLEPOINT  Local Port(s): The port number(s) that corresponds to the service (Web server, FTP, etc) on a local computer or device. For example, you might input ―80‖ in the Local Port(s) field to open a port for a Web server on a computer within your network.
  • Page 71 MBR1400| USER MANUAL Firmware ver. 3.5.0 CRADLEPOINT 6.4.2 IP Filter Rules (Advanced) An "Incoming" IP filter rule restricts remote access to computers on your local network. "Outgoing" filter rules prevent computers on your local network from initiating communication to the address range specified in the rule.
  • Page 72 MBR1400| USER MANUAL Firmware ver. 3.5.0 CRADLEPOINT If you leave these values blank, then all IP addresses and ports will be included. IP Source and IP Destination options can be used to differentiate between the directions that packets go. You could permit packets to come from particular IP addresses but then not allow packets to return to those addresses.
  • Page 73 MBR1400| USER MANUAL Firmware ver. 3.5.0 CRADLEPOINT 6.4.3 DMZ: DeMilitarized Zone (Advanced) A DMZ host is effectively not firewalled in the sense that any computer on the Internet may attempt to remotely access network services at the DMZ IP address. Typical uses involve running a public Web server or sharing files.

  • Page 74: Mac Filter

    MBR1400| USER MANUAL Firmware ver. 3.5.0 CRADLEPOINT 6.5 MAC Filter The MAC Filter allows you to create a list of devices that have either exclusive access (whitelist) or no access (blacklist) to your wireless LAN. Enabled: Click to allow MAC Filter options.

  • Page 75: R Outing

    MBR1400| USER MANUAL Firmware ver. 3.5.0 CRADLEPOINT 6.6 Routing Add a new static route to the IP routing table or edit/remove an existing route. Static routes are unnecessary for most users. They are typically only used in networks with more than one layer, such as when there is a network within a network so that packet destinations are hidden behind an additional router.

  • Page 76: Wifi / Local Network

    MBR1400| USER MANUAL Firmware ver. 3.5.0 CRADLEPOINT 6.7 WiFi / Local Networks This section is used to configure the settings for wireless networks created by your router. Note that changes made in this section may also need to be duplicated on wireless devices that you want to connect to your wireless network.
  • Page 77 MBR1400| USER MANUAL Firmware ver. 3.5.0 CRADLEPOINT 6.7.1 Local IP Networks Local IP Networks displays the following information for each network:  Network Name  IP address/Netmask  DHCP Server (Enabled/Disabled)  Routing Mode (NAT, Standard, Hotspot, Disabled)  Access Control (Admin Access, UPnP Gateway, LAN Isolation) ...
  • Page 78 IP Settings: Name: This primarily helps to identify this network during other administration tasks. Hostname: [Default: cp (for CradlePoint)] The hostname is the DNS name associated with the router's local area network IP address. NOTE: You can access the router‘s administration pages by typing the hostname into your browser, so if you change ―cp‖...
  • Page 79 MBR1400| USER MANUAL Firmware ver. 3.5.0 CRADLEPOINT  NAT (default): Network Address Translation hides private IP addresses behind the router's IP address. This is the simplest and most common choice for users, because NAT does the translation work for you.
  • Page 80 MBR1400| USER MANUAL Firmware ver. 3.5.0 CRADLEPOINT Access Control: Tune the access control settings of this network to match the intended use. Simply select or deselect any of the following:  LAN Isolation: When checked, this network will NOT be allowed to communicate with other local networks.
  • Page 81 (default: 72 to 200, as in 192.168.0.72 to 192.168.0.200). Example: The MBR1400 uses an IP address of 192.168.0.1 for its primary network by default. A computer designated as a Web server has a static IP address of 192.168.0.3. Another computer is designated as an FTP server with a static IP address of 192.168.0.4.
  • Page 82 MBR1400| USER MANUAL Firmware ver. 3.5.0 CRADLEPOINT DHCP Options: Input a custom DHCP option by first clicking ―Add‖. There are close to 200 possible DHCP options available. One of the more common uses is to assign a VoIP phone server using option 66 (Server name).
  • Page 83 MBR1400| USER MANUAL Firmware ver. 3.5.0 CRADLEPOINT Schedule: Set up a schedule for this network interface. This allows an interface to be enabled or disabled during specific hours of a day. For example, use this to limit a Hotspot network to business hours.
  • Page 84  Ethernet Port Configuration  VLAN Interfaces Wireless (WiFi) Network Settings The MBR1400 can broadcast as many as four SSIDs (service set identifiers — the names for WiFi networks). One primary WiFi network is enabled by default, while you may have enabled a second guest network when using the First Time Setup Wizard.
  • Page 85 MBR1400| USER MANUAL Firmware ver. 3.5.0 CRADLEPOINT Wireless Network Editor WiFi Name (SSID): When users browse for available wireless networks, this is the name that they will. This name is referred to as the SSID (service set identifier). For security purposes, CradlePoint highly recommends that you change this from the pre-configured name.
  • Page 86 NOTE: If you don‘t know whether you should choose Personal or Enterprise, assume Personal since you need to know RADIUS authentication for Enterprise. In order to protect your network from hackers and unauthorized users, CradlePoint highly recommends WPA2/AES for security if your attached devices can support it. WEP and WPA/TKIP are obsolete and have been replaced by WPA/AES.
  • Page 87 MBR1400| USER MANUAL Firmware ver. 3.5.0 CRADLEPOINT NOTE: If you select one of the security modes and are unable to connect to the router afterwards, you can use the reset buttons to reset the router to its factory default state and try a different security mode instead.
  • Page 88 Internet for the MBR1400.  Local Network (LAN) is for connecting a computer or similar device directly to the router with an Ethernet cable. Link Speed: Default setting is Auto. The Auto setting is preferred in most cases.
  • Page 89 MBR1400| USER MANUAL Firmware ver. 3.5.0 CRADLEPOINT Ethernet Port Group Editor A Port Group represents a logical grouping of Ethernet ports. Any computers physically connected to ports in a group will be allowed to freely communicate with each other. For example, if you leave all four orange ports set...
  • Page 90 MBR1400| USER MANUAL Firmware ver. 3.5.0 CRADLEPOINT VLAN Interfaces A virtual local area network, or VLAN, functions as any other physical LAN, but it enables computers and other devices to be grouped together even if they are not physically attached to the same network switch.
  • Page 91 LANs under the WiFi Settings heading. WiFi band: Select the range of frequencies the router will use. The MBR1400 can operate in either the 2.4 GHz or the 5.0 GHz ranges. (Default: 2.4 GHz. The included WiFi antennas are 2.4 GHz. 5 GHz antennas are available as an accessory.)
  • Page 92 MBR1400| USER MANUAL Firmware ver. 3.5.0 CRADLEPOINT Channel: (Shows if Random Channel is deselected.) The WiFi channel corresponds to a frequency the router uses to communicate with other devices. For 2.4 GHz, the range is 1 to 11, and 1, 6, and 11 do not overlap each other. If a WiMAX modem is attached, a higher number channel will increase the chance the router's WiFi and modem's WiMAX radios will conflict with each other, which may result in lower throughput.
  • Page 93 MBR1400| USER MANUAL Firmware ver. 3.5.0 CRADLEPOINT TX Power: Normally the wireless transmitter operates at 100% power. In some circumstances, however, there might be a need to isolate specific frequencies to a smaller area. By reducing the power of the radio, you can prevent transmissions from reaching beyond your corporate/home office or designated wireless area.
  • Page 94 MBR1400| USER MANUAL Firmware ver. 3.5.0 CRADLEPOINT Wireless Mode: Select the WiFi clients the router will be compatible with. Greater compatibility is a tradeoff with better performance. For greatest compatibility with all WiFi devices, select "802.11 a/b/g/n". For best performance, connect with only other 802.11n-compatible devices and select "802.11 n."...

  • Page 95: Wipipe Qo

    MBR1400| USER MANUAL Firmware ver. 3.5.0 CRADLEPOINT 6.8 WiPipe QoS When WiPipe QoS (Quality of Service, also known as ―Traffic Shaping‖) is enabled, the router will control the flow of Internet traffic according to the user-defined rules. In other words, Traffic Shaping improves performance by allowing the user to prioritize applications.
  • Page 96 MBR1400| USER MANUAL Firmware ver. 3.5.0 CRADLEPOINT 6.8.1 Traffic Shaping Rules A Traffic Shaping rule identifies a specific message flow and assigns a priority to that flow. Assign rules based on upload/download bandwidth, protocol, port numbers, and/or IP addresses. EXAMPLE: You can restrict the bandwidth of your guest network in order to reserve crucial bandwidth for your primary network. Create a rule associated with the IP address range and appropriate netmask for the quest network.
  • Page 97 MBR1400| USER MANUAL Firmware ver. 3.5.0 CRADLEPOINT Traffic Shaping / QoS Rule Editor The first page of the Traffic Shaping / QoS Rule Editor allows you enable/disable the rule, name the rule, and specify a protocol for the rule. Rule Enabled: (Default: Enabled.) Deselect this to disable this rule.
  • Page 98 MBR1400| USER MANUAL Firmware ver. 3.5.0 CRADLEPOINT Enable Upload QoS: (Default: Enabled.) Deselect if you want your rule to apply to download traffic only. Borrow Spare Bandwidth: (Default: Enabled.) When this is enabled, the interfaces/protocols associated with this rule will borrow unused bandwidth from other rules.
  • Page 99 MBR1400| USER MANUAL Firmware ver. 3.5.0 CRADLEPOINT Enable Download QoS: (Default: Enabled.) Deselect if you want your rule to apply to upload traffic only. Borrow Spare Bandwidth: (Default: Enabled.) When this is enabled, the interfaces/protocols associated with this rule will borrow unused bandwidth from other rules.
  • Page 100 MBR1400| USER MANUAL Firmware ver. 3.5.0 CRADLEPOINT Source Port(s) and/or Destination Port(s): Enter a port number between 1 and 65535. To enter a single port number, input the number into the left box. To enter a range of ports, fill in both boxes separated by the colon.

  • Page 101: Internet

    MBR1400| USER MANUAL Firmware ver. 3.5.0 CRADLEPOINT 7 INTERNET The Internet tab provides access to 5 submenu items for managing a variety of Internet connection options.  Connection Manager  Data Usage  GRE Tunnels  VPN Tunnels  WiFi as WAN / Bridge ©...

  • Page 102: C Onnection M Anager

    MBR1400| USER MANUAL Firmware ver. 3.5.0 CRADLEPOINT 7.1 Connection Manager The router can establish an uplink via the Ethernet WAN port, WiFi as WAN, or modems plugged into a modem port. If the primary WAN connection fails the router will automatically attempt to bring up a new link on another device. This feature is called failover.
  • Page 103 MBR1400| USER MANUAL Firmware ver. 3.5.0 CRADLEPOINT 7.1.2 Device Configuration Clicking on a device reveals the following information:  State (Connected, Available, etc.)  Port  UID (Unique identifier. This could be a name or number/letter combination.)  IP Address ...
  • Page 104 MBR1400| USER MANUAL Firmware ver. 3.5.0 CRADLEPOINT General Settings 7.1.3  Enabled: Select/deselect to enable/disable.  Load Balance: Select to allow this device to be available for the Load Balance pool.  LB default bandwidth: Defines the default bandwidth for use in Load Balance algorithms.
  • Page 105 MBR1400| USER MANUAL Firmware ver. 3.5.0 CRADLEPOINT Failure Check (Advanced) If this is enabled, the router will check that the highest priority active WAN interface can get to the Internet even if the WAN connection is not actively being used. If the interface goes down, the router will switch to the next highest priority interface available.
  • Page 106 MBR1400| USER MANUAL Firmware ver. 3.5.0 CRADLEPOINT Failback Configuration (Advanced) This is used to configure failback, which is the ability to go back to a higher priority WAN interface if it regains connection to its network. Usage: Fail back based on the amount of data passed over time.
  • Page 107 MBR1400| USER MANUAL Firmware ver. 3.5.0 CRADLEPOINT Ethernet Settings 7.1.4 While default settings for each WAN Ethernet port will be sufficient in most circumstances, you have the ability to control:  Connect Method: DHCP (Automatic), Static (Manual), or PPPoE (Point-to-Point Protocol over Ethernet).
  • Page 108 MBR1400| USER MANUAL Firmware ver. 3.5.0 CRADLEPOINT Static (Manual):  IP Address  Subnet Mask  Gateway IP  Primary DNS Server  Secondary DNS Server PPPoE:  Username  Password  Password Confirm  Service  Auth Type: None, PAP, CHAP ©...
  • Page 109 MBR1400| USER MANUAL Firmware ver. 3.5.0 CRADLEPOINT Modem Settings 7.1.5 On Demand: Typically modem connections are not always on. When this mode is selected a connection to the Internet is made as needed. When this mode is not selected a connection to the Internet is always maintained.
  • Page 110 MBR1400| USER MANUAL Firmware ver. 3.5.0 CRADLEPOINT AT+CGDCONT=2,‖IP‖,‖isp.cingular‖ ATCT*99***2# PPP Authentication Protocol: Set this only if your service provider requires a specific protocol and the Auto option chooses the wrong one.  Auto  PAP (Password Authentication Protocol)  CHAP (Challenge Handshake Authentication Protocol) PPP Password: Password for PPP authentication.
  • Page 111 MBR1400| USER MANUAL Firmware ver. 3.5.0 CRADLEPOINT CDMA Settings  Persist Settings:  Active Profile: Select a number from 0-5 from the dropdown list. The following fields can be left blank. If left blank they will remain unchanged in the modem.
  • Page 112 MBR1400| USER MANUAL Firmware ver. 3.5.0 CRADLEPOINT SIM/APN Settings SIM PIN: PIN number for a GSM modem with a locked SIM. Access Point Name (APN): Some wireless carriers provide multiple Access Point Names that a modem can connect to. Some APN examples are ‗isp.cingular‖...
  • Page 113 MBR1400| USER MANUAL Firmware ver. 3.5.0 CRADLEPOINT WiMAX Settings WiMAX Realm: Select from the following dropdown options:  Clear – clearwire-wmx.net  Rover – rover-wmx.net  Sprint 3G/4G – sprintpcs.com  Xohm –xohm.com  BridgeMAXX – bridgeMAXX.com  Time Warner Cable – mobile.rr.com ...
  • Page 114 MBR1400| USER MANUAL Firmware ver. 3.5.0 CRADLEPOINT 7.1.6 Update/Activate a Modem Some 3G modems can be updated and activated while plugged into the router. Updates and activation methods vary by modem model and service provider. Possible methods are: PRL Update, Activation, and FUMO. All supported methods will be displayed when you select your modem and click ―Update/Activate‖.
  • Page 115 MBR1400| USER MANUAL Firmware ver. 3.5.0 CRADLEPOINT Process Timeout: If the process fails an error message will display. Activation has a 3-minute timeout, PRL update has a 4-minute timeout, and FUMO has a 10-minute timeout. 7.1.7 Configuration Rules (Advanced) This section allows you to create general rules that apply to the Internet connections of a particular type.
  • Page 116 MBR1400| USER MANUAL Firmware ver. 3.5.0 CRADLEPOINT WAN Configuration Rule This section allows you to create simple or complex rules that affect how individual Internet sources or classes of sources (perhaps all WiMAX modems or all modems from Sierra Wireless) behave in the router.
  • Page 117 MBR1400| USER MANUAL Firmware ver. 3.5.0 CRADLEPOINT Value: If you chose Port or Type, select from the dropdown list. If you chose Manufacturer, Model, Serial Number, MAC Address, or Unique ID, you will need to manually input the information. The condition will be of the following form: ―...

  • Page 118: Data Usage

    Agreement shown to the right. The purpose of this agreement is to ensure that you understand that the data numbers for the MBR1400 may not perfectly match those of your carrier: CradlePoint cannot be held responsible. You must accept the agreement by clicking Yes in order to begin creating data usage rules.
  • Page 119 MBR1400| USER MANUAL Firmware ver. 3.5.0 CRADLEPOINT 7.2.1 Data Usage Rules The Date Usage Rule display shows basic information for each rule you have created (including rules created with a template). The following information is displayed:  Rule Name  Enabled: True/False ...
  • Page 120 MBR1400| USER MANUAL Firmware ver. 3.5.0 CRADLEPOINT Data Usage Rule – page 2 Cycle Type: How often the rule will reset. The data usage amount will be reset at the end of each cycle. Select the length of a cycle from a dropdown menu with the following choices: ...
  • Page 121 MBR1400| USER MANUAL Firmware ver. 3.5.0 CRADLEPOINT Template Configuration 7.2.2 Templates allow you to control multiple WAN devices with the same rule. Each WAN device that matches a template will automatically have its own rule created. For example, you can set a template rule for all mobile data modems that causes your router to send an alert after 1000 MB of usage in a month.
  • Page 122 MBR1400| USER MANUAL Firmware ver. 3.5.0 CRADLEPOINT Historical Data 7.2.3 Historical Data shows a graph of data usage for each attached WAN source that has an assigned Data Usage Rule. The graph shows the usage trend for one day. Click Add Usage to manually input additional usage for an attached data source.

  • Page 123: Gre T Unnels

    Generic Routing Encapsulation (GRE) tunnels can be used to create a connection between two private networks. The MBR1400 is enabled for either GRE or VPN tunnels. GRE tunnels are simpler to configure and more flexible for different kinds of packet exchanges, but VPN tunnels are much more secure.
  • Page 124 MBR1400| USER MANUAL Firmware ver. 3.5.0 CRADLEPOINT Page 1: General Tunnel Name: Choose a name that is meaningful to you. Local Network: This is the local side of the ―Glue Network,‖ a network created by the administrator to form the tunnel. The user creates the IP address inputted here.
  • Page 125 MBR1400| USER MANUAL Firmware ver. 3.5.0 CRADLEPOINT Keep Alive: This feature monitors the status of a tunnel. This will more accurately determine if the tunnel is alive or not. Choose the length of time in seconds of the Rate for each check (Default: 10 seconds. Range: 2 – 3600 seconds) and the number of Retry attempts (Default: 3.
  • Page 126 MBR1400| USER MANUAL Firmware ver. 3.5.0 CRADLEPOINT 7.3.1 Global GRE Settings GRE will use the primary WAN for connection, which will allow it to failover to other WANs as needed. If GRE needs to be tied to a particular WAN, it can be done by deselecting the box and selecting the appropriate WAN.
  • Page 127 MBR1400| USER MANUAL Firmware ver. 3.5.0 CRADLEPOINT o ExpressPort 2  Manufacturer: Select from a dropdown list of attached devices.  Model: Select from a dropdown list of attached devices.  Type: Select from the dropdown list of possible WAN types.

  • Page 128: Vpn T Unnels

    The MBR1400 uses IPsec (Internet Protocol security) to authenticate and encrypt packets exchanged across the tunnel. To set up a VPN tunnel with the MBR1400 on one end, there must be another device (usually a router) that also supports IPsec on the other end.
  • Page 129 MBR1400| USER MANUAL Firmware ver. 3.5.0 CRADLEPOINT Page 1: General 7.4.1 Tunnel Name: Choose a name meaningful to you. Anonymous: Select to allow remote connections from any IP address. Local Identity: Specifies the identifier sent to the remote host during phase 1 negotiation. If left blank it will default to the IP address of the WAN connection.
  • Page 130 Tunnel Enabled: Enabled or Disabled. MBR1200 Quick Connect: VPN tunnels in the MBR1400 have more choices than they do in the MBR1200, so it is more complex to configure. Check this box to simplify setup by streamlining your options.
  • Page 131 MBR1400| USER MANUAL Firmware ver. 3.5.0 CRADLEPOINT 7.4.3 Page 3: IKE Phase 1 IKE security has two phases, Phase 1 and Phase 2. You have the ability to distinctly configure each phase, but the default settings will be sufficient for most users.
  • Page 132 In Phase 1, only one DH group can be selected while using Aggressive exchange mode. By default, all the algorithms (encryption, hash, and DH groups) supported by the MBR1400 are checked, which means they are allowed for any given exchange. Deselect these options to limit which algorithms will be accepted. Be sure to check that the router (or similar device) at the other end of the tunnel has matching algorithms.
  • Page 133 MBR1400| USER MANUAL Firmware ver. 3.5.0 CRADLEPOINT 7.4.4 Page 4: IKE Phase 2 Perfect Forward Secrecy (PFS): Enabling this feature will require IKE to generate a new set of keys in Phase 2 rather than using the same key generated in Phase 1.
  • Page 134 MBR1400| USER MANUAL Firmware ver. 3.5.0 CRADLEPOINT 7.4.5 Page 5: Dead Peer Detection Dead Peer Detection (DPD) defines how the router will detect when one end of the IPsec session loses connection while a policy is in use. Connection Idle Time allows you to configure how long the router will allow an IPsec session to be idle before beginning to send Dead Peer Detection (DPD) packets to the peer machine.
  • Page 135 MBR1400| USER MANUAL Firmware ver. 3.5.0 CRADLEPOINT Page 6: Tunnel Summary 7.4.6 The final page of the tunnel configuration interface is a summary of the tunnel specifications. This is especially helpful for matching this information with the router (or similar device) at the other end of the tunnel.
  • Page 136 MBR1400| USER MANUAL Firmware ver. 3.5.0 CRADLEPOINT 7.4.7 Global VPN Settings These settings apply to all configured VPN tunnels. Use Primary WAN: (Default: Selected.) Deselect to open options for specifying the WAN type. By default, VPN will use the primary WAN for connection, which will allow it to failover to other WANs as needed. If VPN needs to be tied to a particular WAN, deselect the box and selecting the appropriate WAN.
  • Page 137 MBR1400| USER MANUAL Firmware ver. 3.5.0 CRADLEPOINT o Orange Ethernet 1 o Orange Ethernet 2 o Orange Ethernet 3 o Orange Ethernet 4 o USB 1 o USB 2 o USB 3 o ExpressPort 1 o ExpressPort 2  Manufacturer: Select from a dropdown list of attached devices.
  • Page 138 MBR1400| USER MANUAL Firmware ver. 3.5.0 CRADLEPOINT 7.4.8 VPN with NAT-T If one side of a planned VPN tunnel is behind a NAT (network address translation) firewall, the setup of your tunnel requires the following specifications: 1. Each side of the tunnel must use both a Local Identity and a Remote Identity. These must match the identities on the other side: The Local Identity must match the Remote Identity on the other side of the tunnel, and vice versa.

  • Page 139: Wifi A Wan / Bridge

    WiFi as WAN uses another WiFi network as its Internet source and then rebroadcasts its own local network. For example, the MBR1400 can create a private LAN using the public WiFi from a hotel as its WAN. WiFi Bridge functions similarly, but it rebroadcasts the original network.
  • Page 140 When in WiFi Bridge mode with a configured profile, a WiFi Bridge device will be added to the local network interfaces, providing a way to bridge two LANs over a WiFi connection. For example, two separate CradlePoint routers linked through WiFi Bridge mode allows you to have one WiFi-connected network in two separated sections of a large office building.
  • Page 141 MBR1400| USER MANUAL Firmware ver. 3.5.0 CRADLEPOINT 7.5.2 Saved Profiles This is a list of WiFi networks that have already been configured as WAN sources (or Bridge profiles). The router will attempt to connect to any of these access points using the password you have configured.
  • Page 142 MBR1400| USER MANUAL Firmware ver. 3.5.0 CRADLEPOINT Click ―Refresh‖ if a WiFi network to which you want to connect is invisible. Site Survey only operates on the band—2.4 GHz or 5.0 GHz—that is currently configured in the WiFi advanced settings. In order to connect to networks in a different band, first switch the WiFi settings to that band (Network Settings →...
  • Page 143 MBR1400| USER MANUAL Firmware ver. 3.5.0 CRADLEPOINT 7.5.4 Wireless Scan Settings Scan Interval: How often WiFi as WAN scans the environment for updates. (Default: 60 seconds. Range: 5-3600 seconds.) Scan While Connected: Continue to scan for WiFi as WAN profile updates when connected. Each time a scan occurs the wireless communication of the router will be temporarily interrupted.

  • Page 144: Wan A Ffinity

    MBR1400| USER MANUAL Firmware ver. 3.5.0 CRADLEPOINT 7.6 WAN Affinity WAN Affinity rules allow you to manage traffic in your network so that particular bandwidth uses are associated with particular WAN sources. This allows you to prioritize bandwidth. EXAMPLE: You could specify that your guest LAN is only associated with your Ethernet connection with no failover.
  • Page 145 MBR1400| USER MANUAL Firmware ver. 3.5.0 CRADLEPOINT destination is defined by traffic flow. Leave these blank to include all IP addresses (such as if your rule is defined by a particular port instead). EXAMPLE: If you want to associate this rule with your guest LAN, you could input the IP address and netmask for the guest LAN here (leaving the last slot ―0‖...
  • Page 146 MBR1400| USER MANUAL Firmware ver. 3.5.0 CRADLEPOINT  Model: Select from a dropdown list of attached devices.  Type: Select from the dropdown list of possible WAN types. o WiMAX o Modem o LTE o Ethernet o Wireless As WAN ...

  • Page 147: System Settings

    MBR1400| USER MANUAL Firmware ver. 3.5.0 CRADLEPOINT 8 SYSTEM SETTINGS The System Settings tab has 6 submenu items that provide access to tools for broad administrative control of the MBR1400:  Administration  Device Alerts  Hotspot Services  Managed Services ...

  • Page 148: A Dministration

    MBR1400| USER MANUAL Firmware ver. 3.5.0 CRADLEPOINT 8.1 Administration Select the Administration submenu item in order to control any of the following functions:  Router Security  System Clock  Local Management  Remote Management  GPS  System Logging Router Security 8.1.1...
  • Page 149 MBR1400| USER MANUAL Firmware ver. 3.5.0 CRADLEPOINT System Clock 8.1.2 Enabling NTP will tell the router to get its system time from a remote server on the Internet. If you do not enable NTP then the router time will be based on when the router firmware was built, which is guaranteed to be wrong. Whenever the Internet connection is re-established and once a week thereafter the router will ask the server for the current time so it can correct itself.
  • Page 150 MBR1400| USER MANUAL Firmware ver. 3.5.0 CRADLEPOINT 8.1.3 Local Management Enable Internet Bounce Pages: Bounce pages show up in your web browser when the router is not connected to the Internet. They inform you that you are not connected and try to explain why. If you disable bounce pages then you will just get the usual browser timeout.
  • Page 151 SSH protocol. Use the username "admin" and the standard system password to login.  SSH Server Port: Default: 22.  Allow Remote SSH Access: Only enable this option if instructed by a CradlePoint support agent. Technical Support Access: Only enable this option if instructed by a CradlePoint support agent.
  • Page 152 MBR1400| USER MANUAL Firmware ver. 3.5.0 CRADLEPOINT 8.1.5 If you have an attached device with GPS support, you can enable a graphical view of your router‘s location which will appear in Status → GPS. Users can configure GPS NMEA GGA format sentence reporting, available through a router-based server and/or a remote server.
  • Page 153 MBR1400| USER MANUAL Firmware ver. 3.5.0 CRADLEPOINT o Remote server port o Report only over specific time interval: Restricts the NMEA sentence reporting to a remote server to a specific time interval. The following GPS spec is copied from http://aprs.gids.nl/nmea/ $GPGGA –...
  • Page 154 MBR1400| USER MANUAL Firmware ver. 3.5.0 CRADLEPOINT Checksum Used by program to check for transmission errors Courtesy of Brian McClure, N8PQI. Global Positioning System Fix Data. Time, position, and fix related data for a GPS receiver. eg2. $--GGA,hhmmss.ss,llll.ll,a,yyyyy.yy,a,x,xx,x.x,x.x,M,x.x,M,x.x,xxxx hhmmss.ss = UTC of position llll.ll = latitude of position...
  • Page 155 MBR1400| USER MANUAL Firmware ver. 3.5.0 CRADLEPOINT = GPS quality indicator (0=invalid; 1=GPS fix; 2=Diff. GPS fix) = Number of satellites in use [not those in view] = Horizontal dilution of position = Antenna altitude above/below mean sea level (geoid) 10 = Meters (Antenna height unit) 11 = Geoidal separation (Diff.
  • Page 156 If this occurs, disable this option. Log to attached USB stick: Only enable this option if instructed by a CradlePoint support agent. This will write a very verbose log file to the root level of an attached USB stick. Please disable the feature before removing the USB stick, or you may lose some logging data.

  • Page 157: Device Alert

    SMTP Mail Server 8.2.1 Since the MBR1400 does not have its own email server, to receive alerts you must enable an SMTP server. This is possible through most email services (Gmail, Yahoo, etc.) Each SMTP server will have different specifications for setup, so you have to look those up separately. The following is an example using Gmail: ©...
  • Page 158 MBR1400| USER MANUAL Firmware ver. 3.5.0 CRADLEPOINT  Server Address: smtp.gmail.com  Server Port: 587 (for TLS, or Transport Layer Security port; the MBR1400 does not support SSL).  Authentication Required: Gmail, mark this checkbox.  User Name: Your full email address ...

  • Page 159: Hotspot Services

    Any of your networks can be enabled as a hotspot. To enable a hotspot, you need to select a network and set it as a hotspot in Network Settings → WiFi / Local Networks. NOTE: Although any network can be a hotspot, the MBR1400 allows only one hotspot. Hotspot Mode: Choose from the following dropdown options: ...
  • Page 160 MBR1400| USER MANUAL Firmware ver. 3.5.0 CRADLEPOINT © 2012 CRADLEPOINT, INC. PLEASE VISIT HTTP://KNOWLEDGEBASE.CRADLEPOINT.COM/ FOR MORE HELP AND RESOURCES PAGE 158...
  • Page 161 MBR1400| USER MANUAL Firmware ver. 3.5.0 CRADLEPOINT 8.3.1 Simple Mode Settings Display: This section allows you to choose if a "Terms of Use" page will be given to the user connecting to the hotspot.  Internal Terms of Use. Fill in your own terms of use.
  • Page 162 MBR1400| USER MANUAL Firmware ver. 3.5.0 CRADLEPOINT  Server Address 1: Assigned by RADIUS service.  Server Address 2: This is an optional backup server.  Authentication Port: The standard port number, 1812, will usually be sufficient.  Accounting Port: The standard port number, 1813, will usually be sufficient.
  • Page 163 MBR1400| USER MANUAL Firmware ver. 3.5.0 CRADLEPOINT UAM Settings:  Login URL: Assigned by UAM service.  Shared Secret: Optional, depending on the UAM service.  NAS/Gateway ID: Assigned by UAM service. Allowed Hosts Prior to Authentication 8.3.3 Adding host names to this list will allow access from your network to any external domain or website prior to being authenticated.

  • Page 164: Managed Services Ask Your Cradlepoint Sales Representative For Details

    WiPipe Central client will not start unless the WAN is Ethernet. Registration URL: Register your router using the code provided by CradlePoint when you purchase WiPipe Central. 8.4.1 SNMP Configuration SNMP, or Simple Network Management Protocol, is an Internet standard protocol for remote management.
  • Page 165 MBR1400| USER MANUAL Firmware ver. 3.5.0 CRADLEPOINT LAN port #: Use the LAN port # field to configure the LAN port number you wish to access SNMP services on. (Default: 161) Enable SNMP on WAN: Enabling SNMP on WAN will make SNMP services available to the WAN interfaces of the router.
  • Page 166 MBR1400| USER MANUAL Firmware ver. 3.5.0 CRADLEPOINT  MD5 with DES encryption  SHA with DES encryption  MD5 with AES encryption  SHA with AES encryption Username: Enter the Username configured on your SNMP host in the username field.

  • Page 167: Serial Redirector

    MBR1400| USER MANUAL Firmware ver. 3.5.0 CRADLEPOINT 8.5 Serial Redirector Attach a USB serial device to establish a serial link to a host port on the router. The serial console support allows a USB-to-serial connection to another router or similar device.
  • Page 168 MBR1400| USER MANUAL Firmware ver. 3.5.0 CRADLEPOINT  600  1200  1800  2400  4800  9600  19200 Byte Size: The number of bits in a byte. Select from: 5, 6, 7, and 8. Parity: Change this value to enable parity bit checking. Select from the following dropdown options: ...

  • Page 169: System Control

    MBR1400| USER MANUAL Firmware ver. 3.5.0 CRADLEPOINT 8.6 System Control Restore to Factory Defaults: This changes all settings back to their default values. Reboot The Device: This causes the router to restart. Advanced: System Automatic Reboot and Ping Test Scheduled Reboot: This causes the router to restart at a user-determined time.

  • Page 170: System Software

    MBR1400| USER MANUAL Firmware ver. 3.5.0 CRADLEPOINT 8.7 System Software Firmware Upgrade allows the administrator to load new firmware onto the router to add new features or fix defects. If you are happy with the operation of the router, you may not want to upgrade just because a new version is available.

  • Page 171: Glossary

    MBR1400| USER MANUAL Firmware ver. 3.5.0 CRADLEPOINT 9 GLOSSARY 802.11 Alphanumeric A family of specifications for wireless local area networks Characters A-Z and 0-9. (WLANs) developed by a working group of the Institute of Antenna Electrical and Electronics Engineers (IEEE).
  • Page 172 MBR1400| USER MANUAL Firmware ver. 3.5.0 CRADLEPOINT Authentication Bit rate To provide credentials, like a Password, in order to verify The amount of bits that pass in given amount of time. that the person or device is really who they are claiming Bit/sec to be.
  • Page 173 MBR1400| USER MANUAL Firmware ver. 3.5.0 CRADLEPOINT CardBus Data-Link layer A newer version of the PC Card or PCMCIA interface. It The second layer of the OSI model. Controls the supports a 32- bit data path, DMA, and consumes less movement of data on the physical link of a network.
  • Page 174 MBR1400| USER MANUAL Firmware ver. 3.5.0 CRADLEPOINT Demilitarized zone Download DMZ: A single computer or group of computers that can To send a request from one computer to another and be accessed by both users on the Internet as well as have the file transmitted back to the requesting computer.
  • Page 175 MBR1400| USER MANUAL Firmware ver. 3.5.0 CRADLEPOINT Encryption Fragmentation Converting data into cyphertext so that it cannot be easily Breaking up data into smaller pieces to make it easier to read. store. Ethernet The most widely used technology for Local Area File Transfer Protocol.
  • Page 176 MBR1400| USER MANUAL Firmware ver. 3.5.0 CRADLEPOINT Half-duplex IEEE Data cannot be transmitted and received at the same Institute of Electrical and Electronics Engineers. time. IGMP Hashing Internet Group Management Protocol is used to make Transforming a string of characters into a shorter string sure that computers can report their multicast group with a predefined length.
  • Page 177 MBR1400| USER MANUAL Firmware ver. 3.5.0 CRADLEPOINT Internet Protocol Security Java IPsec provides security at the packet processing layer of A programming language used to create programs and network communication. applets for web pages. Internet Service Provider Kbps An ISP provides access to the Internet to individuals or Kilobits per second.
  • Page 178 MBR1400| USER MANUAL Firmware ver. 3.5.0 CRADLEPOINT LPR/LPD MPPE ―Line Printer Requestor‖/‖Line Printer Daemon‖. A Microsoft Point-to-Point Encryption is used to secure data TCP/IP protocol for transmitting streams of printer data. transmissions over PPTP connections. MAC Address A unique hardware ID assigned to every Ethernet Maximum Transmission Unit is the largest packet that adapter by the manufacturer.
  • Page 179 MBR1400| USER MANUAL Firmware ver. 3.5.0 CRADLEPOINT Network Interface Card routers in the network as opposed to sending the entire routing table at a regular interval, which is how RIP NIC. A card installed in a computer or built onto the functions.
  • Page 180 MBR1400| USER MANUAL Firmware ver. 3.5.0 CRADLEPOINT channel) but can have multiple ports (logical channels) Rendezvous each identified by a number. Apple‘s version of UPnP, which allows for devices on a network to discover each other and be connected without the need to configure any settings.
  • Page 181 MBR1400| USER MANUAL Firmware ver. 3.5.0 CRADLEPOINT Session key An encryption and decryption key that is generated for Secure Shell is a command line interface that allows for every communication session between two computers. secure connections to remote computers. Session layer...
  • Page 182 MBR1400| USER MANUAL Firmware ver. 3.5.0 CRADLEPOINT TFTP Upload Trivial File Transfer Protocol is a utility used for To send a request from one computer to another and transferring files that is simpler to use than FTP but with have a file transmitted from the requesting computer to less features.
  • Page 183 MBR1400| USER MANUAL Firmware ver. 3.5.0 CRADLEPOINT Wake on LAN WiFi Protected Access Allows you to power up a computer through it‘s Network An updated version of security for wireless networks that Interface Card. provides authentication as well as encryption.
  • Page 184 MBR1400| USER MANUAL Firmware ver. 3.5.0 CRADLEPOINT Yagi antenna A directional antenna used to concentrate wireless signals on a specific location. © 2012 CRADLEPOINT, INC. PLEASE VISIT HTTP://KNOWLEDGEBASE.CRADLEPOINT.COM/ FOR MORE HELP AND RESOURCES PAGE 182...

  • Page 185: Appendix

    If the purchaser wishes to upgrade or convert to another CradlePoint, Inc. product within the thirty (30) day period, purchaser may return the product and apply the full purchase price toward the purchase of the other product. Any other return will be subject to CradlePoint, Inc.‘s existing return policy.

  • Page 186: Specifications

    MBR1400| USER MANUAL Firmware ver. 3.5.0 CRADLEPOINT 10.3 Specifications MODEL NAME DETAILS MBR1400 Mission-Critical Broadband Router  2.412 to 2.484 GHz WiFi Frequency Band WAN / INTERNET Operation  Compliant with IEEE 802.3 and 3u Standards 3G/4G via five modem ports (3 USB 2.0, 2 ExpressCard);...
  • Page 187 MBR1400| USER MANUAL Firmware ver. 3.5.0 CRADLEPOINT  Keying - automatic using IKE 1.0 or manual  Authentication Method: Pre-Shared Key © 2012 CRADLEPOINT, INC. PLEASE VISIT HTTP://KNOWLEDGEBASE.CRADLEPOINT.COM/ FOR MORE HELP AND RESOURCES PAGE 185...
  • Page 188 MBR1400| USER MANUAL Firmware ver. 3.5.0 CRADLEPOINT http://www.cradlepoint.com/ Copyright © 2012 by CradlePoint, Inc. All rights reserved. © 2012 CRADLEPOINT, INC. PLEASE VISIT HTTP://KNOWLEDGEBASE.CRADLEPOINT.COM/ FOR MORE HELP AND RESOURCES PAGE 186...
