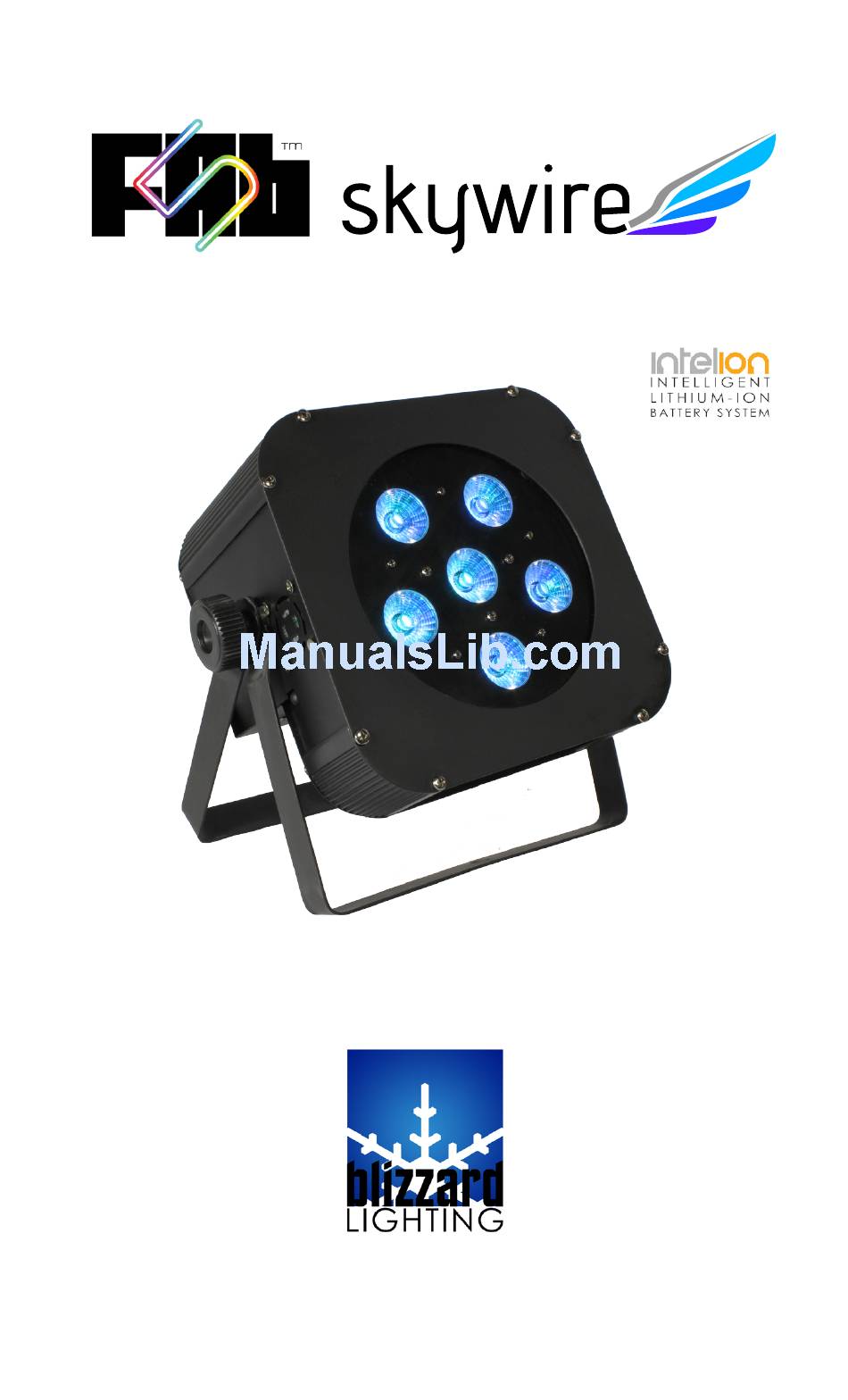

Page 1: The Puck™ Fab5 Skywire Led Par Can
PUCK Blizzard Lighting, LLC www.blizzardlighting.com Waukesha, WI USA Copyright (c) 2013... -
Page 2: Table Of Contents
Additional Operating Help Troubleshooting 5. Appendix A Quick DMX Lesson Keeping The Puck™ Fab5 Skywire Fixture As Good As New Returns (Gasp!) Shipping Issues Tech Specs Page 2 The Puck™ Fab5 Skywire Manual Rev. A Copyright (c) 2013 Blizzard Lighting, LLC... -
Page 3: Getting Started
Blizzard Lighting™ assumes no responsibility or liability for any errors or omissions that may appear in this user manual. Blizzard Lighting™ reserves the right to update the existing document or to create a new document to correct any errors or omissions at any time. You can download the latest version of this document from www.blizzardlighting.com. -
Page 4: Safety Instructions (Don't Stick Your Hand In The Toaster!)
Under extreme temperature conditions damage may occur. Elevated tempera- tures in general shorten the life of your battery pack. Page 4 The Puck™ Fab5 Skywire Manual Rev. A Copyright (c) 2013 Blizzard Lighting, LLC... -
Page 5: Meet The Puck™ Fab5 Skywire Led Fixture
Snap Speed (0-15 off, 16-255 Snap Slow <--> Fast) Color Fade Fade Speed (0-15 off, 16-255 Snap Slow <--> Fast) Sound Active (0-127 off, 128-255 Sound Active) Page 5 The Puck™ Fab5 Skywire Manual Rev. A Copyright (c) 2013 Blizzard Lighting, LLC... - Page 6 118-120 121-255 Chase (Slow <--> Fast) DMX Quick Reference (5-Channel Mode) Channel What It Does Red Intensity Green Intensity Blue Intensity Amber Intensity White Intensity Page 6 The Puck™ Fab5 Skywire Manual Rev. A Copyright (c) 2013 Blizzard Lighting, LLC...
-
Page 7: The Puck ™ Fab5 Skywire Pin-Up Picture
DMX Output Jack AC Power Antenna In/Out Wireless Channel Selector 5A Fuse Button LED Menu Main Power Display On/Off Menu Buttons Battery Power (Fuel) Gauge + Button Wireless DMX On/Off Page 7 The Puck™ Fab5 Skywire Manual Rev. A Copyright (c) 2013 Blizzard Lighting, LLC... -
Page 8: Setup
(such as the Kontrol 5 Skywire™) to act as a transmitter for your lights. The 7-color coded frequencies of the Puck™ Fab 5 Skywire™ match up perfectly with all Blizzard wireless DMX products. If you’re using a Blizzard Lighting controller with built-in wireless DMX transmission, please refer to the instruction manual of that controller for more information. -
Page 9: Using The Intelion™ Battery System
Display color/fade/chase/strobe, and environmental factors including ambient temperature will all impact battery life. Depending on program, battery life may range from 3-20 hours. Page 9 The Puck™ Fab5 Skywire Manual Rev. A Copyright (c) 2013 Blizzard Lighting, LLC... -
Page 10: Operating Adjustments
Red/Green/Blue intensity between 0 and 255, then hit <ENTER> to confirm each color choice. CoL 15. 4.) Select Color preset mode as instructed above, then select then <ENTER> to confirm. Page 10 The Puck™ Fab5 Skywire Manual Rev. A Copyright (c) 2013 Blizzard Lighting, LLC... -
Page 11: Fixture Running Hour Display
= “CO 1 - CO31,” Color Preset X. NANu = “MANU,” Manual Color / White Point Adjustment Mode. = “RED," Adjust Red Intensity from 0 to 255. GrEE = “GREE,” Adjust Green Intensity from 0 to 255. bLuE = “BLUE,” Adjust Blue Intensity from 0 to 255. ANbE = “AMBE,” Adjust Amber Intensity from 0 to 255. UhIt = “WHIT,” Adjust White Intensity from 0 to 255. FhrS = “FHRS,” Displays Fixture Running Hours tESt = “TEST," Test Mode. Page 11 The Puck™ Fab5 Skywire Manual Rev. A Copyright (c) 2013 Blizzard Lighting, LLC... -
Page 12: Troubleshooting
Responding Er- Install a Terminator. ratically Check all cables for defects. Reset fixture(s). If your problem isn’t listed, or if problems persist, please contact support: support@blizzardlighting.com. Page 12 The Puck™ Fab5 Skywire Manual Rev. A Copyright (c) 2013 Blizzard Lighting, LLC... -
Page 13: Appendix
In summary, since its design and evolution in the 1980’s DMX has become the standard for lighting control. It is flexible, robust, and scalable, and its ability to control everything from dimmer packs to moving lights to foggers to lasers makes it an indispensable tool for any lighting designer or lighting performer. Page 13 The Puck™ Fab5 Skywire Manual Rev. A Copyright (c) 2013 Blizzard Lighting, LLC... -
Page 14: Keeping The Puck™ Fab5 Skywire Fixture As Good As New
Damage incurred in shipping is the responsibility of the shipper, and must be reported to the carrier immediately upon receipt of the items. Claims must be made within seven (7) days of receipt. Page 14 The Puck™ Fab5 Skywire Manual Rev. A Copyright (c) 2013 Blizzard Lighting, LLC... -
Page 15: Tech Specs
-94dBm Other Information When people yawn, do deaf people think they’re screaming? 2-year limited warranty, does not cover malfunction Warranty caused by damage to LED’s. Page 15 The Puck™ Fab5 Skywire Manual Rev. A Copyright (c) 2013 Blizzard Lighting, LLC... - Page 16 Enjoy your product! Our sincerest thanks for your purchase! --The team @ Blizzard Lighting...
