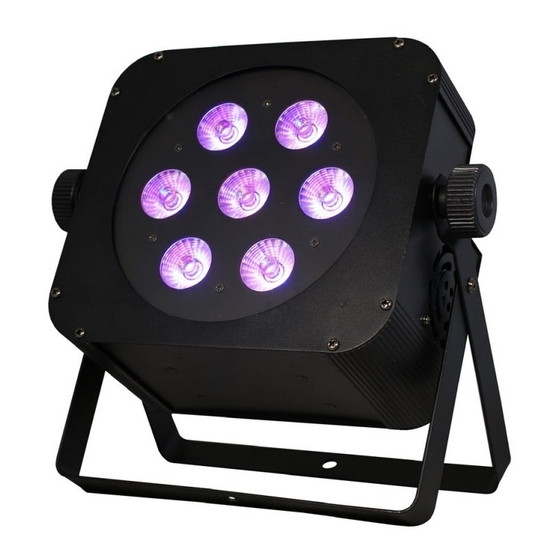

  • Page 1: The Puck™ Fab5 Led Par Can

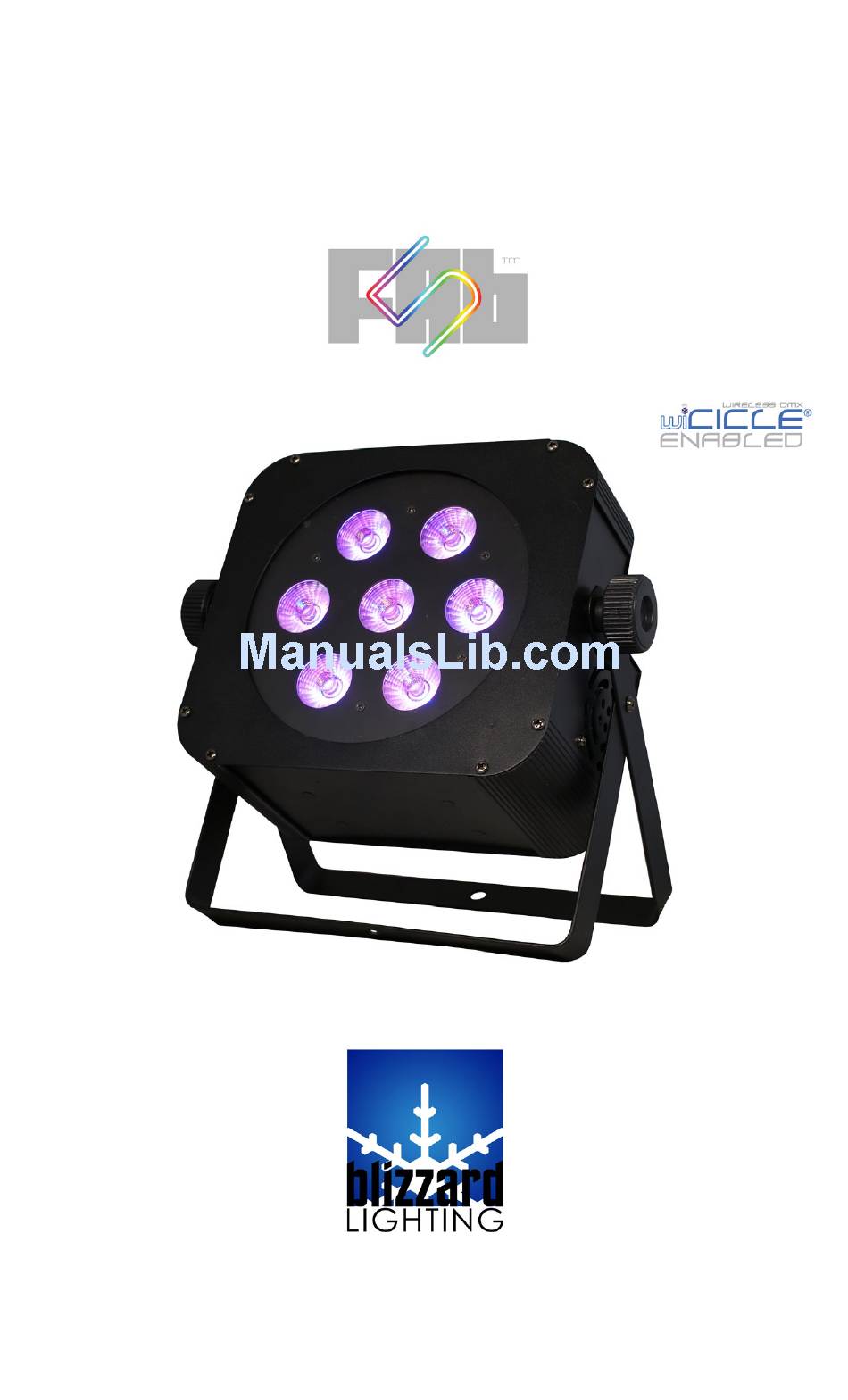

    PUCK Blizzard Lighting, LLC www.blizzardlighting.com Waukesha, WI USA Copyright (c) 2012...

  • Page 2: Table Of Contents

    Additional Operating Help Troubleshooting 5. Appendix A Quick DMX Lesson Keeping The Puck™ Fab5 LED PAR Can As Good As New Returns (Gasp!) Shipping Issues Tech Specs Page 2 The Puck™ Fab5 User Manual Rev. A Copyright (c) 2012 Blizzard Lighting, LLC...

  • Page 3: Getting Started

    If something is wrong, just give us a call or send an email. We’ll be happy to help, honest. Blizzard Lighting W220 N1531 Jericho Ct. Suite E, Waukesha, WI 53186 USA support@blizzardlighting.com www.blizzardlighting.com 1.866.493.6025 Page 3 The Puck™ Fab5 User Manual Rev. A Copyright (c) 2012 Blizzard Lighting, LLC...

  • Page 4: Safety Instructions (Don't Stick Your Hand In The Toaster!)

    • Avoid direct eye exposure to the light source while it is on. Caution! There are no user serviceable parts inside the unit. Do not open the housing or attempt any repairs yourself. In the unlikely event your unit may require service, please contact Blizzard Lighting at sup- port@blizzardlighting.com. Page 4 The Puck™ Fab5 User Manual Rev. A...

  • Page 5: Meet The Puck™ Fab5 Led Par Can

    Snap Speed (0-15 off, 16-255 Snap Slow <--> Fast) Color Fade Fade Speed (0-15 off, 16-255 Snap Slow <--> Fast) Sound Active (0-127 off, 128-255 Sound Active) Page 5 The Puck™ Fab5 User Manual Rev. A Copyright (c) 2012 Blizzard Lighting, LLC...
  • Page 6 118-120 121-255 Chase (Slow <--> Fast) DMX Quick Reference (5-Channel Mode) Channel What It Does Red Intensity Green Intensity Blue Intensity Amber Intensity White Intensity Page 6 The Puck™ Fab5 User Manual Rev. A Copyright (c) 2012 Blizzard Lighting, LLC...

  • Page 7: The Puck ™ Fab5 Pin-Up Picture

    5-in-1 RGBWA- Ridiculously Color LED’s thin! Dual Mounting Yokes Figure 2: The Rear Connections DMX Out DMX In LED Control Panel AC Power In/Out Microphone Page 7 The Puck™ Fab5 User Manual Rev. A Copyright (c) 2012 Blizzard Lighting, LLC...

  • Page 8: Setup

    RESPONSIBLE FOR ANY DAMAGE FROM SUCH OPERATION. • Fixtures bearing the above logo MUST only use cable and connectors which separate chassis/case ground from cable shielding. Cabling with the shield connected to the connec- tor’s case/chassis may cause malfunction and damage to the wiCICLE® or fixture. • wiCICLE® transmitters have additional power requirements and therefore cannot be powered directly from the fixture. You will need to utilize the supplied AC/DC adaptor to drive wiCICLE® transmitters in your system. Page 8 The Puck™ Fab5 User Manual Rev. A Copyright (c) 2012 Blizzard Lighting, LLC...
  • Page 9 NOTE: The color of the LED DURING operation does not indicate channel group, instead it indicates whether the unit is transmitting or receiving. That’s It! Page 9 The Puck™ Fab5 User Manual Rev. A Copyright (c) 2012 Blizzard Lighting, LLC...

  • Page 10: Operating Adjustments

    Red/Green/Blue intensity between 0 and 255, then hit <EnTER> to confirm each color choice. CoL 15. 4.) Select Color preset mode as instructed above, then select then <EnTER> to confirm. Page 10 The Puck™ Fab5 User Manual Rev. A Copyright (c) 2012 Blizzard Lighting, LLC...

  • Page 11: Fixture Running Hour Display

    = “AMBE,” Adjust Amber Intensity from 0 to 255. UhIt = “WHIT,” Adjust White Intensity from 0 to 255. FhrS = “FHRS,” Displays Fixture Running Hours tESt = “TEST," Test Mode. Page 11 The Puck™ Fab5 User Manual Rev. A Copyright (c) 2012 Blizzard Lighting, LLC...

  • Page 12: Troubleshooting

    Responding Er- Install a Terminator. raticly Check all cables for defects. Reset fixture(s). If your problem isn’t listed, or if problems persist, please contact support: support@blizzardlighting.com. Page 12 The Puck™ Fab5 User Manual Rev. A Copyright (c) 2012 Blizzard Lighting, LLC...

  • Page 13: Appendix

    In summary, since its design and evolution in the 1980’s DMX has become the standard for lighting control. It is flexible, robust, and scalable, and its ability to control everything from dimmer packs to moving lights to foggers to lasers makes it an indispensible tool for any lighting designer or lighting performer. Page 13 The Puck™ Fab5 User Manual Rev. A Copyright (c) 2012 Blizzard Lighting, LLC...

  • Page 14: Keeping The Puck™ Fab5 Led Par Can As Good As New

    Damage incurred in shipping is the responsibility of the shipper, and must be reported to the carrier immediately upon receipt of the items. Claims must be made within seven (7) days of receipt. Page 14 The Puck™ Fab5 User Manual Rev. A Copyright (c) 2012 Blizzard Lighting, LLC...

  • Page 15: Tech Specs

    Standalone Color Mixing Other Information There’s 5 syllables in the word “monosyllabic”. 2-year limited warranty, does not cover malfunction Warranty caused by damage to LED’s. Page 15 The Puck™ Fab5 User Manual Rev. A Copyright (c) 2012 Blizzard Lighting, LLC...
