Summary of Contents for StarTech.com SV231DDVDUA

Page 1 DE: Bedienungsanleitung - de.startech.com FR: Guide de l'utilisateur - fr.startech.com ES: Guía del usuario - es.startech.com IT: Guida per l'uso - it.startech.com NL: Gebruiksaanwijzing - nl.startech.com PT: Guia do usuário - pt.startech.com For the most up-to-date information, please visit: www.startech.com Manual Revision: 05/01/2014...
Page 2: Fcc Compliance Statement
StarTech.com. Where they occur these references are for illustrative purposes only and do not represent an endorsement of a product or service by StarTech.com, or an endorsement of the product(s) to which this manual applies by the third-party company in question. Regardless of any direct acknowledgement elsewhere in the body of this document, StarTech.com hereby...
Page 3: Table Of Contents
Table of Contents Introduction ....................1 Packaging Contents ..........................1 System Requirements ..........................1 Installation ....................2 Hardware Installation ..........................2 Driver Installation ............................3 Operation ....................4 Front Panel ..............................4 Rear Panel (SV431DDVDUA only) ......................5 HotKey Control ..................6 Alternative Hotkey Commands ......................8 Change Leading Hotkey .........................

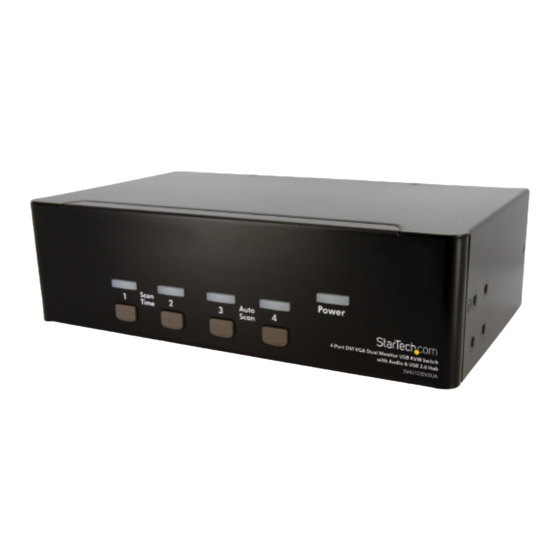

Page 4 Front View (SV431DDVDUA shown) Port Selection Port Selection/ Button Link LED Power Button Rear View (SV431DDVDUA shown) Console DVI/VGA connector (output) connectors Function Button DC Power connector 3.5mm Audio USB Hub Speaker/MIC connectors USB keyboard/ mouse connectors Instruction Manual...
Page 5: Introduction
Introduction The SV231DDVDUA 2-port or SV431DDVDUA 4-port Dual Monitor KVM Switch (DVI+VGA) offers a complete multimedia switching solution, letting users control two Dual Display computers using a single USB mouse and keyboard peripheral set. With support for high-resolution video interfaces, this dual view KVM switch provides one VGA (analog) and one DVI-I port per computer connection, as well as audio switching capability between connected computers.
Page 6: Installation
2. Use a male-to-male DVI and/or VGA video cable to connect the DVI/VGA connector(s) on the computer’s video card, to one of the KVM’s PC ports (ie. PC1). A dedicated video, USB and audio 4-in-1 KVM cable can be used (ie. StarTech.com ID: USBDVI4N1A6 (DVI) or USBVGA4N1A6 (VGA)).
Page 7: Driver Installation
OPTIONAL: Connect any other USB peripherals you wish to share between the connected computers/devices to the extra USB Hub ports on the Console side. 5. Connect the external power adapter from a wall outlet to the power connector on the rear panel of the KVM switch. The Power LED should light up solid and/or the LED for the selected PC port.
Page 8: Operation
Operation Front Panel Port Selection/Link LED The LED turns green when the connected computer is powered-on. The corresponding LED will also illuminate red when that PC port is currently selected. Port Selection Button 2 Port: Pressing the front panel “Select” button toggles between the PC ports on the KVM switch.
Page 9: Rear Panel (Sv431Ddvdua Only)
Rear Panel (SV431DDVDUA only) To adjust the video signal strength/equalization settings for the length or quality of DVI cable being used, the “FUNC” button combined with the front panel push buttons can be used. 1. Press “FUNC” button three times, and the LED for “POWER” will start to flash once per second.
Page 10: Hotkey Control
HotKey Control A Hotkey command is a short keyboard sequence for selecting a computer, activating computer scan, etc. A hotkey sequence starts with two left <CTRL> keystrokes (successively within 0.2 seconds) followed by one or two more keystrokes. A high- pitch beep will be generated for each correct hotkey command;...
Page 11 Scan Time Four options are available for users to set the Scan Time duration, it Includes 3, 8, 15 and 30 seconds. Note: Scan Time is set to 3 seconds by default. To adjust Scan Rate, set the scan time of duration before switching to the next computer: Left <CTRL>...
Page 12: Alternative Hotkey Commands
Alternative Hotkey Commands In addition to the Left <CTRL> + Left <CTRL> hotkeys, there are two alternative hotkey sequences available. 1. For the following operations, users may press <ScrollLock> twice instead of pressing left <CTRL> twice. To select a computer: <ScrollLock>...
Page 13: Change Leading Hotkey
Change Leading Hotkey The default leading hotkey sequence involves pressing the left <CTRL> twice in succession (e.g. left <CTRL> + left <CTRL>). This can be changed to the right <CTRL> key instead, to avoid accidental activation due to using the left <CTRL> key for functions such as Copy/Paste.
Page 14: Specifications
Specifications SV231DDVDUA SV431DDVDUA Number of Ports 1 x DVI-I female 1 x DE-15 VGA female Computer Connectors (per port) 1 x USB type B 2 x 3.5mm mini-jack 1 x DVI-I female 1 x DE-15 VGA female Console Connectors 4 x USB type A 2 x 3.5mm mini-jack...
Page 15: Technical Support
Limitation of Liability In no event shall the liability of StarTech.com Ltd. and StarTech.com USA LLP (or their officers, directors, employees or agents) for any damages (whether direct or indirect, special, punitive, incidental, consequential, or otherwise), loss of profits, loss of business, or any pecuniary loss, arising out of or related to the use of the product exceed the actual price paid for the product.
Page 16 StarTech.com is an ISO 9001 Registered manufacturer of connectivity and technology parts. StarTech.com was founded in 1985 and has operations in the United States, Canada, the United Kingdom and Taiwan servicing a worldwide market.
