2 or 4 Port DVI VGA Dual Monitor USB
KVM Switch w/ Audio & USB 2.0 Hub
SV231DDUSB
SV431DDUSB
DE: Bedienungsanleitung - de.startech.com
FR: Guide de l'utilisateur - fr.startech.com
ES: Guía del usuario - es.startech.com
IT: Guida per l'uso - it.startech.com
NL: Gebruiksaanwijzing - nl.startech.com
PT: Guia do usuário - pt.startech.com
For the most up-to-date information, please visit: www.startech.com
Manual Revision: 04/25/2014

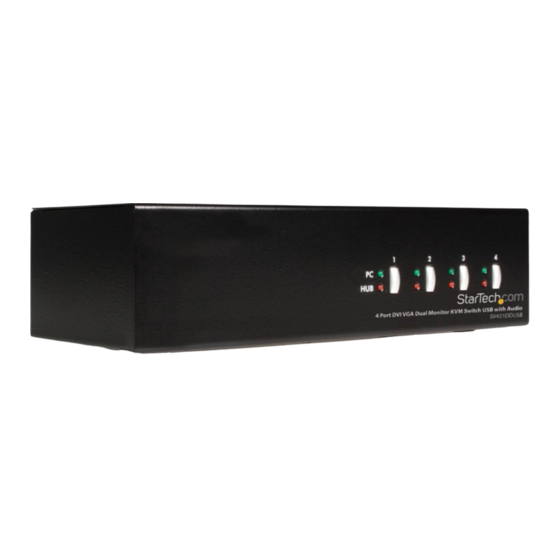

*SV431DDUSB Shown
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for StarTech.com SV231DDUSB
Summary of Contents for StarTech.com SV231DDUSB
- Page 1 DE: Bedienungsanleitung - de.startech.com FR: Guide de l'utilisateur - fr.startech.com ES: Guía del usuario - es.startech.com IT: Guida per l'uso - it.startech.com NL: Gebruiksaanwijzing - nl.startech.com PT: Guia do usuário - pt.startech.com For the most up-to-date information, please visit: www.startech.com Manual Revision: 04/25/2014...
-
Page 2: Fcc Compliance Statement
StarTech.com. Where they occur these references are for illustrative purposes only and do not represent an endorsement of a product or service by StarTech.com, or an endorsement of the product(s) to which this manual applies by the third-party company in question. Regardless of any direct acknowledgement elsewhere in the body of this document, StarTech.com hereby... -
Page 3: Table Of Contents
Table of Contents Introduction ....................1 Packaging Contents ..........................1 System Requirements ..........................1 Installation ....................3 Hardware Installation ..........................3 Driver Installation ............................3 Operation ....................4 Hotkey Reference Chart ................5 Specifications ..................7 Technical Support ..................8 Warranty Information ................8 Instruction Manual... -
Page 4: Introduction
DVI-D cables across all PC to KVM and KVM to Console connections. If necessary, please contact our technical support team for assistance identifying your source. The 2-port DVI+VGA dual monitor KVM switch is backed by a StarTech.com 2-year warranty and free lifetime technical support. Packaging Contents •... - Page 5 SV431DDUSB Front Port Selection Button *SV431DDUSB Shown USB Hub Computer Selection Selection SV431DDUSB Back Console VGA Port Computer Connectors Console DVI Port USB Hub ports Power *SV431DDUSB Shown Console USB Keyboard/ Mouse ports Console Speaker/MIC ports Instruction Manual...
-
Page 6: Installation
NOTE: DVI + USB + Audio KVM combo cables are also available which can be used in place of separate individual cables (e.g. StarTech.com ID: DVI4N1USB6). 7. Repeat the previous two steps for each PC port on the KVM switch, or each computer you wish to use on the KVM switch. -
Page 7: Operation
<H>, which will be followed by two beeps indicating readiness for selection of a new preceding sequence, or press and hold down the last front-panel button (Button 2 on SV231DDUSB, Button 4 on SV431DDUSB) until you hear two beeps, then release the button. -
Page 8: Hotkey Reference Chart
Hotkey Reference Chart Command Hotkey Sequence Description <ScrLk>+<ScrLk>+<x> Selects which port has Select Active access to the keyboard/ (<x> = Port Number: 1, 2, Computer mouse/monitor. etc.) Selects which port’s <ScrLk>+<ScrLk>+<Fy> Select Audio/Mic speaker and microphone (<Fy> = Function key: output output is active at the F5=Port 1, F6=Port 2, etc.) - Page 9 Automatically cycle Auto-scan <ScrLk>+<ScrLk>+<S> through active ports in sequence every 10 seconds. <ScrLk>+<ScrLk>+<S>+<z> Auto-scan with Auto-scan with a custom (<z>= 0~9: where 1=10sec, programmable set delay time. 2=20sec…9=90sec, delay 0=100sec) Terminate Auto-scan Stop Auto-scan Press any key on keyboard activity. Instruction Manual...
-
Page 10: Specifications
Specifications SV231DDUSB SV431DDUSB Number of Ports 1 x 29-pin DVI-I female 1 x DE-15 VGA female Console Connectors 4 x USB type A female 2 x 3.5mm Audio Mini-Jack female 1 x 29-pin DVI-I female 2 x DE-15 VGA female... -
Page 11: Technical Support
Limitation of Liability In no event shall the liability of StarTech.com Ltd. and StarTech.com USA LLP (or their officers, directors, employees or agents) for any damages (whether direct or indirect, special, punitive, incidental, consequential, or otherwise), loss of profits, loss of business, or any pecuniary loss, arising out of or related to the use of the product exceed the actual price paid for the product. - Page 12 StarTech.com is an ISO 9001 Registered manufacturer of connectivity and technology parts. StarTech.com was founded in 1985 and has operations in the United States, Canada, the United Kingdom and Taiwan servicing a worldwide market.
