J1

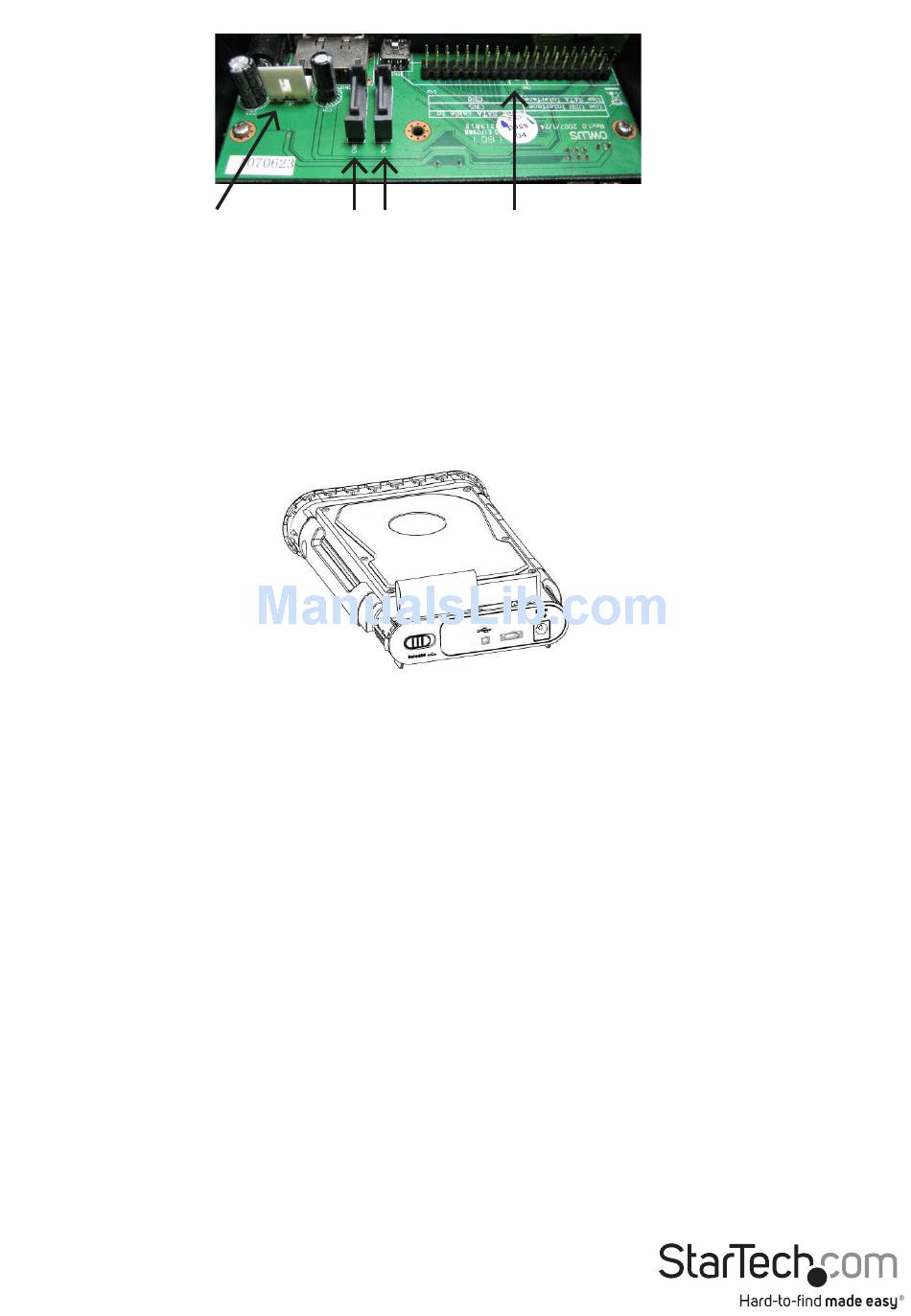

5. IDE HDD: Only the USB 2.0 interface is available for connecting an IDE hard drive to
the host computer. Plug the 40-pin IDE data cable into the port labelled CN1 on the
enclosure's PCB board. Plug the included 4-pin SP4 to LP4 power adapter cable into
the J1 connector.
6. To mount the hard drive, place it into the holding tray and press the tabs on either
side down to secure the drive in the enclosure.
7. Slide the hard drive holding mechanism into the external casing, ensuring that the
release button on the rear panel returns to its original, locked position.

Driver Installation

Windows® 2000/XP/Vista/7, Mac OS® 9.x/10.x, Linux Kernel® 2.4.x +
No driver installation is required for these operating systems, as this enclosure is
natively supported, so the drivers are already installed.
Instruction Manual
CN6
CN5
4
CN1
