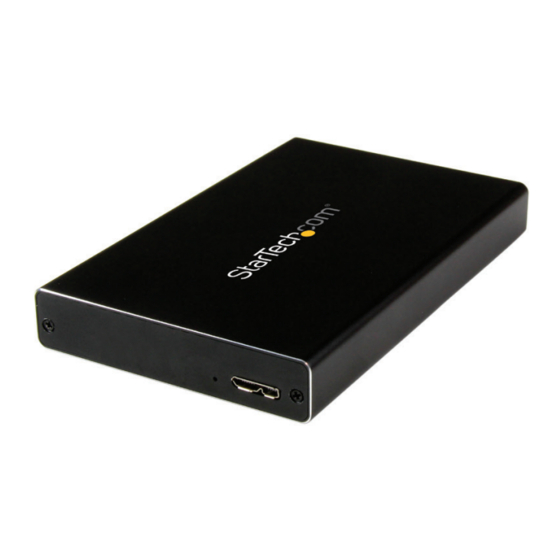

USB 3.0 SATA/IDE 2.5" Hard Drive Enclosure
UNI251BMU33

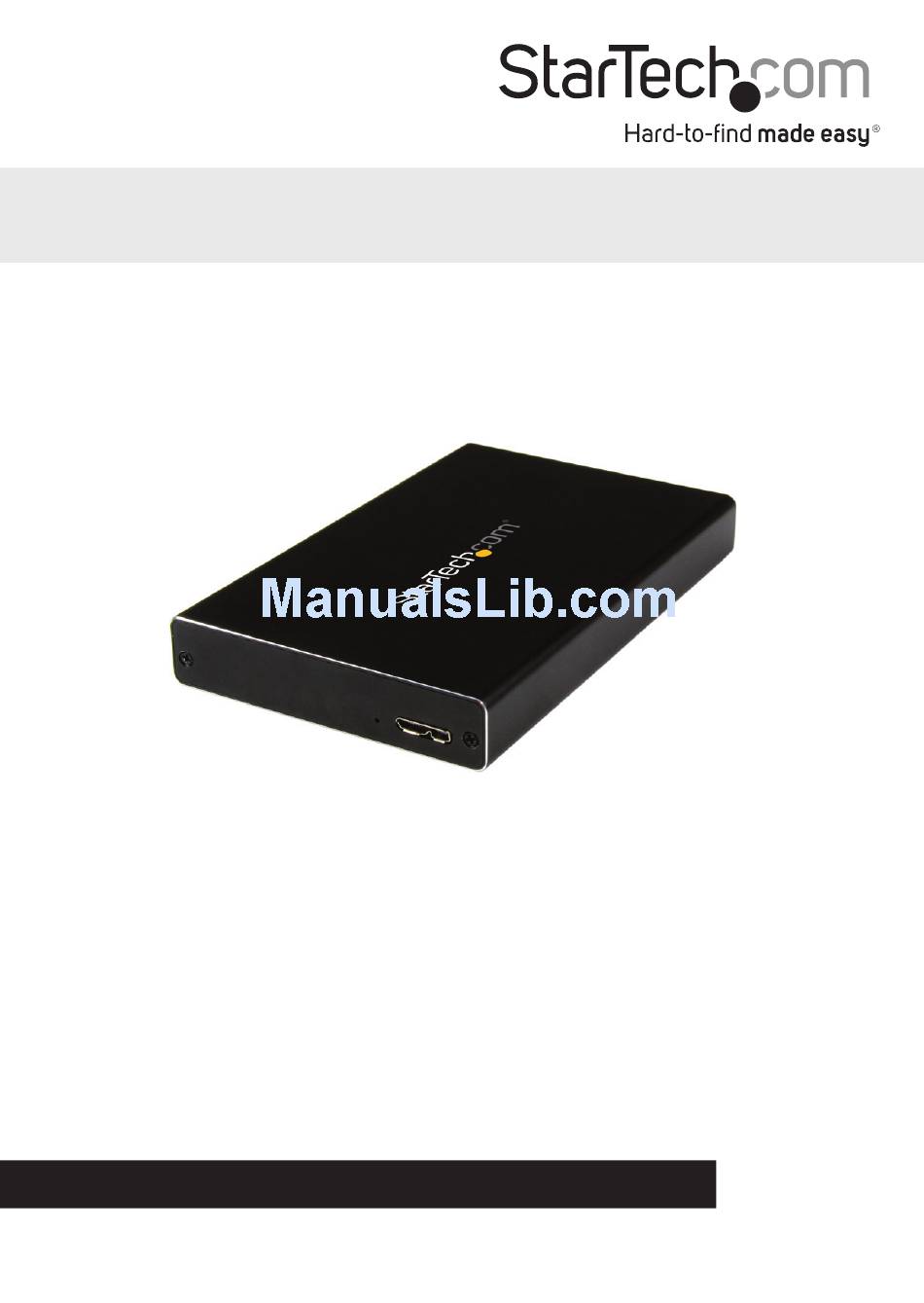

*actual product may vary from photos
DE: Bedienungsanleitung - de.startech.com
FR: Guide de l'utilisateur - fr.startech.com
ES: Guía del usuario - es.startech.com
IT: Guida per l'uso - it.startech.com
NL: Gebruiksaanwijzing - nl.startech.com
PT: Guia do usuário - pt.startech.com
For the most up-to-date information, please visit: www.startech.com
Manual Revision: 09/26/2014
Advertisement
Table of Contents
Related Manuals for StarTech.com UNI251BMU33
Summary of Contents for StarTech.com UNI251BMU33
- Page 1 DE: Bedienungsanleitung - de.startech.com FR: Guide de l'utilisateur - fr.startech.com ES: Guía del usuario - es.startech.com IT: Guida per l'uso - it.startech.com NL: Gebruiksaanwijzing - nl.startech.com PT: Guia do usuário - pt.startech.com For the most up-to-date information, please visit: www.startech.com Manual Revision: 09/26/2014...
- Page 2 StarTech.com. Where they occur these references are for illustrative purposes only and do not represent an endorsement of a product or service by StarTech.com, or an endorsement of the product(s) to which this manual applies by the third-party company in question. Regardless of any direct acknowledgement elsewhere in the body of this document, StarTech.com hereby...
-
Page 3: Table Of Contents
Table of Contents Introduction ....................1 Packaging Contents ..........................1 System Requirements ..........................1 Product Diagram ..................2 Front View ..............................2 Hardware Installation ................3 How to Use ....................7 Connecting the Hard Drive ........................7 Powering the Drive Enclosure ......................7 LED Indicator .............................. 7 Disconnecting the Hard Drive ...................... -
Page 4: Introduction
Introduction Packaging Contents • 1x USB 3.0 SATA/IDE 2.5” Hard Drive Enclosure • 1x USB Y Cable • 4x Installation screws • 1x Screw driver • 1x Instruction manual System Requirements • Computer system with available USB 3.0 (5 Gbit/s) port or USB 2.0 port (480Mbps) •... -
Page 5: Product Diagram
Product Diagram Front View 1. USB 3.0 Micro Type B port 2. Drive tray screws Instruction Manual... -
Page 6: Hardware Installation
Hardware Installation WARNING: Hard drives and storage enclosures require careful handling, especially when being transported. If you are not careful with your hard disk, lost data may result. Always handle your hard drive and storage device with caution. Be sure that you are properly grounded by wearing an anti-static strap when handling computer components or discharge yourself of any static electricity build-up by touching a large grounded metal surface (such as the computer case) for several seconds. - Page 7 3. Connect your 2.5” SSD/HDD to the drive tray. a) If connecting a SATA drive, connect the SATA connector on the drive to the SATA drive port on the drive tray. b) If connecting an IDE drive, connect the IDE connector on the drive to the IDE drive port on the drive tray.
- Page 8 4. Secure the drive in place with the 4 provided drive screws. 5. Slide the drive tray back inside the enclosure. Note: Ensure the USB port is pointing outward. Instruction Manual...
- Page 9 5. Place the front plate back on the enclosure, over the drive tray, and drive each of the drive tray screws back into place using the included screw driver. 6. To complete installation, connect the included USB Y cable from the USB 3.0 Micro type B port on the enclosure to any 2 available USB port on your computer system.
-
Page 10: How To Use
How to Use Connecting the Hard Drive Once the enclosure has been attached to a computer, and the OS has installed the necessary software, the drive will be accessible as though it were installed within the system. Prior to using the drive, it will need to be formatted according to your operating system requirements. -
Page 11: Initializing The Hard Drive
Initializing the Hard Drive 1. If the SATA Hard Drive is blank it may need to be initialized and formatted before use. From the main Windows desktop, right-click on “My Computer” (“Computer” in Vista/ 7 / 8/ 8.1), then select Manage. In the new Computer Management window, select Disk Management from the left window panel. -
Page 12: Specifications
Specifications Host Interface USB 3.0 External Connectors 1 x USB 3.0 Micro B Internal Connectors 1x 2.5in IDE Data / Power 1 x 15 pin SATA Power 1 x 7 pin SATA Data Maximum Data Transfer Rate USB 3.0: 5 Gbit/s Instruction Manual... -
Page 13: Technical Support
Limitation of Liability In no event shall the liability of StarTech.com Ltd. and StarTech.com USA LLP (or their officers, directors, employees or agents) for any damages (whether direct or indirect, special, punitive, incidental, consequential, or otherwise), loss of profits, loss of business, or any pecuniary loss, arising out of or related to the use of the product exceed the actual price paid for the product. - Page 14 StarTech.com is an ISO 9001 Registered manufacturer of connectivity and technology parts. StarTech.com was founded in 1985 and has operations in the United States, Canada, the United Kingdom and Taiwan servicing a worldwide market.
