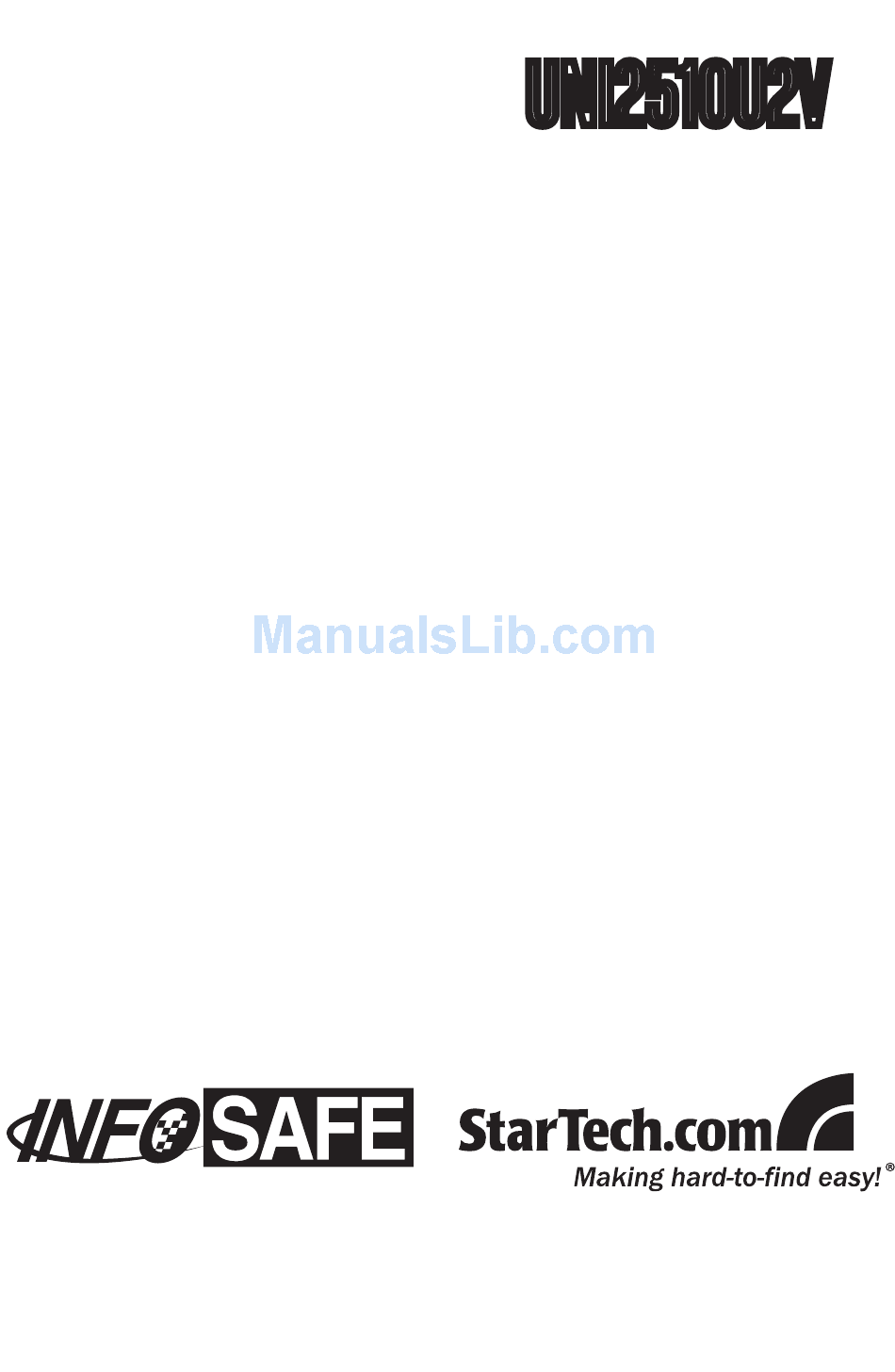

- Page 1 UNI2510U2V Instruction Manual Serial ATA Hard Drive Enclosure 2.5” Tool-less USB 2.0 to IDE or SATA External Hard Drive Enclosure...
- Page 2 StarTech.com. Where they occur these references are for illustrative purposes only and do not represent an endorsement of a product or service by StarTech.com, or an endorsement of the product(s) to which this manual applies by the third-party company in question.
-
Page 3: Table Of Contents
Table of Contents Introduction ..............1 Packaging Contents..............1 System Requirements ..............1 Rear View ..................2 Installation ............... 3 Hardware Installation ..............3 Driver Installation .................4 Using the Storage Device ..........5 Specifications ..............7 Technical Support ............8 Warranty Information ............8... -
Page 4: Introduction

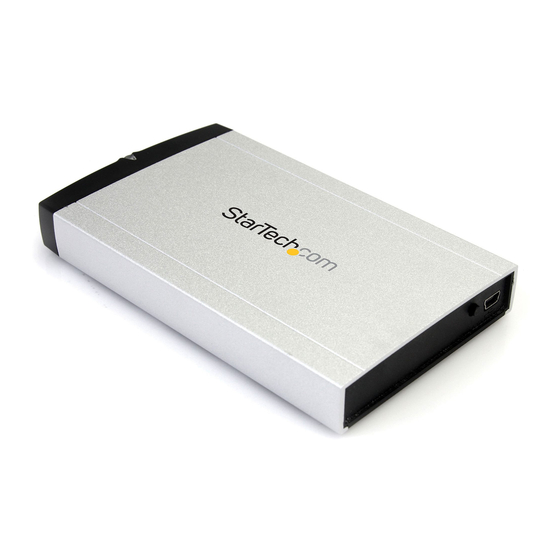

Introduction The StarTech.com hybrid 2.5” USB 2.0 to IDE/SATA Hard Drive Enclosure lets you turn almost any 2.5” laptop hard drive into a portable storage device. Compatible with both IDE or SATA (1.5/3.0Gbps) hard drives, the enclosure offers a cost-effective and convenient choice for a variety of uses including data backups, extra data storage, or simply putting an “outdated”... -
Page 5: Rear View
Rear View Power/Activity Backup button USB connector (Host) -
Page 6: Installation
Installation WARNING: Hard drives require careful handling, especially when being transported. If you are not careful with your hard disk, lost data may result. Always handle your hard drive and storage device with caution. Hardware Installation Slide the latch on the bottom of the enclosure to release the top cover. -
Page 7: Driver Installation
Place the 2.5” hard drive into the drive tray and slide it into the connector firmly. If using an IDE hard drive, the connector is located towards the front of the drivey tray, while the SATA drive connectors are located towards the rear of the drive tray. -
Page 8: Using The Storage Device
Using the Storage Device Windows 2000/XP/Server 2003/Vista/7/Server 2008 If you are using a brand new hard drive that does not contain any data, then you will first need to prepare the hard drive for use. From the main desktop, right-click on “My Computer” (“Computer” in Vista/7), then select Manage. - Page 9 The New Partition Wizard will appear. Follow the instructions in the wizard to complete setting up the drive. Once complete, the Disk should show up as “Healthy” with a drive letter assigned (i.e. E:). This drive letter should now appear within My Computer. If you are installing a hard drive that already has data on it, then after plugging it in, the drive should automatically show up with a drive letter assigned within My Computer.
-
Page 10: Specifications
Specifications Bus Interface USB 2.0 Connectors 1 x USB mini-B Chipset ID JMicron JM20337 LEDs 1 x Power/Activity Maximum Data Transfer Rate USB 2.0: 480Mbps 2.5” EIDE or SATA 1.5/3.0Gbps, Compatible Hard Drives 9.5mm height, up to 500GB capacity Power Adapter Dimensions 133.0mm x 78.0mm x 19.0mm Weight... -
Page 11: Technical Support
Limitation of Liability In no event shall the liability of StarTech.com Ltd. and StarTech.com USA LLP (or their officers, directors, employees or agents) for any damages (whether direct or indirect, special, punitive, incidental, consequential, or... - Page 12 StarTech.com has been making “hard-to-find easy” since 1985, providing high quality solutions to a diverse IT and A/V customer base that spans many channels, including government, education and industrial facilities to name just a few. We offer an unmatched selection of computer parts, cables, A/V products, KVM and Server...
