- Page 1 SAT3540U2E Instruction Manual External Multi Bay Hard Drive Enclosure 3.5” 4 Drive eSATA USB External Multi Bay Hard Drive Enclosure...
- Page 2 StarTech.com. Where they occur these references are for illustrative purposes only and do not represent an endorsement of a product or service by StarTech.com, or an endorsement of the product(s) to which this manual applies by the third-party company in question.
-
Page 3: Table Of Contents
Table of Contents Introduction ..............1 Packaging Contents..............1 System Requirements ..............1 Installation ............... 2 Hardware Installation ..............3 Driver Installation .................4 How to Use ..............5 eSATA/USB Connectivity .............5 Fan Speed Control ..............5 Synchronization Mode ..............6 Troubleshooting .............. 7 Specifications ..............8 Technical Support ............ -
Page 4: Introduction

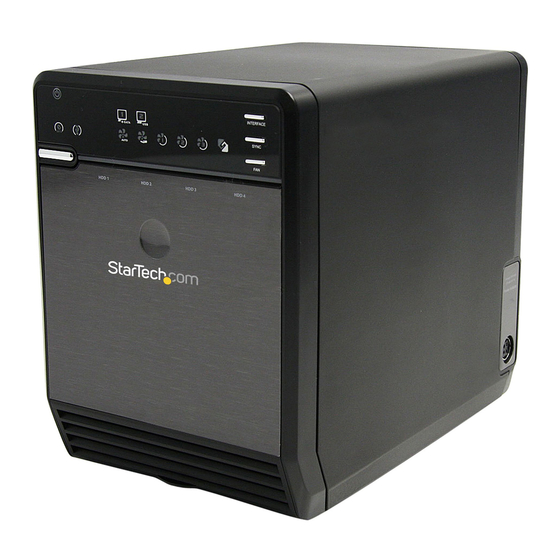

Introduction StarTech.com’s SAT3540U2E External Multi Bay Enclosure is a high- performance 4-drive SATA enclosure that connects to host systems through eSATA and/or USB. Packaging Contents • 1 x SAT3540U2E enclosure • 1 x Screw driver and screw kit • 4 x Hard Drive Handles •... -
Page 5: Installation
Installation Front View Power LED eSATA/USB Mode LED eSATA/USB Interface Switch Link LED Sync Switch Fan Switch Fan Mode Drive Power/ Activity LED Power Sync Mode Button Front Door Fan Speed release Rear View 80mm Cooling Fan (removable) USB port eSATA port... -
Page 6: Hardware Installation
Hardware Installation Secure the included Hard Drive Handles to the hard drives with the supplied screws and screw driver. Press the front door in to release the latch and open the door. The door is also removable for easier access. Inside will be a metal drive cage in front of the drive bays. -
Page 7: Driver Installation
Remove the card board inserts (if first time setup) and then insert the hard drives into the slots. If installing less than 4 drives, ensure a drive is installed in the bottom slot. This will help when reinstalling the metal cage. Hard drives can be removed from the enclosure by pressing down on the handles, then pulling them out. -
Page 8: How To Use
How to Use eSATA/USB Connectivity The enclosure features two separate host interfaces, which can be physically connected at the same time, however only one will be active at a time. The enclosure could even be connected to two different computers, one over eSATA and the other over USB, and then switched between. -
Page 9: Synchronization Mode
Status Description Smart Fan Auto Mode Smart Fan Manual Mode Low Speed - 1200RPM (Manual Mode only) Medium Speed - 1800RPM (Manual Mode only) High Speed - 2500RPM (Manual Mode only) Pressing the ‘Fan’ button will toggle between Auto and Manual modes and toggle between the different manual fan speeds. -
Page 10: Troubleshooting
Troubleshooting Only one drive shows up over eSATA If only one of the installed hard drives is visible on the computer when connected over eSATA, ensure that the eSATA port on your computer system supports Port Multiplier technology. -
Page 11: Specifications
Specifications Bus Interface USB 2.0, SATA 3.0 Gb/s 1 x USB type B External Connectors 1 x eSATA 1 x DIN power connector Chipset Exar XRS10L240 3 x Fan Speed 2 x Fan Mode 2 x Interface LEDs 2 x Interface Link 1 x Power 1 x Sync Mode USB 2.0: 480 Mb/s... -
Page 12: Technical Support
Limitation of Liability In no event shall the liability of StarTech.com Ltd. and StarTech.com USA LLP (or their officers, directors, employees or agents) for any damages (whether direct or indirect, special, punitive, incidental, consequential, or... - Page 13 StarTech.com has been making “hard-to-find easy” since 1985, providing high quality solutions to a diverse IT and A/V customer base that spans many channels, including government, education and industrial facilities to name just a few. We offer an unmatched selection of computer parts, cables, A/V products, KVM and Server...
