Instruction Manual

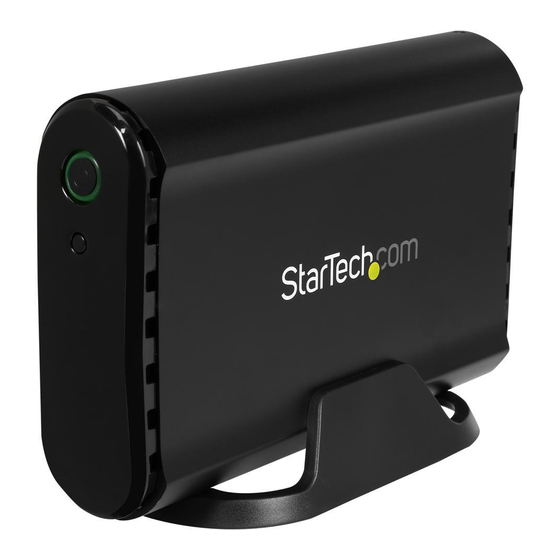

3.5 eSATA USB 2.0 to IDE SATA External
Hard Drive Enclosure
UNI3510U2EB
UNI3510UEBEU
UNI3510UEBGB
DE: Bedienungsanleitung - de.startech.com
FR: Guide de l'utilisateur - fr.startech.com
ES: Guía del usuario - es.startech.com
IT: Guida per l'uso - it.startech.com
NL: Gebruiksaanwijzing - nl.startech.com
PT: Guia do usuário - pt.startech.com
For the most up-to-date information, please visit: www.startech.com
Manual Revision: 03/28/2012
*actual product may vary from photos
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for StarTech.com UNI3510U2EB
Summary of Contents for StarTech.com UNI3510U2EB
-
Page 1: Hard Drive Enclosure
DE: Bedienungsanleitung - de.startech.com FR: Guide de l'utilisateur - fr.startech.com ES: Guía del usuario - es.startech.com IT: Guida per l'uso - it.startech.com NL: Gebruiksaanwijzing - nl.startech.com PT: Guia do usuário - pt.startech.com For the most up-to-date information, please visit: www.startech.com Manual Revision: 03/28/2012... -
Page 2: Fcc Compliance Statement
StarTech.com. Where they occur these references are for illustrative purposes only and do not represent an endorsement of a product or service by StarTech.com, or an endorsement of the product(s) to which this manual applies by the third-party company in question. Regardless of any direct acknowledgement elsewhere in the body of this document, StarTech.com hereby... -
Page 3: Table Of Contents
Table of Contents Introduction ....................1 Packaging Contents ..........................1 System Requirements ..........................1 Hardware Guide ..................2 Front Panel ..............................2 Rear Panel ..............................2 Installation ....................3 Hardware Installation ..........................3 Driver Installation ............................4 Software Installation ..........................4 Recognizing the Hard Drive ..............6 Windows XP .............................. -
Page 4: Introduction
Introduction This enclosure lets you turn almost any high capacity 3.5” Serial ATA (SATA) or IDE hard drive into an eSATA (SATA only) or USB (SATA or IDE) external hard drive, allowing you to customize your external storage solution based on your preference of hard drive model and manufacturer. -
Page 5: Hardware Guide
Hardware Guide Front Panel 1. Power Button/LED 2. Backup Button Rear Panel 1. DC In Port 2. eSATA Port 3. Mini USB Port 4. Hard Drive Release Switch Instruction Manual... -
Page 6: Installation
Installation Hardware Installation 1. Open the hard drive enclosure by pushing the rear panel release button to the right and sliding the hard drive bracket out of the external casing from the front. 2. If using an IDE/ATA hard drive, ensure that the hard drive you are using is set to MASTER. 3. -
Page 7: Driver Installation
5. IDE HDD: Only the USB 2.0 interface is available for connecting an IDE hard drive to the host computer. Plug the 40-pin IDE data cable into the port labelled CN1 on the enclosure’s PCB board. Plug the included 4-pin SP4 to LP4 power adapter cable into the J1 connector. -
Page 8: Software Installation
Software Installation The following steps outline the procedure to install the software included with your drive enclosure in Windows. 1. Insert the Drivers CD into your computer’s CD-ROM. Open the DRIVERS.exe application to begin the installation process. 2. Once the installer is running, there are a number of options available to you from the DRIVERS.exe home screen. -
Page 9: Recognizing The Hard Drive
1. Click Browse to designate the directory in which the software will be installed. Once you have made your selection, click Install to continue. 2. The installation will now take place. Once the installation is complete, you may exit the DRIVERS.exe application. Recognizing the Hard Drive Windows XP USB 2.0... -
Page 10: Windows Vista
eSATA If you are using the eSATA interface to connect the hard drive enclosure to your computer, there are two setup processes you can follow. If the hard drive enclosure is powered on upon booting up the computer, it will automatically detect the drive. Otherwise, if you connect and power on the hard drive enclosure once the computer has already been booted up, you will need to open the Device Manager to scan for it. -
Page 11: Specifications
Specifications SATA 3.0Gb/s Bus Interface USB 2.0 Chipset ID JMicron JMB20337 1 x eSATA connector* External Connectors 1 x USB Mini B connector 1 x DC Power connector 2 x SATA 7-pin 1 x SATA Power 15-pin Internal Connectors 1 x 40-pin IDE/ATA 1 x LP4 Power 4-pin 3.0 Gb/s (eSATA) Maximum Data Transfer Rate... -
Page 12: Technical Support
Limitation of Liability In no event shall the liability of StarTech.com Ltd. and StarTech.com USA LLP (or their officers, directors, employees or agents) for any damages (whether direct or indirect, special, punitive, incidental, consequential, or otherwise), loss of profits, loss of business, or any pecuniary loss, arising out of or related to the use of the product exceed the actual price paid for the product. - Page 13 StarTech.com is an ISO 9001 Registered manufacturer of connectivity and technology parts. StarTech.com was founded in 1985 and has operations in the United States, Canada, the United Kingdom and Taiwan servicing a worldwide market.
