5 Port Gigabit Industrial Power over
Ethernet Switch with 4 PoE ports
IES51000POE
DE: Bedienungsanleitung - de.startech.com
FR: Guide de l'utilisateur - fr.startech.com
ES: Guía del usuario - es.startech.com
IT: Guida per l'uso - it.startech.com
NL: Gebruiksaanwijzing - nl.startech.com
PT: Guia do usuário - pt.startech.com
For the most up-to-date information, please visit: www.startech.com
Manual Revision: 07/09/2013
*actual product may vary from photos
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for StarTech.com IES51000POE
Summary of Contents for StarTech.com IES51000POE
- Page 1 DE: Bedienungsanleitung - de.startech.com FR: Guide de l'utilisateur - fr.startech.com ES: Guía del usuario - es.startech.com IT: Guida per l'uso - it.startech.com NL: Gebruiksaanwijzing - nl.startech.com PT: Guia do usuário - pt.startech.com For the most up-to-date information, please visit: www.startech.com Manual Revision: 07/09/2013...
-
Page 2: Fcc Compliance Statement
StarTech.com. Where they occur these references are for illustrative purposes only and do not represent an endorsement of a product or service by StarTech.com, or an endorsement of the product(s) to which this manual applies by the third-party company in question. Regardless of any direct acknowledgement elsewhere in the body of this document, StarTech.com hereby... -
Page 3: Table Of Contents
Table of Contents Product Overview ..................1 Front View....................1 Rear View ..............................1 LED Indicators............................. 1 Introduction ....................2 Packaging Contents ..........................2 Installation ....................3 Wall-Mounting ............................3 Hardware Installation ..........................3 Specifications ..................4 Technical Support ..................5 Warranty Information ................5 Instruction Manual... -
Page 4: Product Overview

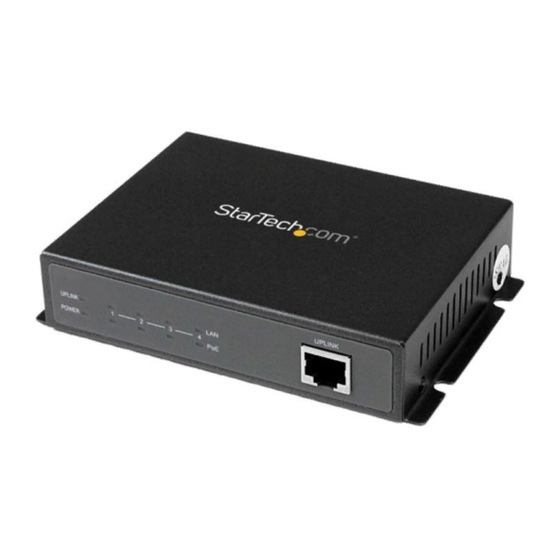

Product Overview Front View RJ45 Rear View DC Input RJ45 LED Indicators Function Power (1) Solid Green - power is on and normal Solid Green – Connected at 1000Mbps Solid Yellow – Connected at 100Mbps Uplink (1) Flashing Green - Ethernet Uplink activity at 1000Mbps Flashing Yellow - Ethernet Uplink activity at 100Mbps Flashing Yellow - Ethernet Uplink activity at 10M. -
Page 5: Introduction
Introduction The IES51000POE 5-Port Gigabit PoE Switch with 4 PSE ports lets you connect Gigabit Ethernet and power to four PoE-enabled devices, or a mixture of PoE and non-PoE components. Packaging Contents • 1 x Gigabit Ethernet PoE Switch • 4 x Mounting Screws •... -
Page 6: Installation
Installation Wall-Mounting The Network Switch is designed to sit on a flat surface (such as a desktop) or mount to a wall or similar surface. Skip to the Hardware Installation section below if you are not wall-mounting the device. 1. Determine the desired location and orientation of the switch on the wall, and mark both mounting notch location on one side of the integrated mounting bracket, ensuring they are level. -
Page 7: Specifications
Specifications Number of Ports 5 (4 POE) Compatible Networks 10/100/1000 Mbps IEEE 802.3af Power Over Ethernet, IEEE Industry Standards 802.3 10BASE-T, IEEE 802.3u 100BASE-TX/ FX, IEEE 802.3ab 1000BASE-TX, IEEE 802.3x PoE Output 48V DC, 15.4W (per-port) Connectors 5 x RJ-45 Female Maximum Data Transfer Rate 2 Gbps (Full-Duplex) Switching Architecture... -
Page 8: Technical Support
Limitation of Liability In no event shall the liability of StarTech.com Ltd. and StarTech.com USA LLP (or their officers, directors, employees or agents) for any damages (whether direct or indirect, special, punitive, incidental, consequential, or otherwise), loss of profits, loss of business, or any pecuniary loss, arising out of or related to the use of the product exceed the actual price paid for the product. - Page 9 StarTech.com is an ISO 9001 Registered manufacturer of connectivity and technology parts. StarTech.com was founded in 1985 and has operations in the United States, Canada, the United Kingdom and Taiwan servicing a worldwide market.
