StarTech.com IESC1G80UP Quick Start Manual

8 Port Unmanaged Industrial-Grade Switch 10/100/1000 Mbps

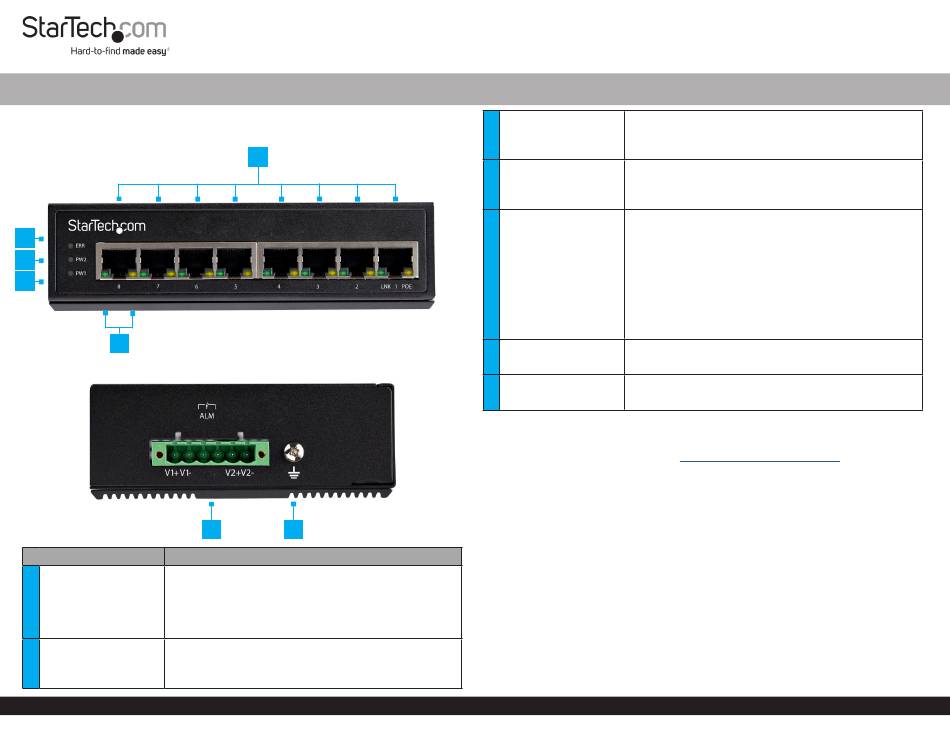

Product Diagram (IESC1G80UP)

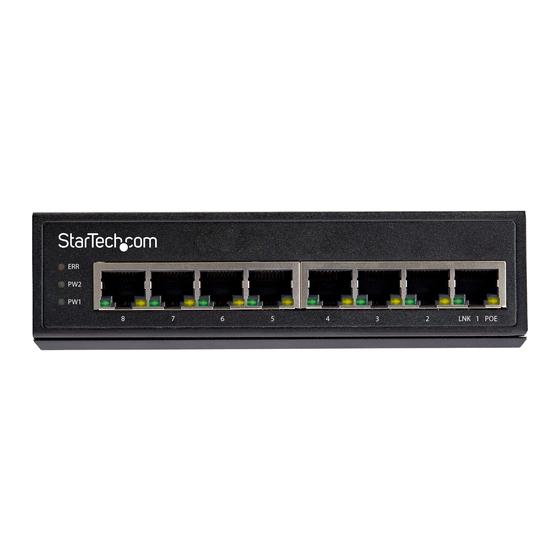

Front View
2
3
4
5
Side View
Component
• Connect any Network Device to provide an Ethernet
Connection to up to 8 Network Devices
1 PoE Ports • Provide a PoE Connection to 8 Devices
• Maximum PoE power budget is 30W per port up to a
total overall power budget of 200W
• Color - Amber
2 ERR LED Indicator • On - Either PW1 or PW2 is connected
• Off - Both PW1 and PW2 are connected
To view manuals, FAQs, videos, drivers, downloads, technical drawings, and more, visit www.startech.com/support.
1
6 7
Function
• Color - Green
3 PW2 LED Indicator • On - when PW2+ and PW2- are connected
• Off- when PW2+ and PW2- are not connected
• Color - Green
4 PW1 LED Indicator • On - when PW1+ and PW1- are connected
• Off- when PW1+ and PW1- are not connected
• Indicates the link and PoE Powered Device (PD) status
of each PoE Port
LNK(Green)
• On - Network connection detected
5
PoE LED Indicators
• Off - Network connection not detected
PoE (Amber)
• On - PoE is detected
• Off - PoE is not detected
• Provides power to the PoE Ports
Terminal Block Power
6
Input Port
• Supported power input voltage range is 48-56V
• Attach a Grounding Wire to protect Network
7 Grounding Screw
Equipment
Requirements
For the latest requirements, please visit www.startech.com/IESC1G80UP.
• DC Power Supply x 1 (maximum of two)
• PoE Powered Device x (up to) 8
• RJ45 Terminated UTP/STP Cat 5e (or better) Network Cable (sold separately) x 8
• Earth Ground Connection x 1
• Grounding Wire x 1
• (Optional - for power) Flat Head Screwdriver x 1
• (Optional) #2 Phillips Head Screwdriver x 1
• (Optional) Screws for Wall Mounting x 2
Installation
Grounding the Switch
1. Using the Phillips Head Screwdriver loosen the Grounding Screw on the Switch.
2. Attach the Grounding Wire to the Grounding Screw.
Quick-Start Guide
Manual Revision: June 18, 2020
