StarTech.com IESC1G50UP Quick Start Manual

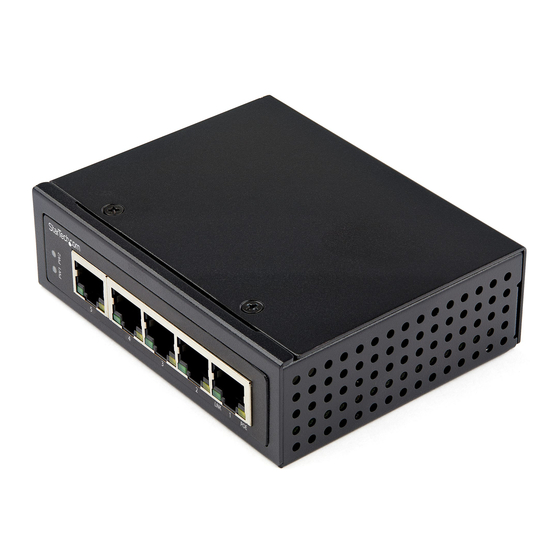

5 Port Unmanaged Industrial-Grade PoE Switch 10/100/1000 Mbps

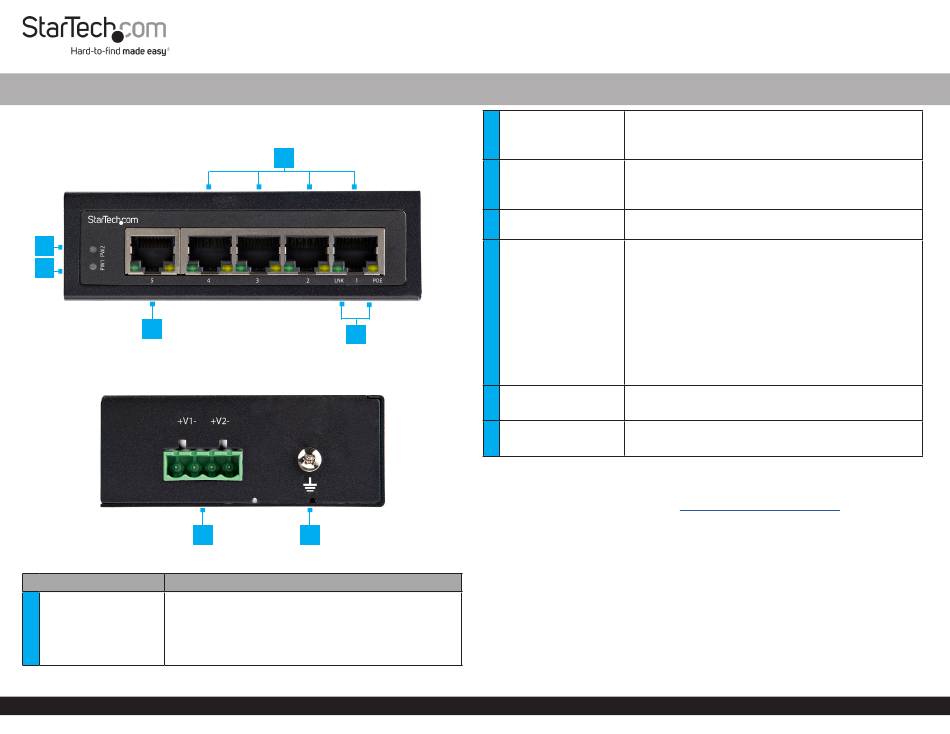

Product Diagram (IESC1G50UP)

Front View
2
3
4
Side View
Component
• Connect any Network Device to provide an Ethernet
Connection to up to 4 Network Devices
1 PoE Ports • Provide a PoE Connection to 4 Devices
• Maximum PoE power budget is 30W per port up to a
total overall power budget of 120W
To view manuals, FAQs, videos, drivers, downloads, technical drawings, and more, visit www.startech.com/support.
1
5
6 7
Function
• Color - Green
2 PW2 LED Indicator • On - when V2+ and V2- are connected
• Off- when V2+ and V2- are not connected
• Color - Green
3 PW1 LED Indicator • On - when V1+ and V1- are connected
• Off- when V1+ and V1- are not connected
• Connect any Network Device to provide an Ethernet
4 Non-PoE Port
Connection to one Network Device
• Indicates the link and PoE Powered Device (PD) status
of each PoE Port
LNK(Green)
• On - Network connection detected
• Off - Network connection not detected
5 PoE LED Indicators
• Flashing - Network is active
PoE (Amber)
• On - PoE PD is detected
• Off - PoE PD is not detected
• Provides power to the PoE Ports
Terminal Block Power
6
Input Port
• Supported power input voltage range is 48-56V
• Attach a Grounding Wire to protect Network
7 Grounding Point
Equipment

Requirements

For the latest requirements, please visit www.startech.com/IESC1G50UP.
• DC Power Supply x 1 (maximum of 2)
• PoE Powered Device x (up to) 5
• RJ45 Terminated UTP/STP Cat 5e (or better) Network Cable (sold separately) x 5
• Earth Ground Connection x 1
• Grounding Wire x 1
• (Optional - for power) Flat Head Screwdriver x 1
• (Optional) #2 Phillips Head Screwdriver x 1
• (Optional) Screws for Wall Mounting x 2
Quick-Start Guide
Manual Revision: June 9, 2020
