StarTech.com IES1G52UP12V Quick Start Manual

5 Port Unmanaged Industrial-Grade Switch + 2 Open SFP - 12V

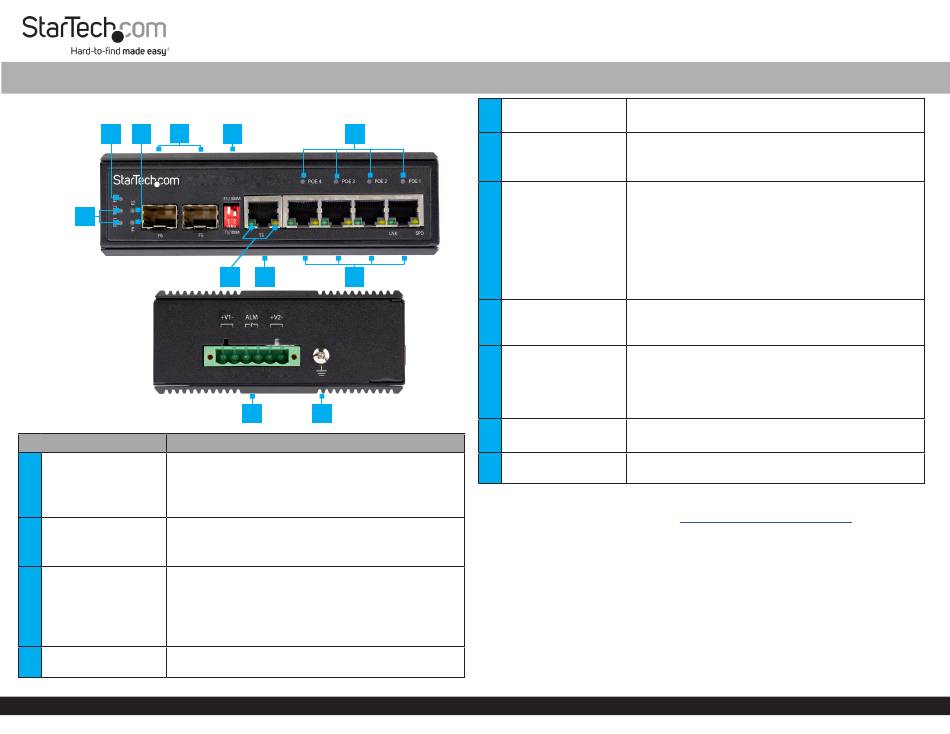

Product Diagram (IES1G52UP12V)
Front View
2 4
3
1

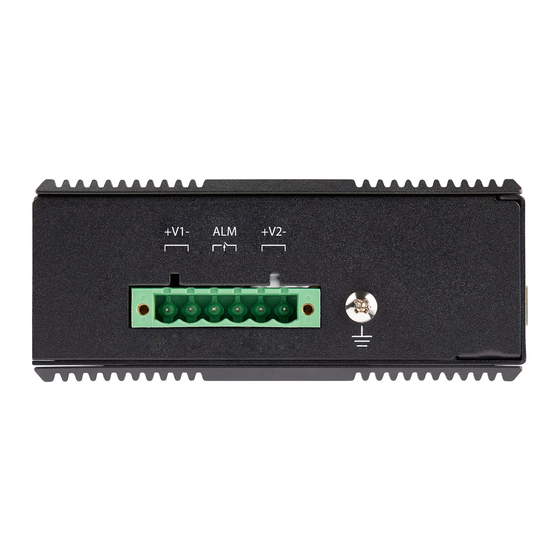

Side View
Component
• Color - Green
• Terminal P2 (middle), Terminal P1 (bottom)
1
Power LED Indicators
• On - P1/2 is connected
• Off - P1/2 is not connected
• Color - Amber
ERR Alarm Relay LED
2 • On - Only P1 or P2 is connected
Indicator
• Off - Both P1 and P2 are connected
• Color - Green
• F5 (top), F6 (bottom)
F5/6 Port LED
3 • On - SFP link/connection is detected
Indicators
• Off - SFP link/connection is not detected
• Flashing - SFP is active
SFP Slots F6 (Left) and
4 • Supports 100/1000Base-X SFP Transceiver Modules
F5 (Right)
To view manuals, FAQs, videos, drivers, downloads, technical drawings, and more, visit www.startech.com/support.
5 6
7 8 9
10 11
Function
• Enable SFP Slot F5 or T5 Network Port
5 DIP Switches
• Change the speed settings
• Color - Green
Port Status LED
6
• On - Connection is detected
Indicators
• Flashing - Data is transmitting/receiving
• Indicates the link status and speed
LNK(Green)
• On - Network connection detected
LNK and SPD LED
7 • Flashing - Data is transmitting/receiving
Indicators
SPD (Amber)
• On - 1000 Mbps network speed
• Off - 10/100 Mbps network speed
• Provide an Ethernet Connection to one Network
Device
8 Non-PoE Port
• Connect using a Fiber or Copper Network Cable
• Connect any Network Device to provide an Ethernet
Connection to up to 4 Network Devices
9 • Provide a PoE Connection to 4 Devices
PoE Ports
• Maximum PoE power budget is 30W per port up to a
total overall power budget of 120W
• Provides power to the Switch
Terminal Block Power
10
Input Port
• Supported power input voltage range is 12-56V
• Attach a Grounding Wire to protect Network
11
Grounding Screw
Equipment
Requirements
For the latest requirements, please visit www.startech.com/IES1G52UP12V.
• DC Power Supply x (up to) 2
• PoE Powered Device x (up to) 4
• RJ45 Terminated UTP/STP Cat 5e (or better) Network Cable x (up to) 5
• MSA-Compliant 100/1000Base-X SFP Transceiver Module x (up to) 2
• Fiber Cable x (up to) 2
• Earth Ground Connection x 1
• Grounding Wire x 1
• (Optional - for power) Flat Head Screwdriver x 1
• (Optional - for mounting) #2 Phillips Head Screwdriver x 1
• (Optional - for mounting) Screws for Wall Mounting x 2
Quick-Start Guide
Manual Revision: June 16, 2020
