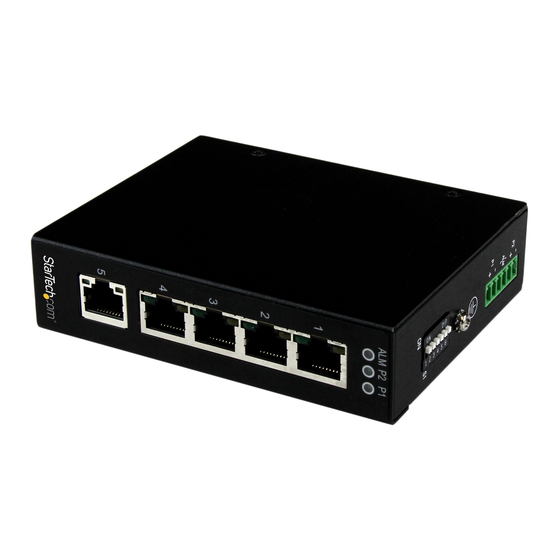

5 port unmanaged industrial gigabit ethernet switch

Advertisement

Quick Links

5 Port Unmanaged Industrial Gigabit

Ethernet Switch

IES51000
DE: Bedienungsanleitung - de.startech.com
FR: Guide de l'utilisateur - fr.startech.com
ES: Guía del usuario - es.startech.com
IT: Guida per l'uso - it.startech.com
NL: Gebruiksaanwijzing - nl.startech.com
PT: Guia do usuário - pt.startech.com
For the most up-to-date information, please visit: www.startech.com
Manual Revision: 08/15/2014
*actual product may vary from photos

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the IES51000 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for StarTech.com IES51000

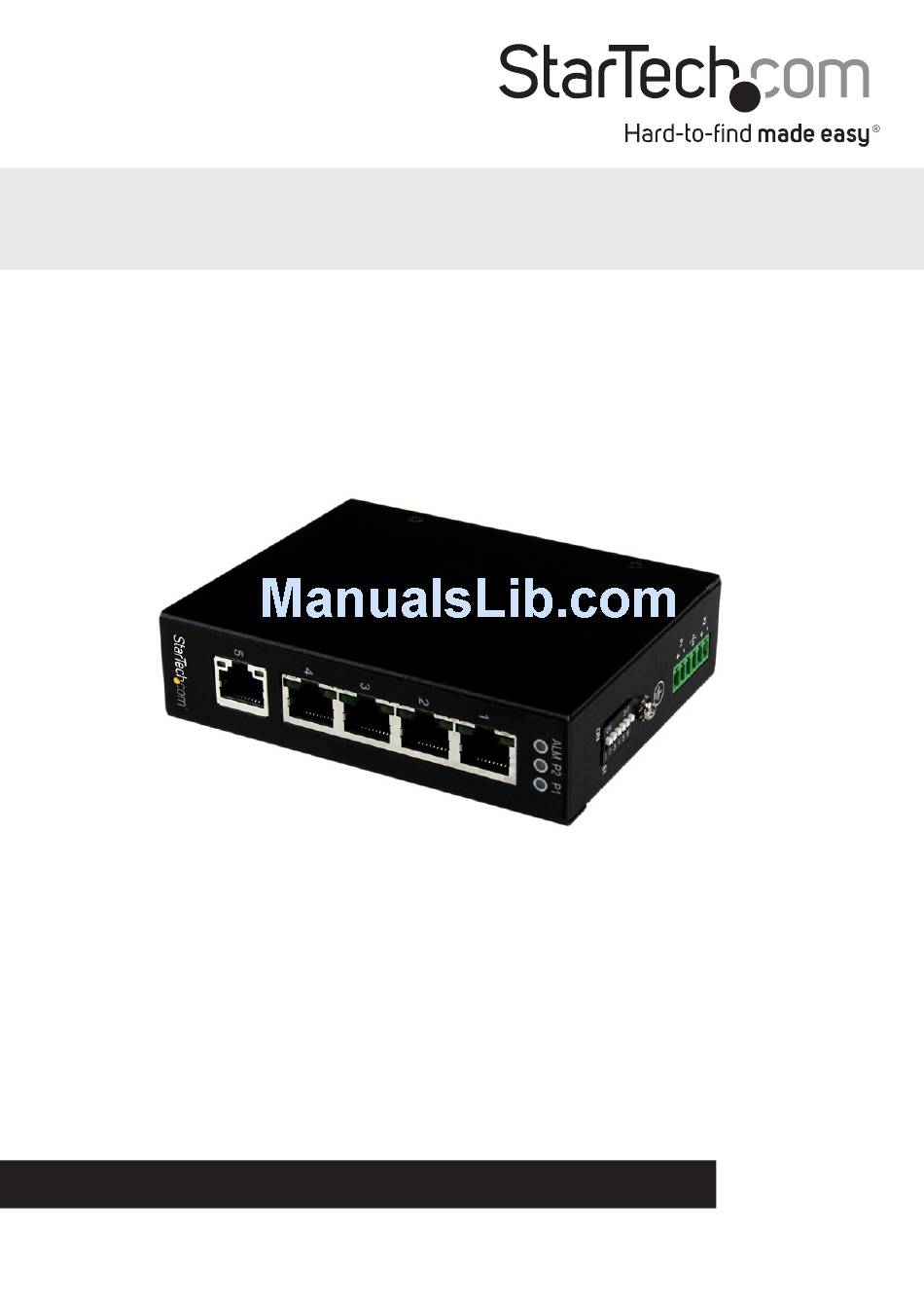

  • Page 1: Ethernet Switch

    DE: Bedienungsanleitung - de.startech.com FR: Guide de l'utilisateur - fr.startech.com ES: Guía del usuario - es.startech.com IT: Guida per l'uso - it.startech.com NL: Gebruiksaanwijzing - nl.startech.com PT: Guia do usuário - pt.startech.com For the most up-to-date information, please visit: www.startech.com Manual Revision: 08/15/2014...
  • Page 2: Fcc Compliance Statement

    StarTech.com. Where they occur these references are for illustrative purposes only and do not represent an endorsement of a product or service by StarTech.com, or an endorsement of the product(s) to which this manual applies by the third-party company in question. Regardless of any direct acknowledgement elsewhere in the body of this document, StarTech.com hereby...
  • Page 3: Table Of Contents

    Table of Contents Introduction ....................1 Packaging Contents ..........................1 System Requirements ..........................1 Product Diagram ..................1 Front View ..............................1 Top View ............................... 2 LED Indicators............................. 2 DIP Switch Settings ..........................3 Installation ....................3 Wall Mounting ............................3 DIN-Rail Mounting ............................ 5 Hardware Installation ..........................
  • Page 4: Introduction

    Introduction Packaging Contents • 1 x Industrial Ethernet Switch • 2 x Wall-Mount Brackets • 1 x DIN-Rail Clip • 4 x Screws • 1 x Terminal Block • 1 x Instruction Manual System Requirements • 12 – 58V DC power source (terminal block) •...
  • Page 5: Top View

    Top View Redundant Terminal Block DIP Switches Power w/ Alarm Relay Ground Connector LED Indicators Solid (Green): Power is connected and functioning 1 x P1 (Power) Off: No power input detected Solid (Green): Power is connected and functioning 1 x P2 (Power) Off: No power input detected Solid (Red): Power failure detected 1 x ALM (Alarm)
  • Page 6: Dip Switch Settings

    DIP Switch Settings Pin # Position Status Enable power alarm Pin 1 Disable power alarm Enable broadcast storm rate limit Pin 2 Disable broadcast storm rate limit NOT USED Pin 3 NOT USED NOT USED Pin 4 NOT USED NOT USED Pin 5 NOT USED NOT USED...
  • Page 7 143.2 29.1 136.2 89.4 2. Determine the desired location and orientation of the switch on the wall, and mark the bottom mounting notch location. 3. Depending on the mounting surface, use the appropriate tools and hardware to install a mounting screw into the wall. There should be a gap of approximately 2 mm between the head of the screw and the wall surface.
  • Page 8: Din-Rail Mounting

    DIN-Rail Mounting 1. Attach the DIN-Rail mounting bracket to the switch. 2. Hook the unit over the DIN-Rail and push the bottom of the unit in until it clicks into place. Instruction Manual...
  • Page 9: Hardware Installation

    Hardware Installation 1. Ground the device using the ground screw. 2. Power the switch from a DC power supply (input range 12 – 58V) by connecting the positive and negative wires into the V+ and V- contacts of P1 on the terminal block and tightening the wire clamp screws.
  • Page 10: Specifications

    Specifications Number of Ports Compatible Networks 10/100/1000 Mbps IEEE 802.3 10BASE-T, IEEE 802.3u 100BASE- TX, IEEE 802.3ab 1000BASE-TX, IEEE 802.1p QoS, IEEE 802.3az Energy- Industry Standards Efficient Ethernet, IEEE 802.3ad Link Aggregation IP30 (Enclosure) Connectors 5 x RJ-45 Female Maximum Data Transfer Rate 2 Gbps (Full-Duplex) Switching Architecture Store-and-Forward...
  • Page 11: Technical Support

    Limitation of Liability In no event shall the liability of StarTech.com Ltd. and StarTech.com USA LLP (or their officers, directors, employees or agents) for any damages (whether direct or indirect, special, punitive, incidental, consequential, or otherwise), loss of profits, loss of business, or any pecuniary loss, arising out of or related to the use of the product exceed the actual price paid for the product.
  • Page 12 StarTech.com is an ISO 9001 Registered manufacturer of connectivity and technology parts. StarTech.com was founded in 1985 and has operations in the United States, Canada, the United Kingdom and Taiwan servicing a worldwide market.
