StarTech.com IES81000POE User Manual

StarTech.com IES81000POE User Manual

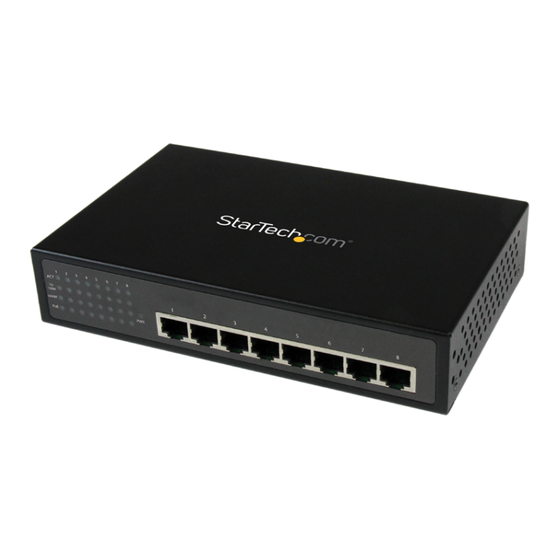

8 port unmanaged gigabit ethernet poe+ pse switch - 30w per port

Advertisement

Quick Links

8 Port Unmanaged Gigabit Ethernet PoE+
PSE Switch - 30W per Port
IES81000POE
DE: Bedienungsanleitung - de.startech.com
FR: Guide de l'utilisateur - fr.startech.com
ES: Guía del usuario - es.startech.com
IT: Guida per l'uso - it.startech.com
NL: Gebruiksaanwijzing - nl.startech.com
PT: Guia do usuário - pt.startech.com
For the most up-to-date information, please visit: www.startech.com
Manual Revision: 10/23/2013
*actual product may vary from photos

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the IES81000POE and is the answer not in the manual?

Questions and answers

Summary of Contents for StarTech.com IES81000POE

  • Page 1 DE: Bedienungsanleitung - de.startech.com FR: Guide de l'utilisateur - fr.startech.com ES: Guía del usuario - es.startech.com IT: Guida per l'uso - it.startech.com NL: Gebruiksaanwijzing - nl.startech.com PT: Guia do usuário - pt.startech.com For the most up-to-date information, please visit: www.startech.com Manual Revision: 10/23/2013...
  • Page 2: Fcc Compliance Statement

    StarTech.com. Where they occur these references are for illustrative purposes only and do not represent an endorsement of a product or service by StarTech.com, or an endorsement of the product(s) to which this manual applies by the third-party company in question. Regardless of any direct acknowledgement elsewhere in the body of this document, StarTech.com hereby...
  • Page 3: Table Of Contents

    Table of Contents Product Diagram ..................1 Front View ..............................1 Rear View ..............................1 Introduction ....................2 Packaging Contents ..........................2 LED Indicators ..................2 Installation .....................3 Wall-Mounting ............................3 Hardware Installation ..........................3 Specifications ..................4 Technical Support ..................5 Warranty Information ................5 Instruction Manual...
  • Page 4: Product Diagram

    Product Diagram Front View Rear View Instruction Manual...
  • Page 5: Introduction

    Introduction Packaging Contents • 1 x Gigabit Ethernet PoE Switch • 4 x Mounting Screws • 2 x Wallmount Brackets • 1 x Set, Rubber Feet • 1 x Universal Power Adapter • 3 x Power Cords (NA /UK /EU) •...
  • Page 6: Installation

    Installation Wall-Mounting 1. Attach the wall mount brackets to the switch (one per side) using the screws provided. 2. Depending on the mounting surface, use the appropriate hardware to mount to the wall surface. Hardware Installation 1. Plug one end of the power adapter into an open electrical outlet and the other into the DC connector on the rear panel of the Network Switch.
  • Page 7: Specifications

    Specifications Number of Ports Compatible Networks 10/100/1000 Mbps IEEE 802.3at/af Power Over Ethernet, IEEE 802.3 10BASE-T, IEEE 802.3u 100BASE-TX, Industry Standards IEEE 802.3ab 1000BASE-TX, IEEE 802.3x Flow Control PoE Output 52V DC, 30W (per-port) Connectors 8 x RJ-45 Female Maximum Data Transfer Rate 2 Gbps (Full-Duplex) Switching Architecture Store-and-Forward...
  • Page 8: Technical Support

    Limitation of Liability In no event shall the liability of StarTech.com Ltd. and StarTech.com USA LLP (or their officers, directors, employees or agents) for any damages (whether direct or indirect, special, punitive, incidental, consequential, or otherwise), loss of profits, loss of business, or any pecuniary loss, arising out of or related to the use of the product exceed the actual price paid for the product.
  • Page 9 StarTech.com is an ISO 9001 Registered manufacturer of connectivity and technology parts. StarTech.com was founded in 1985 and has operations in the United States, Canada, the United Kingdom and Taiwan servicing a worldwide market.
