8-Port Gigabit Ethernet Switch (4-Port PoE+) - Managed IES81GPOEW *actual product may vary from photos FR: Guide de l’utilisateur - fr.startech.com DE: Bedienungsanleitung - de.startech.com ES: Guía del usuario - es.startech.com NL: Gebruiksaanwijzing - nl.startech.com PT: Guia do usuário - pt.startech.com IT: Guida per l’uso - it.startech.com...
Page 2
StarTech.com. Where they occur these references are for illustrative purposes only and do not represent an endorsement of a product or service by StarTech.com, or an endorsement of the product(s) to which this manual applies by the third-party company in question. Regardless of any direct acknowledgement elsewhere in the body of this document, StarTech.com hereby...
Table of Contents Introduction ....................1 Product diagram ............................1 Package contents ............................2 Requirements ............................. 3 About the LED indicators ..............3 Wire the power inputs ................4 Reboot the network switch ..............4 Reset to the default factory settings ..........4 Installation ....................5 Install the network switch onto a wall ....................

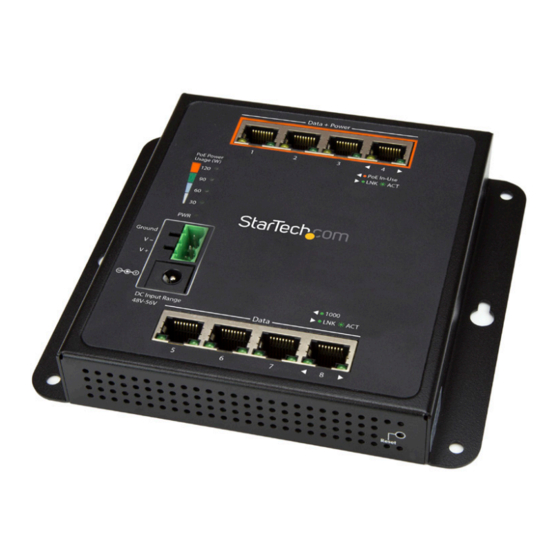

Introduction Use the IES81GPOEW to add up to 10 GbE devices to your network. The IES81GPOEW features eight RJ45 ports, four of which support Power over Ethernet and up to 36 watts on each of the four ports. Product diagram Front view RJ45 ports 1 to 4 (Support PoE+)
This network switch is OS independent and doesn’t require any additional drivers or software. Requirements are subject to change. For the latest requirements, please visit www.StarTech.com/IES81GPOEW. About the LED indicators This network switch features a link and activity LED indicator for each of the eight RJ45 ports.
Wire the power inputs You can use either an external power adapter or the terminal block to power the network switch. Alternatively, you can connect both an external power adapter and the terminal block to create a redundant power input. You should use wire ranging in size of 12 to 24 AWG.
Installation Install the network switch onto a wall The mounting holes on the network switch are 8 mm in diameter, and the distance between the two holes is 133 mm. 1. Hold the network switch against the wall in the area that you want to install it, and use a pencil to trace the location of the four mounting holes onto the wall.
Install the switch onto a magnetic surface 1. Push each of the attaching pins into a locking pin. 2. Insert the attaching and locking pins into one of the mounting holes on the network switch, through a washer, and into a magnet. Note: To prevent the magnets from becoming loose, make sure that you position the magnet so that the flat side is against the network switch.
Mount the switch onto a DIN rail 1. With the flat side of the DIN rail positioned against the network switch, line up the holes on the DIN rail with the holes on the switch. 2. Insert the DIN-rail screws through the DIN rail and into the network switch. (figure 3) 3.
