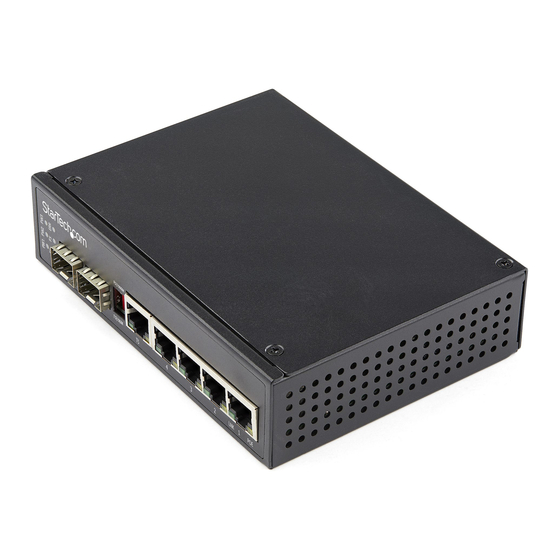

StarTech.com IES1G52UPDIN Quick Start Manual

5 Port Unmanaged Industrial-Grade Switch 10/100/1000 Mbps + 2 Open SFP & DIN Input

Product Diagram (IES1G52UPDIN)

Front View
2 3
1
5
Side View
9
Component
• Color - Green
• DIN P3 (top), Terminal P2 (middle), Terminal P1
Power (PW) LED
(bottom)
1
Indicators
• On - PW1/2/3 is connected
• Off - PW1/2/3 is not connected
• Color - Amber
2 RLY LED Indicator • On - Alarm Relay short
• Off - Alarm Relay open
• Color - Green
• F5 (top), F6 (bottom)
F5/6 Port LED
3 • On - SFP link/connection is detected
Indicators
• Off - SFP link/connection is not detected
• Flashing - SFP is active
To view manuals, FAQs, videos, drivers, downloads, technical drawings, and more, visit www.startech.com/support.
4
6
7 8
10 11
Function
• Connect any Network Device to provide an Ethernet
Connection to up to 4 Network Devices
• Provide a Power over Ethernet (PoE) Connection to 4
4 PoE Ports
Devices
• Maximum PoE power budget is 30W per port up to a
total overall power budget of 126W
SFP Slots F6 (Left) and
5 • Supports 100/1000Base-X SFP Transceiver Modules
F5 (Right)
6 DIP Switches • Enable SFP Slot F5 or T5 Network Port
• Provide an Ethernet Connection to one Network
Device
7
Non-PoE Port
• Connect using a Fiber or Copper Network Cable
• Indicates the link and PoE Powered Device (PD) status
LNK(Green)
• On - Network connection detected
PoE Port LED
8
• Off - Network connection not detected
Indicators
PoE (Amber)
• On - PoE PD is detected
• Off - PoE PD is not detected
9 Din Power Port • Connect a DIN Connector Terminated Power Supply
• Provides power to the PoE Ports
Terminal Block Power
10
Input Port
• Supported power input voltage range is 48-56V
• Attach a Grounding Wire to protect Network
11 Grounding Screw
Equipment

Requirements

For the latest requirements, please visit www.startech.com/IES1G52UPDIN.
• DC Power Supply x (up to) 2
• (Optional) DIN Connector Terminated Power Supply x 1
• PoE Powered Device x (up to) 4
• RJ45 Terminated UTP/STP Cat 5e (or better) Network Cable x (up to) 5
• MSA-Compliant 100/1000Base-X SFP Transceiver Module x (up to) 2
• Fiber Cable x (up to) 2
• Earth Ground Connection x 1
Quick-Start Guide
Manual Revision: June 10, 2020
