Models 110, 111 & 112
Calibration Information
User-Replaceable Parts

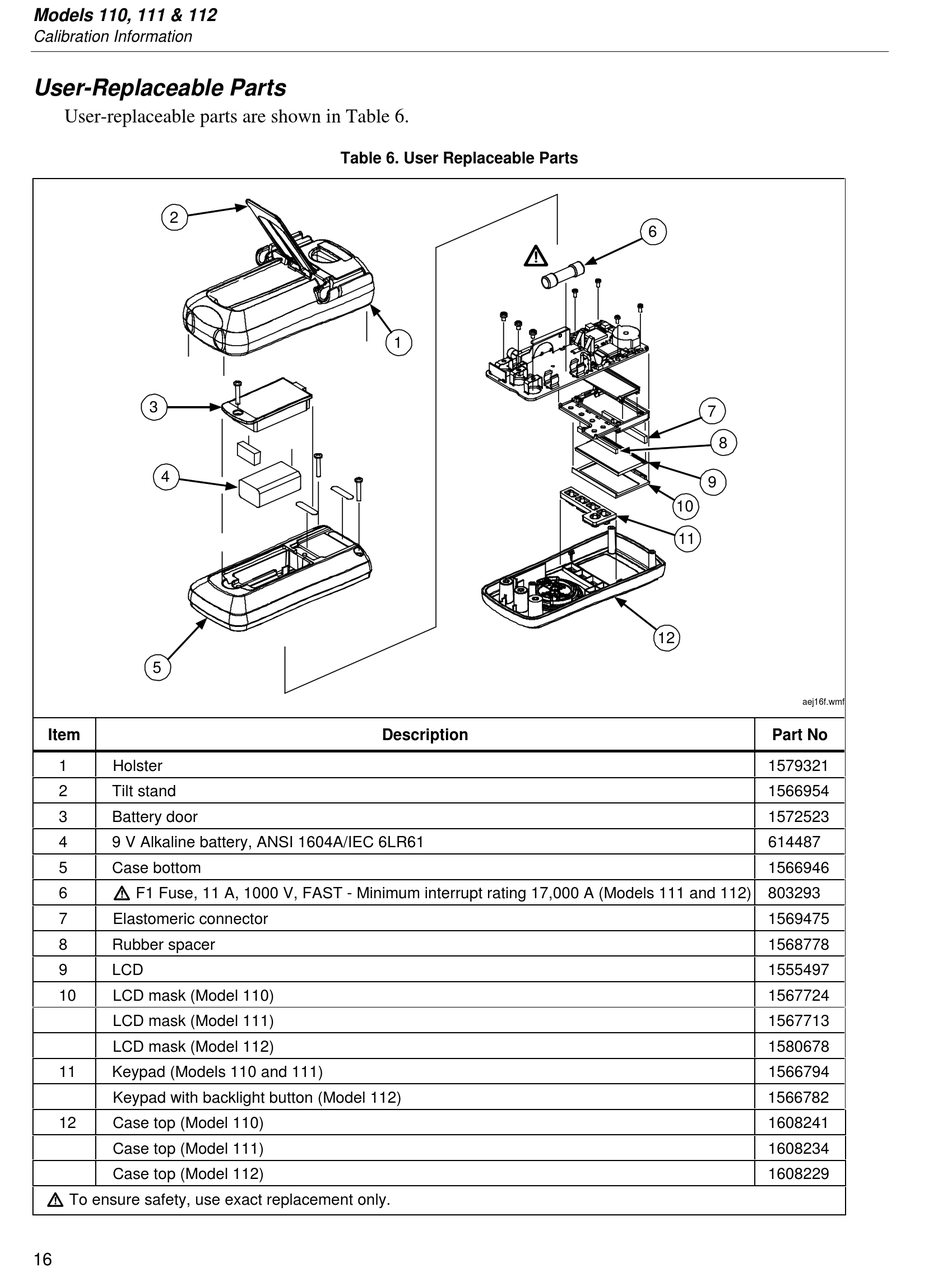

User-replaceable parts are shown in Table 6.
2
3
4
5
Item
1
Holster
2
Tilt stand
3
Battery door
4
9 V Alkaline battery, ANSI 1604A/IEC 6LR61
5
Case bottom
W F1 Fuse, 11 A, 1000 V, FAST - Minimum interrupt rating 17,000 A (Models 111 and 112) 803293
6
7
Elastomeric connector
8
Rubber spacer
9
LCD
10
LCD mask (Model 110)
LCD mask (Model 111)
LCD mask (Model 112)
11
Keypad (Models 110 and 111)
Keypad with backlight button (Model 112)
12
Case top (Model 110)
Case top (Model 111)
Case top (Model 112)
W To ensure safety, use exact replacement only.
16
Table 6. User Replaceable Parts
1
Description
6
7
8
9
10
11
12
aej16f.wmf
Part No
1579321
1566954
1572523
614487
1566946
1569475
1568778
1555497
1567724
1567713
1580678
1566794
1566782
1608241
1608234
1608229
