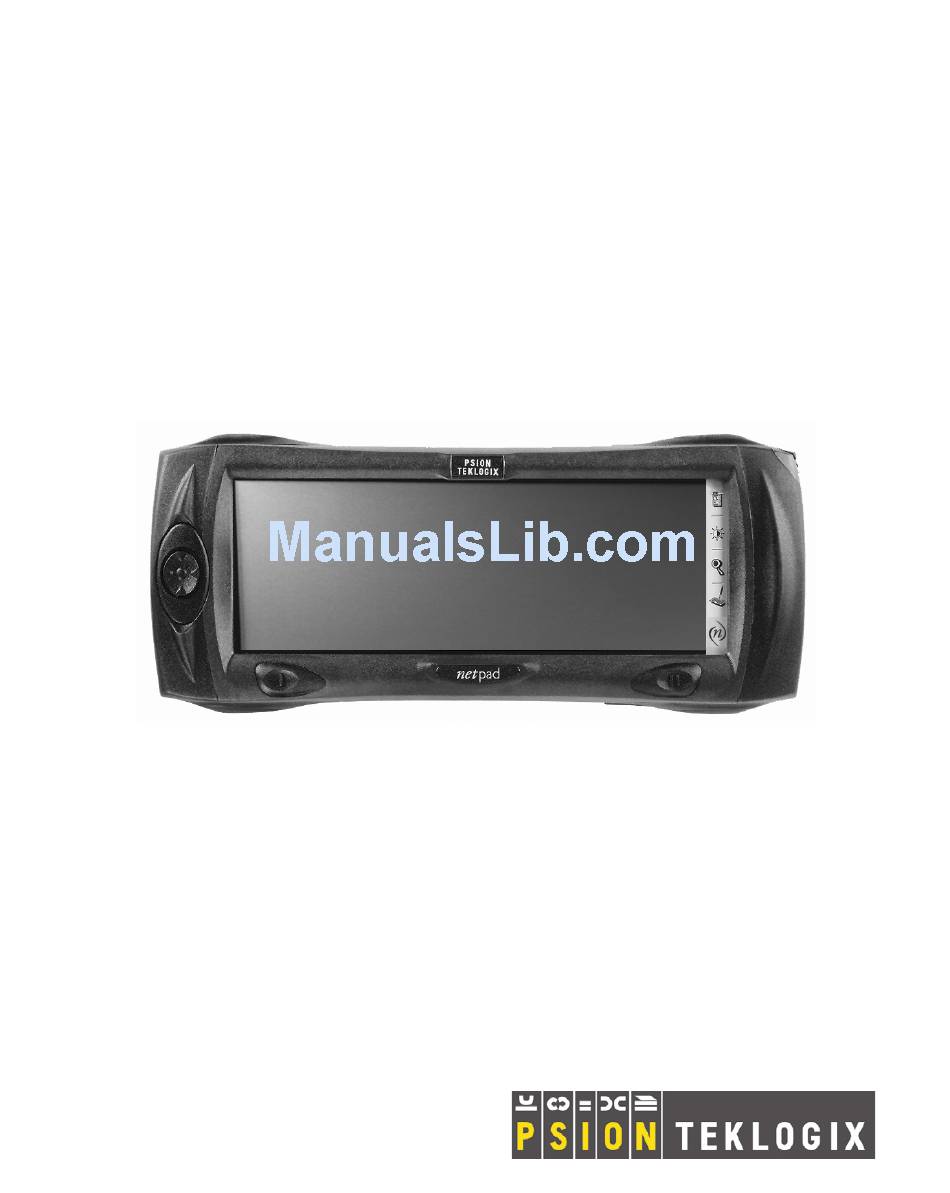

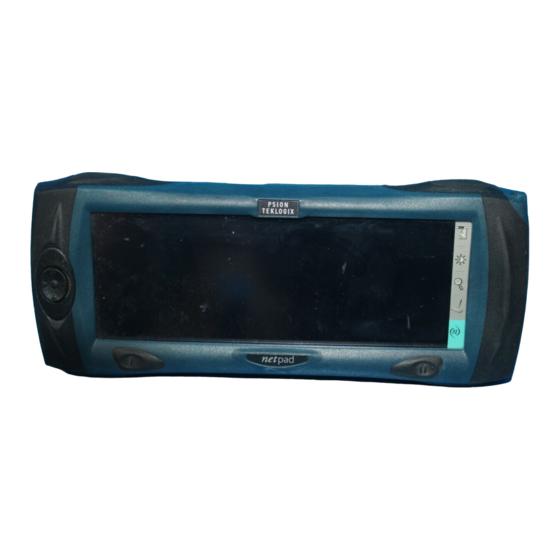

netpad
Windows CE .NET 4.2
User Manual
June 1, 2004 P/N 8000021.A
ISO 9001 Certified
Quality Management System

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Psion and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Psion Teklogix Psion

  • Page 1 netpad Windows CE .NET 4.2 User Manual June 1, 2004 P/N 8000021.A ISO 9001 Certified Quality Management System...
  • Page 2 © Copyright 2004 by Psion Teklogix Inc., Mississauga, Ontario, Canada This document and the information it contains is the property of Psion Teklogix Inc., is issued in strict confidence, and is not to be reproduced or copied, in whole or in part, except for the sole purpose of promoting the sale of Psion Teklogix manufac- tured goods and services.
  • Page 3 Psion Teklogix warrants a return-to-factory warranty for a period of one year. In some regions, the warranty exceeds this period. Please contact your local Psion Teklogix office for details. For a list of offices, please refer to Appendix A: “Support Services And Worldwide Offices”. The warranty on Psion Teklogix manufactured...
  • Page 5: Table Of Contents

    Power Properties ......16 2.3.2.1 Main Battery ..... . 17 Psion Teklogix netpad Windows CE .NET 4.2 User Manual...
  • Page 6 Serial Pinouts And Cables ......45 3.2.1 Serial Port Pinout ......45 Psion Teklogix netpad Windows CE .NET 4.2 User Manual...
  • Page 7 4.3.2.10 Interleaved 2 Of 5 ....75 4.3.2.11 MSI Plessey ..... . 76 Psion Teklogix netpad Windows CE .NET 4.2 User Manual...
  • Page 8 Tips On Using ActiveSync Help ....98 Working With Your Files ......99 Psion Teklogix netpad Windows CE .NET 4.2 User Manual...
  • Page 9 7.4.2.2 Configuring A GPRS Connection ..140 Internet And E-Mail Settings ..... . 145 Psion Teklogix netpad Windows CE .NET 4.2 User Manual...
  • Page 10 Times Aren’t Correct In The Time Program ..169 9.1.2 If You Forget Your Password ....169 Psion Teklogix netpad Windows CE .NET 4.2 User Manual...
  • Page 11 10.4 Regulatory Information: Agere 802.11b PC Card ... 190 10.5 Regulatory Information: Cisco Air350 PC Card ... . 192 Psion Teklogix netpad Windows CE .NET 4.2 User Manual...
  • Page 12 ......... . . I viii Psion Teklogix netpad Windows CE .NET 4.2 User Manual...
  • Page 13: Program License Agreements

    ICROSOFT ICENSE GREEMENT You have acquired a device (“DEVICE”) that includes software licensed by Psion Teklogix Inc. from Microsoft Licensing Inc. or its affiliates (‘MS”). Those installed software products of MS origin, as well as associated media, printed materials, and “online”...
  • Page 14 SOFTWARE, including the U.S. Export Administration Regulations, as well as end-user, end-use and destination restrictions issued by U.S. and other governments. For addi- tional information see http://www.microsoft.com/exporting/. Psion Teklogix netpad Windows CE .NET 4.2 User Manual...
  • Page 15 PRODUCT(S), INCLUDING WITHOUT LIMITATION) ANY WARRANTIES OR MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE. iii. In no event will licensor or its suppliers be liable for consequential, incidental or special damages. Psion Teklogix netpad Windows CE .NET 4.2 User Manual...
  • Page 16 The software included in the Cisco Adapter and Driver Software and any related documentation constitutes the confidential information of licensor or its suppliers and cannot be disclosed to any third parties. Psion Teklogix netpad Windows CE .NET 4.2 User Manual...
  • Page 17 13591 Aix-En-Provence Cedex 3; France Type of Equipment: Information Technology Equipment Equipment Class: Commercial and Light Industrial Manufacturer: Psion Teklogix Inc. Ontario Legal Representative in Europe: Psion Teklogix S.A. France xiii Psion Teklogix netpad Windows CE .NET 4.2 User Manual...
  • Page 18: Approvals And Safety Summary

    BP 421000 13591 Aix-En-Provence Cedex 3; France Type of Equipment: Information Technology Equipment Equipment Class: Commercial and Light Industrial Manufacturer: Psion Teklogix Inc. Ontario Legal Representative in Europe: Psion Teklogix S.A. France Psion Teklogix netpad Windows CE .NET 4.2 User Manual...
  • Page 19 2002 Standard(s) to which Conformity is Declared: The netpad and Serial Docking Station, supplied by Psion Teklogix, has been tested and found to comply with FCC PART 15, SUBPART B - UNINTENTIONAL RADIA- TORS, CLASS B COMPUTING DEVICES FOR HOME & OFFICE USE.
  • Page 20 Dette udstyr opfylder de Væsentlige krav i EU's direktiv 1999/5/EC om Radio- og teleterminaludstyr. (Erklæring findes på: www.psionteklogix.com). Dette utstyret er i overensstemmelse med hovedkravene i R&TTE-direktivet (1999/5/EC) fra EU. (Erklæring finnes på: www.psionteklogix.com). Psion Teklogix netpad Windows CE .NET 4.2 User Manual...
  • Page 21 If you are using the equipment with a mains adaptor, plug it into an outlet which is on a different circuit from that to which the receiver is connected. • Consult an experienced radio/TV technician for help. xvii Psion Teklogix netpad Windows CE .NET 4.2 User Manual...
  • Page 22 FCC RF exposure guidelines. ISCO ICENSE GREEMENT For minimum terms and conditions of the Cisco End User License Agreement, please refer to page xi, Program License Agreements. xviii Psion Teklogix netpad Windows CE .NET 4.2 User Manual...
  • Page 23 Psion Teklogix dealer. If the user modifies the equipment or its peripherals in any way, and these modifica- tions are not approved by Psion Teklogix, the FCC may withdraw the user’s right to operate the equipment. MISSIONS...
  • Page 24 BATTERIES ARE CONSIDERED HAZARDOUS WASTE. Used batteries must be disposed of in accordance with the manufacturer’s instructions, taken to an appropriate local battery recycling facility, or returned to one of the following Psion Teklogix offices for proper disposal. Teklogix Inc.
  • Page 25 TO PREVENT the battery from leaking acid, generating heat or Warning: exploding, adhere to the precautions listed below. • Use only with the authorized Psion Teklogix power adaptor. • Do not dispose of in fire. • Do not incinerate or subject battery cells to temperatures in excess of 100°C (212°F).
  • Page 26 • Do not use in areas where static electricity is greater than what the manufac- turer guarantees. • Keep batteries out of reach of children. xxii Psion Teklogix netpad Windows CE .NET 4.2 User Manual...
  • Page 27 1.4 Caring For The netpad ......6 1.5 Additional Programs And Third Party Applications... . 8 Psion Teklogix netpad Windows CE .NET 4.2 User Manual...
  • Page 29: Chapter 1: Introduction

    Chapter 1: Introduction About This Manual 1.1 About This Manual This manual provides information on the operation and features of the Psion Teklogix netpad. For additional information on configuring programs, refer to the Windows CE .NET Help online document by tapping the icon located on the top right of the program’s menu bar, or refer to the documentation supplied...
  • Page 30: Text Conventions

    Appendix A: Support Services And Worldwide Offices presents information for technical support, contacts and the Psion Teklogix worldwide web address. 1.2 Text Conventions Note: Notes highlight additional helpful information.
  • Page 31: Applications Installed On The Netpad

    Back up your netpad files to the PC, then restore them from the PC to the netpad again, if needed. • Browse the Internet using the PC’s connection. For detailed information, please refer to Chapter 6: “Connecting netpad To A PC”. Psion Teklogix netpad Windows CE .NET 4.2 User Manual...
  • Page 32: Caring For The Netpad

    Warning: Under no circumstances use chemical solvents to clean the screen. Charging To avoid damage to the netpad or the netpad battery packs, use only Psion Teklogix approved chargers and docking stations (see Chapter 8: “netpad Accessories”). Backup Battery The netpad has a rechargeable backup battery designed to retain data while the main battery pack is charging or changed over.
  • Page 33 The netpad is designed to operate in humidity ranging from 0 to 95%. Use of the netpad in environments with condensing humidity or humidity outside these limits may result in damage to the netpad. Psion Teklogix netpad Windows CE .NET 4.2 User Manual...
  • Page 34: Additional Programs And Third Party Applications

    1.5 Additional Programs And Third Party Applications Psion Teklogix has partnered with a number of companies to provide a suite of con- nectivity and database tools for the netpad. Details are available on the Psion Tek- logix Partner Program web site at: http://partners.psionteklogix.com/partners/.
  • Page 35 2.7 Finding And Using The Stylus..... . . 29 2.8 The Command Icons, Control Panel, And Toolbar ... . 30 Psion Teklogix netpad Windows CE .NET 4.2 User Manual...
  • Page 36 2.11.6.1 Dialogue Buttons ....39 2.11.7 Copying Information Between Programs ..39 Psion Teklogix netpad Windows CE .NET 4.2 User Manual...
  • Page 37: Chapter 2: Getting Started

    It is available in variants with internal GSM/GPRS, Bluetooth, and 802.11b radios, and scanners. Figure 2.1 netpad Front Figure 2.2 Back Of netpad Psion Teklogix netpad Windows CE .NET 4.2 User Manual...
  • Page 38: Preparing The Netpad For Use

    The antenna should be installed as shown in Figure 2.4 below. To install the antenna turn it counter clockwise; to remove the antenna turn it clockwise. Figure 2.4 Antenna Insertion And Removal Psion Teklogix netpad Windows CE .NET 4.2 User Manual...
  • Page 39: Use Of The Soft Protective Case

    The user must not modify the case in any way. Figure 2.6 Protective Case Position On Body Psion Teklogix netpad Windows CE .NET 4.2 User Manual...
  • Page 40: Power Management

    Before you can use the netpad you must fit the battery—slide it into place until it clicks, as shown in Figure 2.7 on page 15. Important: Always switch off the netpad before removing the main battery. Psion Teklogix netpad Windows CE .NET 4.2 User Manual...
  • Page 41: Charging The Netpad Battery Pack

    Always switch off the netpad before removing the main battery. Never remove the battery from the netpad while it is in the docking station. Never use a netpad without a battery in the docking station. Psion Teklogix netpad Windows CE .NET 4.2 User Manual...
  • Page 42: Battery Life

    The backup battery is not user-replaceable. If the backup battery requires replace- ment, the netpad must be returned to a Psion Teklogix approved service centre. Important: If both the main battery pack and the backup battery are allowed to fully discharge, you will lose all your information on the inter- nal disk.
  • Page 43: Main Battery

    Table 2.8 Power Icons’ Charge States 2.3.2.1 Main Battery To check the battery power status, click on the Main Battery tab. This screen describes the main battery, and its state. Figure 2.9 Power Properties: Main Battery Psion Teklogix netpad Windows CE .NET 4.2 User Manual...
  • Page 44: Internal Battery

    The Schemes tab accesses the power states: Dim, Stand-By and Suspend. These states can be enabled after an elapsed time range, that can be set depending on whether the netpad is on battery power or external power. Figure 2.11 Power Properties: Schemes Psion Teklogix netpad Windows CE .NET 4.2 User Manual...
  • Page 45 AC Power or Battery Power. You can specify one set of values when the unit is running on AC power, and another set when the unit is running on battery power. Psion Teklogix netpad Windows CE .NET 4.2 User Manual...
  • Page 46 When the netpad enters the Dim state, it begins to monitor the time speci- fied in the Switch to Stand-By menu. Press any navigation button or tap the screen the bring the netpad out of Dim state. Psion Teklogix netpad Windows CE .NET 4.2 User Manual...
  • Page 47 The netpad then begins to monitor the Suspend time. Press the power button to put the netpad into Stand-By state. Press the button again to wake up the unit. Figure 2.15 Power Schemes: Stand-By Psion Teklogix netpad Windows CE .NET 4.2 User Manual...
  • Page 48 Switch to Suspend menu. Note: When the netpad is in suspend state, any network connection is broken. To resume, you must re-establish the network connection. Figure 2.16 Power Schemes: Suspend Psion Teklogix netpad Windows CE .NET 4.2 User Manual...
  • Page 49: Battery Settings

    D0 (active), D1 (Dim), D2 (Stand-By), D3 and D4 (Suspend), and Power loss (no power). The device names are represented as follows: \Windows\sa_lcd2.dll Display driver. NDS0 NDIS driver. PWR1 Power button, which passively supports power management to control the system power states. Psion Teklogix netpad Windows CE .NET 4.2 User Manual...
  • Page 50: Flight Mode Settings

    Note: Remember to turn Flight Mode OFF when the radio or PCMCIA card is needed. To open Flight Mode Settings in order to disable it, click on the airplane icon in the taskbar. Figure 2.19 Flight Mode Settings Psion Teklogix netpad Windows CE .NET 4.2 User Manual...
  • Page 51: Multimedia Cards

    The SIM card slot is located behind the Card Slot door on the right-hand side of the netpad; and is located below the Multimedia card (MMC) slot (see Figure 2.21 on page 26). Psion Teklogix netpad Windows CE .NET 4.2 User Manual...
  • Page 52: Inserting The Sim Card

    Figure 2.22 on page 27, with the notch of the card on the left, trailing side. The cross-hatching on the card will be facing down. • Close the door. Psion Teklogix netpad Windows CE .NET 4.2 User Manual...
  • Page 53: Removing The Sim Card

    Open the Card Slot door and grasp the card on the cross-hatch area (see Figure 2.23 on page 28), using a pair of tweezers, or long-nosed pliers. • Pull the card out carefully. Psion Teklogix netpad Windows CE .NET 4.2 User Manual...
  • Page 54: Turning On And Off

    Switch to Suspend timeout described on page 22). To continue using the netpad where you left off, switch the netpad on again using the On/Off button. See “Power Management” on page 14 for information on power setting options. Psion Teklogix netpad Windows CE .NET 4.2 User Manual...
  • Page 55: Finding And Using The Stylus

    Note: If the screen doesn’t respond to your taps, you may need to re-calibrate it. You can do this by holding down the On/Off button for 4 seconds. Psion Teklogix netpad Windows CE .NET 4.2 User Manual...
  • Page 56: The Command Icons, Control Panel, And Toolbar

    Right-clicking is inactive. Important: Battery life is considerably reduced when the brightness is increased. Psion Teklogix netpad Windows CE .NET 4.2 User Manual...
  • Page 57: Keypad Assignments

    Figure 2.26 on page 32 shows the dropdown lists of the keypad assignments. The default settings are: Button I: Enter Button II: Navigation Buttons: Up, Down, Left, and Right arrows. Psion Teklogix netpad Windows CE .NET 4.2 User Manual...
  • Page 58: How To Reset The Netpad

    MMC slot (see Figure 2.27 on page 33). 2. Press the On/Off button to restart the netpad—you will hear two beeps during boot-up to indicate the reset. Psion Teklogix netpad Windows CE .NET 4.2 User Manual...
  • Page 59: Performing A Hard Reset

    Note: Hard resetting the netpad may delete the partnership on the netpad. If that occurs, you may delete and re-create the partnership on the PC, or create another partnership with a new name. Refer to ActiveSync’s online help for details. Psion Teklogix netpad Windows CE .NET 4.2 User Manual...
  • Page 60: The Scanner

    3. CAUTION – Using controls or adjustments, or performing proce- dures other than those specified herein may result in hazardous radiation exposure. 4. CAUTION – The use of optical instruments with this product will increase eye hazard. Psion Teklogix netpad Windows CE .NET 4.2 User Manual...
  • Page 61: First Steps

    When you open a file, the correct program for this file is started automatically. You can also start programs by clicking on them from the Start Menu. You don’t have to close one program before opening another. The taskbar displays all open applications. Psion Teklogix netpad Windows CE .NET 4.2 User Manual...
  • Page 62: Programs And Files

    “Enable Pass- word Protection” is checked for a WarmBoot in the Password Properties application of the Control Panel. Following a warmboot, the Input Panel will open with the password dialogue. Psion Teklogix netpad Windows CE .NET 4.2 User Manual...
  • Page 63: Using Menus

    “dialogue” where you enter more information (see “Using Dialogues” on page 38). If a menu command is grey, it means that it’s not currently available; e.g. you cannot Copy unless you have first selected something to copy. Psion Teklogix netpad Windows CE .NET 4.2 User Manual...
  • Page 64: Using Dialogues

    (see Figure 2.29 on page 39). Tap on the tab, or move the highlight to the tab name, to go to that page. You can also move a dialogue around the screen by holding the stylus on the dialogue title bar and dragging it across the screen. Psion Teklogix netpad Windows CE .NET 4.2 User Manual...
  • Page 65: Dialogue Buttons

    Windows Explorer into a Wordpad document will not work because Wordpad will keep the Paste option greyed out until it detects that text is ready to be pasted. Psion Teklogix netpad Windows CE .NET 4.2 User Manual...
  • Page 67 3.2.1 Serial Port Pinout ..... . 45 3.2.2 Pins And Connections ....46 Psion Teklogix netpad Windows CE .NET 4.2 User Manual...
  • Page 69: Chapter 3: Docking Station And Serial Port

    To eject, press down on the release button at the top of the docking station. The netpad will be pushed up and out of the docking station. Psion Teklogix netpad Windows CE .NET 4.2 User Manual...
  • Page 70: Communications Settings

    The AutoLaunch ActiveSync checkbox enables the netpad to launch ActiveSync when it is seated in a docking station that is connected to an ActiveSync server. The ActiveSync icon appears in the netpad’s taskbar when AutoLaunch is enabled. Psion Teklogix netpad Windows CE .NET 4.2 User Manual...
  • Page 71: Serial Pinouts And Cables

    Looking at the side of the netpad with the screen facing up, or at the docking station upside-down, the following diagram shows the sequence of the pin numbers: Connector / Front view into device Note: There is a polarizing notch above pin 3. Psion Teklogix netpad Windows CE .NET 4.2 User Manual...
  • Page 72: Pins And Connections

    9-way pin is cut off. Note: An older (black-sleeved) null modem cable is not intended for modifica- tion, and does not have full-length wires to each pin on the 10-way plug. Psion Teklogix netpad Windows CE .NET 4.2 User Manual...
  • Page 73 Chapter 3: Docking Station And Serial Port Pins And Connections Function Ground Table 3.3 Standard 9-way D-plug RS-232 Pins Psion Teklogix netpad Windows CE .NET 4.2 User Manual...
  • Page 75 4.3.2.5 UPC/EAN ..... . . 69 4.3.2.6 UPC A ......71 Psion Teklogix netpad Windows CE .NET 4.2 User Manual...
  • Page 76 4.3.2.12 Discrete 2 Of 5 ....77 4.3.3 Translations......78 Psion Teklogix netpad Windows CE .NET 4.2 User Manual...
  • Page 77: Chapter 4: Configuring The Netpad

    Some applications do not support screen rotation and rotating the screen may cause some programs to become difficult to use. Some programs, such as Control Panel, may not support rotation at all. Psion Teklogix netpad Windows CE .NET 4.2 User Manual...
  • Page 78: Entering Owner And Password Information

    Current Time box, type in the time or use the up and down arrows to set the time. 3. Click on the OK button and the time and date are saved. Psion Teklogix netpad Windows CE .NET 4.2 User Manual...
  • Page 79: Things To Do Next

    A successful connection will be indicated by a blue icon in the netpad’s taskbar. The netpad and the PC will also play sounds to indicate that they are connected, if sound is enabled on the devices. Psion Teklogix netpad Windows CE .NET 4.2 User Manual...
  • Page 80: Partnerships

    Infrared (IrDA) or Ethernet. 3. To Disconnect - You can disconnect any ActiveSync connection by double-clicking on the blue icon in the netpad’s taskbar and selecting the Disconnect button from the dialogue Psion Teklogix netpad Windows CE .NET 4.2 User Manual...
  • Page 81: Connecting With Infrared (Irda)

    4. Click on OK to save the network settings. 5. On the netpad, click on the Start button, then Programs, then Active- Sync, and select wireless from the ActiveSync menu. Psion Teklogix netpad Windows CE .NET 4.2 User Manual...
  • Page 82: Connecting Netpad To The Pc Using Activesync

    To change the connection type, click on the Change... button and select the connection from the dropdown list. • Serial Port 3 specifies using the RS-232 communications port on the netpad. Psion Teklogix netpad Windows CE .NET 4.2 User Manual...
  • Page 83 You can use ActiveSync to back up individual files, folders, or the netpad’s entire disk to the PC. It is possible to configure ActiveSync to automatically back up the netpad every time it synchronizes. Psion Teklogix netpad Windows CE .NET 4.2 User Manual...
  • Page 84: Backing Up To Multimedia Cards

    Menu soft key, or select Control Panel from the Start, then Settings menu. Initially, Date/Time should already be set, and possibly Password and PC Connection as well. You may wish to change other settings later. Some of the other options include: Psion Teklogix netpad Windows CE .NET 4.2 User Manual...
  • Page 85: Securing Your Information

    Note: It is not possible for anyone to copy information from or to your machine using Infrared, unless they are able to access its Infrared ‘Send’ and ‘Receive’ commands on the netpad. Psion Teklogix netpad Windows CE .NET 4.2 User Manual...
  • Page 86: Scanner Properties

    ON or OFF, or bring up a dialogue box. In some cases in order to com- plete the field in the dialogue box, you will need to activate the on-screen keyboard. Psion Teklogix netpad Windows CE .NET 4.2 User Manual...
  • Page 87: Options

    Time is measured in seconds, and a value of “0” (zero) disables the parameter. Note: To remove the scan result from the screen before the Scan Result Time has expired, perform an unsuccessful scan. Psion Teklogix netpad Windows CE .NET 4.2 User Manual...
  • Page 88: Double Click

    ASCII value of the character desired from 0 to 255 by clicking on the on-screen keyboard keys (both upper and lower case). The default character is 00 and is input with the <Esc> key. Psion Teklogix netpad Windows CE .NET 4.2 User Manual...
  • Page 89: Options

    Each bar code symbology has an Enabled parameter that can be toggled ON or OFF. To improve the decode speed and perform- ance, enable only those codes that are required by the application. Psion Teklogix netpad Windows CE .NET 4.2 User Manual...
  • Page 90: Code 39

    00 and is input with the <Esc> key. To append a control charac- ter (in the range of 0 to 32 ASCII) as a prefix, press the <Ctrl> key and the corre- sponding letter (a=0, b=1, c=2, etc.). Psion Teklogix netpad Windows CE .NET 4.2 User Manual...
  • Page 91 C32 Prefix If this parameter is ON, the prefix character “A” is added to the Code 32 bar code. If this parameter is ON, Convert C39 to C32 must be enabled. Psion Teklogix netpad Windows CE .NET 4.2 User Manual...
  • Page 92 Lengths may be set for any length, or for one or two discrete lengths. Length 1 This option limits decodes to only those symbols of the selected length. Length 2 This option limits decodes to only those symbols of either of two selected lengths. Psion Teklogix netpad Windows CE .NET 4.2 User Manual...
  • Page 93: Code 128

    64. DECODED SETTINGS USS-128 When using Code 128, you can choose the variation or type of bar code variation the scanner will recognize. The options are: USS-128, UCC/EAN-128, or ISBT 128. Psion Teklogix netpad Windows CE .NET 4.2 User Manual...
  • Page 94: Ean 13

    FIELD SIZE / CHARS For the parameter settings in this menu, please refer to “FIELD SIZE / CHARS” on page 64. 4.3.2.4 EAN 8 Figure 4.7 EAN 8 Bar Code Settings Psion Teklogix netpad Windows CE .NET 4.2 User Manual...
  • Page 95: Upc/Ean

    Extend is disabled, this option has no effect. 4.3.2.5 UPC/EAN Figure 4.8 UPC/EAN Bar Code Settings FIELD SIZE / CHARS For the parameter settings in this menu, please refer to “FIELD SIZE / CHARS” on page 64. Psion Teklogix netpad Windows CE .NET 4.2 User Manual...
  • Page 96 There is an inverse relationship between security and scanner aggressiveness, therefore only choose the level of security needed for the application. Psion Teklogix netpad Windows CE .NET 4.2 User Manual...
  • Page 97: Upc A

    4.3.2.6 UPC A Figure 4.9 UPC A Bar Code Settings FIELD SIZE / CHARS For the parameter settings in this menu, please refer to “FIELD SIZE / CHARS” on page 64. Psion Teklogix netpad Windows CE .NET 4.2 User Manual...
  • Page 98: Upc E

    For the parameter settings in this menu, please refer to “FIELD SIZE / CHARS” on page 64. DECODED SETTINGS Xmit UPC-E Check Digit If this parameter is ON, the check digit is included with the decoded bar code data. Psion Teklogix netpad Windows CE .NET 4.2 User Manual...
  • Page 99: Codabar

    4.3.2.8 Codabar Figure 4.11 Codabar Bar Code Settings FIELD SIZE / CHARS For the parameter settings in this menu, please refer to “FIELD SIZE / CHARS” on page 64. Psion Teklogix netpad Windows CE .NET 4.2 User Manual...
  • Page 100: Code 93

    4.3.2.9 Code 93 Figure 4.12 Code 93 Bar Code Settings FIELD SIZE / CHARS For the parameter settings in this menu, please refer to “FIELD SIZE / CHARS” on page 64. Psion Teklogix netpad Windows CE .NET 4.2 User Manual...
  • Page 101: Interleaved 2 Of 5

    When enabled, this parameter checks the integrity of an Interleaved 2 of 5 symbol to verify that it complies with a specific algorithm, either USS (Uniform Symbology Specification) or OPCC (Optical Product Code Council). Psion Teklogix netpad Windows CE .NET 4.2 User Manual...
  • Page 102: Msi Plessey

    4.3.2.11 MSI Plessey Figure 4.14 MSI Plessey Bar Code Settings FIELD SIZE / CHARS For the parameter settings in this menu, please refer to “FIELD SIZE / CHARS” on page 64. Psion Teklogix netpad Windows CE .NET 4.2 User Manual...
  • Page 103: Discrete 2 Of 5

    Set Lengths For the parameter settings in this menu, please refer to “Set Lengths” on page 66. 4.3.2.12 Discrete 2 Of 5 Figure 4.15 Discrete 2 Of 5 Bar Code Settings Psion Teklogix netpad Windows CE .NET 4.2 User Manual...
  • Page 104: Translations

    For the parameter settings in this menu, please refer to “Set Lengths” on page 66. 4.3.3 Translations Types The Type field indicates what type of translation will occur. Clicking on Add will open the dialogue page to complete the fields. Psion Teklogix netpad Windows CE .NET 4.2 User Manual...
  • Page 105 Output string. This string entry parameter can be null, or it may contain any combination of standard and special characters (e.g., function keys, <ENTER>, etc.). Psion Teklogix netpad Windows CE .NET 4.2 User Manual...
  • Page 107 5.12 The Storage Manager ......94 Psion Teklogix netpad Windows CE .NET 4.2 User Manual...
  • Page 109: Chapter 5: Files, Folders, And Programs

    Open the Start Menu by clicking on the Start button in the bottom left corner of the screen. Click on Programs to display all the programs available. Click on the name of the program you wish to run. Psion Teklogix netpad Windows CE .NET 4.2 User Manual...
  • Page 110: Closing Programs/Files

    If you use netpad files with a PC, you may wish to create folders that match equiva- lent folders on your PC. This will make transferring files between the netpad and PC easier. Psion Teklogix netpad Windows CE .NET 4.2 User Manual...
  • Page 111: Creating New Files

    Files that have been created on a PC and then transferred to the netpad will also be “read-only” files. Note: If you transfer a “read-only” file to another machine, it can be viewed, and the “read-only” attribute can be removed. Psion Teklogix netpad Windows CE .NET 4.2 User Manual...
  • Page 112: Managing Folders

    File menu. You can also right-click and select Delete. Important: If you are deleting folders, remember that the entire contents of the folders (including all the other folders contained within them and all their files) will also be deleted. Psion Teklogix netpad Windows CE .NET 4.2 User Manual...
  • Page 113: The Flash Folder

    PC or place in another folder within the Flash folder. The Flash folder has device name ‘DSK1:’ in the Storage Manager (see page 94). Psion Teklogix netpad Windows CE .NET 4.2 User Manual...
  • Page 114: Total Recall

    Restore, View, or Delete a profile, a combo box with profile names will appear. If you have not yet created any profiles, you will be alerted that no profiles were found. Psion Teklogix netpad Windows CE .NET 4.2 User Manual...
  • Page 115: The Profile Information Page

    The Profile Settings in bold text show the following information about this profile’s platform and cannot be modified: Image: indicates under which Psion Teklogix product this profile is being generated. OS Version: shows the version of the Windows CE .NET operating system.
  • Page 116: Profile Location

    When this option is selected, the Databases and Registry options have a grey check next to them, indicating that they are automatically selected as well since some files are dependent on this information. Psion Teklogix netpad Windows CE .NET 4.2 User Manual...
  • Page 117 When your selections are complete, press the Next> button to continue, and the Total Recall program will process all the selections to create a list of the files that have been selected for backup for this profile. Psion Teklogix netpad Windows CE .NET 4.2 User Manual...
  • Page 118: The View Selections Page

    PROFILENAME_err.txt If you are performing a Restore, you will be alerted that once the operation has been performed the unit will reboot automatically. Psion Teklogix netpad Windows CE .NET 4.2 User Manual...
  • Page 119: Checking System Memory Use

    For details, please refer to “Multimedia Cards” on page 25. If a multimedia card contains additional programs: their icons will be available in the Storage Card folder. Psion Teklogix netpad Windows CE .NET 4.2 User Manual...
  • Page 120: The Storage Manager

    Double-click on the Storage icon in Control Panel to open the Storage Manager dialogue: The Storage Manager shows information about the storage card that is present in the netpad’s MMC slot, including capacity, sector size, and partition properties. Psion Teklogix netpad Windows CE .NET 4.2 User Manual...
  • Page 121 6.6.2.1 Creating The Partnership ....103 6.6.3 Using An Existing Partnership....105 Psion Teklogix netpad Windows CE .NET 4.2 User Manual...
  • Page 123: Chapter 6: Connecting Netpad To A Pc

    Explorer, but are not the only possibilities. Note: You can change the look of Explorer using options in the View menu; therefore, the appearance of your own screen may vary slightly from those shown. Psion Teklogix netpad Windows CE .NET 4.2 User Manual...
  • Page 124: Getting Help

    From the Find page you can search for an exact word or phrase contained within a topic, such as ‘serial port’ to find all the topics in the online Help containing this phrase. Psion Teklogix netpad Windows CE .NET 4.2 User Manual...
  • Page 125: Working With Your Files

    If necessary, the file is converted into the correct PC format. The file can be used in the same way as any other file on your PC. Psion Teklogix netpad Windows CE .NET 4.2 User Manual...
  • Page 126: Copying A File Using Copy And Paste

    When you delete a file on your netpad from your PC, it is perma- nently removed from the netpad’s drive. The file cannot be retrieved from the Windows Recycle Bin, which only stores files deleted from your PC’s drives. Psion Teklogix netpad Windows CE .NET 4.2 User Manual...
  • Page 127: Opening Netpad Files From Your Pc

    6.5.2 Performing Regular Backups You can set ActiveSync to automatically backup when the device connects, so you do not need to back up your netpad manually. Psion Teklogix netpad Windows CE .NET 4.2 User Manual...
  • Page 128: Synchronizing Your Netpad

    You can synchronize the Calendar, Channels, Con- tacts, Files, Inbox, Pocket Access and Tasks. ActiveSync will tell you to which desktop applications each of these relates. Psion Teklogix netpad Windows CE .NET 4.2 User Manual...
  • Page 129: Creating The Partnership

    Sync, and select direct from the ActiveSync menu. This will connect the netpad to the PC and bring up the ActiveSync dialogue on the PC. The New Partnership screen allows you to select what types of information will be synchronized. Psion Teklogix netpad Windows CE .NET 4.2 User Manual...
  • Page 130 More information on customized settings can be found by referring to ActiveSync’s online help. 7. Click Next. 8. ActiveSync will display the Setup Complete screen with further infor- mation on using ActiveSync. Click Finish. Psion Teklogix netpad Windows CE .NET 4.2 User Manual...
  • Page 131: Using An Existing Partnership

    Note: Hard resetting the netpad will delete the partnership on the netpad. You may delete and re-create the partnership on the PC, or create another partnership with a new name. Refer to ActiveSync’s online help for more details on this operation. Psion Teklogix netpad Windows CE .NET 4.2 User Manual...
  • Page 133 7.5.1.4 If You Don’t Have An Internet/E-mail Account . . .147 7.5.1.5 Glossary Of Terms....147 Psion Teklogix netpad Windows CE .NET 4.2 User Manual...
  • Page 134 7.5.3.4 Setting Up The Modem ....154 7.5.3.5 Setting Up The E-mail Program ... 156 Psion Teklogix netpad Windows CE .NET 4.2 User Manual...
  • Page 135: Introduction

    1. When the netpad is turned on, the radio configuration icon should be in the taskbar. It may take a few minutes to appear. The configuration dia- logue will also display. Psion Teklogix netpad Windows CE .NET 4.2 User Manual...
  • Page 136 5. The Wireless Properties dialogue opens for a new network. Note: Double-click on an existing network in the list to open the Wireless Proper- ties dialogue and display the parameters of the existing network. Psion Teklogix netpad Windows CE .NET 4.2 User Manual...
  • Page 137 RADIUS Server on the wired network. In addition to this, the access point must support IEEE 802.1X and must be configured appropriately. 7. Selecting Advanced in the Wireless Information tab will allow you to configure the types of networks for connections. Psion Teklogix netpad Windows CE .NET 4.2 User Manual...
  • Page 138 IP Address tab, you can specify the IP address or have it automatically assigned. 10. By selecting the Name Servers tab in the radio card’s Settings menu, you can configure DNS and WINS servers. Psion Teklogix netpad Windows CE .NET 4.2 User Manual...
  • Page 139 12. Click on OK to save your settings. These settings can also be changed by entering the Control Panel and clicking on Network and Dial-Up Connections, then on the adaptor name. Psion Teklogix netpad Windows CE .NET 4.2 User Manual...
  • Page 140: Cisco 802.11B Ds Ss Pc Card Radio

    If you require more detailed information on AUC parameter configuration, please go to the Cisco product documentation web site: http://www.cisco.com/en/US/prod- ucts/hw/wireless/ps4555/prod_technical_documentation.html. To configure the Aironet radio parameters, open the Aironet Client Utility (ACU) menu from the Control Panel. Psion Teklogix netpad Windows CE .NET 4.2 User Manual...
  • Page 141: Profiles

    Click on OK on the Properties screen to save any changes you have made. If the profile you just edited is the active profile and your client adaptor is inserted, the changes are applied immediately. Psion Teklogix netpad Windows CE .NET 4.2 User Manual...
  • Page 142 This logical name makes it easy to determine the devices connected without the need to memorize every MAC address. Keep in mind that each terminal on the network must have a unique client name. Psion Teklogix netpad Windows CE .NET 4.2 User Manual...
  • Page 143 Cisco and is designed to operate with Cisco access points. It is encapsu- lated in an EAP (Extensible Authentication Protocol) packet used in conjunction with the 802.1X standard to authenticate users at the MAC layer. The 802.1X stan- Psion Teklogix netpad Windows CE .NET 4.2 User Manual...
  • Page 144 The access point attempts to decrypt the encrypted packet and sends an authentication response packet indicating the success or failure of the decryption back to the netpad. Psion Teklogix netpad Windows CE .NET 4.2 User Manual...
  • Page 145 The LEAP User Name, User Password, and User Domain are stored in the PC card’s volatile memory; they are temporary and need to be entered each time power has been removed from the PC card. Psion Teklogix netpad Windows CE .NET 4.2 User Manual...
  • Page 146 This parameter defines the power level at which your netpad transmits. The value assigned must not be higher than that allowed by your country’s regulatory agency (FCC in the U.S., DOC in Canada, ETSI in Europe, MKK in Japan, etc.) Psion Teklogix netpad Windows CE .NET 4.2 User Manual...
  • Page 147 Cisco product documentation web site: http://www.cisco.com/en/US/products/hw/wireless/ps4555/products_insta llation_and_configuration_guide_chapter09186a008015486c.html. Refer to the IEEE 802.11b Standard for more information on 802.1X authentication and to the following URL for additional information on RADIUS servers: http://www.cisco.com/univercd/cc/td/doc/product/soft- ware/ios120/12cgcr/secur_c/scprt2/scrad.htm. Psion Teklogix netpad Windows CE .NET 4.2 User Manual...
  • Page 148: Firmware

    The ACU Status screen indicates if MIC is supported by the client adaptor’s driver and is enabled on the access point. Note: If you enable MIC on the access point, your client adaptor’s driver must support MIC; otherwise, the client cannot associate. Psion Teklogix netpad Windows CE .NET 4.2 User Manual...
  • Page 149: Statistics

    The Survey screen in the Aironet Client Utility menu shows the radio signal strength and quality. The type of unit used to display the signal can be set by clicking on the Setup button to open the ACU Options menu, shown next. Psion Teklogix netpad Windows CE .NET 4.2 User Manual...
  • Page 150: Gsm/Gprs Radio Configuration

    SIM card is not in the slot. If a SIM card is installed, remove the battery, and then remove the SIM card as described in “Removing The SIM Card” on page 27. Psion Teklogix netpad Windows CE .NET 4.2 User Manual...
  • Page 151 4. Go to View/Options... which will open the Folder Options menu. Under Advanced Settings, uncheck the Hide protected operating system files (Recommended) option, then click OK. 5. Double-click on the GSM Band icon. This will bring up the GSM Band Selection menu. Psion Teklogix netpad Windows CE .NET 4.2 User Manual...
  • Page 152 11. Insert the SIM card into the SIM card slot (for detailed instructions, see “Installing And Removing The SIM Card” on page 25). 12. Replace the battery into the netpad. The netpad will boot up. Psion Teklogix netpad Windows CE .NET 4.2 User Manual...
  • Page 153 15. Double-click on the Make New Connection wizard. Type the connec- tion name “GPRS” into the text box, and verify that the Dial-Up Con- nection radio button is selected. Click on the Next button. Psion Teklogix netpad Windows CE .NET 4.2 User Manual...
  • Page 154 18. Then click on the Call Options tab to access the following menu. 19. Uncheck the Wait for dialtone before dialing box and click OK. The Modem selection screen will return. Click on the Next button. Psion Teklogix netpad Windows CE .NET 4.2 User Manual...
  • Page 155 22. Double-click on the GPRS connection. This will bring up the Dial-Up Connection screen. Click on the Dial Properties... button. 23. This will bring up the Dialing Properties dialogue box. From the When dialing from: dropdown list, select GSM/GPRS. Click OK. Psion Teklogix netpad Windows CE .NET 4.2 User Manual...
  • Page 156: Bluetooth Radio Configuration

    Other Bluetooth devices that connect with the netpad may use dif- ferent terminology for some features (i.e. Authentication, Pairing, Bonding, etc.). Verify that the features being configured are the same on each device. Psion Teklogix netpad Windows CE .NET 4.2 User Manual...
  • Page 157: Netpad Bluetooth Settings

    Note: Ensure that the intended device (another netpad, a Zebra printer, etc.) is powered on, and that its Bluetooth radio is enabled (this is automatic for Zebra printers and the netpad). Psion Teklogix netpad Windows CE .NET 4.2 User Manual...
  • Page 158: Devices Menu Page

    At this point you can either query for services or set the PIN for each device. Once you highlight a device in the list box, both the Services and Set PIN buttons become available. Psion Teklogix netpad Windows CE .NET 4.2 User Manual...
  • Page 159 Notes: netpad will automatically assign COM8 to the Printer profile. The CH column shows the RFCOMM channel of the service IF the service is RFCOMM-based. This information is not generally needed except for debugging purposes. Psion Teklogix netpad Windows CE .NET 4.2 User Manual...
  • Page 160 Highlight a device, click on the Set Pin button, and enter the PIN. You will receive a message, either that the PIN has been successfully validated, or the warning message shown below. Psion Teklogix netpad Windows CE .NET 4.2 User Manual...
  • Page 161: Servers Menu Page

    Place a checkmark in the checkbox to activate the server and it will show the associ- ated port name beside the server name. The port name also follows the convention under the Property menu (see “Section 7.4.1.3 Property Menu Page” on page 136). Psion Teklogix netpad Windows CE .NET 4.2 User Manual...
  • Page 162: Property Menu Page

    (see the Note on page 137). Device Class shows the Class of Device (e.g. desktop, hand-held), which is always set to Handheld. Local Bluetooth Address shows the address of your netpad radio. Psion Teklogix netpad Windows CE .NET 4.2 User Manual...
  • Page 163 Although the name will have changed in the Property menu in Bluetooth Controls, the radio only reads it on boot-up. Therefore, for the changes to take effect, you must reset the netpad (see “How To Reset The netpad” on page 32). Psion Teklogix netpad Windows CE .NET 4.2 User Manual...
  • Page 164: Gprs Communications With Bluetooth

    Bluetooth devices. Please make sure that your phone is discoverable. 3. From your netpad, double-click on the Bluetooth Device Properties icon in the Control Panel, which will open the Bluetooth Controls window. Psion Teklogix netpad Windows CE .NET 4.2 User Manual...
  • Page 165 PIN. The Authentication Request dialogue will appear. Enter the PIN, press OK, and the devices will be connected. Important: The cell phone must have authentication enabled, otherwise the PIN authentication will fail. Psion Teklogix netpad Windows CE .NET 4.2 User Manual...
  • Page 166: Configuring A Gprs Connection

    5. Double-click on Make New Connection. Type a connection name such as “GPRS” into the text box, and verify that the Dial-Up Connec- tion radio button is selected. Click on the Next> button. Psion Teklogix netpad Windows CE .NET 4.2 User Manual...
  • Page 167 Properties menu. From the Baud Rate dropdown list under the Port Set- tings menu tab, select 115200. Then set Flow Control to Hardware. 8. Next, click on the Call Options tab to access the Call Setup menu. Psion Teklogix netpad Windows CE .NET 4.2 User Manual...
  • Page 168 Use server-assigned IP address box. And, under the Name Servers menu tab also check the Use server-assigned addresses box. Then press OK to continue. You will return to the Modem screen. Psion Teklogix netpad Windows CE .NET 4.2 User Manual...
  • Page 169 13. Click on the Finish button. This will return you to the Network and Dial-Up Connections screen. You will now have an additional icon rep- resenting the new dial-up connection (shown in the figure as “GPRS”). Psion Teklogix netpad Windows CE .NET 4.2 User Manual...
  • Page 170 When dialing from: dropdown box. Select OK to continue. 16. From the Dial-Up Connection window select Connect and your phone should initiate a GPRS connection. Important: While GSM/GPRS is active, ActiveSync will not be available. Psion Teklogix netpad Windows CE .NET 4.2 User Manual...
  • Page 171: Internet And E-Mail Settings

    If you want to access your work mailbox, you will first need to contact your network administrator to find out whether you can make a ‘remote’ (dial-up) connection to your mailbox. See “Types Of E-mail Account” on page 146 to continue. Psion Teklogix netpad Windows CE .NET 4.2 User Manual...
  • Page 172: Types Of E-Mail Account

    You will need to find out from your network administrator whether you can access your e-mail mailbox using this type of account. If you can, move on to “Setting Up Your netpad” on page 148 to continue. Psion Teklogix netpad Windows CE .NET 4.2 User Manual...
  • Page 173: If You Don't Have An Internet/E-Mail Account

    A unique identifier in alphabetic characters for a network device. The hostname corresponds to the device’s numeric IP address. For example, www.psionteklogix.com could be the same as the IP address 194.129.243.153. Psion Teklogix netpad Windows CE .NET 4.2 User Manual...
  • Page 174: Setting Up Your Netpad

    You can use the following types of modem with your netpad: • Standard external PC modems. • Internal radio modem (GSM variant), see “GSM/GPRS Radio Configu- ration” on page 124 for details. • Infrared-enabled mobile phones with built-in modems. Psion Teklogix netpad Windows CE .NET 4.2 User Manual...
  • Page 175: Getting Help

    Contacting your ISP by e-mail or phone for technical support. • Checking the Psion Teklogix web site at www.psion.com/mobile for details of worldwide ISPs and to use the ISP configuration wizard. Psion Teklogix netpad Windows CE .NET 4.2 User Manual...
  • Page 176 (for incoming mes- e.g. “pop3.myisp.com”. sages). SMTP server address (for From your ISP/administrator outgoing messages). e.g. “smtp.myisp.com”. E-mail Address (your per- From your ISP/administrator sonal address). e.g. “myname@myisp.coml”. Table 7.2 Information Checklist Psion Teklogix netpad Windows CE .NET 4.2 User Manual...
  • Page 177: Ipv6 Support

    IPv4. With IPv6 support network transitions are more transparent to devices and applications. 1. The netpad uses IPv4 by default. In order to enable IPv6 open the Control Panel to find the IPv6 Support icon. Psion Teklogix netpad Windows CE .NET 4.2 User Manual...
  • Page 178 You may also disable the IPv6 feature by unchecking the box, and allowing the netpad to reset once again. Psion Teklogix netpad Windows CE .NET 4.2 User Manual...
  • Page 179: Setting Up E-Mail On Netpad

    1. Connect your netpad to the modem using the netpad’s serial cable. What Do I Need To Do This? To connect your netpad serial cable to your modem you may require a Psion Teklogix modem cable adaptor. You can only use a Psion Teklogix adaptor, which can be obtained from your local distributor.
  • Page 180: Setting Up The Internet Service

    7. After selecting and configuring a modem, click Next to continue to the Phone Number screen. Set the phone number. Click Finish. Psion Teklogix netpad Windows CE .NET 4.2 User Manual...
  • Page 181 9. To connect, double-click on the connection. You must enter your user name and password. 10. When you have finished entering the settings, click on Connect to dial the connection. Psion Teklogix netpad Windows CE .NET 4.2 User Manual...
  • Page 182: Setting Up The E-Mail Program

    Refer to Microsoft’s online help for more information. • After configuring the service and clicking Finish, you should see your service under Installed Services. Click OK. Psion Teklogix netpad Windows CE .NET 4.2 User Manual...
  • Page 183 8.5 RS-232 Connector Assembly Instructions....165 8.5.1 RS-232 Connector Parts ....165 Psion Teklogix netpad Windows CE .NET 4.2 User Manual...
  • Page 185: Chapter 8: Netpad Accessories

    The following optional accessories are available from Psion Teklogix. These acces- sories are compatible with all netpad models in the netpad product range. Please check the Psion Teklogix web site at www.psionteklogix.com for updates to this list. 8.2 Accessory Product List...
  • Page 186 Soft Protective Case (for netpad 3000/5000) c/w belt 1202 0029 0001 clip and shoulder strap. Carrying Case (for netpad 1200) c/w shoulder strap. 1202 0026 0001 Carrying Case (for netpad 3500) c/w shoulder strap. 1202 0025 0001 Psion Teklogix netpad Windows CE .NET 4.2 User Manual...
  • Page 187 The netpad Windows CE .NET developer’s CD contains all of the development tools for the netpad. The latest versions of the files available on the Developer’s CD are available for download from the netpad Developer’s Resource web site at: http://www.psionteklogix.com/teknet/pdk/netpad-pdk Psion Teklogix netpad Windows CE .NET 4.2 User Manual...
  • Page 188: The In-Vehicle Docking Station

    • Compact 12 VDC power supply. With cigarette-lighter adaptor (which can be removed for permanent connection to vehicle power). • External 802.11b high-gain antenna option for increased LAN coverage. Psion Teklogix netpad Windows CE .NET 4.2 User Manual...
  • Page 189: Battery Charger Instructions

    3.5 to 4 hours, and the 4400 mAh pack is 6 hours. When the battery is fully charged and ready for use, the LED indicator will turn green. Psion Teklogix netpad Windows CE .NET 4.2 User Manual...
  • Page 190: 4-Bay Battery Charger Installation

    The lower LED will light up RED, to indicate power. The top LED will cycle through Green, Red, Yellow, to off, indicating that the charger is ready for use. Psion Teklogix netpad Windows CE .NET 4.2 User Manual...
  • Page 191: Connector Assembly Instructions

    Screw M2x5.5 — 40W A0105030 Table 8.1 10-Way Female Connector Assembly Set Note: For detailed information on the serial cable and port pinouts, please refer to “Serial Pinouts And Cables” on page 45. Psion Teklogix netpad Windows CE .NET 4.2 User Manual...
  • Page 192 Notes: 1. Material: Upper Hood: ABS UL 94-VO, Black Lower Hood: ABS UL 94-VO, Black PVC, Black Clip: Brass 10-Way Connector Female UL 94-VO, Black 2. Contour P/N: C30611-00 3. QC Dimension Check: Critical Major Minor Psion Teklogix netpad Windows CE .NET 4.2 User Manual...
  • Page 193 9.3.1 Basic Troubleshooting For Synchronization Problems . . .180 9.3.2 Other Things To Try .....180 Psion Teklogix netpad Windows CE .NET 4.2 User Manual...
  • Page 195: Chapter 9: Troubleshooting And Tips

    Recharge the main battery. If you continue to use the netpad when the main battery is low, it will eventually not have enough power and the netpad will switch off. You will not be able to switch it on again until you place the Psion Teklogix netpad Windows CE .NET 4.2 User Manual...
  • Page 196: Resetting The Netpad

    (see “Performing A Hard Reset” on page 33). • If none of the above solutions corrects the problem, contact your local Psion Teklogix office (see Appendix A: “Support Services And Worldwide Offices” ).
  • Page 197: Battery Life Of The Netpad Variants

    The 1800 mAh battery life ranges from 5 to 6 hours under most 1800 mAh usage conditions, dropping to 4 to 4.5 hours only when exposed to an ambient temperature of -20° C. 4400 mAh Table 9.1 Battery Life (In Hours) Psion Teklogix netpad Windows CE .NET 4.2 User Manual...
  • Page 198: Usage Scenarios

    The terminal is used for 20 minutes, followed by 40 minutes in Stand-By mode. Psion Teklogix netpad Windows CE .NET 4.2 User Manual...
  • Page 199: Charging Times

    Battery Charging Without A Docking Station The netpad battery packs can be charged using the 4-bay battery charger or the portable battery charger. See page 160 for model numbers and “Battery Charger Instructions” on page 163. Psion Teklogix netpad Windows CE .NET 4.2 User Manual...
  • Page 200: Activesync Connection Problems Using Windows® 95/98/Nt 4.0

    2. Double click the Add/Remove Programs icon. Select ActiveSync in the list and then click the Add/Remove button. Important: You must re-start your PC before re-installing ActiveSync or you will experience problems. Psion Teklogix netpad Windows CE .NET 4.2 User Manual...
  • Page 201: Basic Troubleshooting For Your Netpad

    Turn these power saving options OFF. • If your PC has an Infrared port, make sure it is disabled and your serial/COM ports are enabled. Psion Teklogix can support you with any of these issues. Check the laptop’s manual or contact the manufacturers support department to get these issues rectified.
  • Page 202 Check your PC’s device manager for conflicts. 4. If you are using Windows NT 4.0, check that you have at least Service Pack 3 installed. If necessary, install it or contact your Systems Administrator. Psion Teklogix netpad Windows CE .NET 4.2 User Manual...
  • Page 203: Device Conflicts

    4. There is no Device Manager in Windows NT 4.0. The closest is a list of IRQs, I/O ports and DMA channels. These are accessed by the Start button, selecting Programs, then Administrative Tools (Common), then Windows NT Diagnostics. Select the Resources page in the Psion Teklogix netpad Windows CE .NET 4.2 User Manual...
  • Page 204: Fax/Modem On Com 1/2/3/4

    Device Manager page and double-clicking on the COM port. Again, if you are in any doubt about whether you are able to do this safely, you should contact the person or organization that supports your PC. Psion Teklogix netpad Windows CE .NET 4.2 User Manual...
  • Page 205: Troubleshooting Activesync Synchronization Problems

    Chapter 9: Troubleshooting And Tips Troubleshooting ActiveSync Synchronization Problems If you have an external modem and have unplugged it to use the Psion Teklogix serial cable on the same port, you will not get a connection. Windows 95/98/NT 4.0 reserves this port for use with the modem and so you will have to use another port.
  • Page 206: Basic Troubleshooting For Synchronization Problems

    “WindowsCE”. Every subsequent partner- ship created after the first asks you to enter a name for that machine. Partnerships register details about your netpad on your PC. Sometimes this information can become corrupt. Psion Teklogix netpad Windows CE .NET 4.2 User Manual...
  • Page 207 If you have deleted all the partnerships, the next time you connect your netpad, the partnership will be created as “WindowsCE”. 2. Make a new backup and recreate any synchronizations. Psion Teklogix netpad Windows CE .NET 4.2 User Manual...
  • Page 209 10.4 Regulatory Information: Agere 802.11b PC Card ... 190 10.5 Regulatory Information: Cisco Air350 PC Card ... . 192 Psion Teklogix netpad Windows CE .NET 4.2 User Manual...
  • Page 211: Chapter 10: Specifications

    IP67 Rating: Extremely rugged, submersion in water to depth of 1 m/3.3 ft. for 30 minutes. Temperature Range: (1000 & 5000 series) Operating High +60°C (+140°F) -20°C (- 4°F) Storage High +70°C (+158°F) - 25°C (-13°F) Psion Teklogix netpad Windows CE .NET 4.2 User Manual...
  • Page 212: Standard Display

    Backup Battery: Up to 96 hours with main battery pack fitted. AC Power: Adaptor for battery charging via docking station. Compact 12 VDC power supply with cigarette- lighter adaptor (can be removed for permanent con- nection to vehicle power). Psion Teklogix netpad Windows CE .NET 4.2 User Manual...
  • Page 213: Standard Processor And Memory

    Development Environment: Fully compatible with Microsoft SDK for Windows CE .NET. Specific netpad Windows CE .NET SDK available. Web Browser: Microsoft Internet Explorer for Pocket PC. PC Connectivity: Microsoft Active Sync. Psion Teklogix netpad Windows CE .NET 4.2 User Manual...
  • Page 214: Radios

    Certification: FCC: Part 15, Class B C-TICK: s.182 Bluetooth 1.1 ETS 300 328 ETS 300 826 JATE TELEC * For further information concerning the Bluetooth Compact Flash Card, please visit www.socketcom.com. Psion Teklogix netpad Windows CE .NET 4.2 User Manual...
  • Page 215 1, 2, 5.5, 11Mbps * For regulatory information concerning the Cisco Air 350 PC Card, please see page 192. Also refer to the “Cisco End User License Agreement” on page xi. Psion Teklogix netpad Windows CE .NET 4.2 User Manual...
  • Page 216: Regulatory Information: Agere 802.11B Pc Card

    RF exposure compli- ance. Refer to the Regulatory Statements as identified in the docu- mentation that comes with those products for additional information. Psion Teklogix netpad Windows CE .NET 4.2 User Manual...
  • Page 217 The correction of interference caused by such unauthorized modification, substitu- tion or attachment will be the responsibility of the user. For country-specific approv- als, please consult “Radio Certification Sheet – Agere/IEEE PC Card Radio” – part number 80450. Psion Teklogix netpad Windows CE .NET 4.2 User Manual...
  • Page 218: Regulatory Information: Cisco Air350 Pc Card

    Move the equipment farther away from the television or radio. Modification to this product not authorized by Cisco could void the FCC approval and negate your authority to operate the product. Psion Teklogix netpad Windows CE .NET 4.2 User Manual...
  • Page 219: Appendix A: Support Services And Worldwide Offices

    ERVICES ORLDWIDE FFICES Psion Teklogix provides a complete range of product support services to its custom- ers worldwide. These services include technical support and product repairs. A.1 Technical Support Technical Support for Mobile Computing Products is provided via e-mail through the Psion Teklogix customer and partner extranets.
  • Page 220 +46 31 13 15 50 Tel: +65 673 58108 Tel: +31 77 32400 44 Fax: +46 31 13 57 80 Fax: +65 673 35990 Fax: +31 77 32400 53 E-mail: info@teklogix.se E-mail: teksing@teklogix.com Psion Teklogix netpad Windows CE .NET 4.2 User Manual...
  • Page 221: World Wide Web

    No.3131 Kai Xuan Rd Tel: +886 7 558 2028 Shanghai 200030 Fax: +886 7 558 3328 China E-mail: jerry.chen@teklogix.com Tel: +86 21 5407 1991 Fax: +86 21 5407 1992 A.4 W ORLD www.psionteklogix.com Psion Teklogix netpad Windows CE .NET 4.2 User Manual...
  • Page 223: Index

    AutoRestore Profile Settings 89 internal backup 16, 18 life 171 main 17 backlight properties 30 portable charger 160 backup Power Properties 16 battery, caring for 6 safety xx restoring files 58 Schemes 18 Psion Teklogix netpad Windows CE .NET 4.2 User Manual...
  • Page 224 153 Cisco PC card radio to PC 56 802.11b configuration 114–124 with Ethernet (802.11b) 55 Cisco 802.11 b DS SS 2.4GHz with Infrared (IrDA) 55 Authentication Type 118 Client Name 116 Psion Teklogix netpad Windows CE .NET 4.2 User Manual...
  • Page 225 Discrete 2 of 5 77 Field Size / Chars 64 disks, viewing files 83 figure display, specifications 186 Antenna Insertion And Removal 12 displaying Battery Insertion 15 amount of memory 93 Psion Teklogix netpad Windows CE .NET 4.2 User Manual...
  • Page 226 IPv6 (Internet Protocol Version 6) 151 radio configuration 124–130 IP67 Rating 185 radio type 188 IrDA See Infrared specifications 188 ISM band, Bluetooth radio 130 GSM Band Selection 125 definition 148 information 151 Psion Teklogix netpad Windows CE .NET 4.2 User Manual...
  • Page 227 161 PIN, Bluetooth Controls 132 backup 58 pinout, serial 46 Mobile Device 99 PINs, Bluetooth devices 134 modem POP3, definition 148 cable adaptor 153 Portable Battery Charger 160, 164 connecting 153 Psion Teklogix netpad Windows CE .NET 4.2 User Manual...
  • Page 228 Client Name (Cisco TRX7441) 116 Click Data (appending data) 62 Data Rates (TRX7441) 120 Click Time (double-click) 62 Firmware (TRX7441) 122 double-click 62 flight mode 24, 109 Input 78 GSM/GPRS 124–130 Psion Teklogix netpad Windows CE .NET 4.2 User Manual...
  • Page 229 63 time, date, home city 52 synchronizing files signal strength (TRX7441) 123, 124 ActiveSync 102–105 SIM, installation 25 system command icon 31 single-tap, stylus effect 29 System Event 20 Psion Teklogix netpad Windows CE .NET 4.2 User Manual...
  • Page 230 UPC/EAN Coupon Code 70 UPC/EAN Security Level 70 UPC A 71 UPC-A Preamble 72 UPC E 72 UPC-E Preamble 73 User Domain 119 User Event 20 User Name 119 User Password 119 VIII Psion Teklogix netpad Windows CE .NET 4.2 User Manual...

This manual is also suitable for:

Netpad 1000 seriesNetpad 3000 seriesNetpad

Table of Contents
