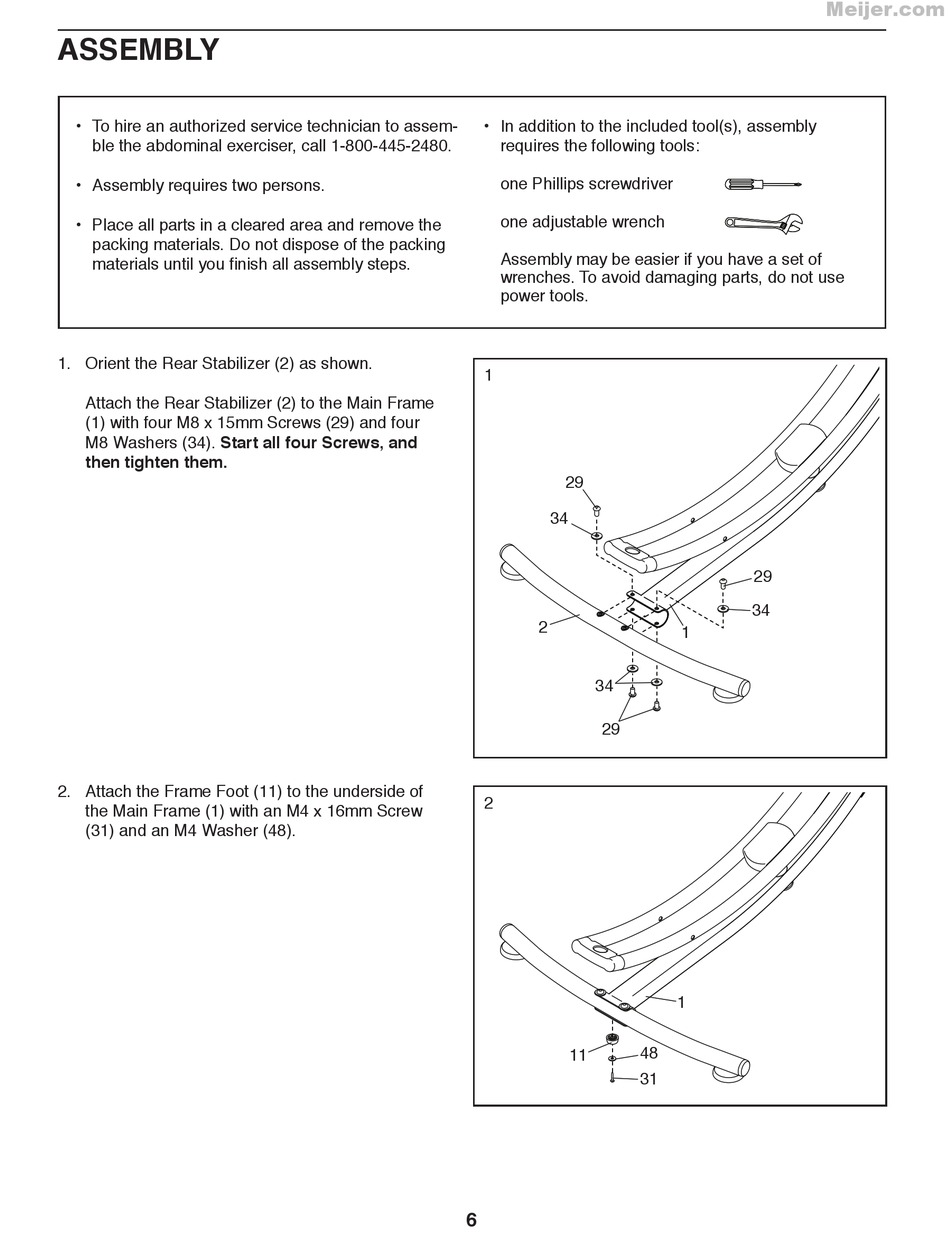

ASSEMBLY

•• To hire an authorized service technician to assem-
ble the abdominal exerciser, call 1-800-445-2480.
•• Assembly requires two persons.
•• Place all parts in a cleared area and remove the
packing materials. Do not dispose of the packing
materials until you  nish all assembly steps.
1. Orient the Rear Stabilizer (2) as shown.
Attach the Rear Stabilizer (2) to the Main Frame
(1) with four M8 x 15mm Screws (29) and four
M8 Washers (34). Start all four Screws, and
then tighten them.
2. Attach the Frame Foot (11) to the underside of
the Main Frame (1) with an M4 x 16mm Screw
(31) and an M4 Washer (48).
•• In addition to the included tool(s), assembly
requires the following tools:
one Phillips screwdriver
one adjustable wrench
Assembly may be easier if you have a set of
wrenches. To avoid damaging parts, do not use
power tools.
1
29
34
2
34
29
2
48
11
31
6
