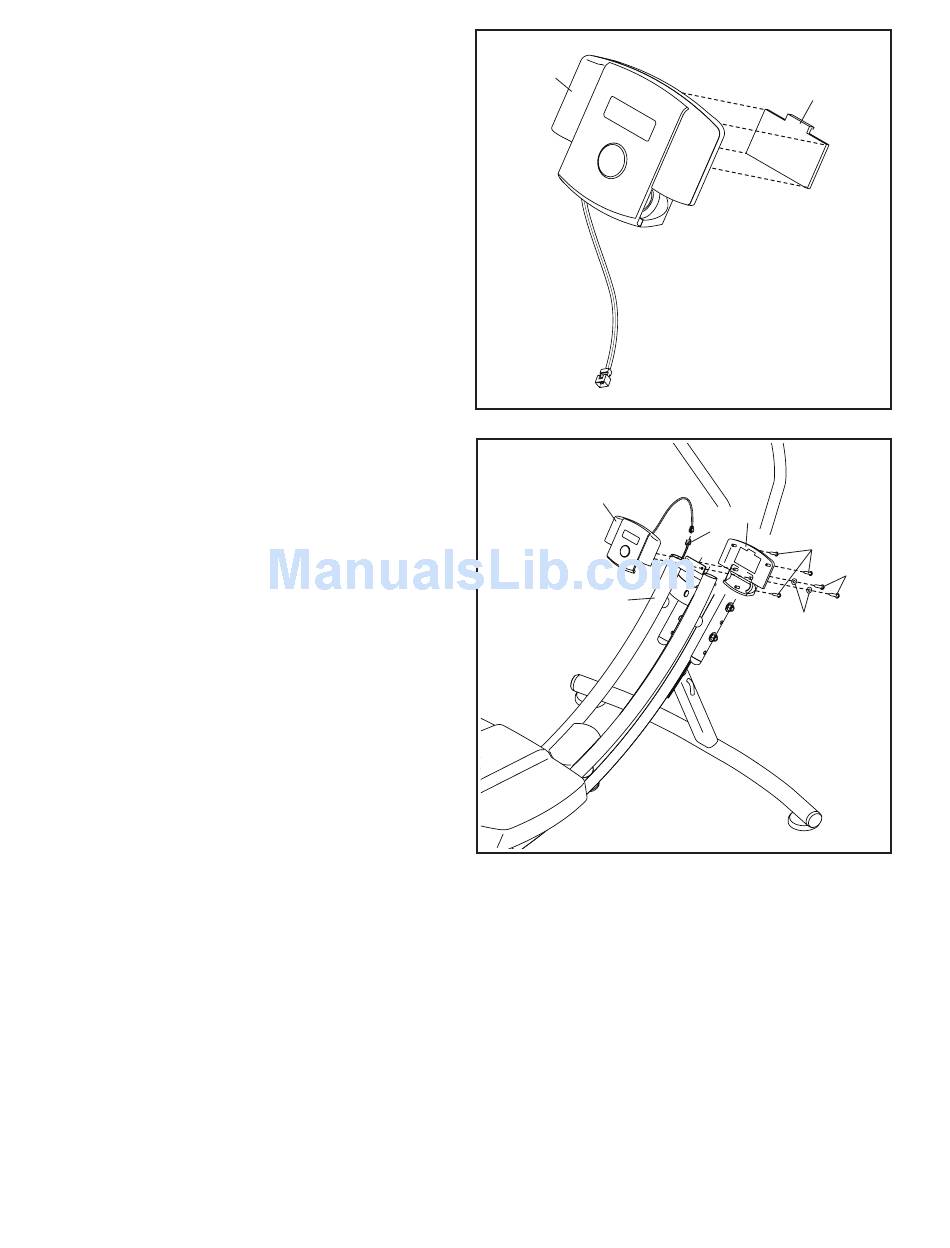

8. The Console (8) requires one AAA battery (not
included); an alkaline battery is recommended.
IMPORTANT: If the console has been
exposed to cold temperatures, allow it to
warm to room temperature before you insert
a battery. Otherwise, you may damage the
display or other electronic components.
Remove the battery cover from the back of
the Console (8). Next, insert a battery into the
Console; make sure that the battery is ori-
ented as shown by the markings inside the
Console. Then, reattach the battery cover.
9. Remove the three M3 x 15mm Screws (24) from
the Console (8), and remove the back of the
Console.
Connect the wire on the Console (8) to the Reed
Switch Wire (18) inside of the Pivot Frame (3).
Then, insert the wires downward into the Pivot
Frame.
Tip: Avoid pinching the wires. Attach the front
and back of the Console (8) to the upper end
of the Pivot Frame (3) as shown with two M4 x
20mm Screws (53) and two M4 Washers (48).
Then, tighten the three M3 x 15mm Screws (24)
into the Console (8).
10. Make sure that all parts are properly tightened before you use the abdominal exerciser. Note: After
assembly is completed, extra parts may be left over. Place a mat beneath the abdominal exerciser to protect
the floor.
