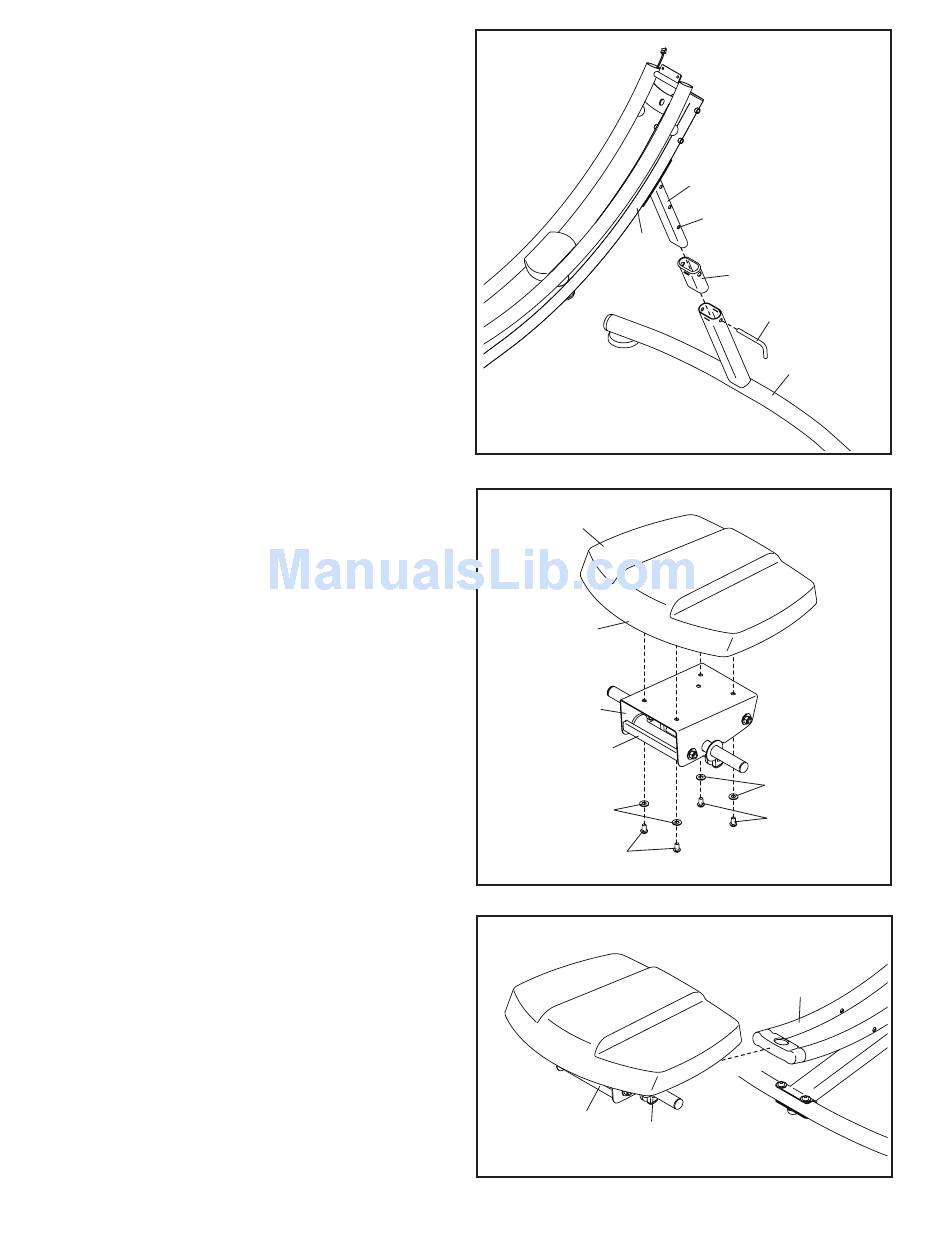

3. Insert the Sleeve (14) into the Front Stabilizer (4).
Next, orient the the Front Stabilizer (4) as shown,
and insert the leg on the Main Frame (1) into the
Front Stabilizer.
Then, insert the Incline Pin (51) into the Front
Stabilizer (4) and into one of the three adjust-
ment holes in the leg on the Main Frame (1).
4. Orient the Knee Pad (7) and the Carriage (6) as
shown.
Attach the Knee Pad (7) to the Carriage (6)
with four M6 x 15mm Screws (28) and four M6
Washers (35).
5. Orient the Carriage (6) as shown. Slide the
Carriage onto the Pivot Frame (3).
3
1
4
7
Wide
End
6
Welded
Bar
35
28
5
Welded
6
Bar
7
