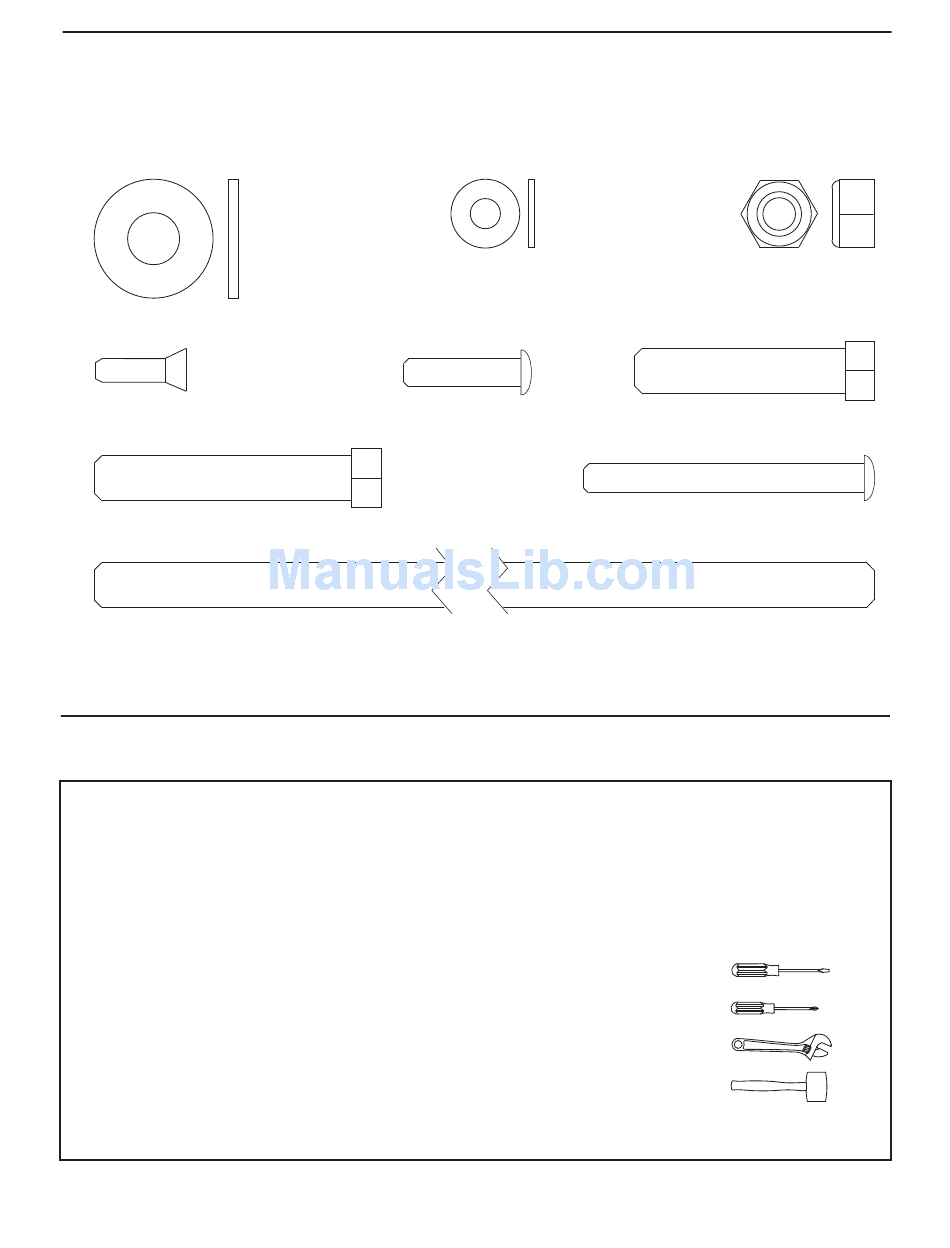

PART IDENTIFICATION CHART

See the drawings below to identify small parts used in assembly. The number in parentheses by each drawing is
the key number of the part, from the PART LIST on page 10. Note: Some small parts may have been pre-
assembled. If a part is not in the parts bag, check to see if it has been preassembled.
M10 Washer (22)
M5 x 15mm
Screw (21)
M10 x 55mm Screw (16)

ASSEMBLY

To hire an authorized service technician to
assemble the weight bench, call toll-free
1-800-445-2480.
Before beginning assembly, carefully read the
following information and instructions:
• Place all parts in a cleared area and remove the
packing materials. Do not dispose of the packing
materials until assembly is completed.
• Tighten all parts as you assemble them, unless
instructed to do otherwise.
• As you assemble the weight bench, make sure all
parts are oriented as shown in the drawings.
M6 Washer (23)
M6 x 25mm
Screw (20)
M10 x 256mm Bolt (17)
• Assembly requires two persons.
• For help identifying small parts, use the PART
IDENTIFICATION CHART above.
In addition to the included grease packet,
assembly may require the following tools:
• one standard screwdriver
• one Phillips screwdriver
• one adjustable wrench
• one rubber mallet
5
M10 Nylon
Locknut (24)
M10 x 45mm Screw (18)
M6 x 60mm Screw (19)
