ASSEMBLY

Make Things Easier for Yourself
Everything in this manual is designed to ensure
that the weight bench can be assembled suc-
cessfully by anyone. Most people find that by
setting aside plenty of time, assembly will go
smoothly.
Before beginning assembly, carefully read the
following information and instructions:
• Assembly requires two people.
• Make sure that there is enough clearance to walk
around the weight bench as you assemble it.
• Place all parts in a cleared area and remove the
packing materials. Do not dispose of the packing
materials until assembly is completed.
• As you assemble the weight bench, make sure all
parts are oriented as shown in the drawings.

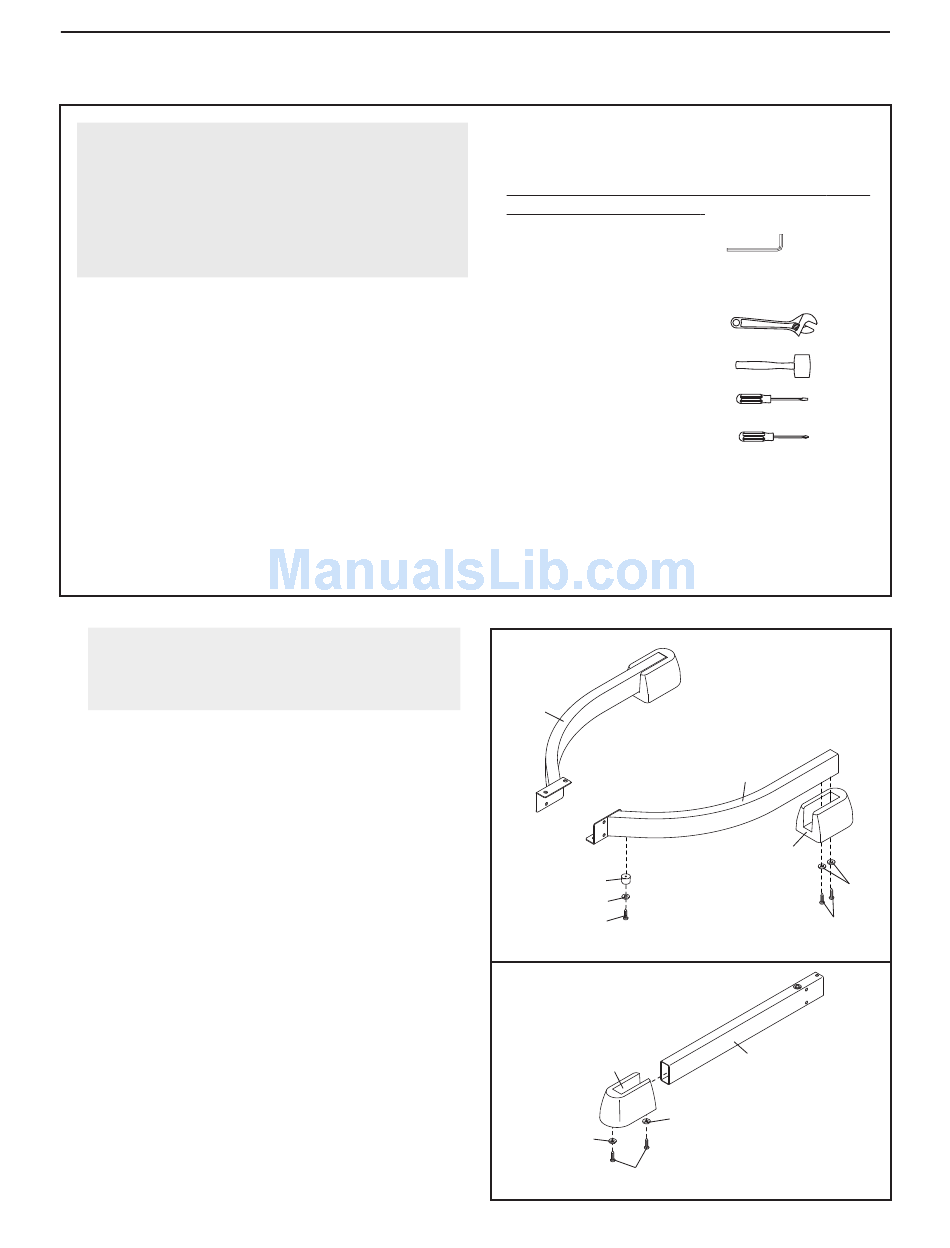

1.
Before beginning assembly, make sure you
understand the information in the box
above.
Make sure that the Left Seat Base (3) is oriented
as shown. Attach a Seat Base Bumper (31) to the
Left Seat Base with an M4 x 16mm Self-tapping
Screw (38) and an M5 Washer (39).
Attach a Bench Foot (15) to the Left Seat Base
(3) with two M4 x 16mm Self-tapping Screws (38)
and two M5 Washers (39).
Repeat this step with the Right Seat Base (2).
Make sure that the Right Seat Base is oriented
as shown.
2. Attach a Bench Foot (15) to the Seat Base (1)
with two M4 x 16mm Self-tapping Screws (38)
and two M5 Washers (39).
• Tighten all parts as you assemble them, unless
instructed to do otherwise.
• For help identifying small parts, use the PART
IDENTIFICATION CHART.
The included Allen wrenches
grease, and the following tools (not included)
may be required for assembly:
• Two adjustable wrenches
• One rubber mallet
• One standard screwdriver
• One Phillips screwdriver
• Clear tape or masking tape, and soapy water.
Assembly will be more convenient if you have a
socket set, a set of open-end or closed-end
wrenches, or a set of ratchet wrenches.
1
2
31
39
38
2
15
39
38
5
and
3
15
39
38
1
39
