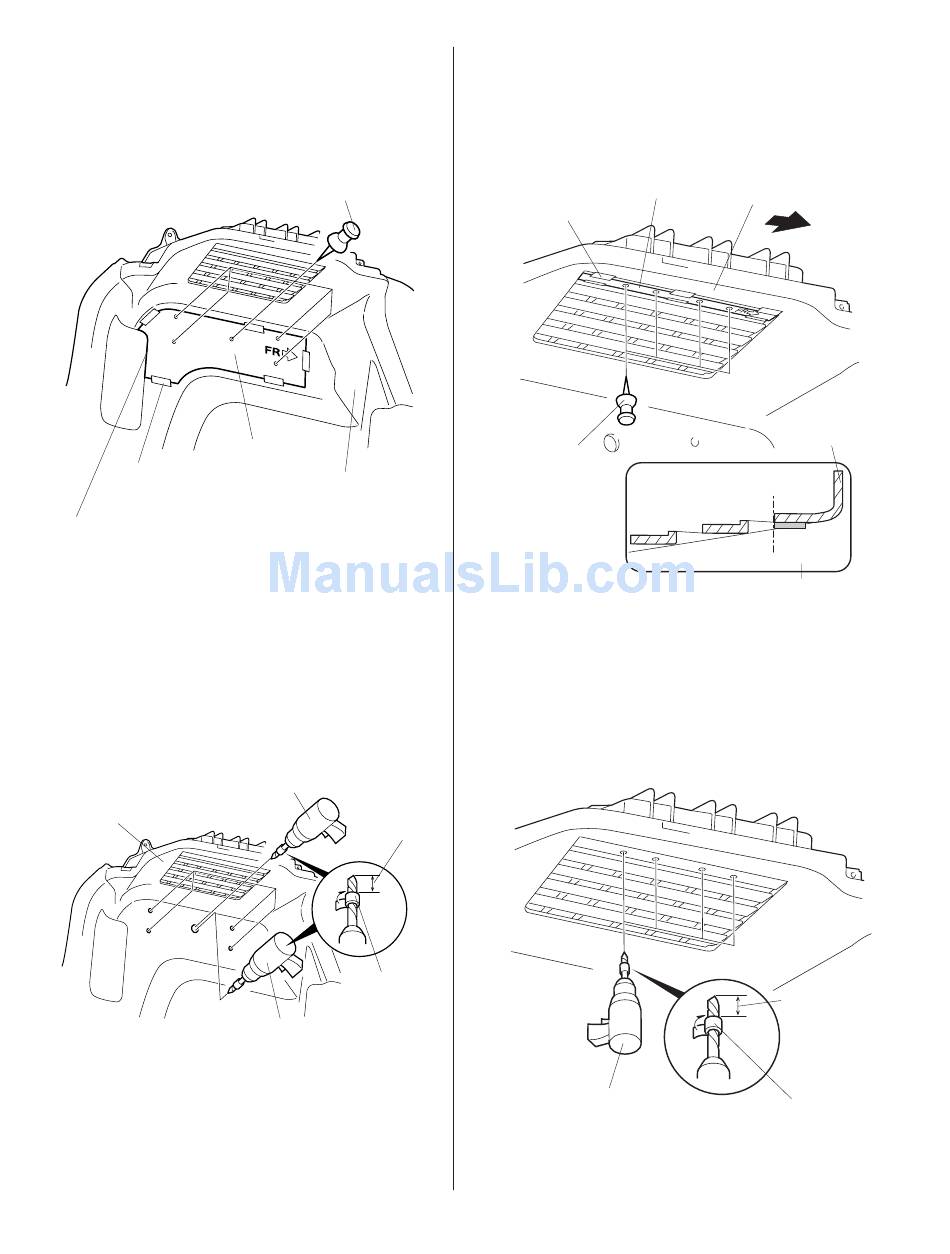

30. Get template A from the kit. Tape the template to
the left rear side trim panel in the area shown, and
tape it in place using strips of masking tape. Using
a pushpin, mark the trim panel at each of the five
marked points on the template. Remove
template A.
MASKING
TAPE
Align template A
with the cover
opening of the left
rear side trim panel.
31. While wearing eye protection, drill a 7.5 mm hole
through each of the five marks on the trim panel.
First drill with a 3 mm bit, then finish with a
7.5 mm bit. Wrap electrical tape 10 mm from the
end of the drill bit, or use a drill stop.
LEFT REAR
SIDE TRIM
PANEL
32. Expand the center 7.5 mm hole to 30 mm with a
30 mm Uni-bit.
8 of 14
PUSHPIN
TEMPLATE A
LEFT REAR
SIDE TRIM
PANEL
DRILL (First drill with a
3 mm bit, then finish with
a 7.5 mm bit.)
10 mm
ELECTRICAL
TAPE
DRILL (Enlarge this
hole to 30 mm.)
33. Position template B on the air outlet area of the left
rear side trim panel, and tape it in place using
strips of masking tape. Using a pushpin, mark the
trim panel at each of the four marked points on
the template. Remove template B.
MASKING TAPE
PUSHPIN
34. While wearing eye protection, drill a 10 mm hole
through the left rear side trim panel at each of the
four marks you just made. First drill with a 3 mm
drill bit, then finish with a 10 mm drill bit. Wrap
electrical tape 10 mm from the end of the drill bit,
or use a drill stop.
DRILL
(First drill with a 3 mm drill
bit, then finish with a 10 mm
drill bit.)
AII 27936 (0408)
LEFT REAR SIDE
TEMPLATE B
TRIM PANEL
LEFT REAR
SIDE TRIM
PANEL
TEMPLATE B
10 mm
ELECTRICAL
TAPE
© 2004 American Honda Motor Co., Inc - All Rights Reserved.
